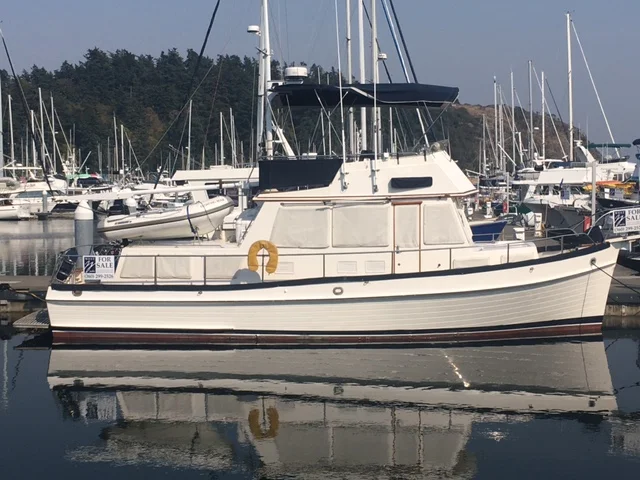

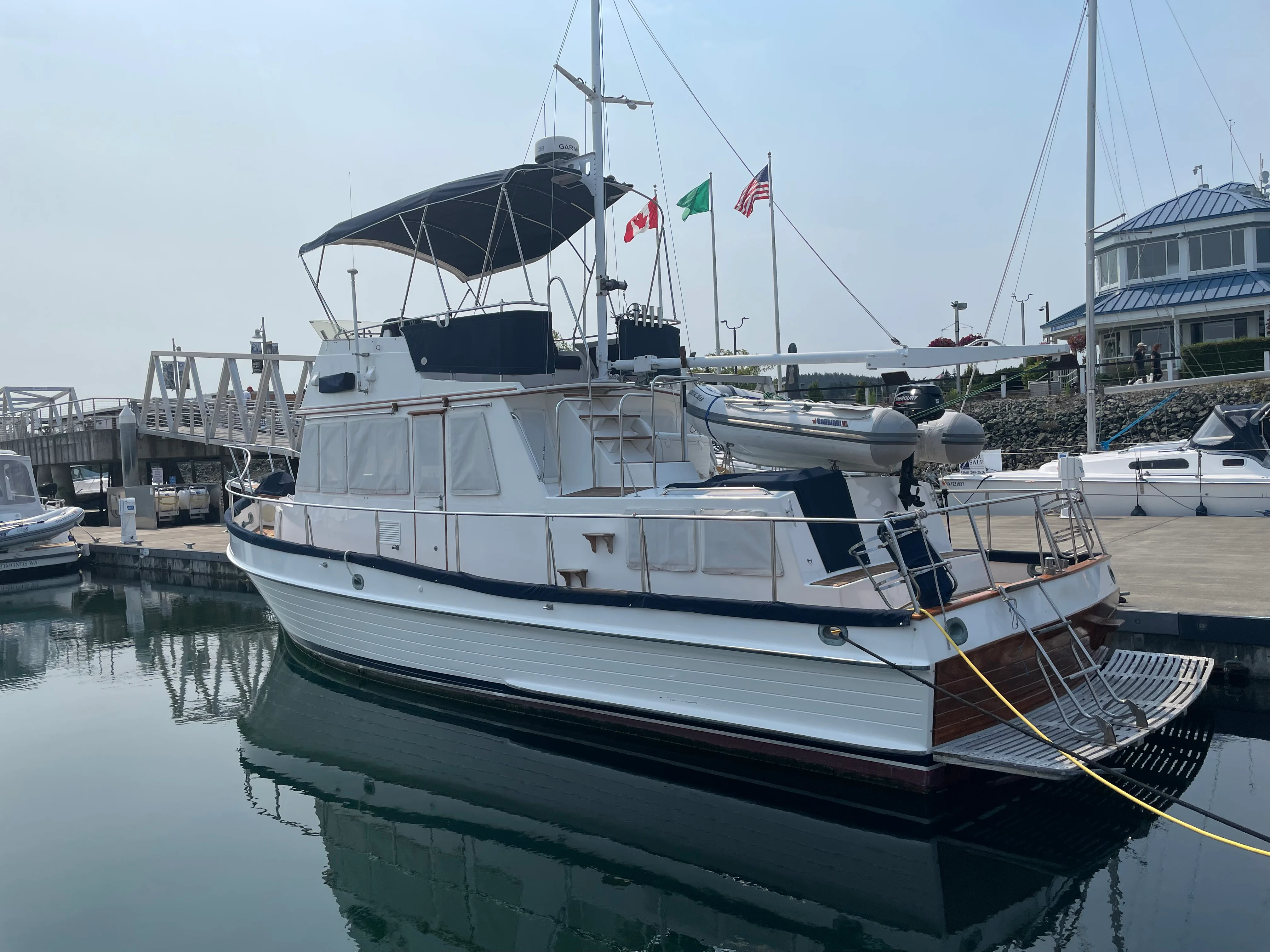

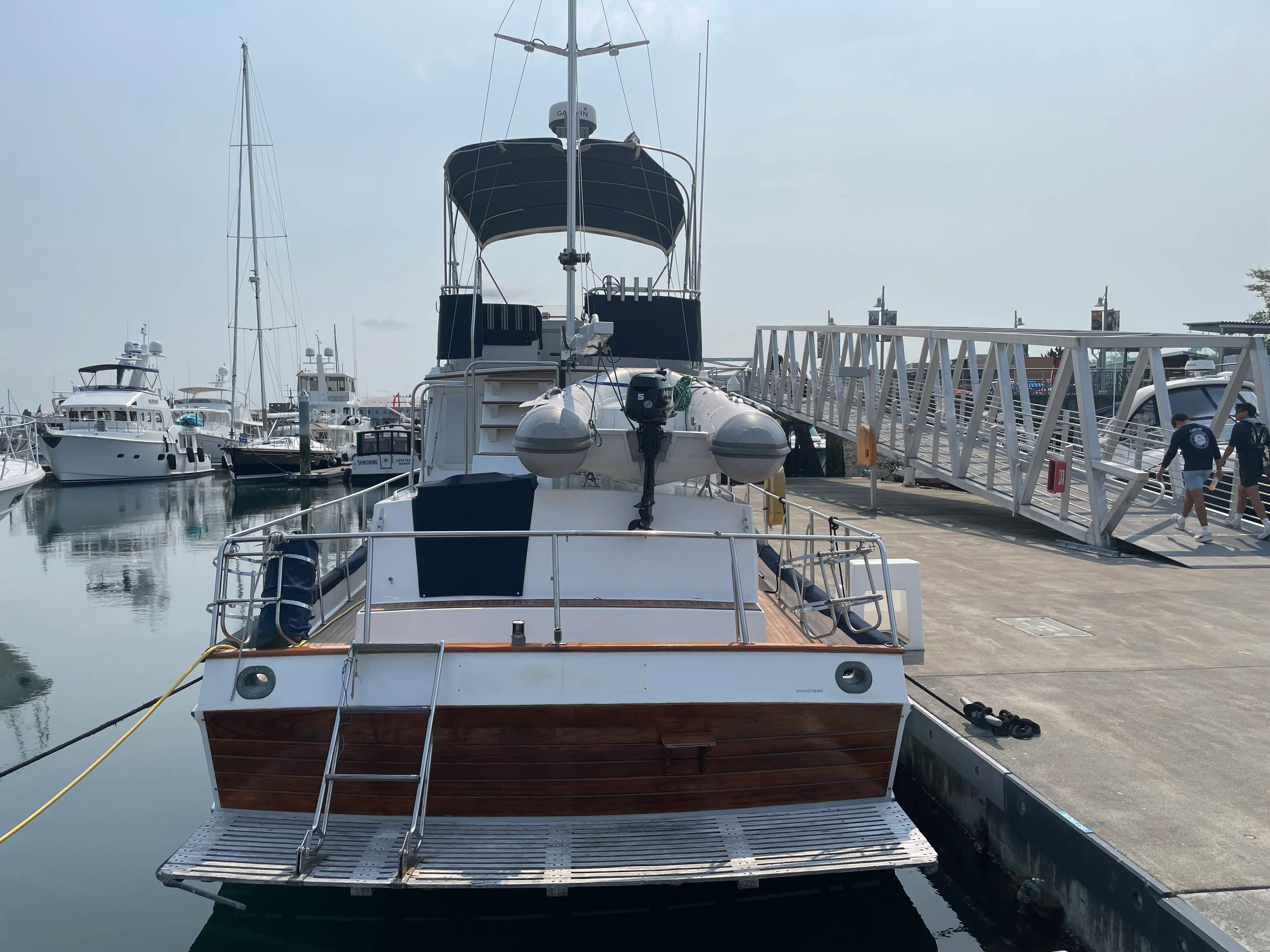

1989 Grand Banks Classic for Sale – 36 ft – Anacortes, Washington, United States

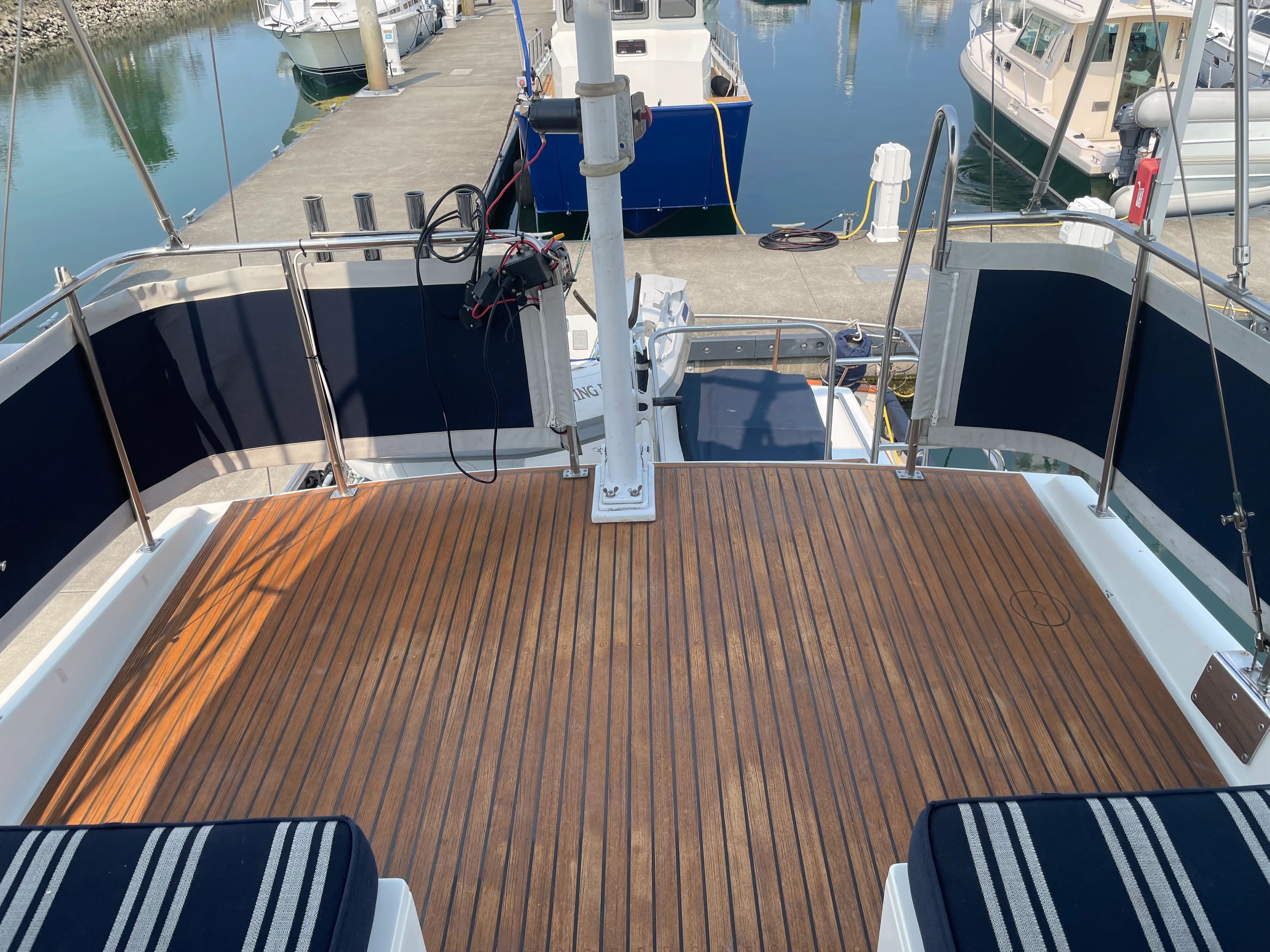

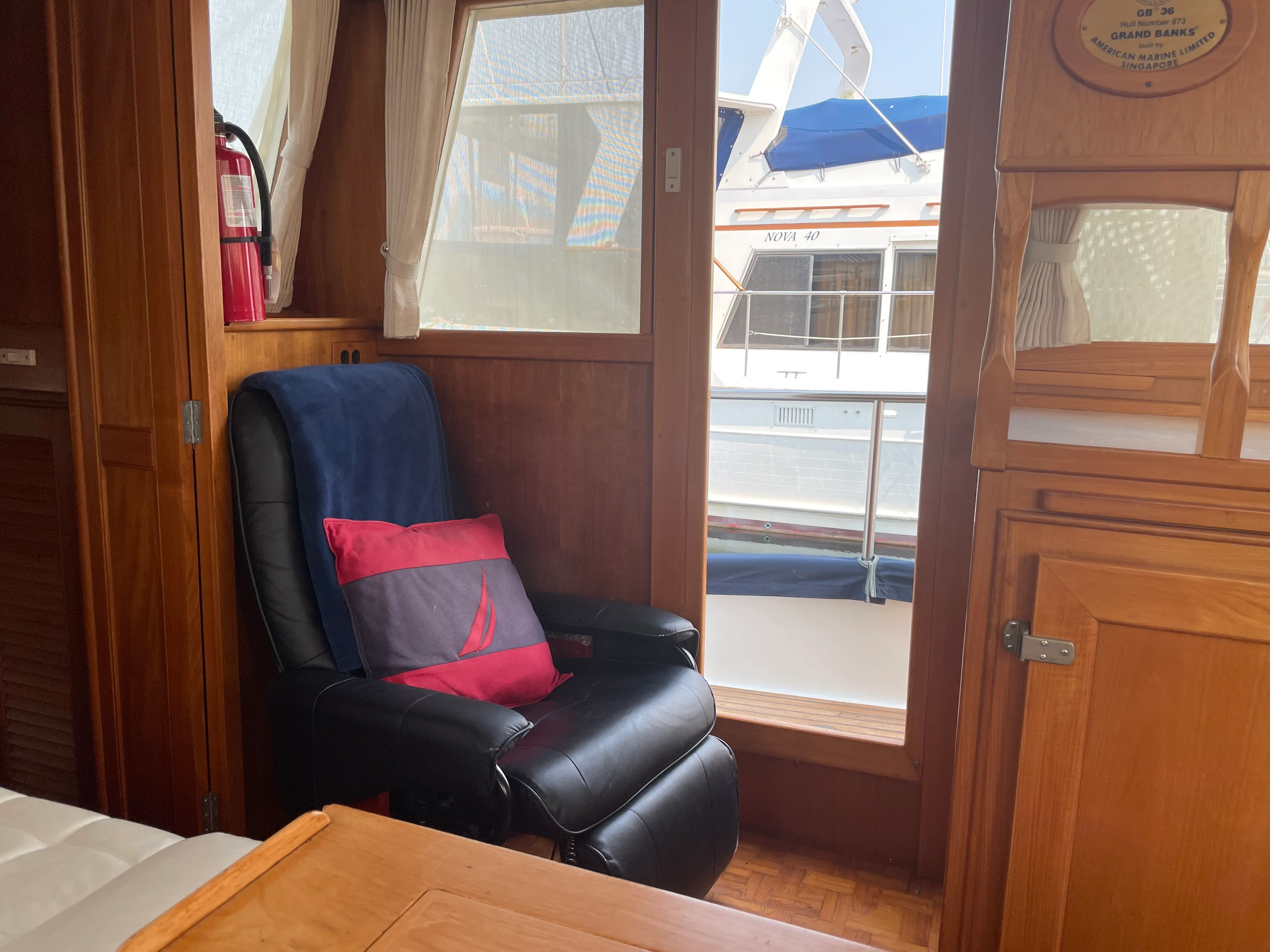

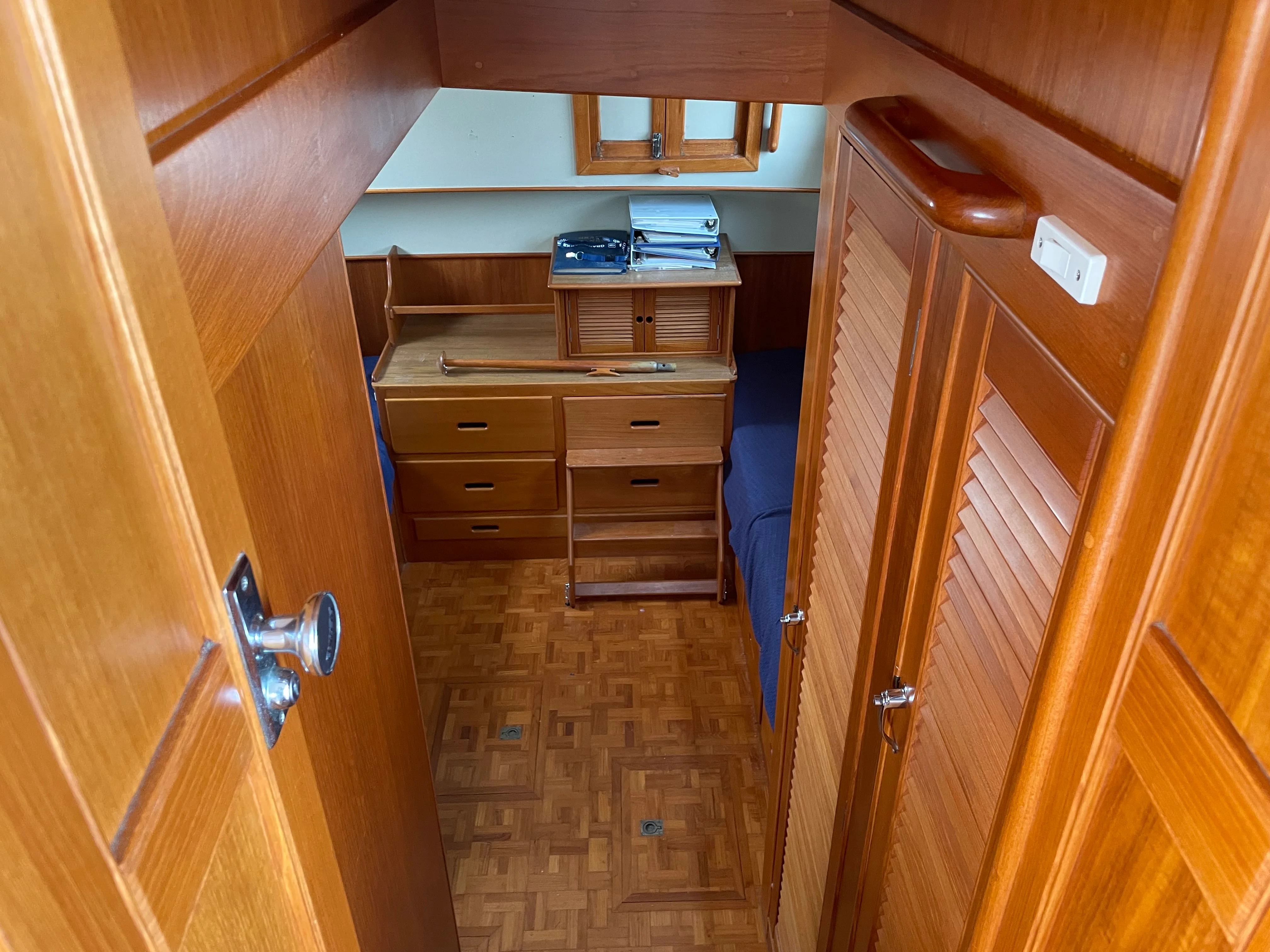

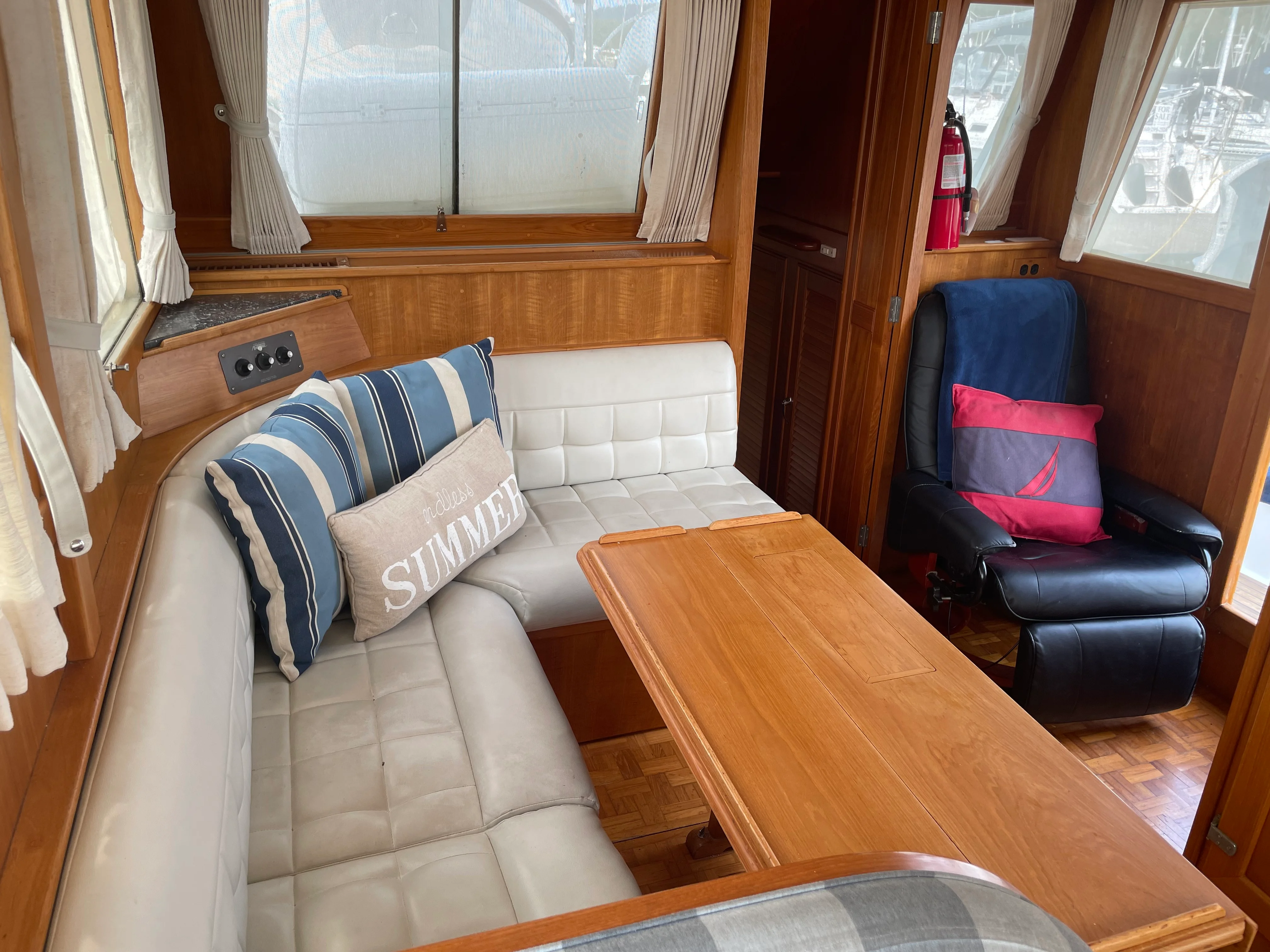

There are boats that have been with us for so long, and so popular, that they have attained Classic Status.  The Grand Banks is such a boat.  Over 1200 have been built during her production years.  A semi-displacement hull with a long keel, hard chines and a deep forefoot provide the stability that won the 36 a reputation for seaworthiness seldom matched by other boats in her class.  Two staterooms, a salon and galley all finished with handcrafted teak woodwork and all incorporating the very best workmanship, hardware and materials.  Topside, a raised bulwarks provide security to the walkaround decks, and there’s room for a dinghy on the aft cabin top.   Other notable features include teak decks, functional mast & boom and a spacious flybridge.  In 1987, the 36 Classic was slightly enlarged – six inches was added to the length and 4 inches to the beam.

Generator: Northern Lights M643 5KW Freshwater Cooled, Wet Exhaust, Diesel

• LOA – 40’

• LOD – 36’ 10”

• LWL – 35’ 2”

• Beam - 12’ 8”

• Draft – 4’

• Weight (Dry) – 26,000lbs.

• Vintage - 1989

• Mast Clearance -22’ 4”

• Hull Type – Semi-Displacement

• Hull Construction – Solid Fiberglass

• Manufacturer – American Marine, LTD. In Singapore

TANKAGE:

• FUEL – 404 Gallons in (2) 3mm Mild Steel Tanks Located Amidship in Engine Room

• Fuel Gauges – Line of Sight in Engine Room

• WATER – 154 Gallons in (2) Stainless Steel Tanks Located in the Aft Lazzerete

• HOT WATER – 10.5 Gallons – Attwood 120Volt AC – Dip Stick Tank Gauge

• WASTE – 40 Gallons in (1) Fiberglass Tank Located Amidship

• 2Volt DC Tank Full LED Gauge – Jabsco 12Volt DC Macerator – NEW OCT 2025

• PROPANE –

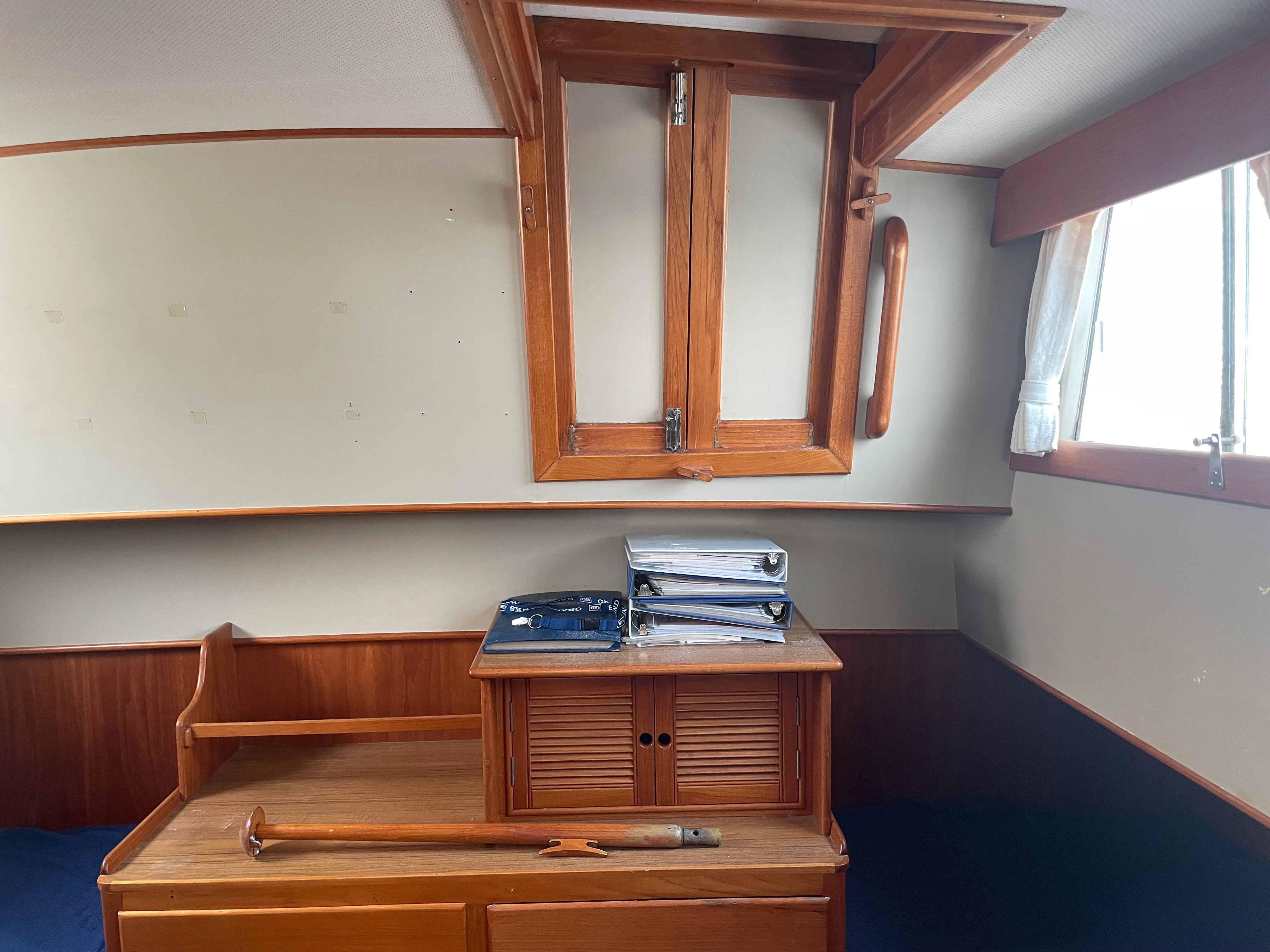

INTERIOR:

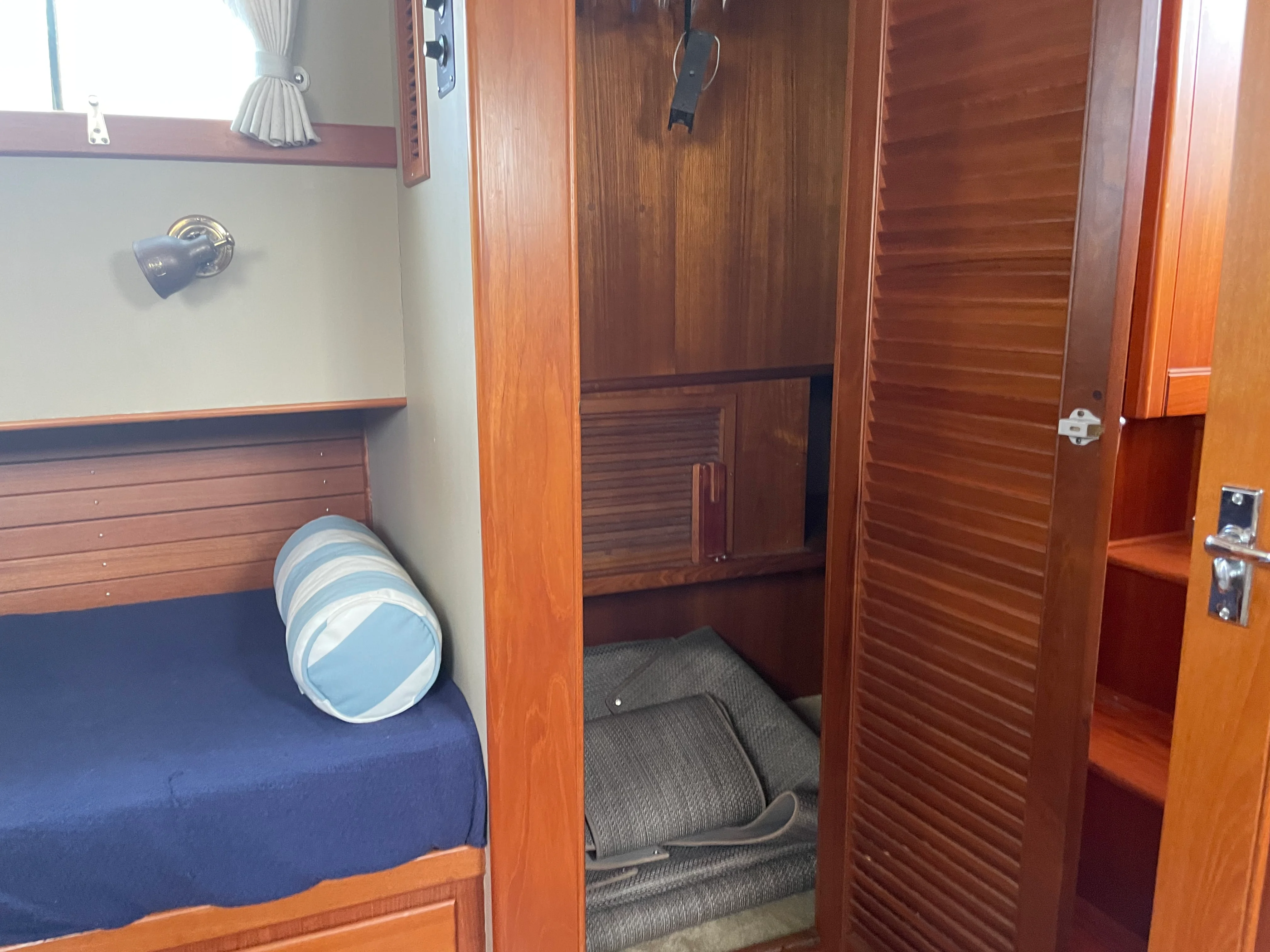

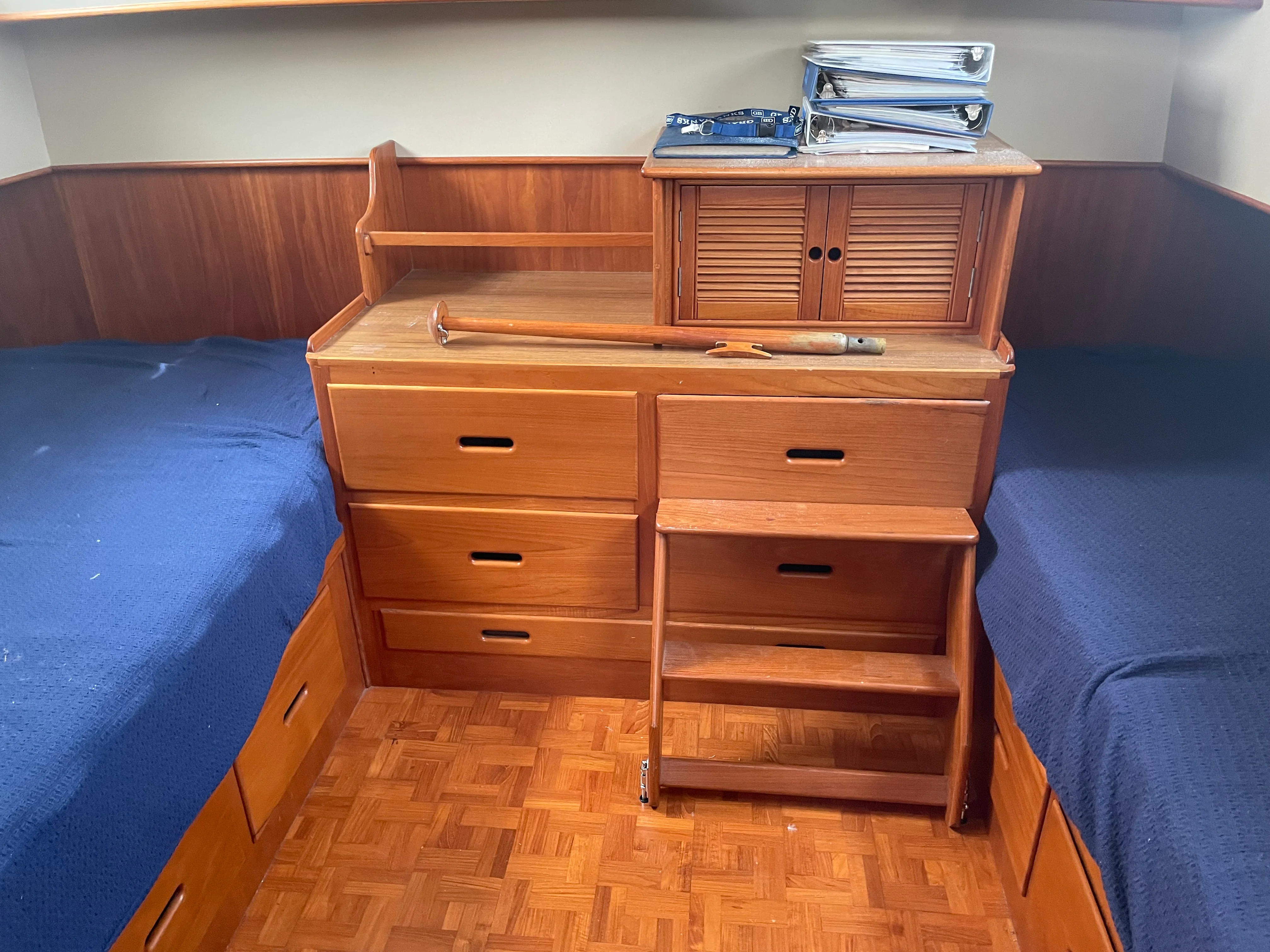

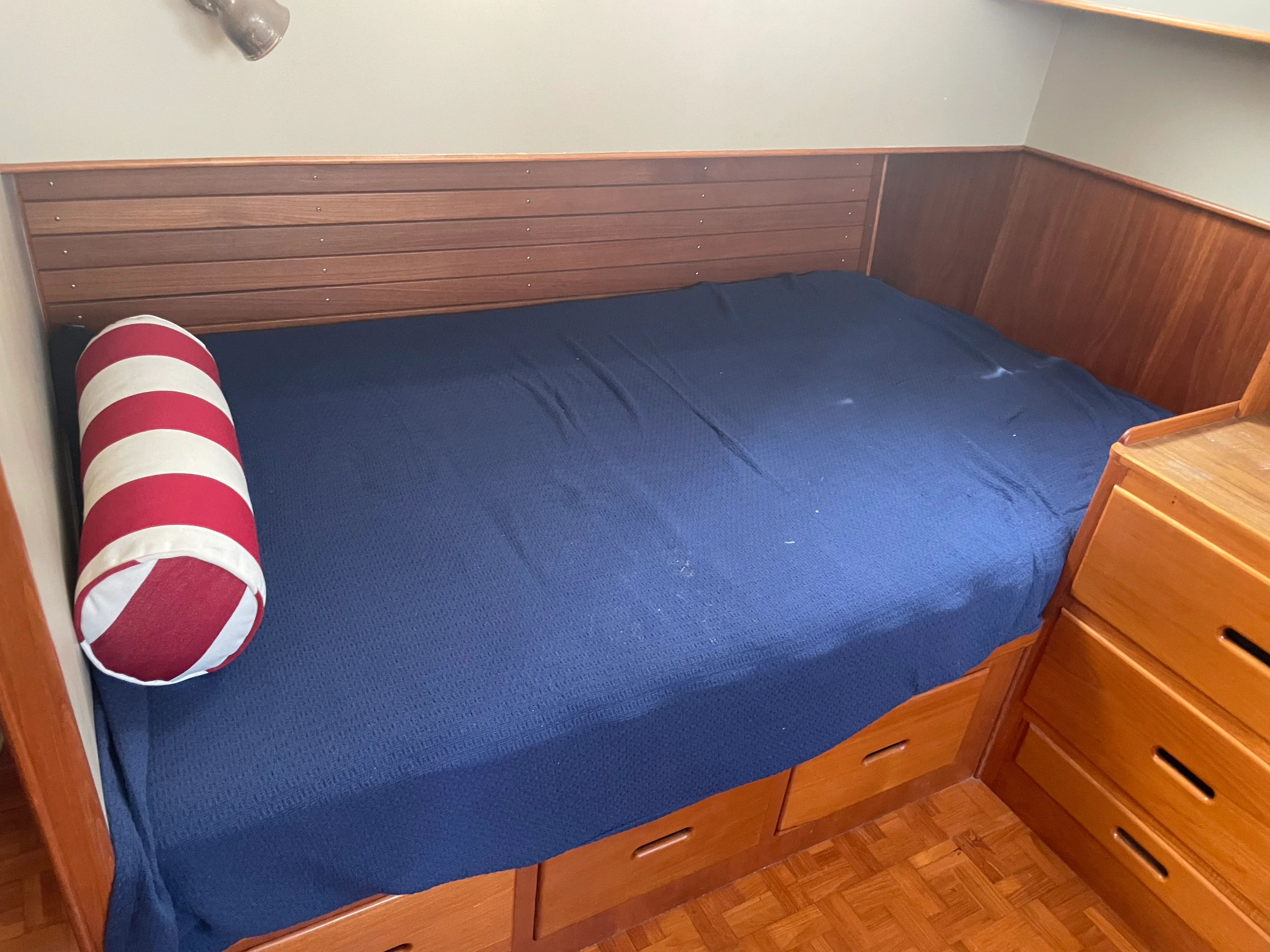

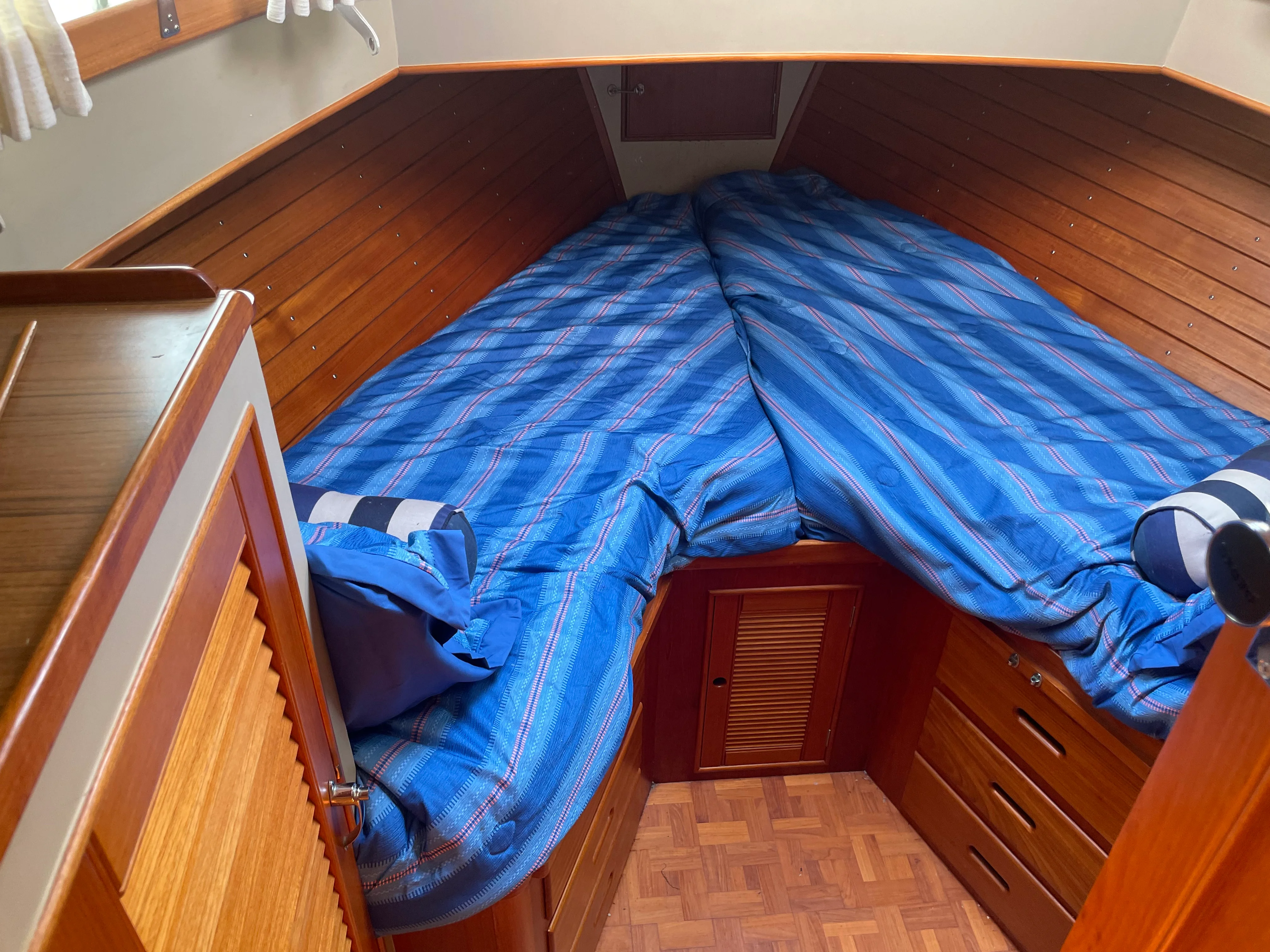

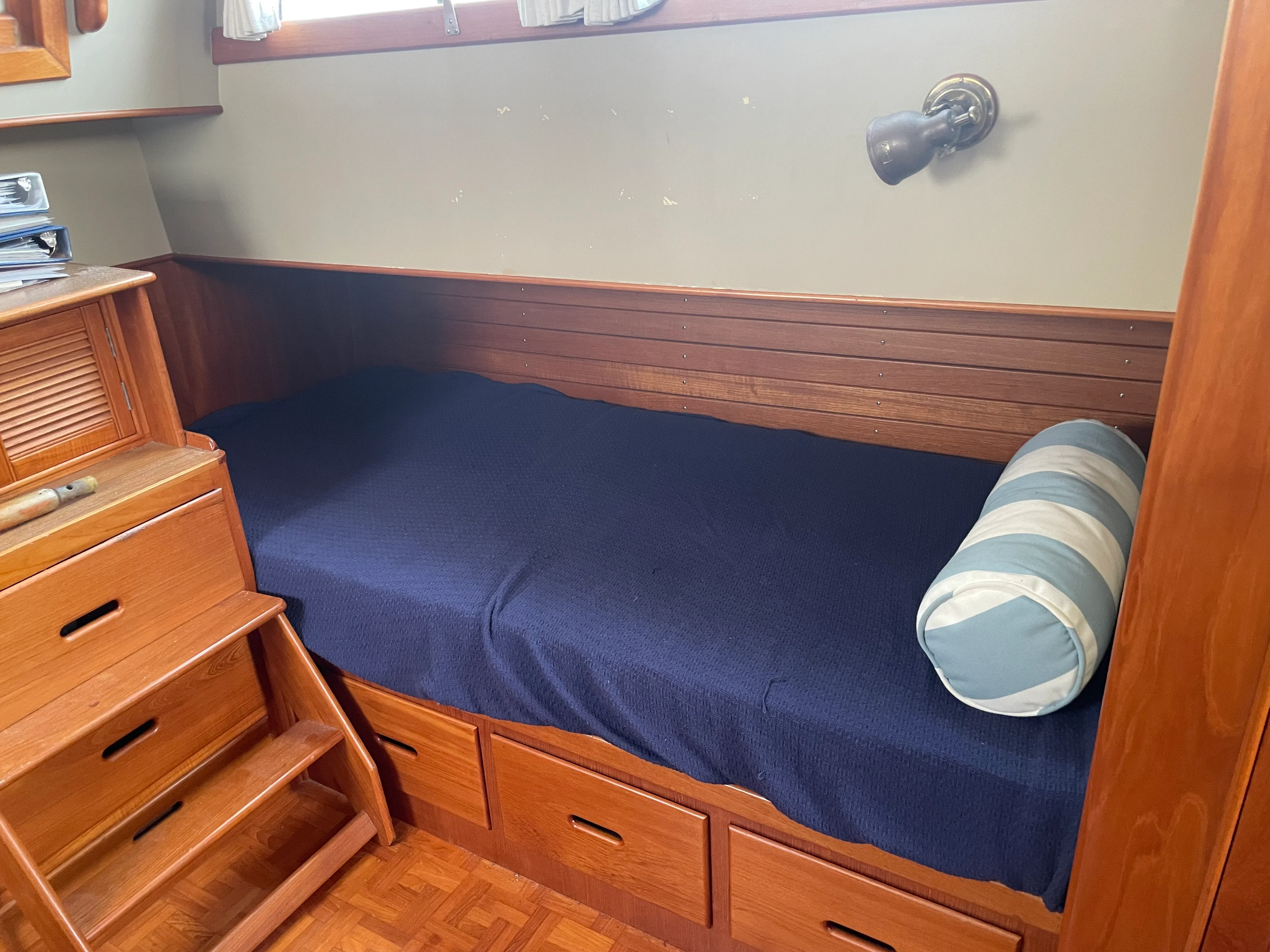

• Sleeps 6

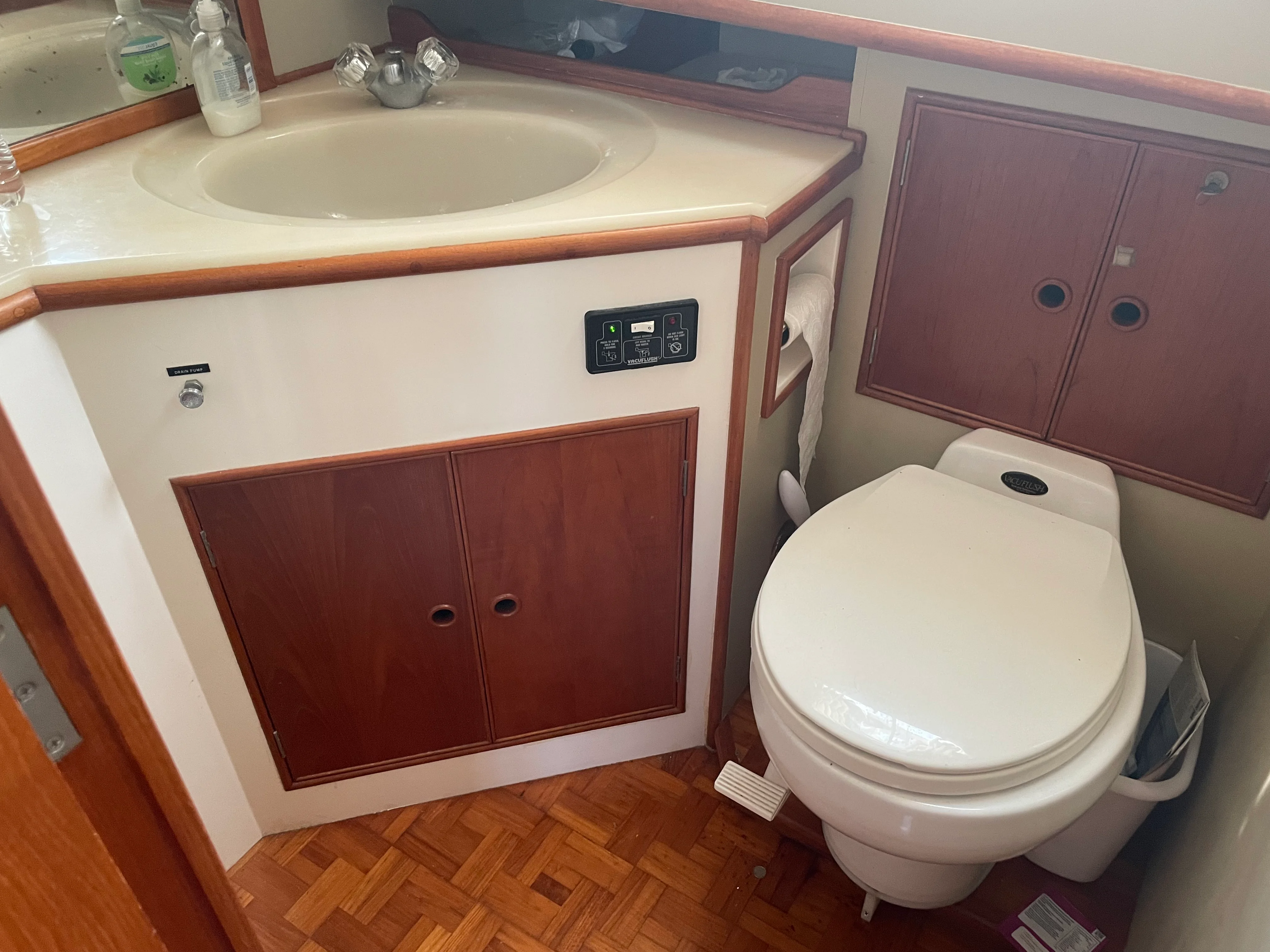

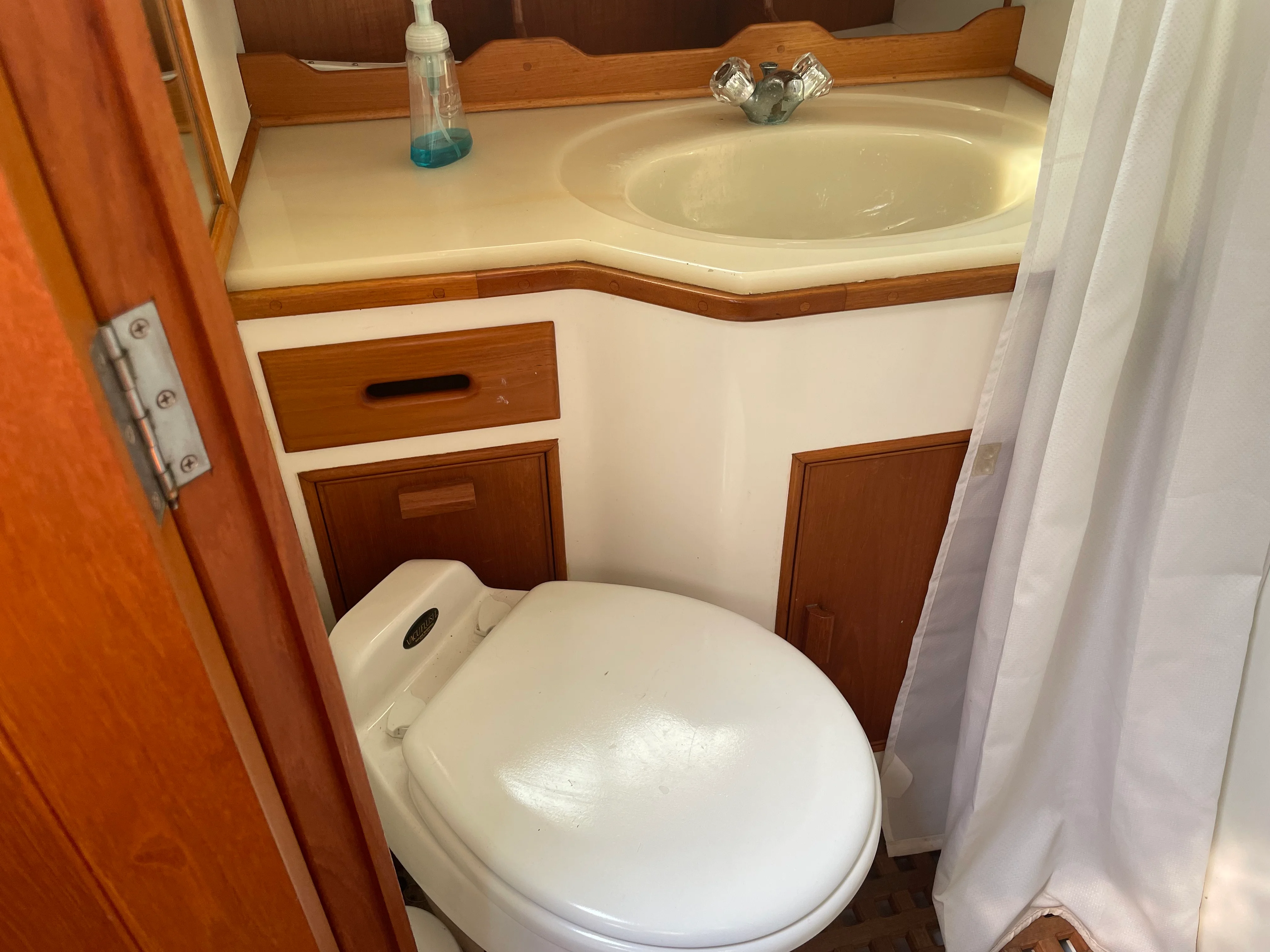

• Private Enclosed Heads – (2) Vacuflush Freshwater Toilets 12Volt DC

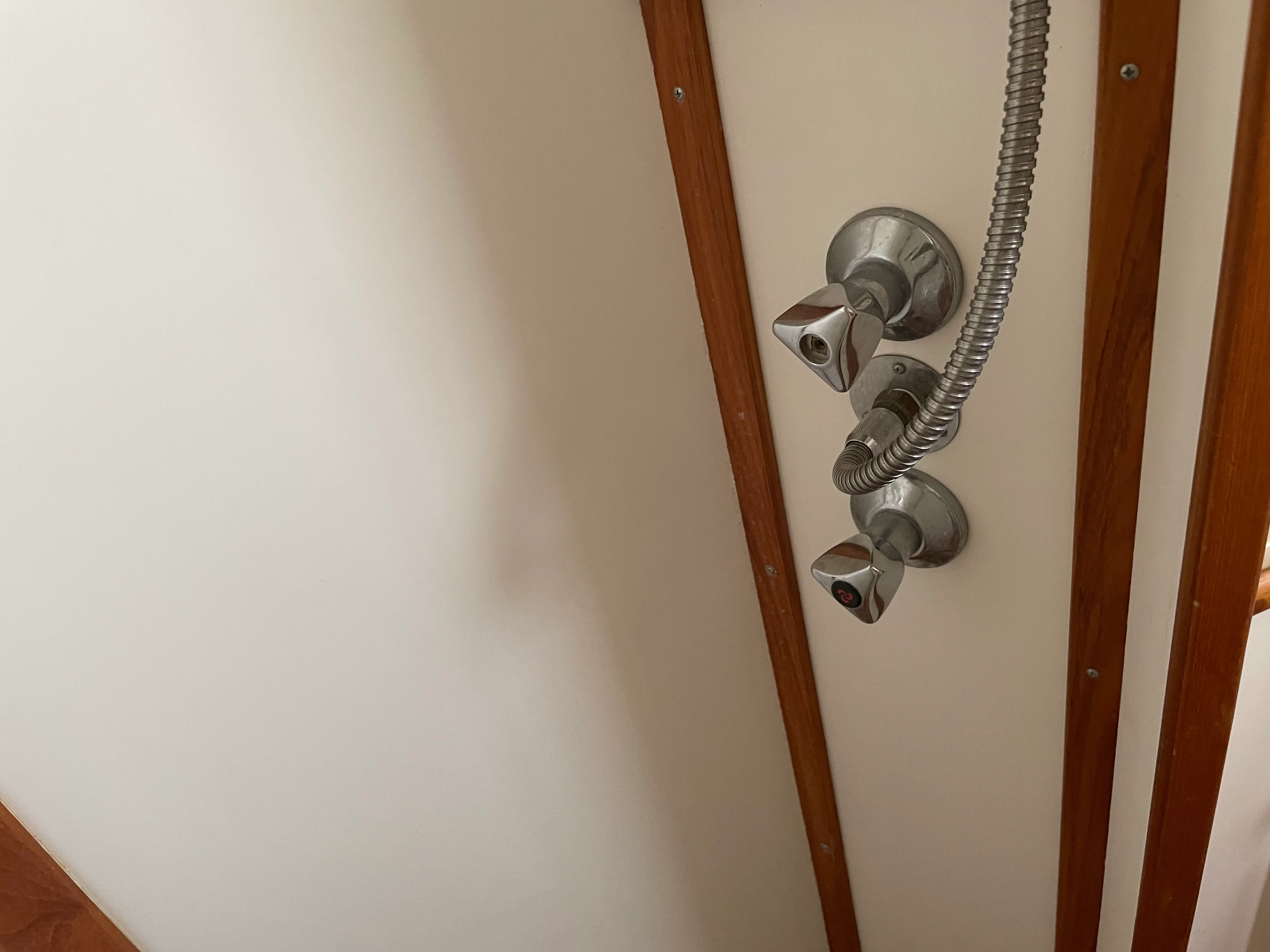

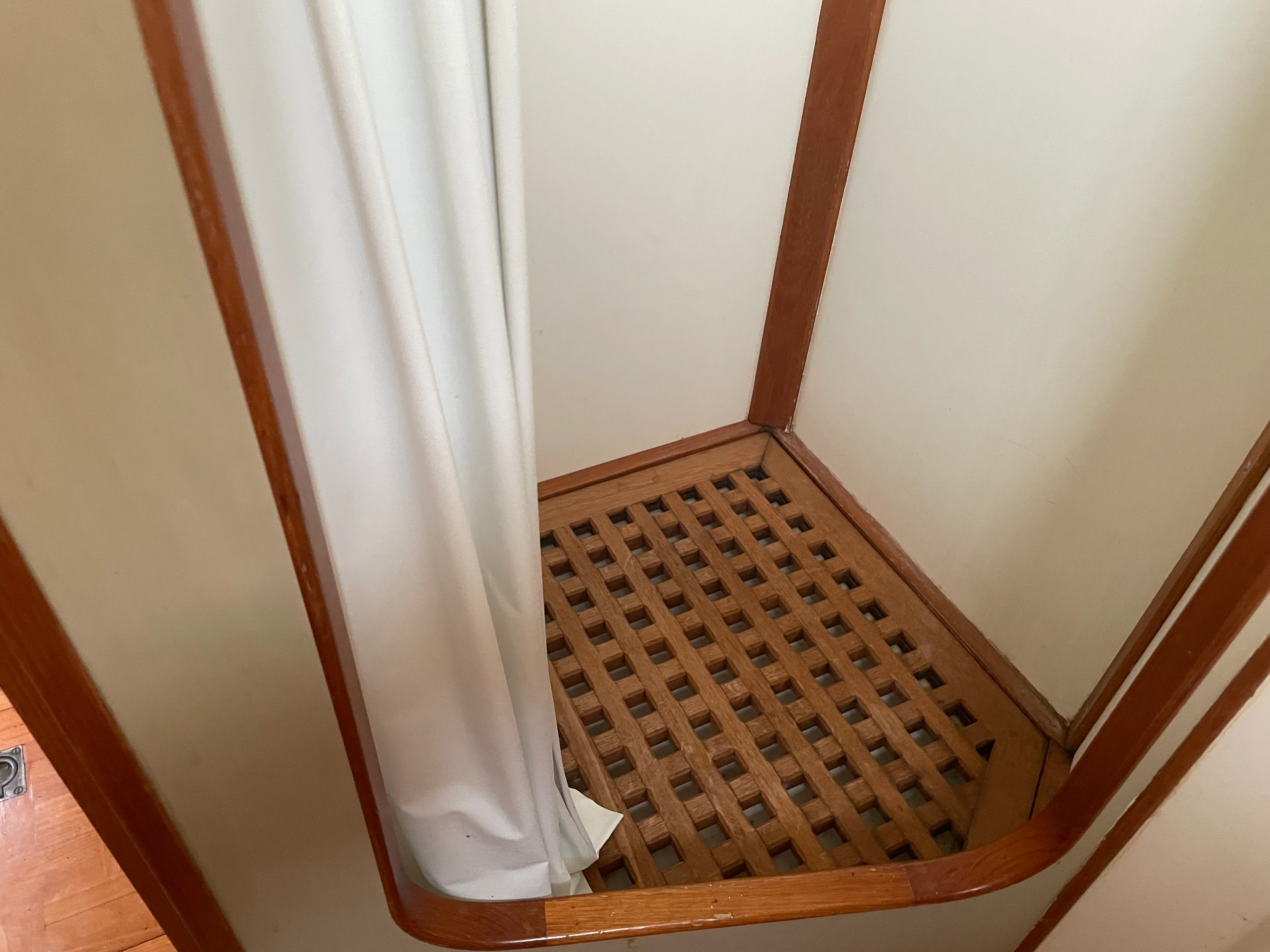

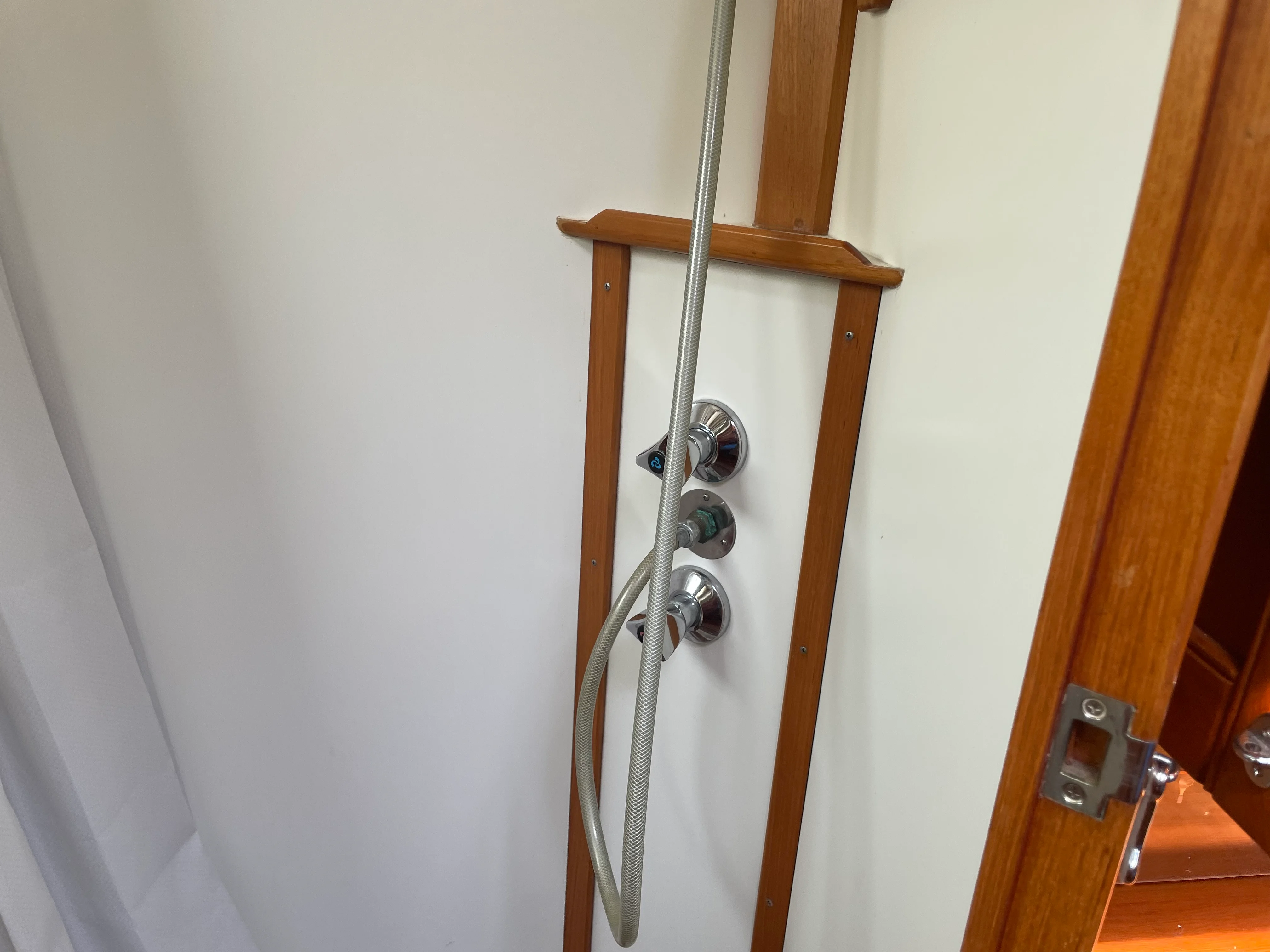

• (2) Showers – (1) Dry & (1) Wet – (2) Rule 500gph Sump Pumps

• Hot & Cold Pressure Water System – Shurflo Freshwater Pump 12Volt DC

• Refrigerator / Freezer – Sea Freeze 12Volt DC Make N/A Sweater Pump

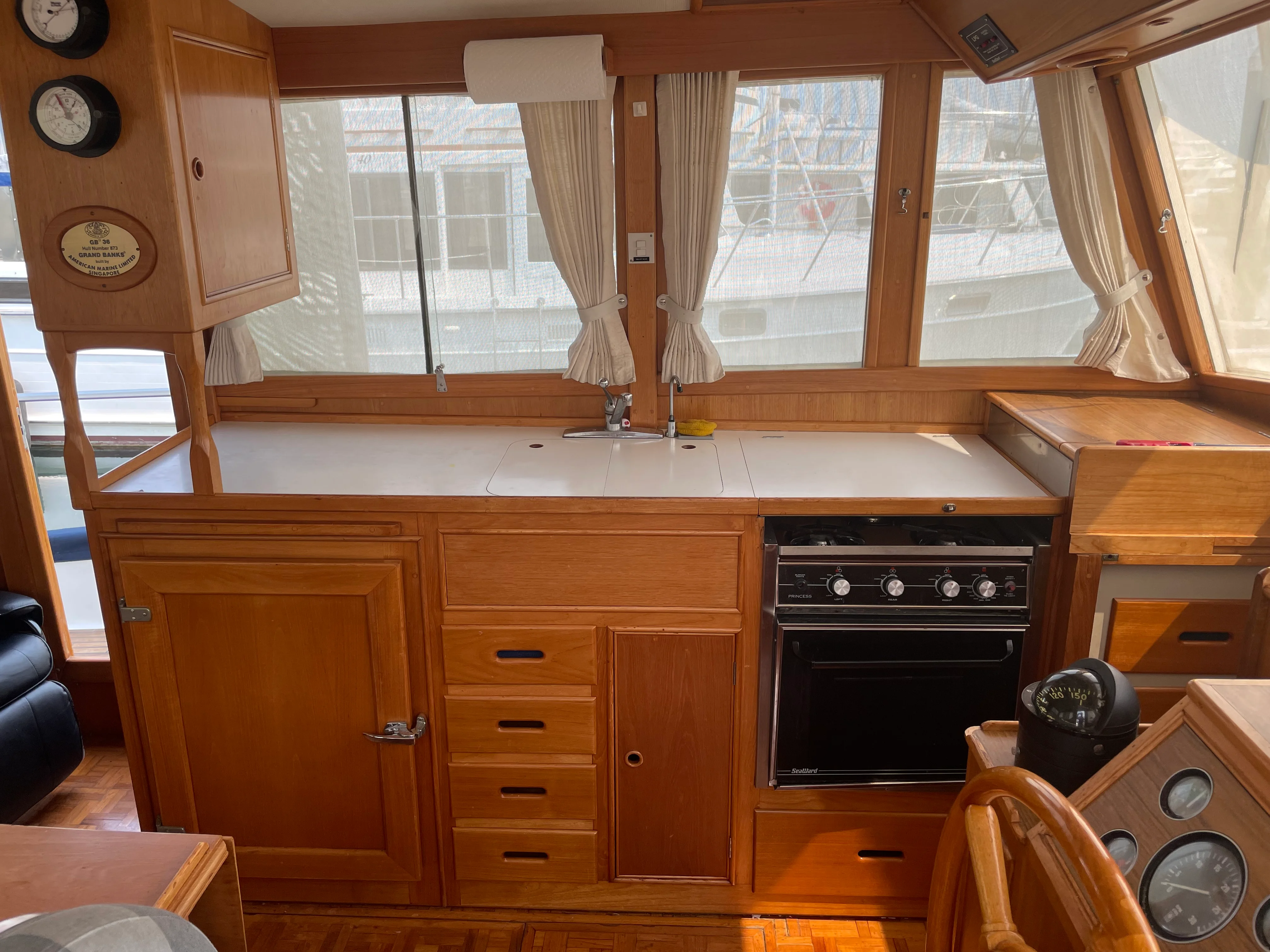

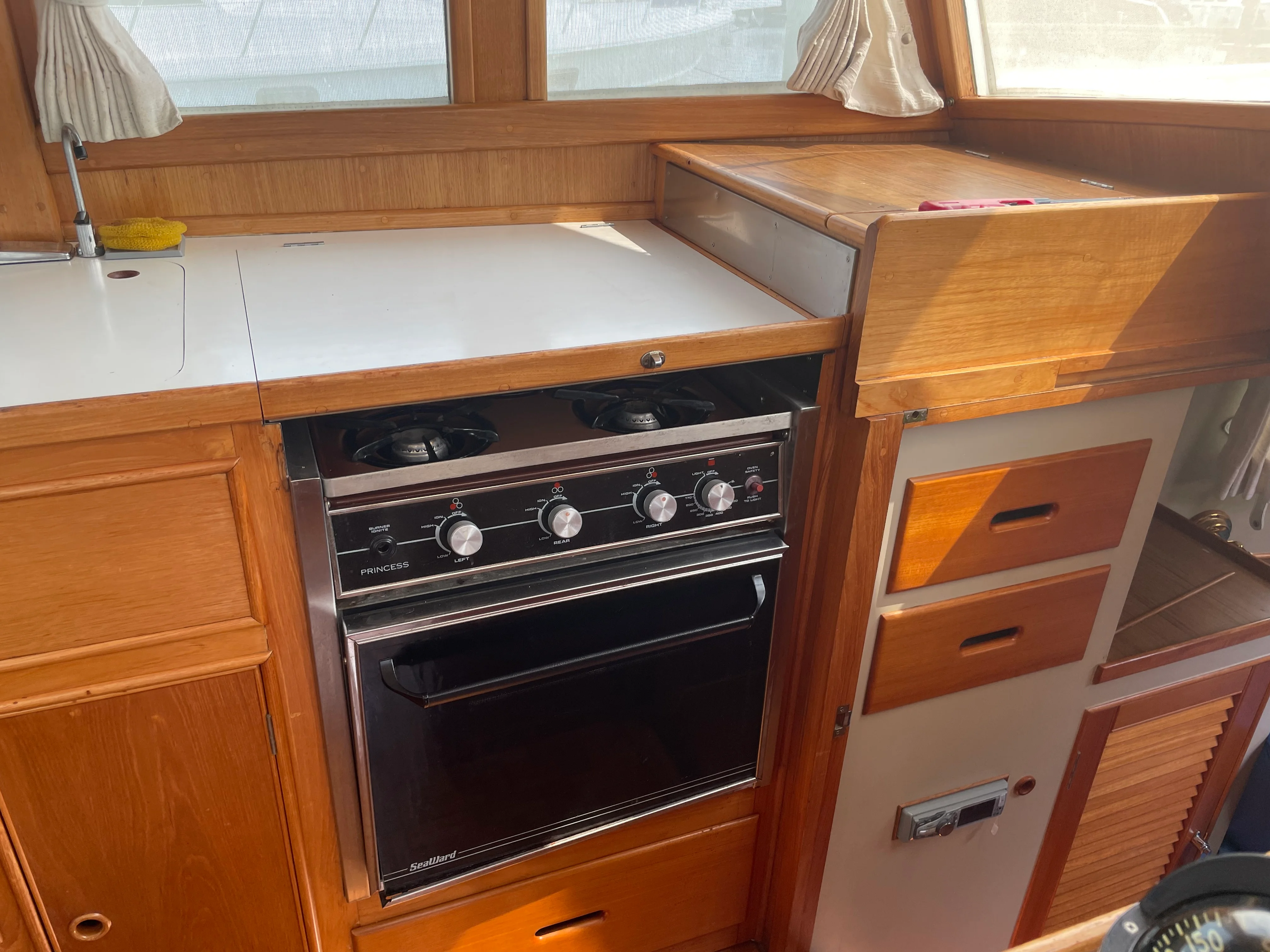

• Stove / Oven - Princess 3-Burner Propane

• Heating Ventilation Air Conditioning – Marine Air (3) Zone 12,000 BTU HVAC System

• Stereo – West Marine Dual MDX 1368BT with Clear Sound Speakers

MECHANICAL / ELECTRICAL:

• Twin Ford Lemans Super 135hp at 2600rpm, Freshwater-Cooled, Direct-Drive, Inboard Diesel Engines

• Hours – Port – 4120

• Starboard – 3938

• Engine Control System – (2) Morse Marine Twin Lever Throttle-Shift Push-Pull Cable

• Engine Exhaust – Wet

• Engine Cruising Numbers – Both Engines 1200 to 1300rpms – 7Kots @ 2.3GPH

• One Engine 1600rpms – 7Knots@ 1.7GPH

• Engine Fuel Filters – Primary – Racor 500FG (Mains)

• Secondary – On each Diesel Engine

• Engine Oil Change Pump – (2) Manual Hand Pumps

• Transmissions – Borg Warner Velvet Drive CR2

• Down Angle Reduction Gear

• Ratio – 2.50:1

• Propeller Shaft – Stainless Steel 1.50” Shaft Supported by (1) I-Strut & (1) V-Strut

• Propeller Shaft Seal – Tides Marine Lip-Type Seal

• Propellers – 23” X 22” 4-Blade Bronze – Counter-Rotating

• Rudders – Inboard-Mounted Fiberglass Spade-Type

• Rudder Shaft Seal – Teflon Above Waterline Seal

• Steering System – (2) American Marine LTD Cable Over Pulleys with Tiller Quadrant

• Bilge Thru-Hulls – (9) Bronze Seacock Type - (2) Capped – Not Being Used

• Bilge Pump Zone – (1) Rule 12Volt DC 2000GPH Pump with Automatic Float Switch

• Bilge Blower – (2) 12Volt DC

ELECTRICAL:

• AC System Voltage – 120Volts AC

• AC Circuit Protection – Circuit Breakers

• DC System Voltage – 12Volt DC

• DC Circuit Protection – Circuit Breakers & Fuses

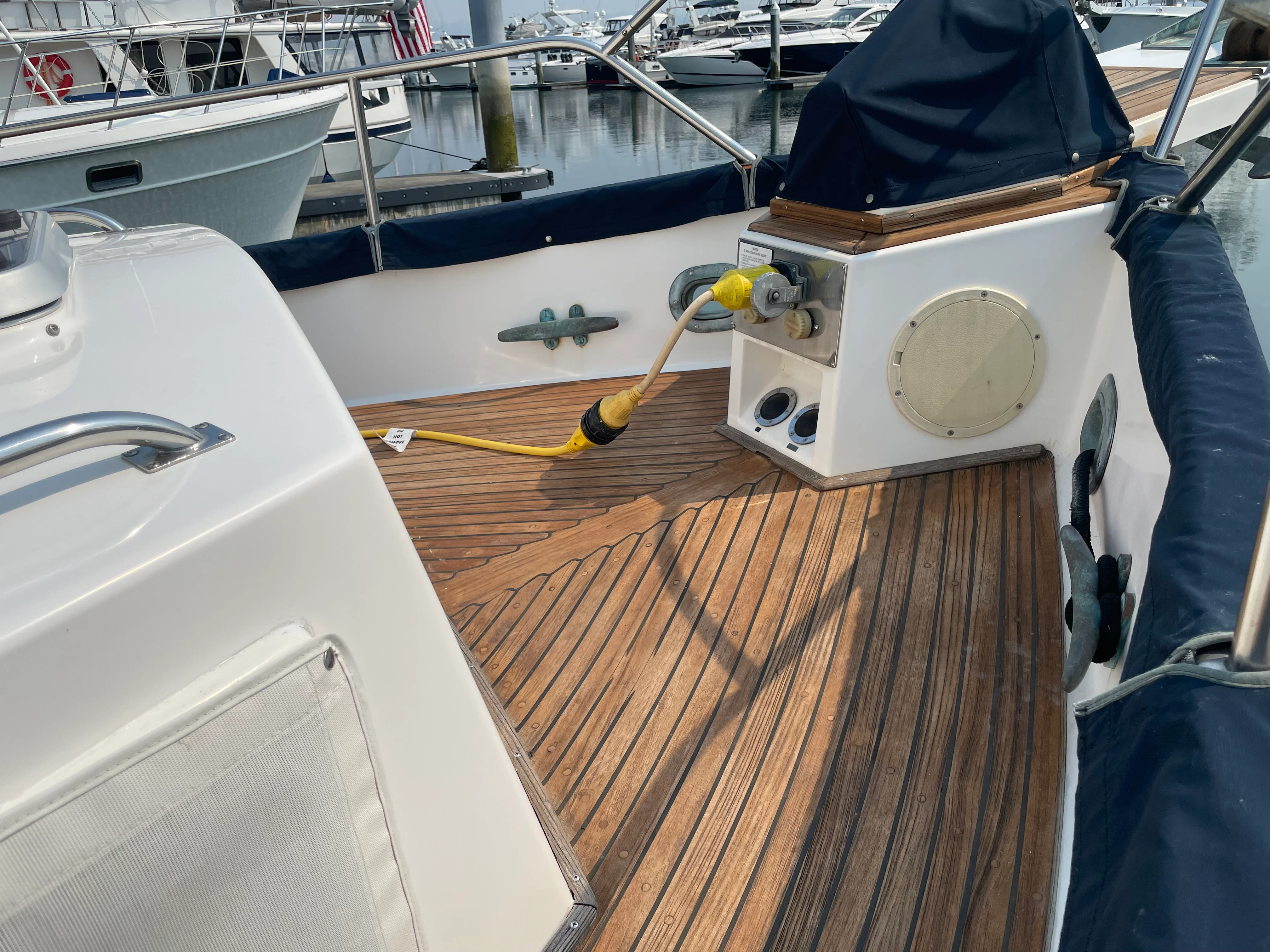

• Shore Power Inlet – (2) 125Volt 50Amp

• Batteries – Start & House – (2) West Marine Group 8D AGM – NEW Sept 2023

•    Genset Start – (1) West Marine Group 4D AGM

• Battery Charger – Newmar PT-40U 40Amp Charger - 12Volt DC / 120Volt AC

• Generator – Northern Lights M643 – 5KW, Freshwater-Cooled, Wet Exhaust, Diesel

• Generator Fuel Filters – Primary – Racor 2000

• Secondary – On Genset Diesel Engine

• Hours - ???

• Generator Exhaust - Wet

NAVIGATION / COMMUNICATION:

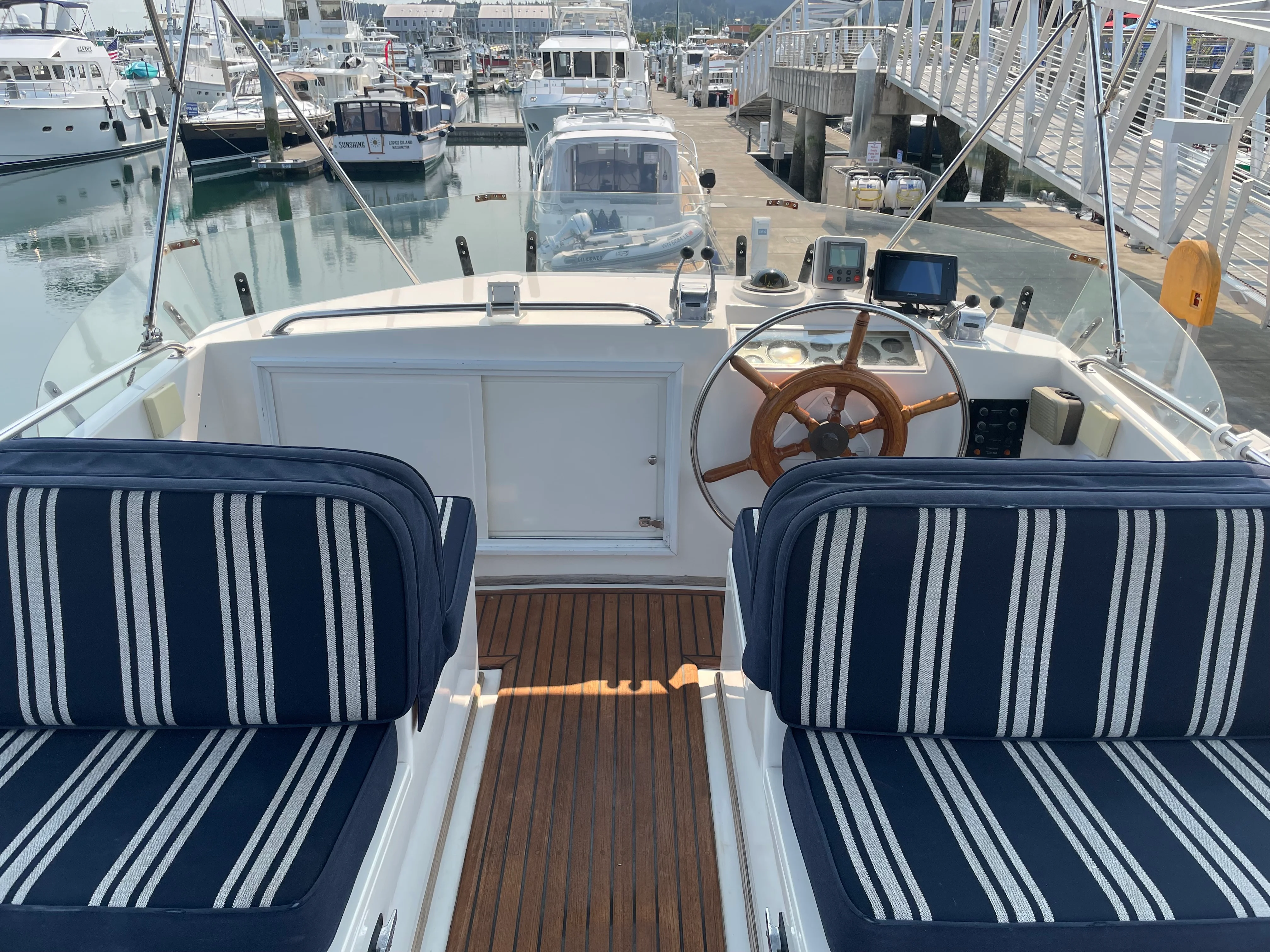

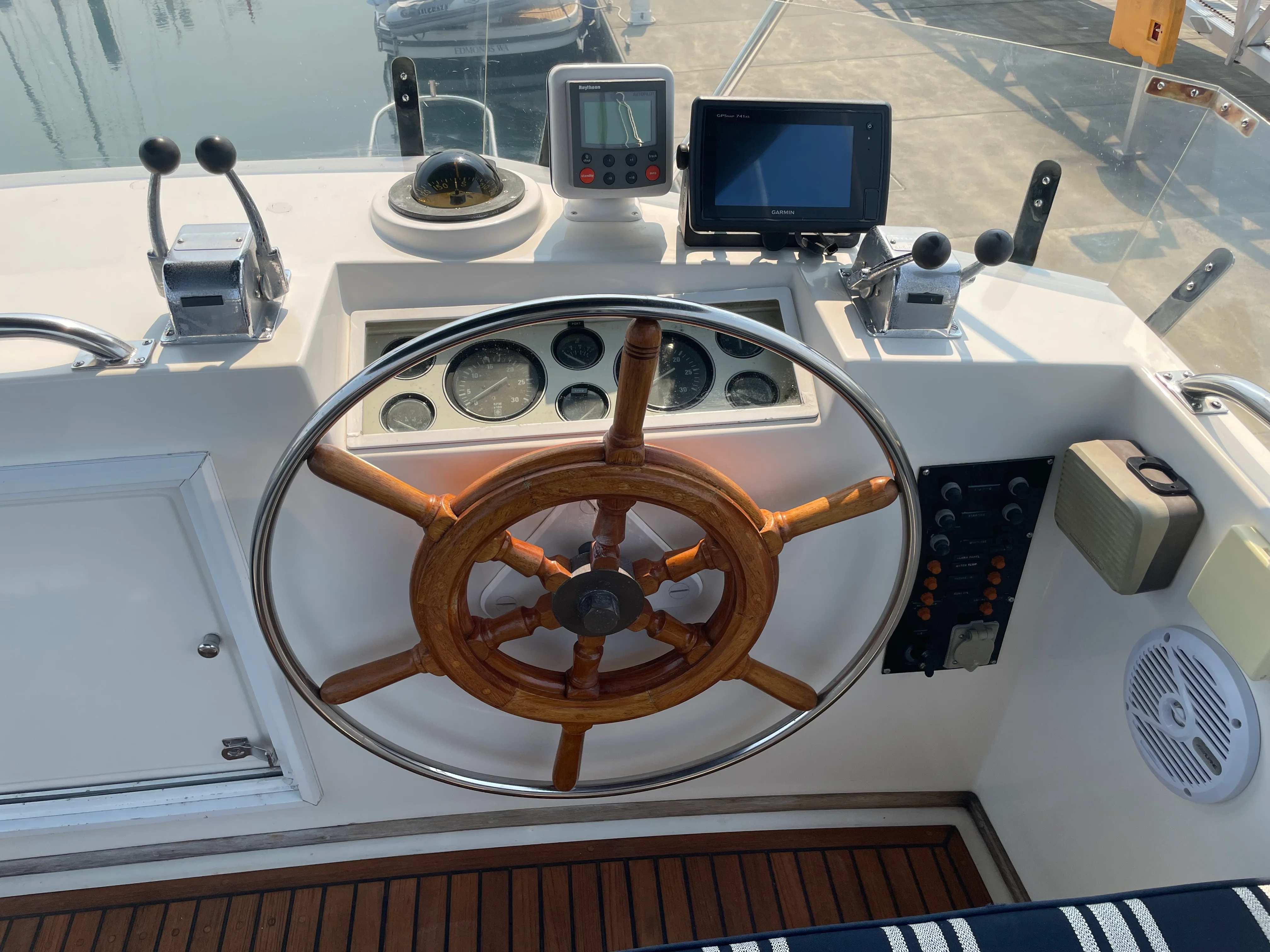

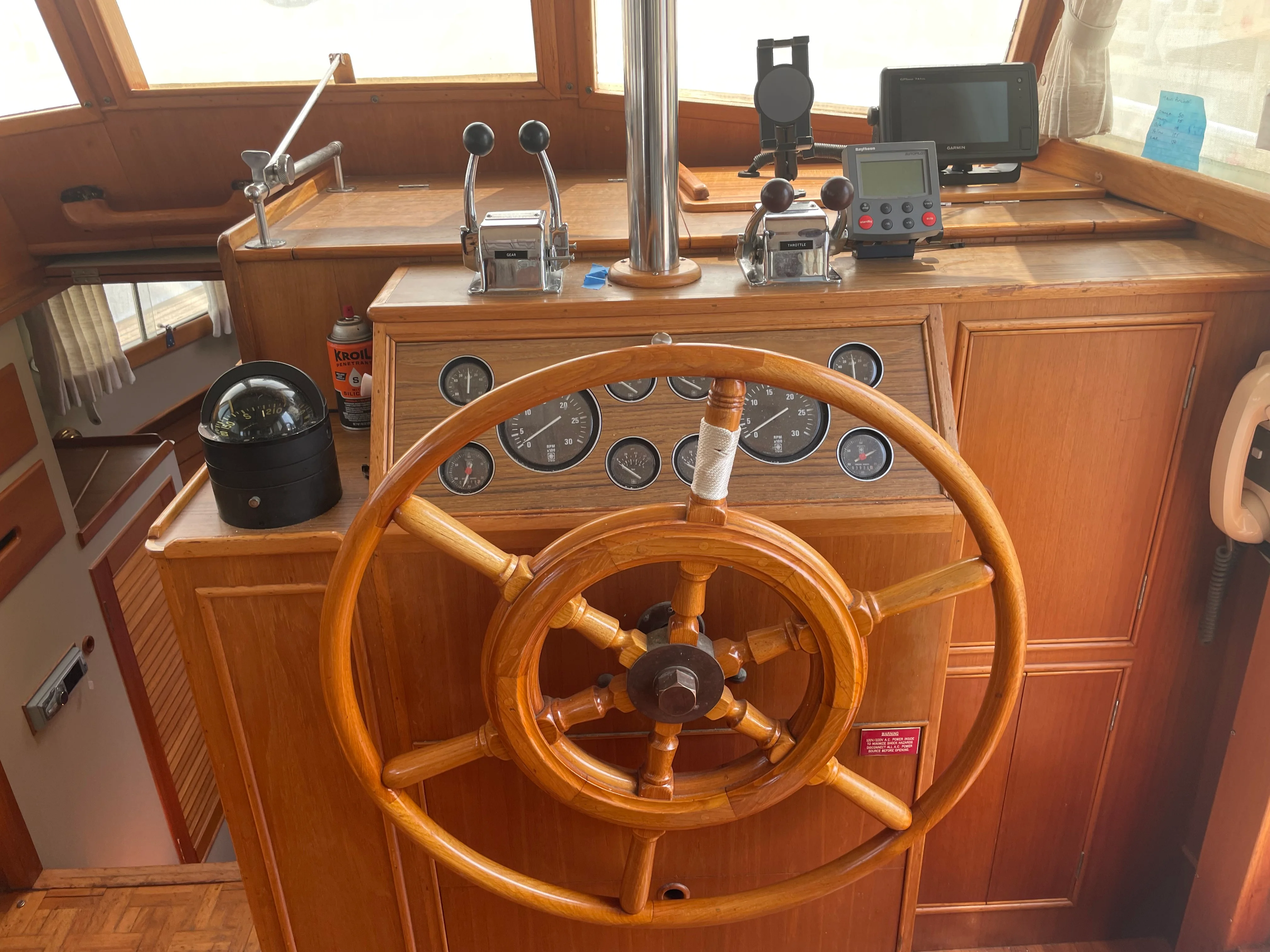

• GPS Chart Plotter / Radar – (2) Garmin GPSmap 741xs – (1) at each Helm

• Compass - (2) Danforth Magnetic – (1) at each Helm

• Depth - Navsounder

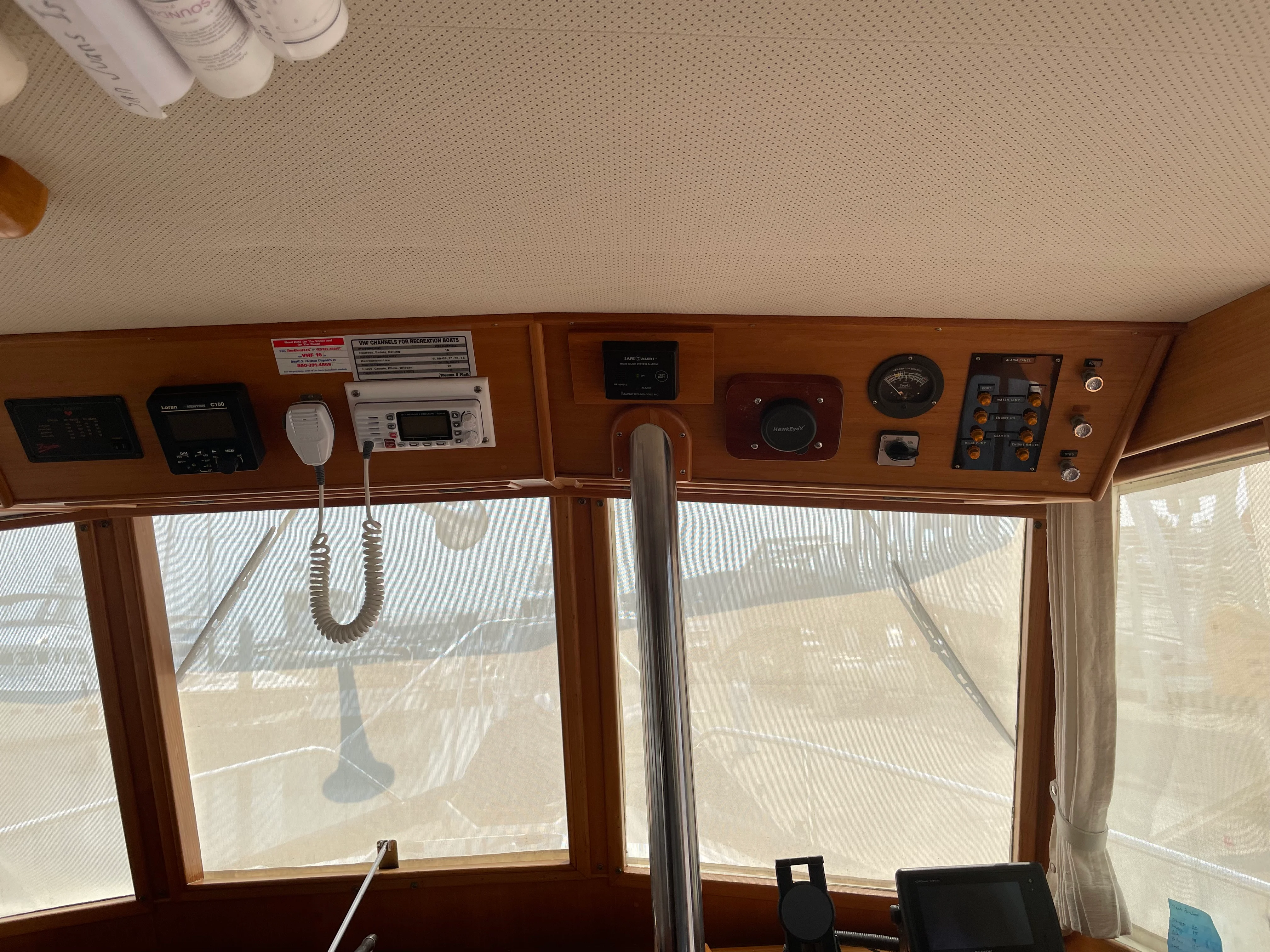

• VHF – (1) Standard Horizon Eclipse – Lower Helm

  • (1) Standard Horizon – Upper Helm

• Auto Pilot – Raytheon ST6000 12Volt DC

GROUND TACKLE:

• Windlass – Lofrans Tigres 1500 Watt – Up & Down Power

• Anchor – Claw Type 44Kg Galvanized Steel

• Anchor Rode – Galvanized Chain

• Wash Down Pump - Shurflo 12Volt DC Seawater – NEW Oct 2025

SAFETY:

• Navigation Lights

• Anchor Lights

• Windshield Wipers – (3) 12Volt DC Wipers with Washers

• Railings - Stainless Steel with Teak Railing Caps

• Spreader Lights - (2) 12 Volt D

• Deck Cleats – Bronze

• Life Jackets - (4) Type I Adult Offshore PDF

  •  (1) Type IV USCG Approved Throwable Ring Buoy

• Visual Distress signals / Flares - (1) Day Use Orange Flag

  •  (1) Night Strobe Light - Battery Operated

• Fire Extinguishers - (3) 5-B Handheld

• Escape Hatches - (1) Forward & (1) Aft

• USCG Placards - (1) Oil Discharge

  • (1) Garbage Plan

MISCELLANEOUS:

• Bottom Paint - Diver Scrubbed Bottom - Due for Paint - 8/13/2026

• Zincs - Good - 8/1/2026

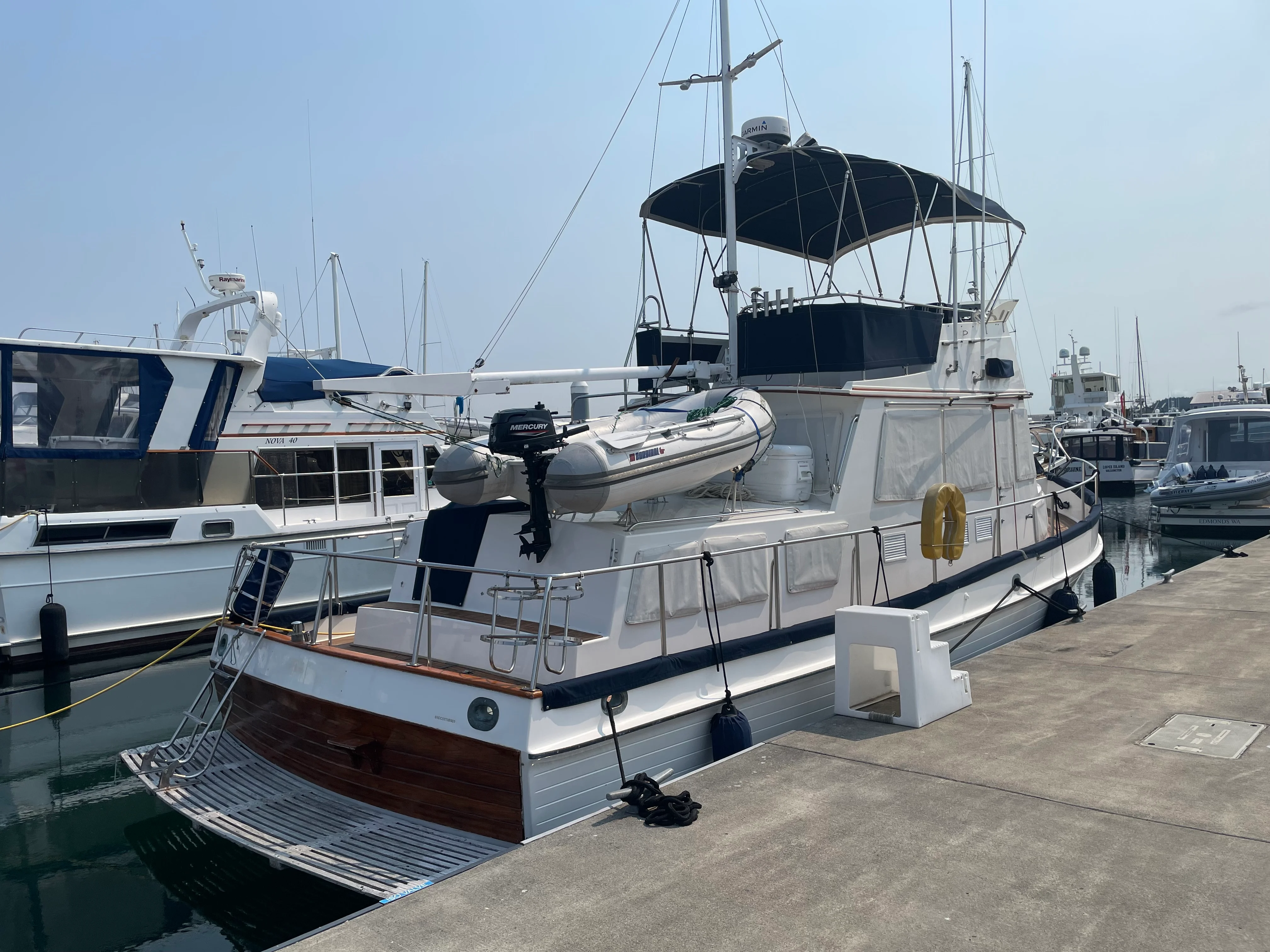

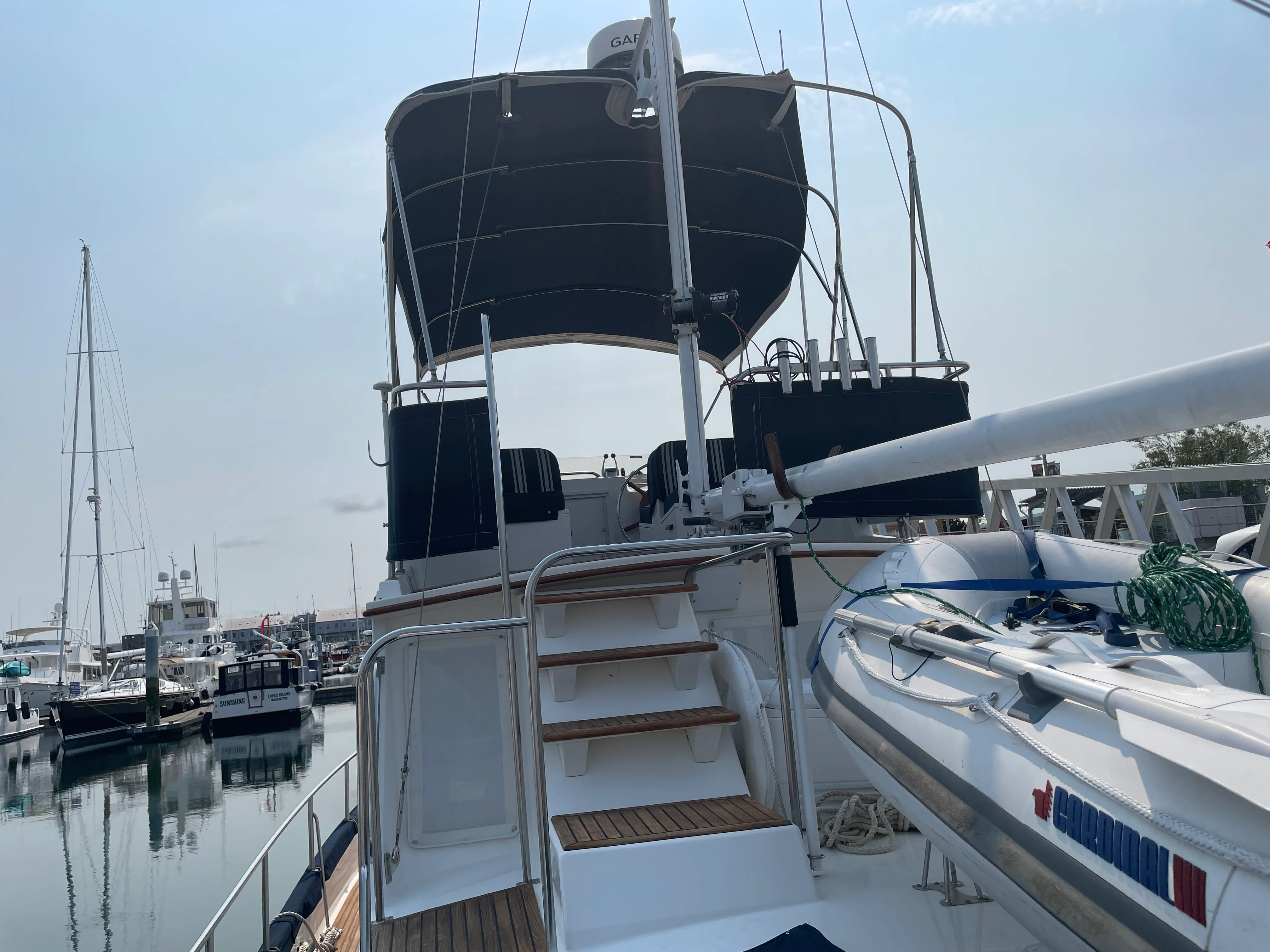

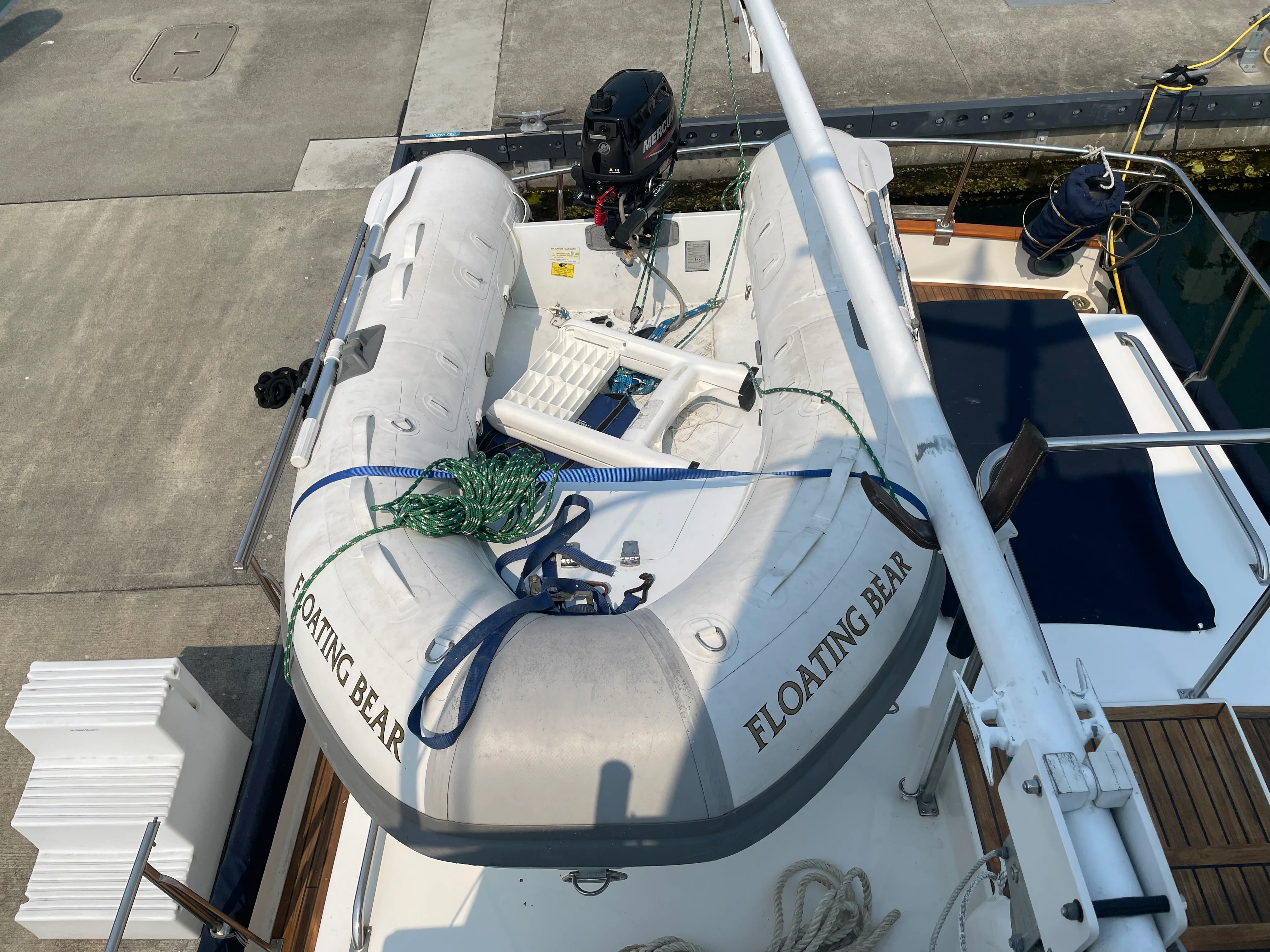

• Tender – 8’ Cardinal RIB - 260 Inflatable with Aluminum Bottom 2016

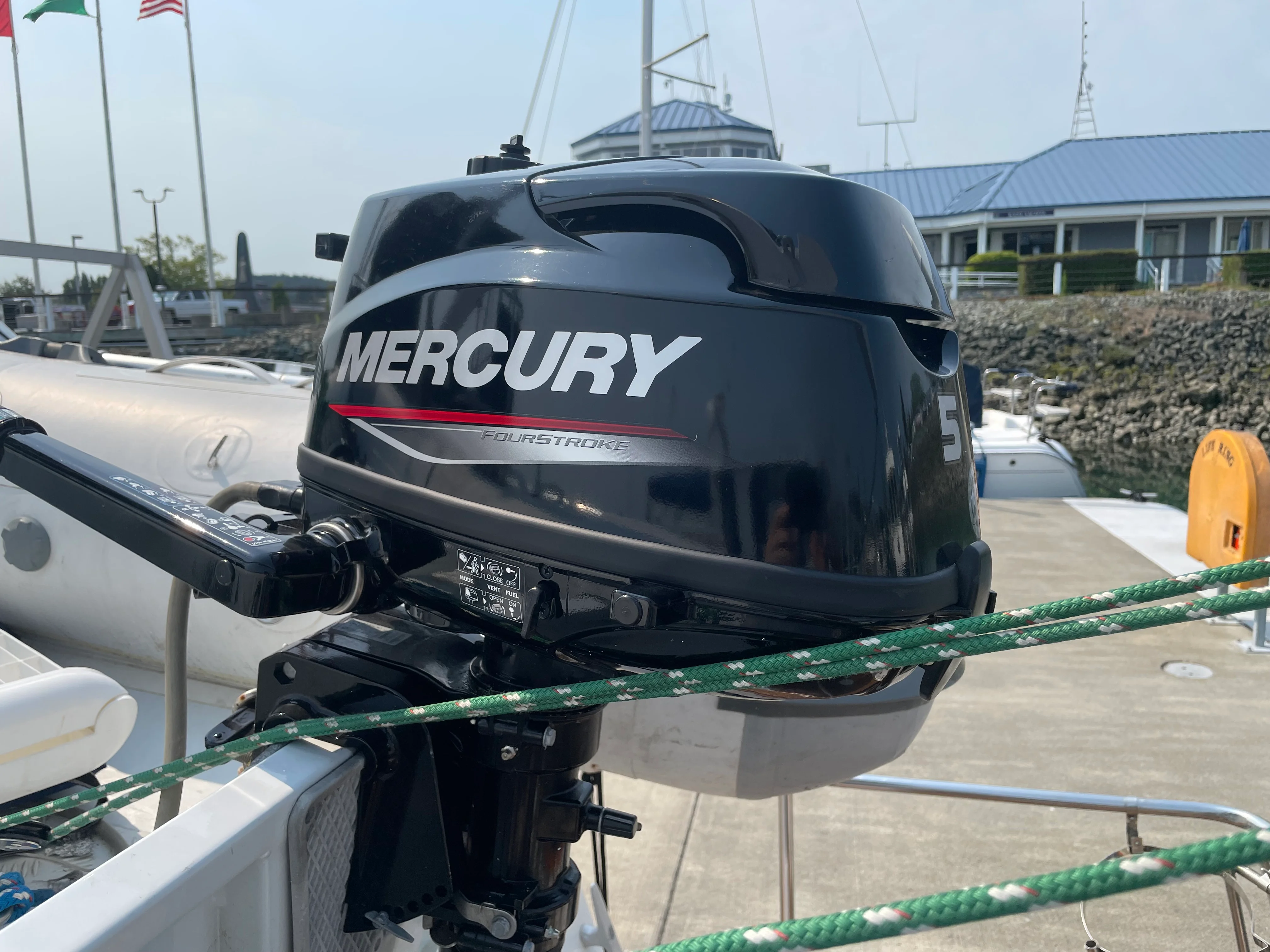

• Outboard - Mercury Marine - 6hp 4-stroke

• Tender Davit - 12 Volt DV - Davit /Boom with Electric Winch Motor
