1991 TransWorld Fantail Pilothouse for Sale – 50 ft – Anacortes, Washington, United States

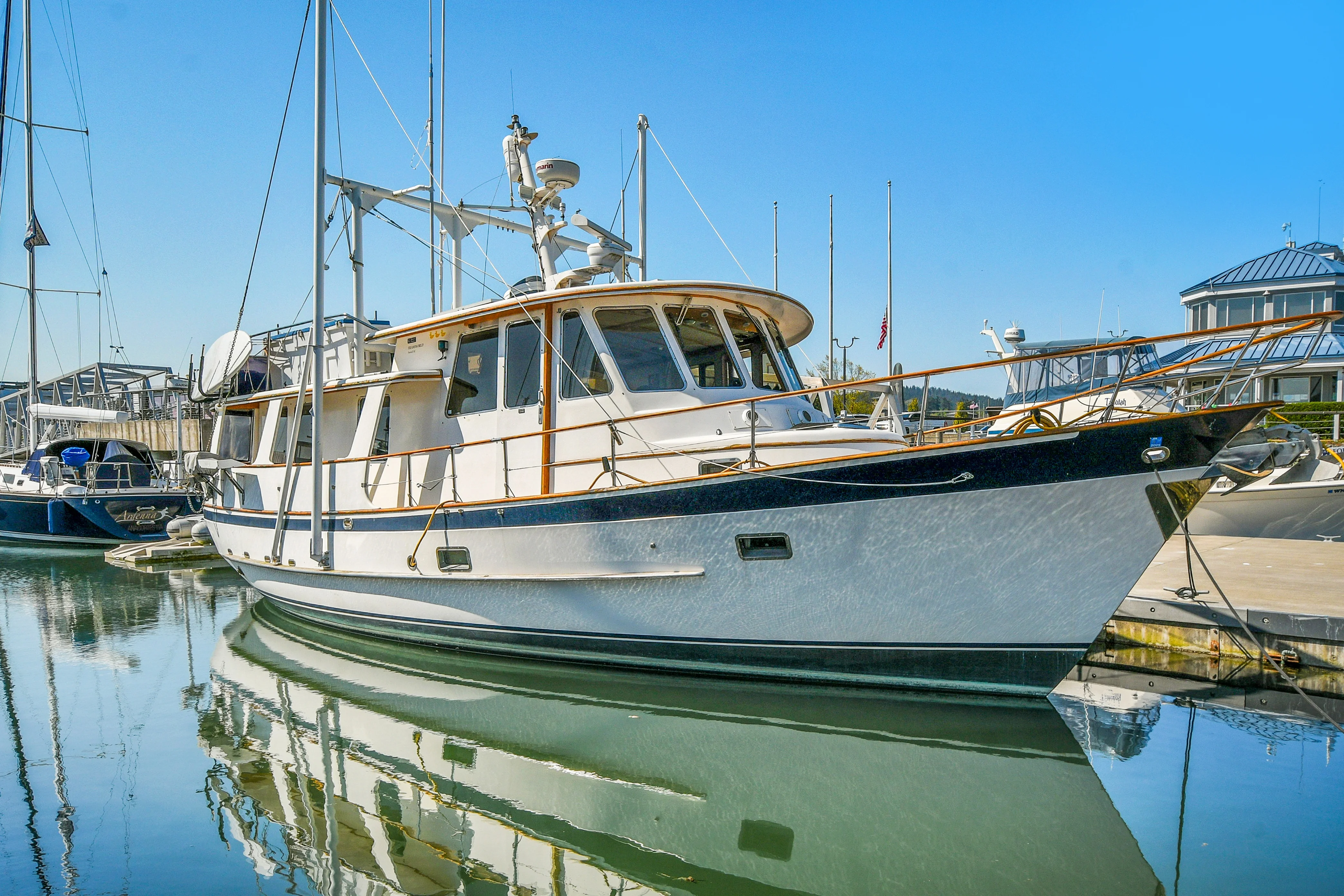

50' TransWorld Fantail Pilothouse Motor Yacht – Long-Range Cruising and Exceptional Craftsmanship

Introducing this 50-foot TransWorld Fantail Pilothouse Motor Yacht, designed for fuel-efficient, long-range cruising with an emphasis on quality construction, comfort, and classic yacht styling. Developed over nearly four years of design refinement, the Fantail reflects a commitment to premium materials, thoughtful engineering, and uncompromising attention to detail.

Built in Taiwan, the TransWorld Fantail is distinguished by its complex construction, requiring 22 separate molds, and its reputation for excellent craftsmanship. From the beautifully curved fantail stern to the substantial stainless-steel anchor chock, this motor yacht delivers a substantial, ship-like feel with elegant styling and practical features for extended cruising.

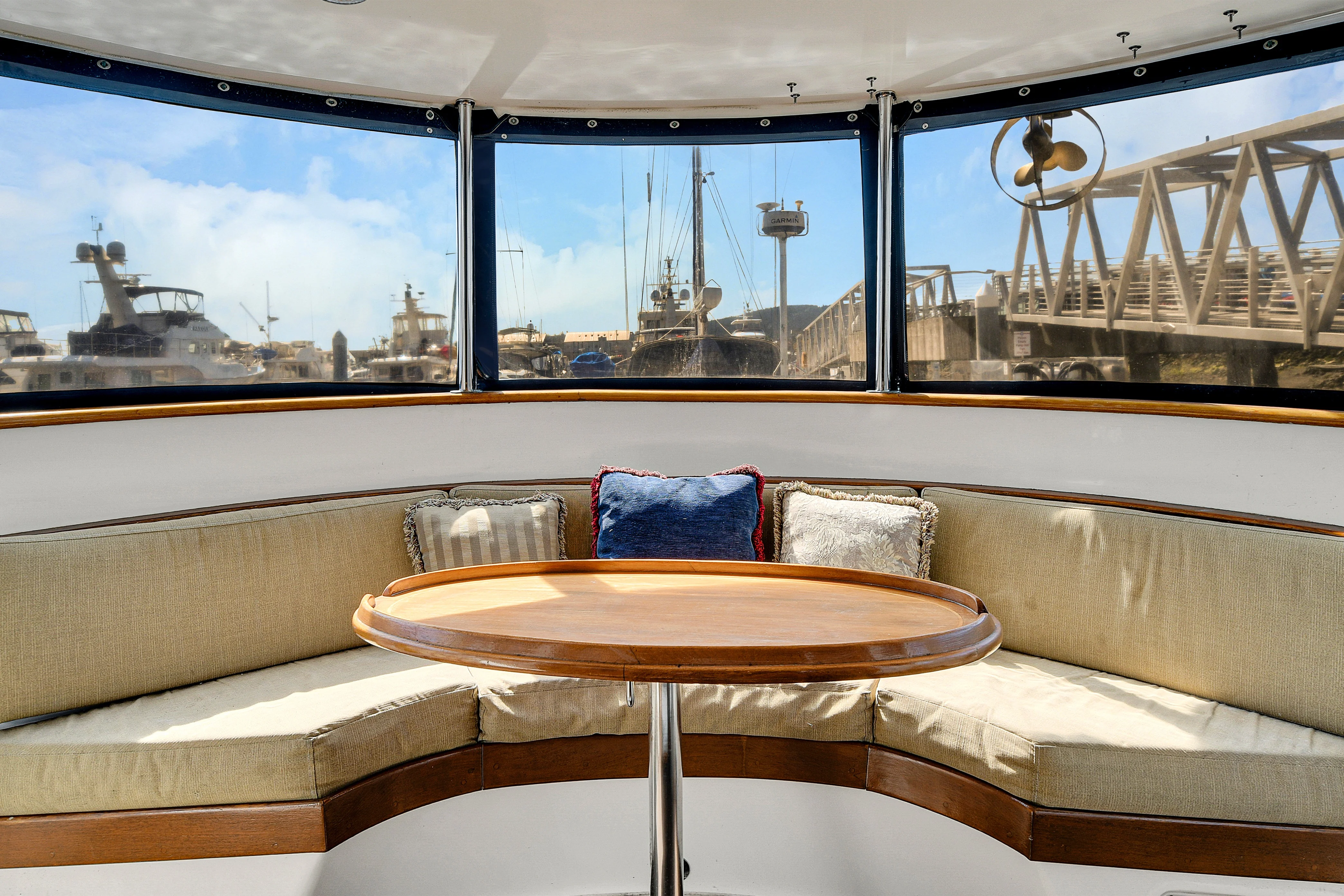

The full walk-around deck provides convenient access around the yacht, while the inlaid decking and 42-inch-high weather screen aft of the pilothouse enhance both safety and comfort when moving about on deck. At the stern, the inviting fantail lounge features a curved settee and an inlaid teak table, creating an ideal setting for relaxing, entertaining guests, or enjoying quiet conversations. The weather screen, complemented by optional weather curtains, offers additional protection from the elements.

Combining distinctive fantail design, quality construction, and thoughtful cruising features, this 50' TransWorld Fantail Pilothouse Motor Yacht is an appealing choice for buyers seeking a classic long-range cruising yacht with timeless character and a focus on comfort and durability.Today, TransWorld builds Mega Yachts

SPECIFICATIONS:

• LOA – 49′ 8″

• LWL – 40′ 6″

• Beam – 15′ 3″

• Draft – 4′ 6″

• Beam – 15′ 3″

• Gross Tons – 32 Tons = 64,000lbs.

• Net Tons – 26 Tons = 52,000lbs.

• Ballast – 3,600 Lead in Keel

• Raised Pilothouse Fantail

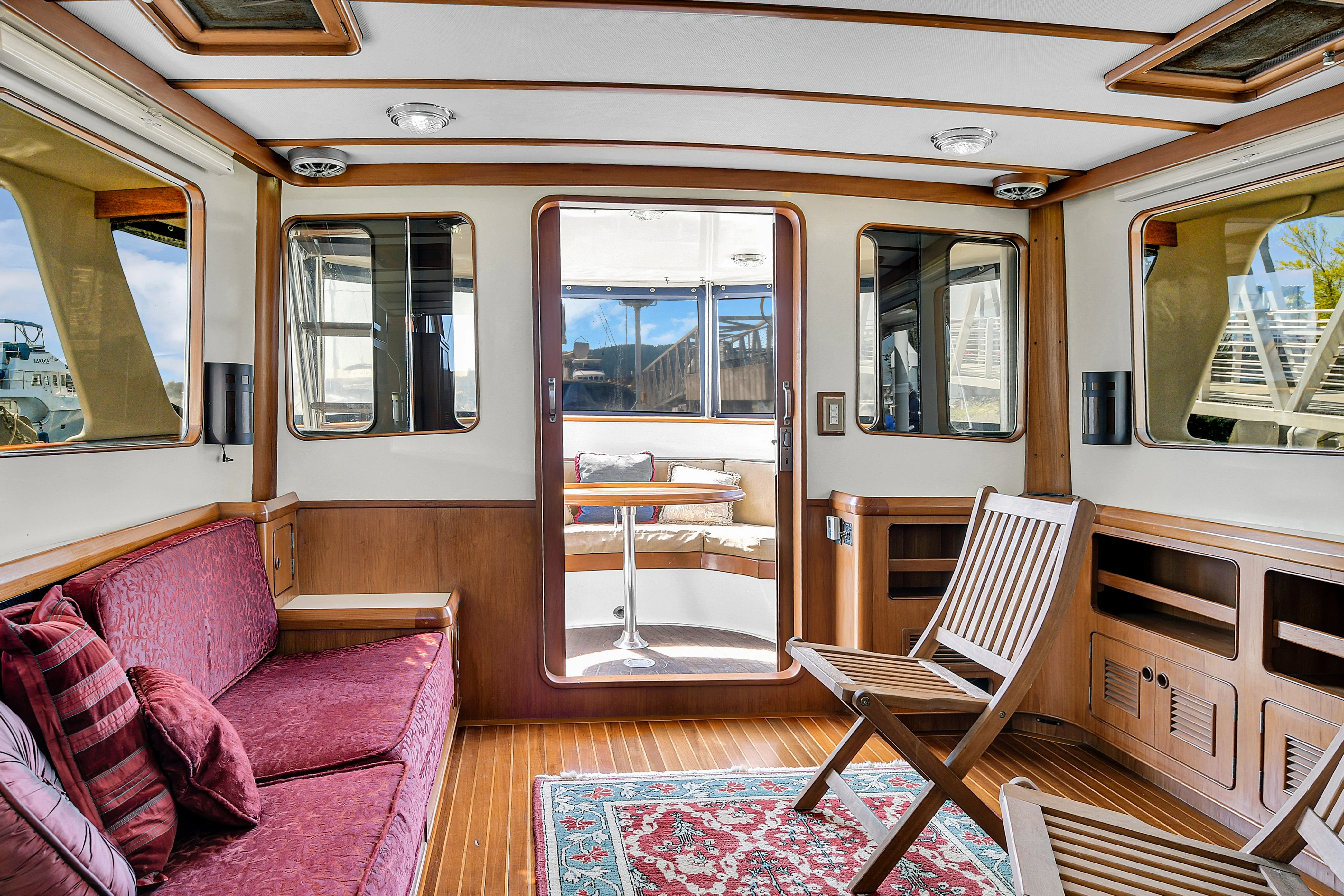

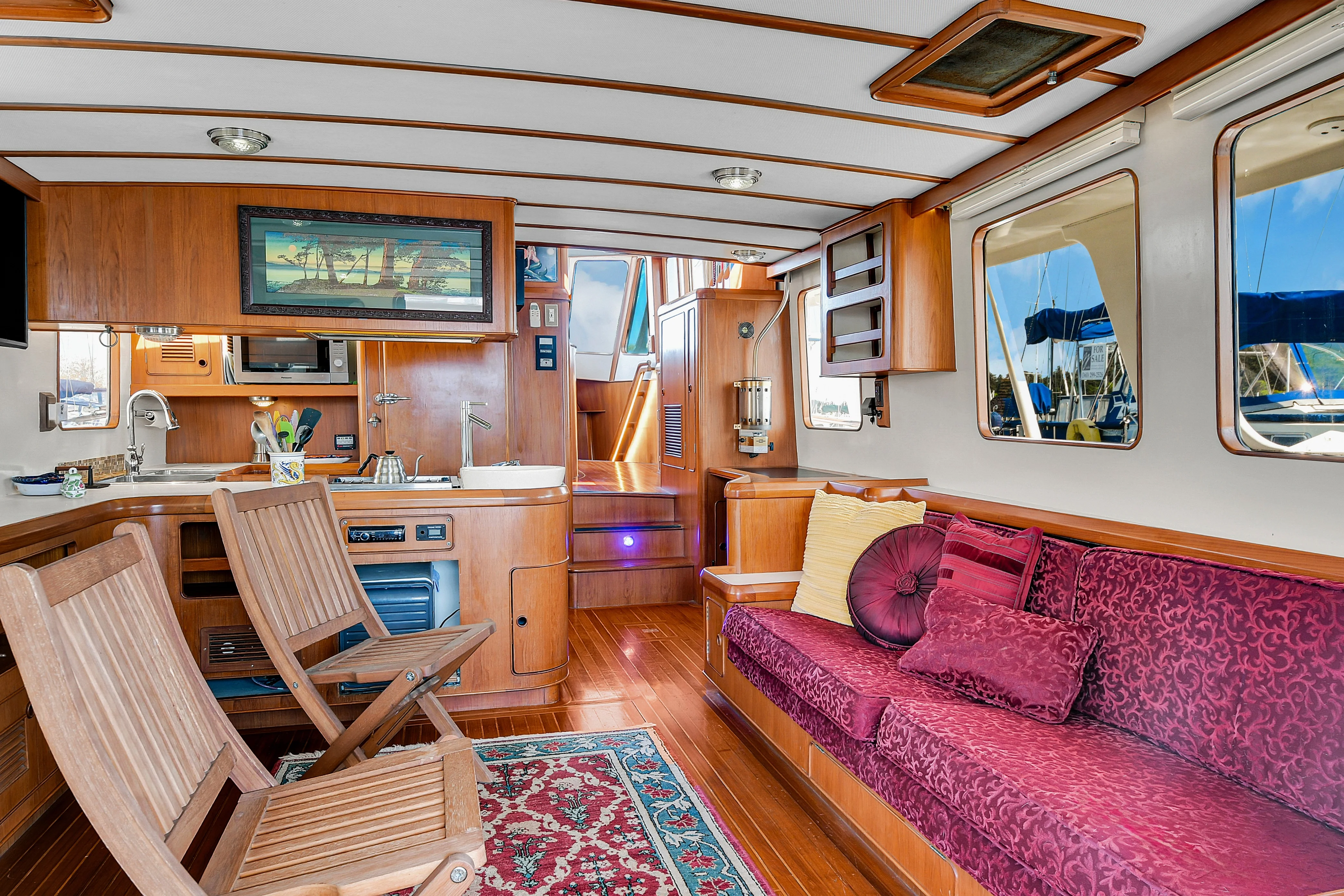

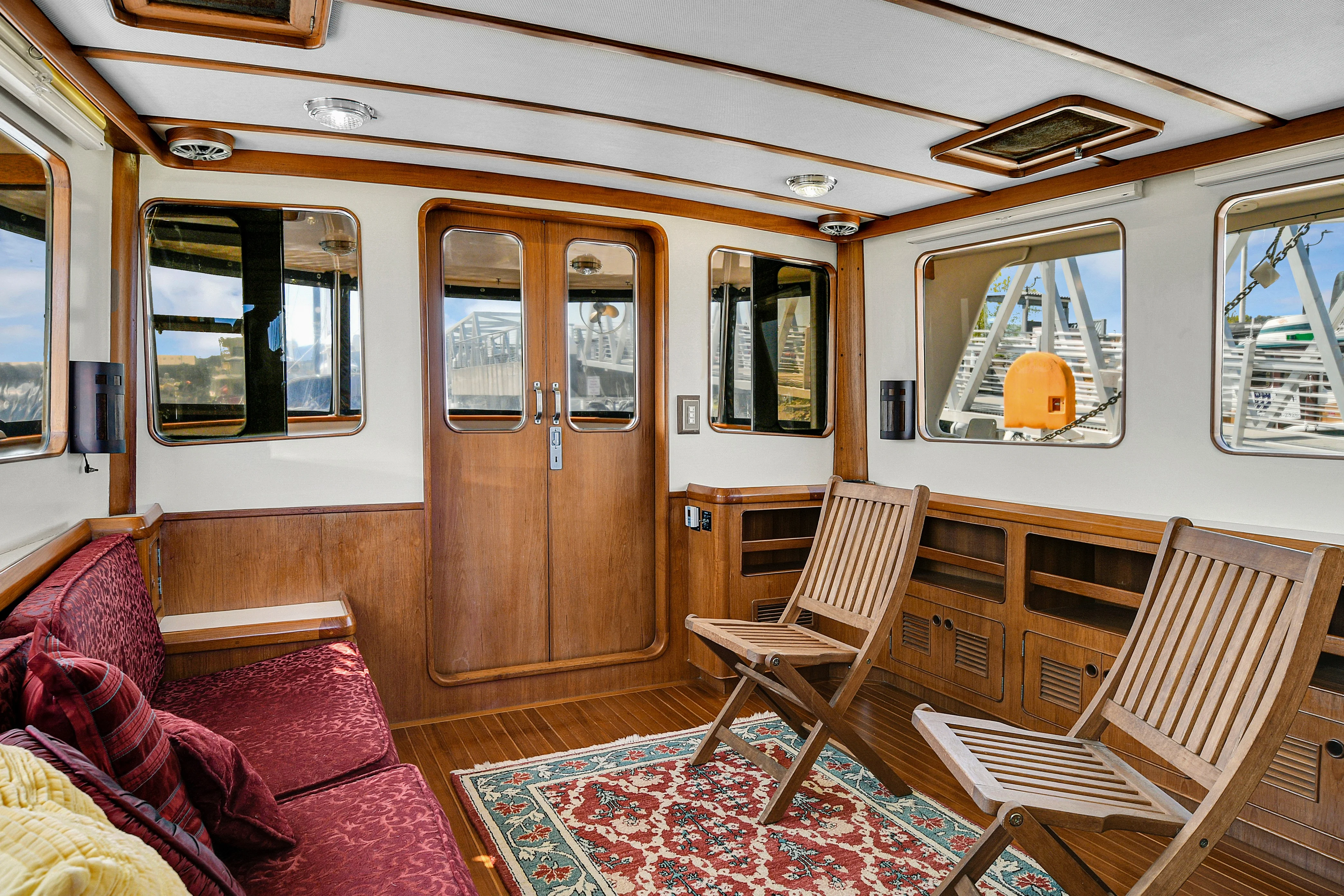

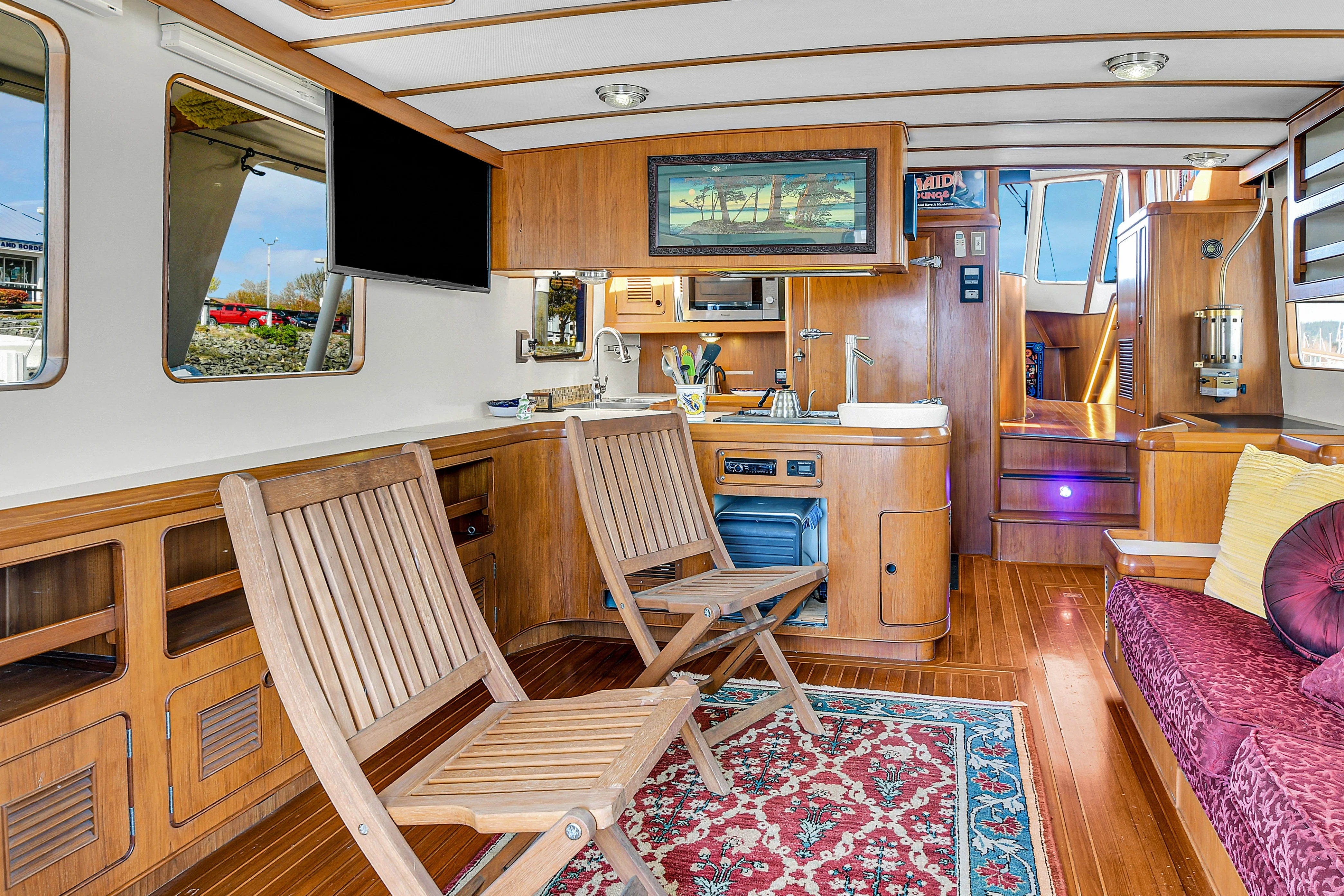

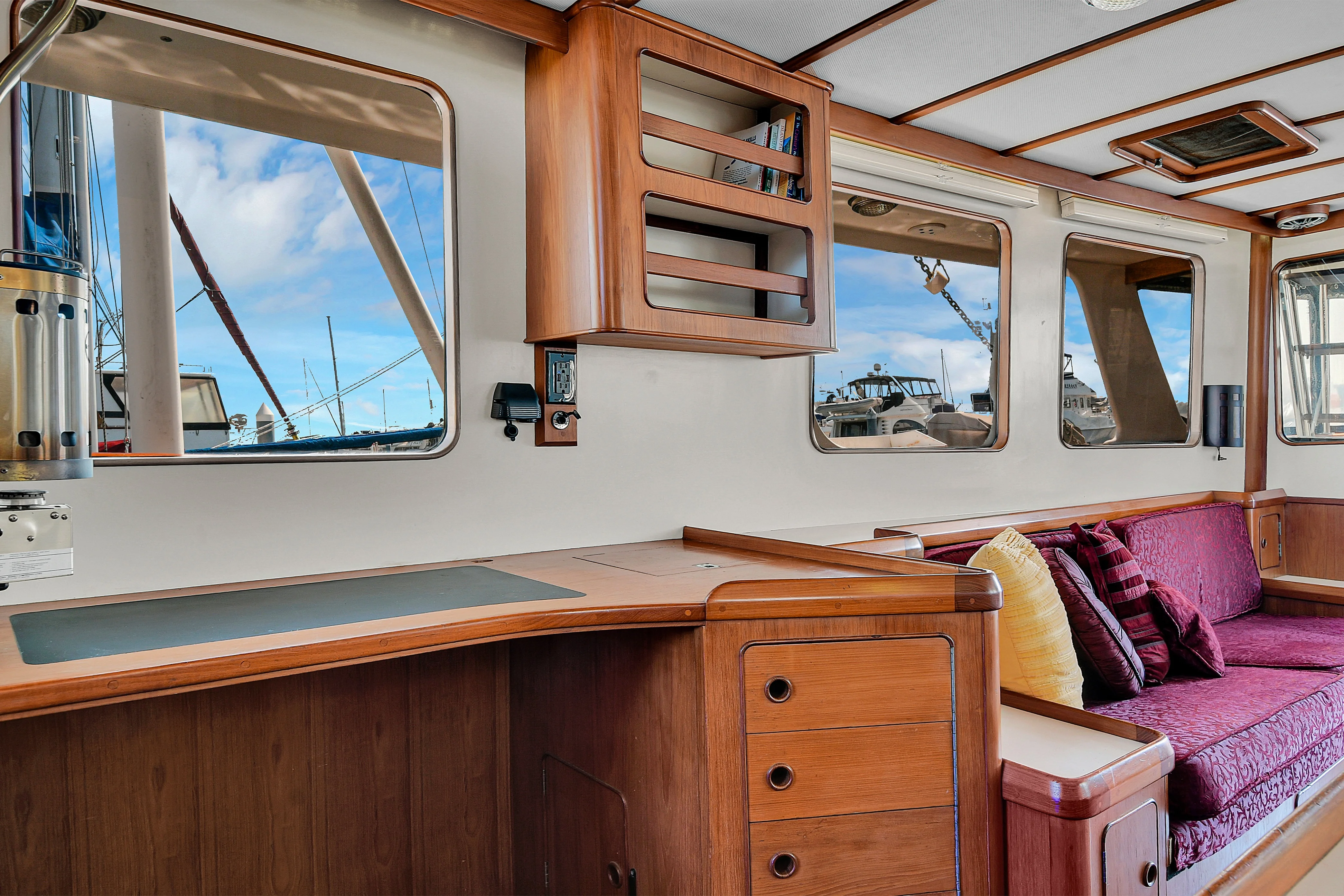

• Main Salon & Galley Aft of Pilothouse

• Owner’s Stateroom Mid-Ship Below Pilothouse

• Guest Cabin Below & Forward

• Hull #8 – Last Hull Built

• Hull Type – Full Displacement – Full Length Keel – Canoe Stern

• Hull Construction – Heavy Lay-Up – FRP Divinicel Core in Decks and Topsides

• Decks – Europa Style Covered Side Decks & Covered Fantail Deck with Full Enclosure

• Molded, Divinicell Foam Cored Fiberglass Deck & Side Deck Construction

• Side Decks & Cockpit Deck have Traditional Teak Overlay on FRP Sub-Deck

• with Mechanical Fasteners Encapsulated in Epoxy – NO Water Intrusion

• Salon Cabin Roof Deck – Molded Fiberglass with Molded Nonskid

• Top sides – FRP Bulwarks, Cabin Walls & Roofs

• Fantail – FRP Roof with Complete Eisenglass & Canvas Enclosure

• Sliding Doors Close off Fantail from Side Decks

• Hull Designers – Rob Ladd – Annapolis, Maryland

• Topsides, Systems & Accommodations Designers – The Yacht Consortium, Port Hadlock, WA.

• Builder – Transworld Boat Building – Taipei, Taiwan

• Transworld is still in Business Building Mega Yachts

TANKAGE:

• FUEL – 196 Gallons / 216 Gallons / 60 Gallons

• 472 Gallons Total in (3) Stainless Steel Tanks

• DOMESTIC WATER – 200 Gallons in (2) Stainless Steel Tanks

• HOT WATER TANK – 10 Gallons – AC or Engine – Serviced & Flushed August 2025

• NEW Hot Water Element August 2025

• WASTE HOLDING – Holding Tank with Pump Overboard / Deck Cap Pump-Out

• PROPANE – (2) Steel Tanks

• Tank Tender – Tank Level Monitoring System

INTERIOR:

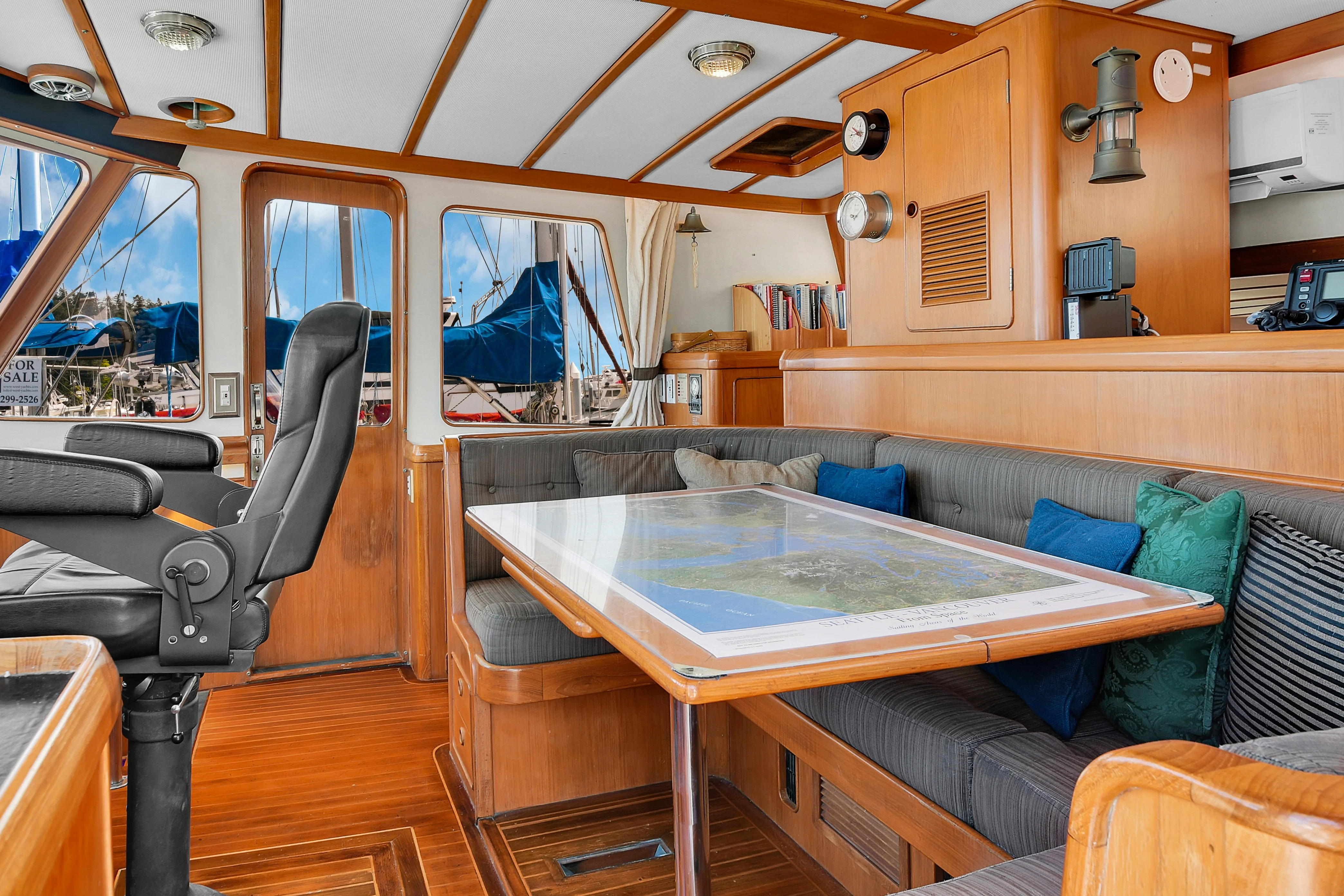

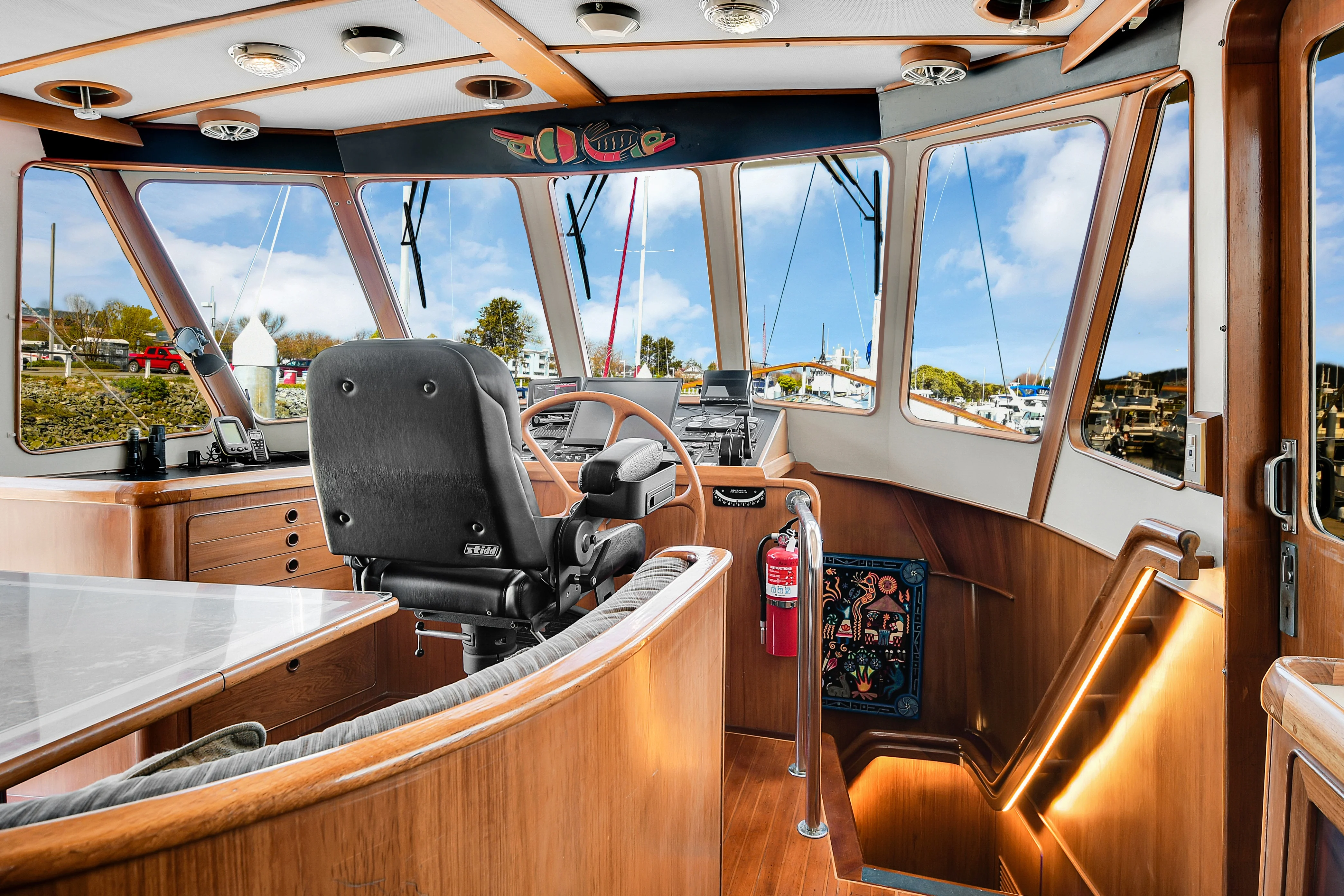

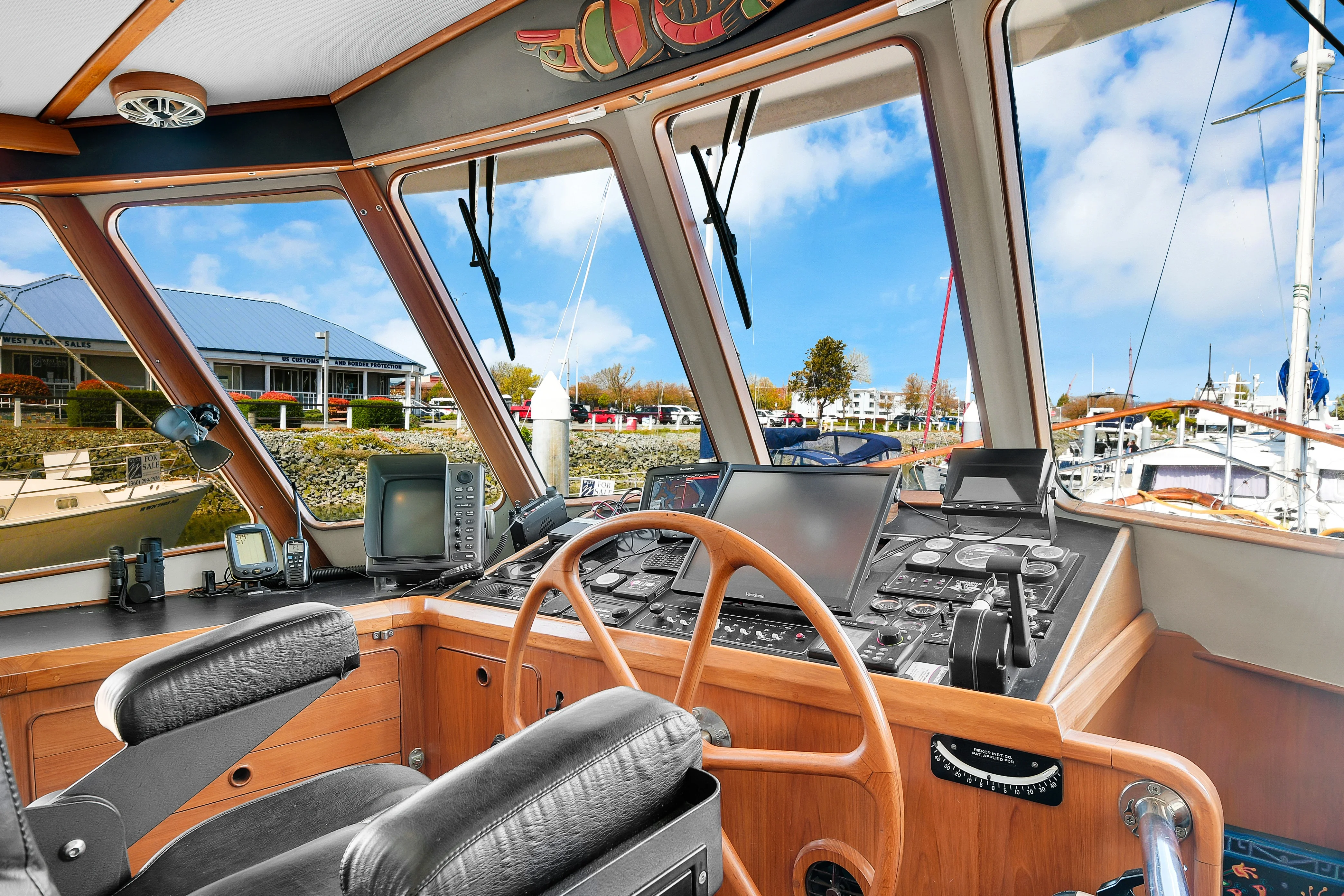

• Pilothouse includes Stidd Helm Seat

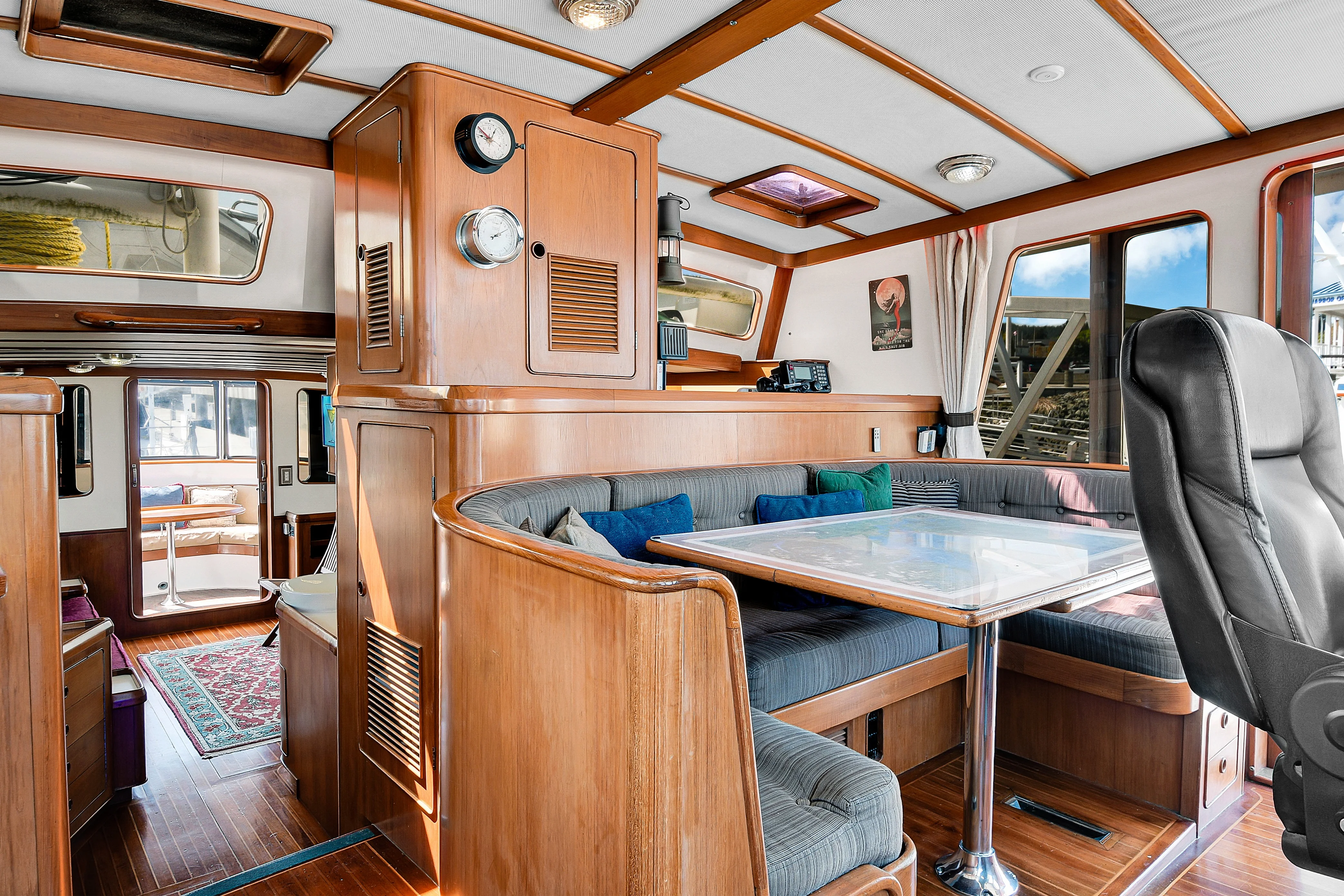

• Has a Dinette Table with Seating for 5 & a Great Location with Visibility While Cruising

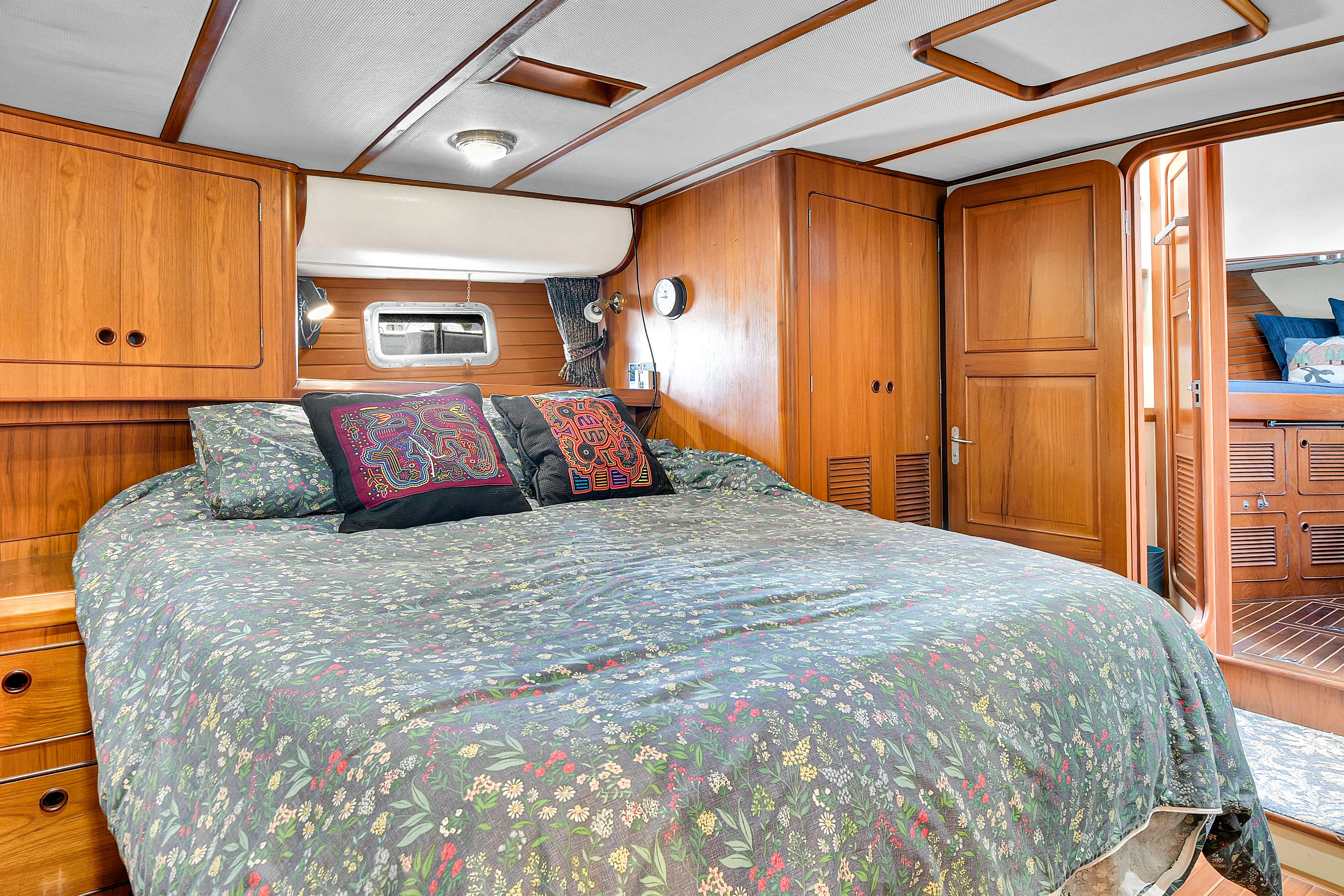

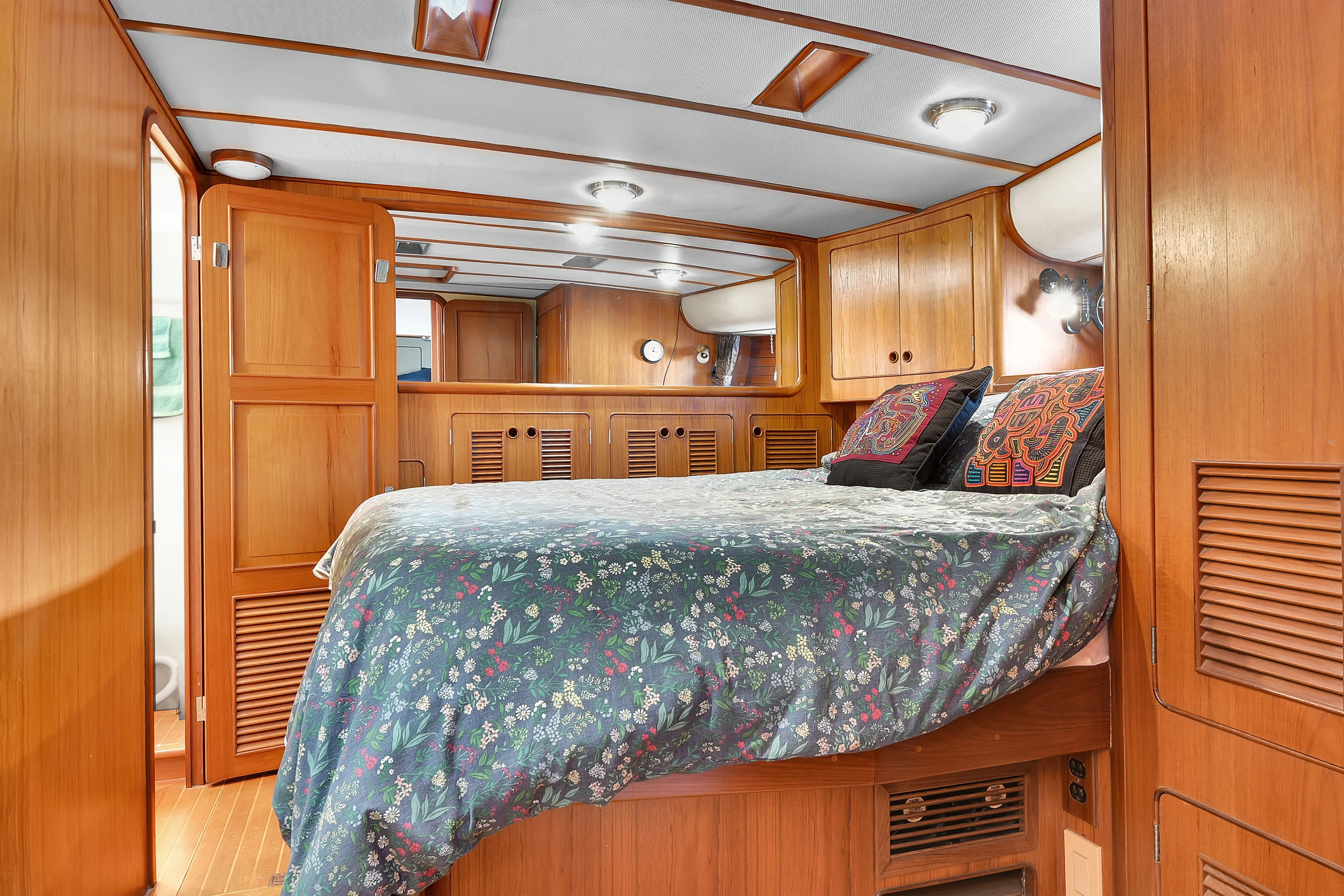

• Sleeps (4) – 2 in Master Suite with On-Suite Head

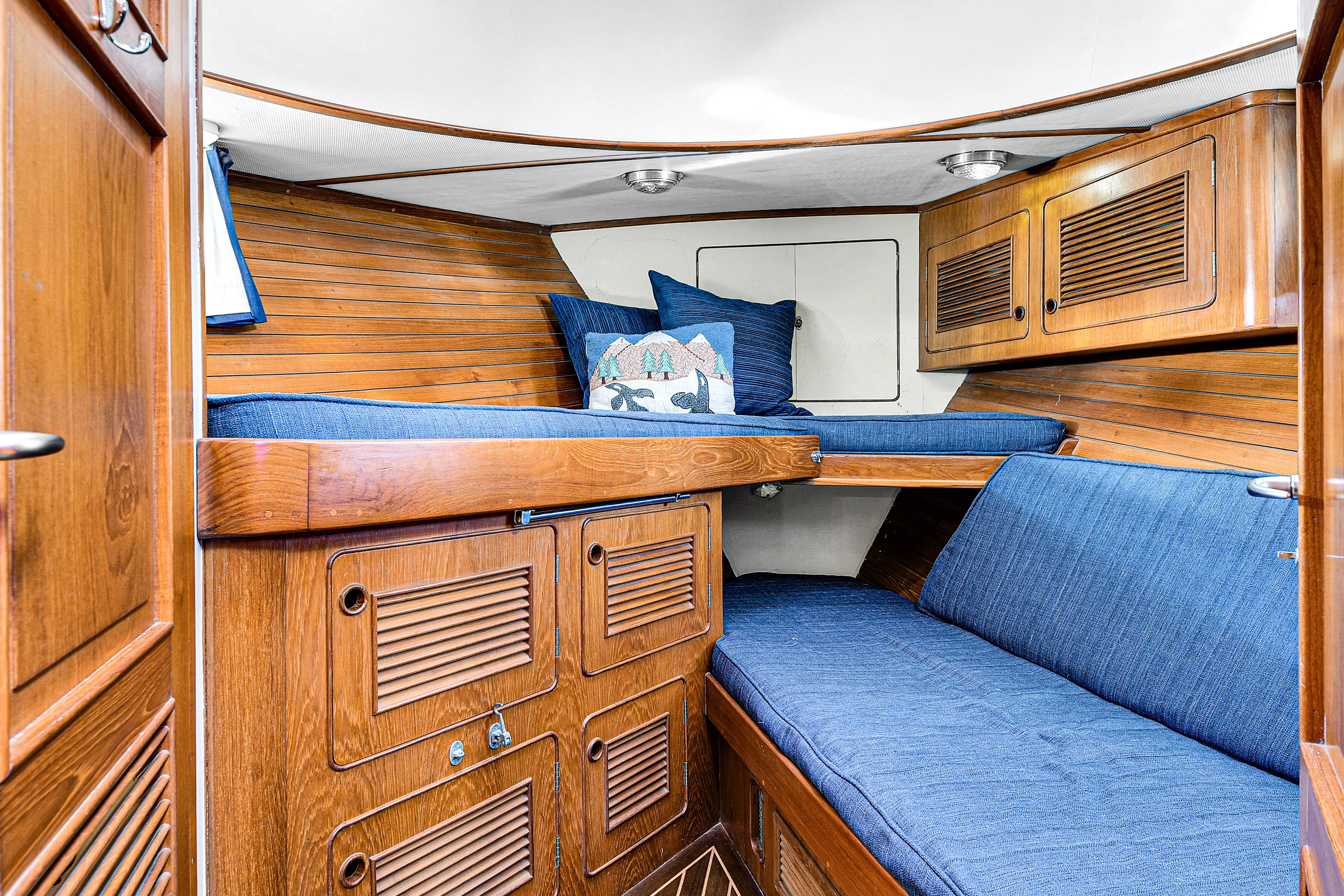

• 2 in Forward Bunk Room

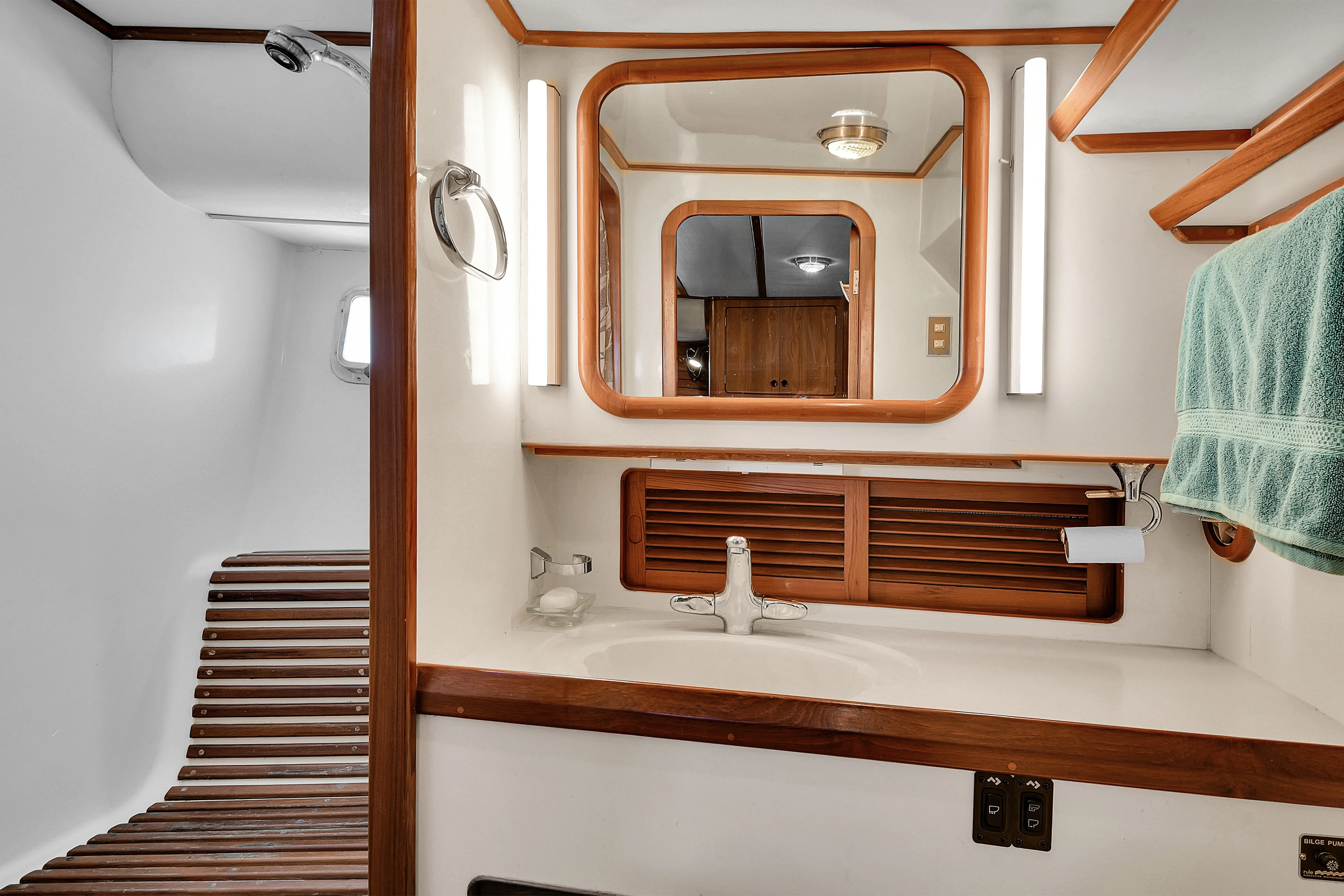

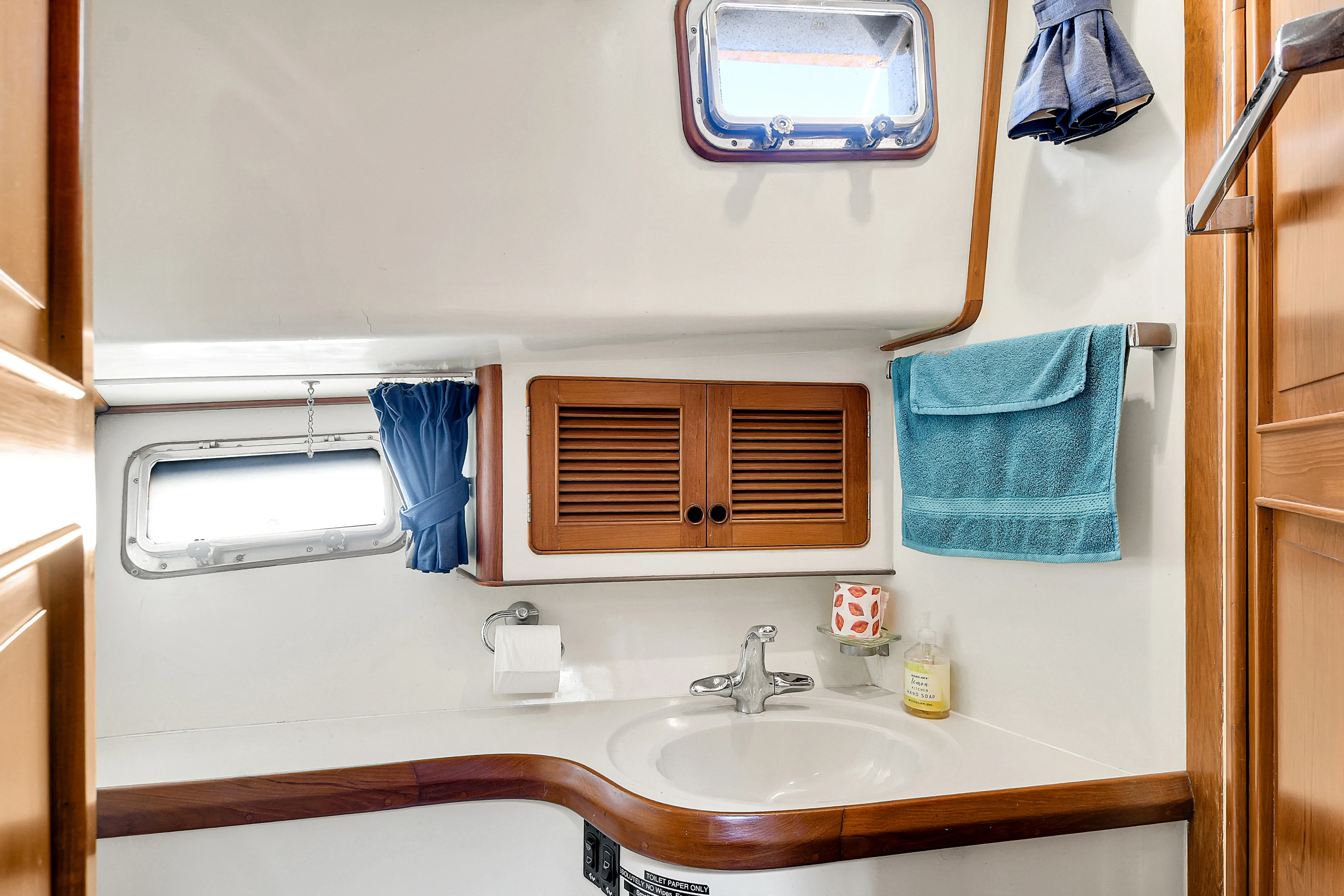

• Private Enclosed Heads – (2) with Vacuflush Macerating Toilets – NEW Dec 2024

• Master Suite Head as Separate Stall Shower

• Guest Suite Head with Intrigal Shower

• Refrigeration – Built-In

• Freezer – Dometic Chest Freezer

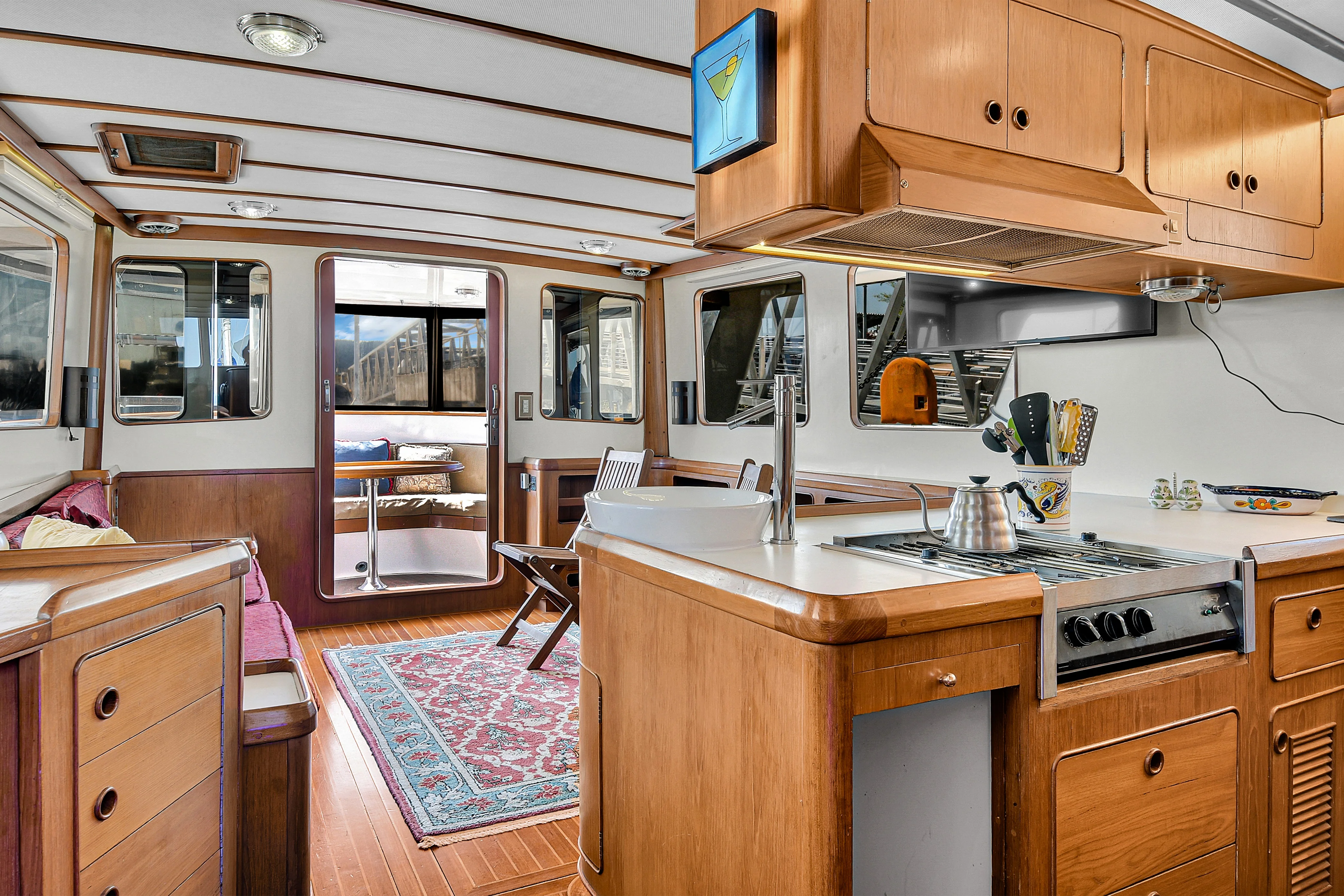

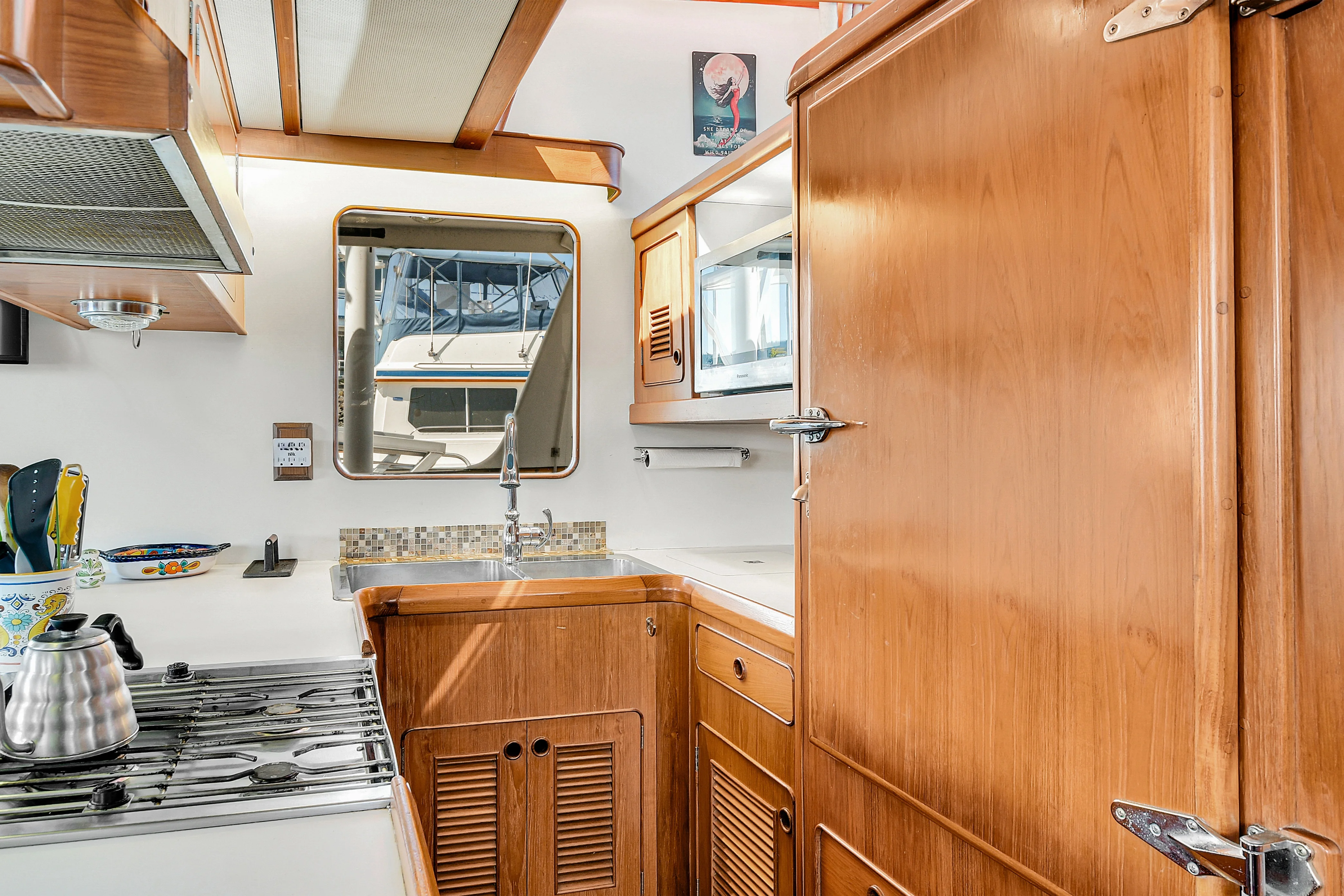

• Galley Stove – Force 10 3-Burner Propane Cooktop / Oven

• Microwave – Panasonic Oven

• Hot & Cold Pressure Domestic Water System – Outlets in Galley, Head & at Transom

• Raw Water Pressure Salt Water System – Deck Wash Outlets Fore & Aft

• Cabin Lighting – NEW Upgraded Salon Light Sconces August 2025

• Cabin Heat/Air – Webasto DBW2010 Diesel Hydronic Hot Water Cabin Heat Interfaced with Engine

• Thermostats – (4) NEW August 2025

• 2010 24volt Webasto – Serviced + NEW Combustion Motor – November 2025

• Domestic Split Type Air Conditioning

• Force 10 LPG Fired Bulkhead Mounted Heater with Oxygen Sensor

• Washer & Dryer – Slendide 2100 XC

• TV – 45″ LG in Salon

• Stereo – Clarion CZ302

• Weems & Plath – 4″ Chrome Barometer & 4″ Black Clock in Salon

• 5″ Black Clock in Master Stateroom

MECHANICAL:

• Single Cummins 4BT-3.9, 150hp at 2800 rpm, Freshwater-Cooled, Naturally Aspirated, Direct-Drive, Diesel Engine

• Hours – 4,969

• Engine – Serviced August 2025

• Cruising Speed – 7.5 Knots @ 1500 rpm

• Engine Controls – Manual Cable Transmission & Throttle Controls – NEW August 2025

• Engine Fuel Injectors – NEW August 2025

• Engine Alternator – 130 AMP

• Engine Coolant Overflow Bottle – NEW Factory Bottle

• Engine Heat Exchanger – NEW MR. Cool Heat Exchanger August 2025

• Engine Sea Strainer – Serviced/Cleaned August 2025

• Engine Fuel Filters – Primary – Racor 1000MA

• Secondary – Engine Mounted

• Engine Shaft – 1.5″ Stainless Steel

• PSS Dripless Shaft Seal

• Rubber Cutlass Bearing in FRP Stern Tube

• Engine Propeller – 4-Blade LH Bronze – 24 x 20

• Engine Block Heater – 115 Volt AC

• Engine Oil Changing System

• Fuel Polishing System with Racor 1000MA Filter

• Steering System – Hynautic Hydraulic Steering

• Shaft – 1 1/2″ Stainless Steel

• Shaft Log thru Shoal Keel (No Strut)

• Rudder – Inboard Keel Shoe Hung Curved Foil Shaped Rudder – FRP Cord

• Stuffing Box – Bronze

• Thru Hull Fittings – Bronze

• Thru Hull Valves – 1/4 Turn Type

• Bilge Pumps – (2) 12Volt DC Auto/Manual Switched Submersible Pumps

• (1) NEW Bilge Pump Beneath the Engine

• (1) Whale Manual Bilge Pump

• (1) Portable 115volt AC Sump Pump

• Thruster – Vetus 12Volt DC Electric Bow Thruster

• Stabilizers – Paravanes Outrigger System – Solid Steel Stabilizers

• (2) External Stabilizing Keels Port & Starboard Parallel to the Main Bow to Stern Keel

ELECTRICAL:

• Shore Power – 30AMP & 50AMP – Port & Starboard Outlets

• Galvanic Isolator

• Batteries – Start – (1) 8D

• House – (8) 6Volt Golf Cart Batteries in (2) Banks – All Wet Cells

• All Batteries – Serviced & Installed Battery Post Stainless Steel Lock Nuts – August 2025

• Battery Monitor – Link Lite

• Inverter/Charger – Magnum ME2512

• Battery Charger – Truecharger 40

• Generator – Northern Lights M643-5N, 5KW, 120Volt AC. Diesel-Fired, Freshwater-Cooled

• Racor Fuel Filter, Sea Strainer, Wet Exhaust

• Hours – 4,173

• Solar Panels – 850 Watts with (4) Smaller Panels & (2) Larger Panels

NAVIGATION / COMMUNICATION:

• Compass – Ritchie 4.5″

• Autopilot – Navman Pilot 3380

• Depth Sounder – Humminbird 160

• Radios – ICOM 127 VHF

• Yaesu FT2900

• ICOM ICM802 SSB

• AIS – Vesper B

• Coastal Explorer Navigator – Sophisticated, full featured navigation software package

• Plotter/GPS/Knotmeter – Raymarine 7″

• Radar – Raymarine 4K

• Furuno 1942 6K

• Radar Mast – Aluminum

• Rudder Angle Indicator – VDO

GROUND TACKLE:

• Windlass – Maxwell 3500 Vertical Type 12Volt DC Electric Windlass

• Forward Deck Foot Controls

• Pilothouse Helm Controls

• Anchors – Bruce 30KG

• CQR 75#

• Fortress FX23

• Parachute Anchor

• Chain – 260′ of 3/8″

• Secondary – 30′

• Nylon Rode – 250′

SAFETY:

• Life Raft – Viking Rescyou 4UKI

• Navigation Lights

• Lifelines – Single Lines Vinyl Covered

• Boarding Gates – Port & Starboard

• Deck Scuppers – Large Slots at Hull Side Decks

• Air Horn – Dual Horns with Air Compressor Mounted Under the Pilothouse Hardtop

• Emergency Tiller

• Fire Extinguishers – Handhelds (1) 40BC, (1) 10BC Halon, (1) 3A 40BC, (2) 2A 10BC

• Firebox Halon 1301 – Engine Room Automatic Thermal Release Unit

• Bow Pulpit / Railing – Stainless Steel with Teak Top Grab Rails

• Stanchions / Side Railings – Stainless Steel with Teak Top Grab Railings

MISCELLANEOUS:

• Tender – 11′ AB Model 11AL Inflatable

• Tender Outboard – Yamaha 20hp Outboard – Serviced NEW Oil, Filter & Spark Plugs August 2025

• Tender Davit – 12Volt DC Electric Crane – Stainless Steel

• Tender Storage – Tender Deck Chalks

• Canvas – Hatch Covers

• Aft Fantail Deck Enclosure Curtains

• Pilothouse Windshield Cover

• Windlass Cover

• Davit Winch Cover

• Cockpit – Teak Table with Wrap-Around Upholstered Seating

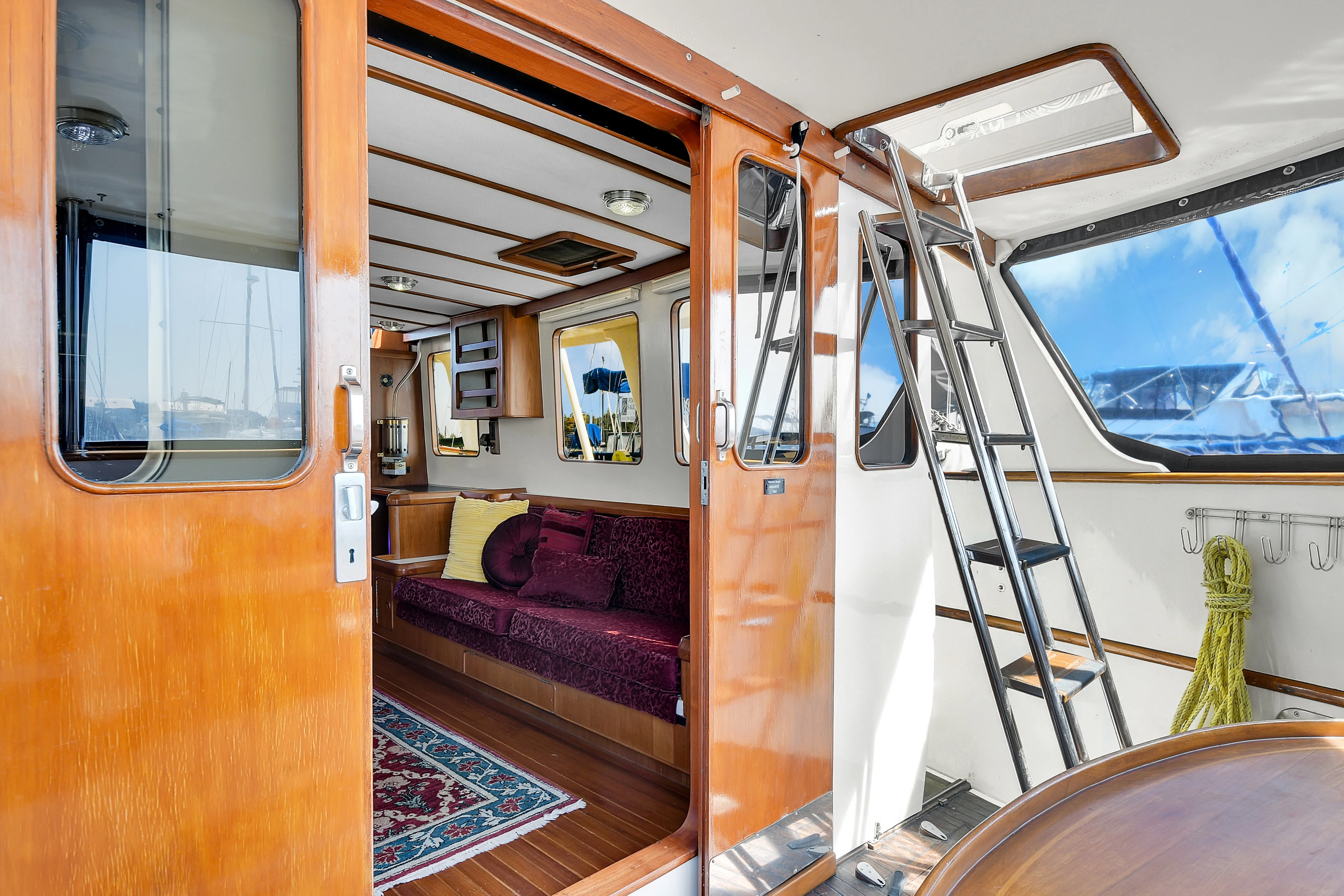

• Cockpit to Salon – Ingress & Egress Thru Beautiful Double Sliding Teak Doors

• Helm Pilothouse Doors – Ingress & Egress Thru Beautiful Sliding Teak Doors

• Multiple Deck Boxes – Bow & Upper Deck

• Staging & Personal Items removed at Time of Sale.
