2003 Trinity Yachts Motoryacht | 150ft
TRUE LOVE
Boat Highlights:
Year of Vessel
2003
Fuel Type
DIESEL
Length
150 ft
Manufacturer
Trinity Yachts
Condition
Pre-owned
Boat Type
Power
TRUE LOVE TRINITY YACHT FOR SALE
Best opportunity in her class. Period.
(New paint - Very well maintained - Immaculate machinery spaces)
Purchased for private use by her serial yacht owner in 2020, TRUE LOVE is a striking Trinity semi-displacement, high-speed cruising, 5-stateroom all-aluminum motoryacht. Featuring a Claudette Bonville-designed interior finished in rich cherry woods, accented with burl veneers as well as the finest marble and stonework available. Sleeping 11 guests, in 4 king beds, two singles, and one pullman, with accommodations for 10 crew. Dependable Caterpillar machinery provides a comfortable cruise speed of 14+ knots and a range of over 3,000 nm at 11 knots. She is in class with ABS with MCA equivalence under Jamaica Flag. You need to see TRUE LOVE to appreciate her outstanding quality and attention to detail.
KEY FEATURES
- Maintained for exclusive private use with exceptionally light usage during the past five years
- Bilges and compartments are as clean as a whistle. As good as you’d find on a new build. Immaculate
- Annual refits since 2020, including machinery overhauls and air-conditioning upgrades
- Her strong charter pedigree is demonstrated by a highly successful program under previous ownership
- Steadfast leadership under the same experienced captain throughout current ownership (5 years)
- Her Trinity pedigree is reflected in the long-term ownership by each of her previous owners
- Ready for her next owner to personalize with interior upgrades and finishing touches
KEY UPGRADES & MAINTENANCE
New modern Awlgrip exterior paint scheme, and updated exterior styling top to bottom (2024)
2 New Kohler 99kw generators with remote displays on units and in wheelhouse (2024)
New reupholstered exterior soft goods and acessories (2024)
New air conditioning plant and rating upgrade (2024)
Main engines top-end rebuild and upgrades (2022)
New exhaust risers and mufflers (2022)
Rebuilt Nautical Structures davit (2022)
(in progress)
● New Cat digital displays on each engine and main helm
● New oil coolers on each engine
● New alternators added to each engine
● New aftercoolers on each engine
● New floating beach club with pool
● Rebuilt galley freezer and aft deck refrigerator
REFIT 2024
● New bottom paint and prop speed on all running gear
● Top to Top-to-bottom Awlgrip paint job
● Removal of all portlights and hardware, reinstalled with isolation mounts
● Port Rudder rebuilt
● Main engine exhaust tubes sandblasted and coated
● New Dometic chiller plant installed
● Stabilizer 8000-hour service
● Engineer quarters converted from single beds to bunk beds
REFIT 2023
● 2 New Kohler 99kw generators
● Remote digital local displays added to generators
● Remote digital bridge displays added to generators
● New exterior furniture covers throughout
● New tender and toy covers
● All 3 headhunter black water transfer pumps replaced
● Replaced all 4 ice makers

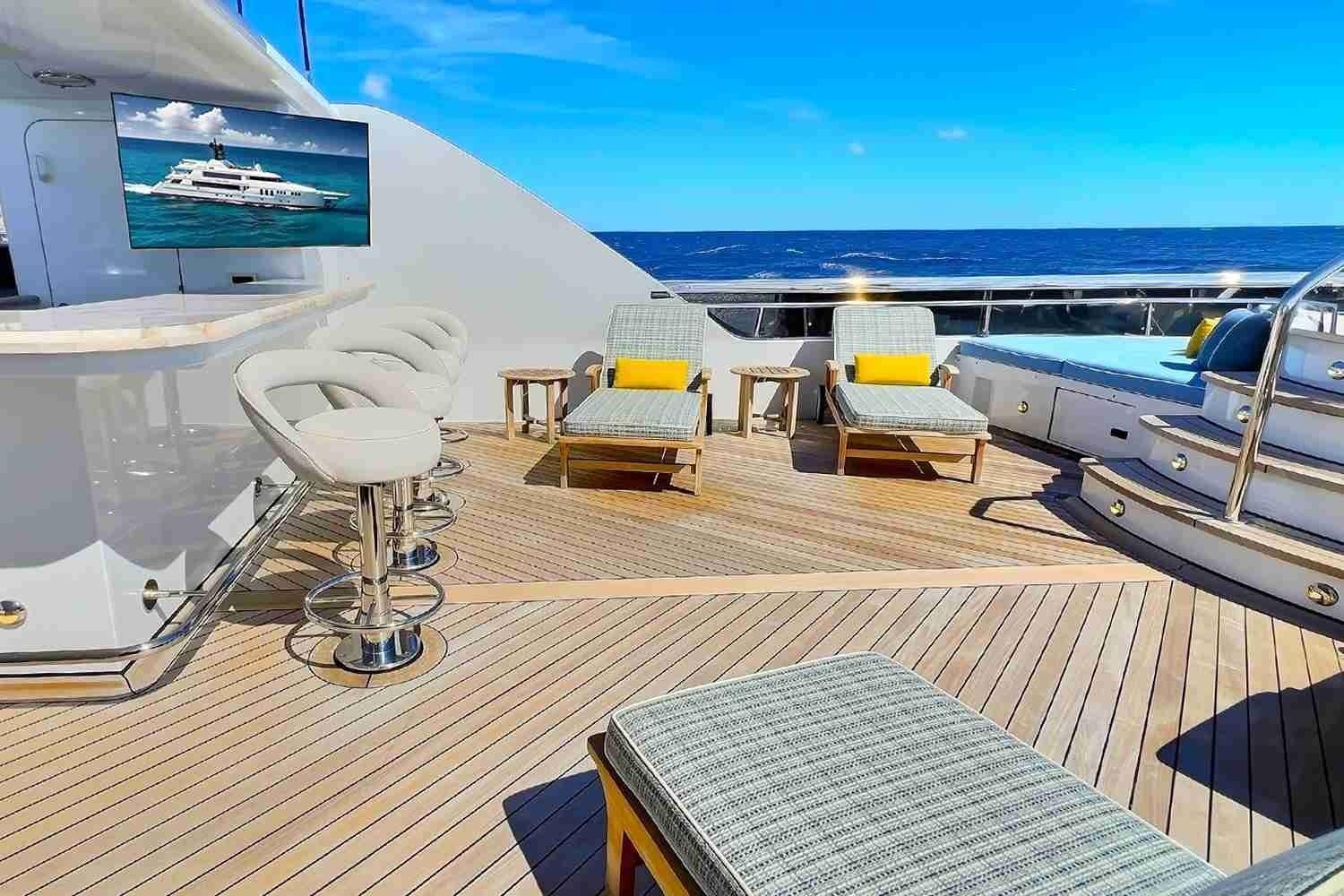

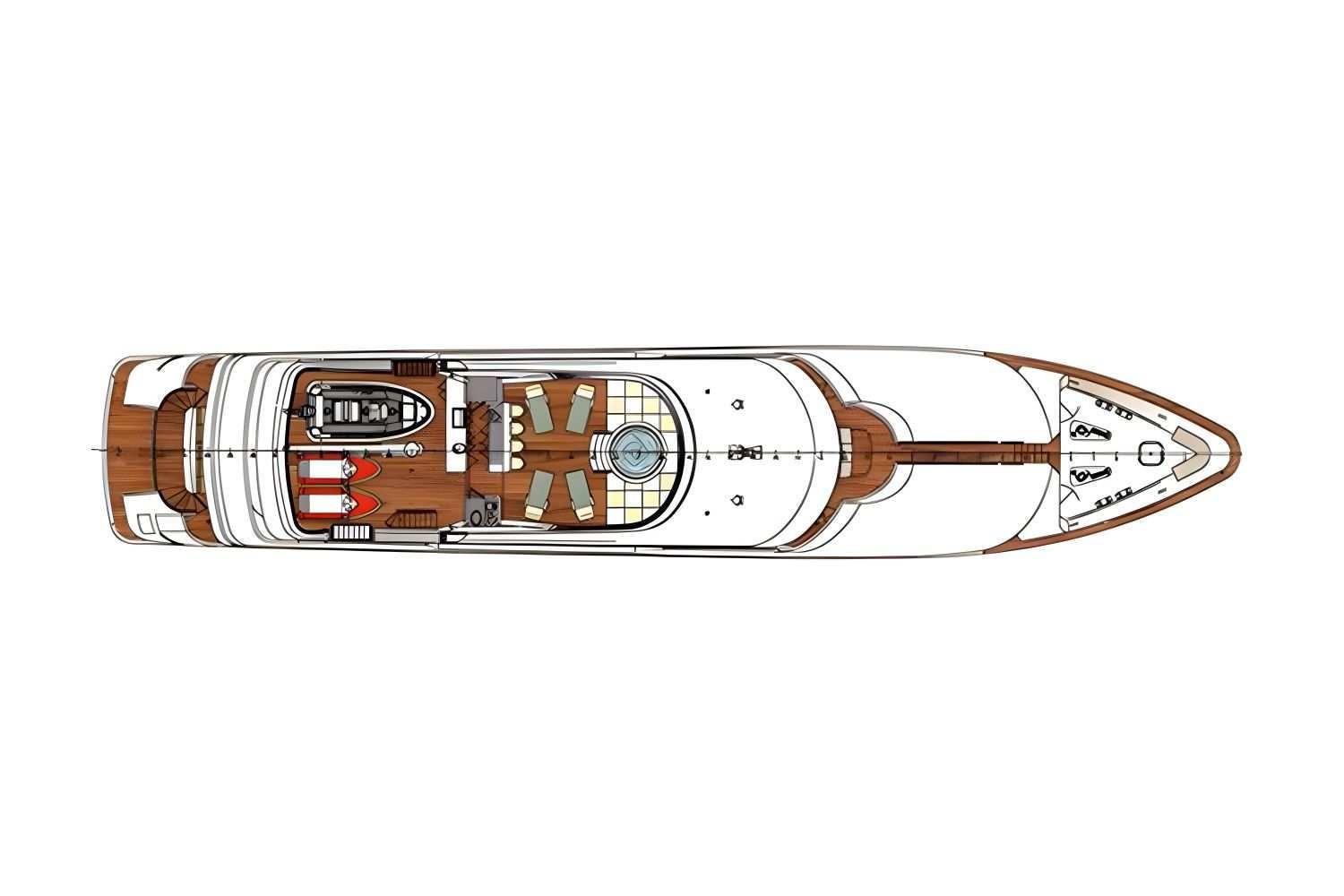

SUNDECK
● New reupholstered exterior soft goods
● Aluminum substrate blasted, primed, and faired for teak
● New teak installed on the entire sundeck forward
● New non-skid paint on boat deck
PORTUGUESE DECK AND BOW
● Aluminum substrate blasted, primed, and faired for teak
● New Teak Installed
MAIN DECK
● New reupholstered exterior soft goods
SWIM PLATFORM
● Aluminum substrate blasted, primed, and faired for teak

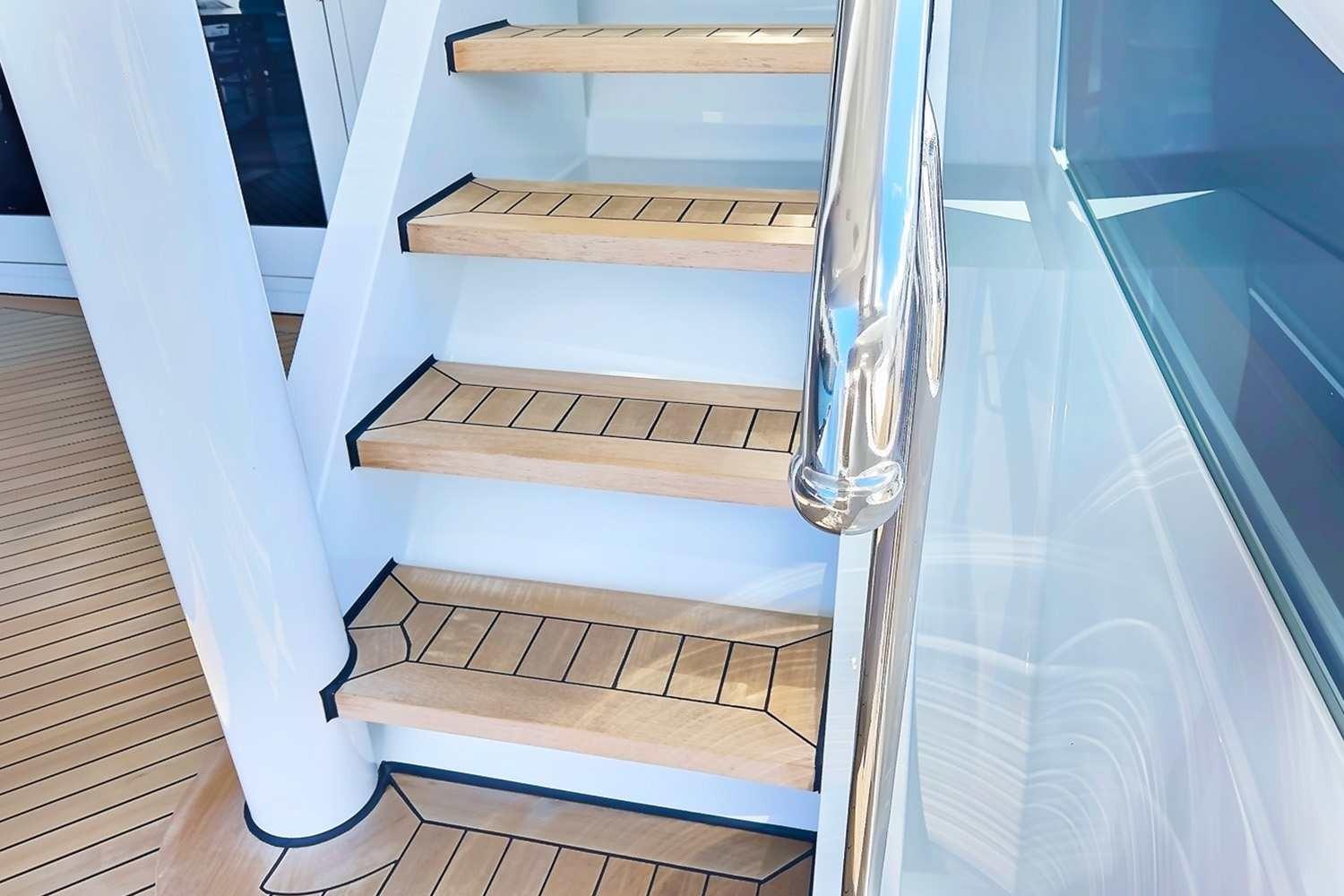

● New teak installed on stairs and swim platform
REFIT 2022
● Main engines top-end rebuild and upgrades
● New main engine water pumps
● New gear coolers
● New Hydraulic pack oil cooler
● Both rudder actuators resealed
● Nautical Structures davit rebuilt
● Shaft logs sandblasted and coated
● Cutlass bearings replaced
● All hoses on board replaced with stainless steel fittings
● Replaced crew galley dishwasher
REFIT 2021
● All new cupronickel piping in engine room bilges and aft
●All new fire/bilge aluminum piping replaced in all fuel tanks
●New main engine mufflers
●New water heaters
● New main engine exhaust risers
● Stabilizers resealed
● Replaced all crew shower doors
● Added new VHF radio to helm
● Added WxWorks to helm
● Added 3 exterior cameras
● Replaced the main helm Garmin unit
REFIT 2018/2019
SUNDECK
● Overhauled Nautical Structures Tender / Wave Runner crane
● Installed a new wireless remote control for the Nautical Structures crane
● Serviced all toys
● Reupholstered tenders
● Reupholstered all cushions around the jacuzzi
● All new cushions on lounging chairs
● Resealed all granite counters
BRIDGE
● Upgraded navigation software (Transas and Nobeltec, 2019)
GALLEY
● Thoroughly refitted galley and serviced all galley appliances (2019)
EXTERIOR
● All teak decks were resealed, re-caulked, and sanded with numerous teak sections totally replaced. (2019)
● Outside structure has been professionally buffed, polished, and a ceramic coating was applied, which should last up to 3 years. (2019)
General Specifications
DIMENSIONS
● Length overall: 150 feet (45.7 meters)
● Beam: 28 feet (8.5 meters)
● Draft: 7.5 feet (2.3 meters)
● Height: 50.5 feet (15.4 meters)
● Fuel capacity: 15,687 gallons (60,063 liters)
● Water capacity: 2,656 gallons (10,054 liters)
● Maximum speed: 21 knots
● Cruise speed: 15 knots
● Gross Tonnage: 446
● Net Tonnage: 133
Machinery
MAIN ENGINES
● Engine Builder: Caterpillar, Inc.
● Engine Model: 3512B diesels @ 2,250 hp each
● Engine Hours: 10,145 (top end rebuild 2022)
● Consumption: Approx.250–275 US Gallons per/hr total at 12–14 knots
● Gearboxes for Main Engines: (2) ZF BN465 – Ratio 3:1
● Drive: (2) Nibral 56" propeller, 5-blade
GENERATOIRS & ELECTRICITY
● Generator Builder: (2) 99 kw Kohler
● Generator Hours: 250 (new 2023)
● Consumption: Approx. 8.5 US Gallons per/hr at 50% load
● Electrical: 120/208V/ 3 Phase/60 Hz
● Frequency Converter: Atlas
● Batteries: 24v
Full specifications available upon request.
Broker-friendly full specifications and website available online at "TRUE LOVE Yacht"
AIRCONDITIONING
● Dometic Chillers (3) 12.5 tonnes
OTHER MACHINERY
● Watermakers: (2) Watermaker Inc. (1400 gallons per day)
● Zero Speed Stabilizers: Quantum Koopnautic
● Bow Thruster: Quantum
● Steering System: EMI – Emergency Steering also EMI
● Fuel Separator and Filtration: Alfa Laval
● Sewage System: Head Hunter - Fox
● Fresh Water System: Head Hunter
● Bilge Water Filtration: Village Marine
Tankage
FUEL
● Port forward 4,436 gallons
● Starboard forward 4,436 gallons
● Port aft 2,858 gallons
● Starboard aft 2,858 gallons
● Day tank 1,099 gallons
● Total Capacity: 15,687 gallons
● Range: 3,000 + nautical miles @ 11 knots
POTABLE WATER
● Port 1,328 gallons
● Starboard 1,328 gallons
Total Capacity: 2,656 gallons
LUBE OIL
● New 117 gallons
● Used 117 gallons
BLACK WATER
● Aft 103 gallons
● Guest sewage 275 gallons
● Forward holding 293 gallons
GRAY WATER
● Aft 49 gallons
● Mid port 96 gallons
● Mid starboard 96 gallons
● Forward 194 gallons
Total capacity: 435 gallons
Communication, Navigation, and Entertainment Systems
COMMUNICATION SYSTEMS
● Satcom: KVH - Fleet 77 VSAT
● Telephone System: Panasonic (2) VOIP lines
● SSB: Furuno
● VHF: Furuno
● Cellular Phone System: Nokia
● Intercom: Panasonic
NAVIGATION SYSTEMS
● Radar: (2) Furuno FR2125 BB (120 nm)
● Gyrocompass: C-Plath, Navigat X MK 1
● AutoPilot: C-Plath, Navipilot V/M
● Depth Sounder: Furuno RD30
● GPS: (2) Northstar 951X
● Weather FAX: N/A
● Fax: H.P. – D Series
● Ship's Computer: Dell
● ECDIS: Transas
● Wind/Speed Log: B+G
● Navtex: Furuno NX 500
● AIS: Furuno FA-100
Galley & Laundry Equipment
MAIN GALLEY EQUIPMENT
● Stove: (1) Vulcan stove
● Ovens: (2) Vulcan ovens
● Refrigerators: (2) Delfield
● Main Freezers: (1) Delfield
● Ice cream: (1)
● Lazarette: (1) Delfield
● Dishwasher: Bosch
CREW GALLEY/MESS EQUIPMENT
● Refrigeration: Bosch
● Dishwasher: Bosch Fisher Paykel
LAUNDRY EQUIPMENT
● Washers: (2) Miele
● Dryers: (2) Miele
Tenders & Toys
TENDERS
● Tender 1: 19' Wave tender (2016)
GEAR & TOYS
● Seabobs: Yes (2)
● Air-Foils: Yes (2)
● Dive Gear: Yes
● Dive Compressor: Yes
● Fishing Gear: Yes
● Snorkeling Gear: Yes
● Wave Runners: (2) Yamaha 1200cc with neutral and reverse (2017)
● Water Skis: Yes

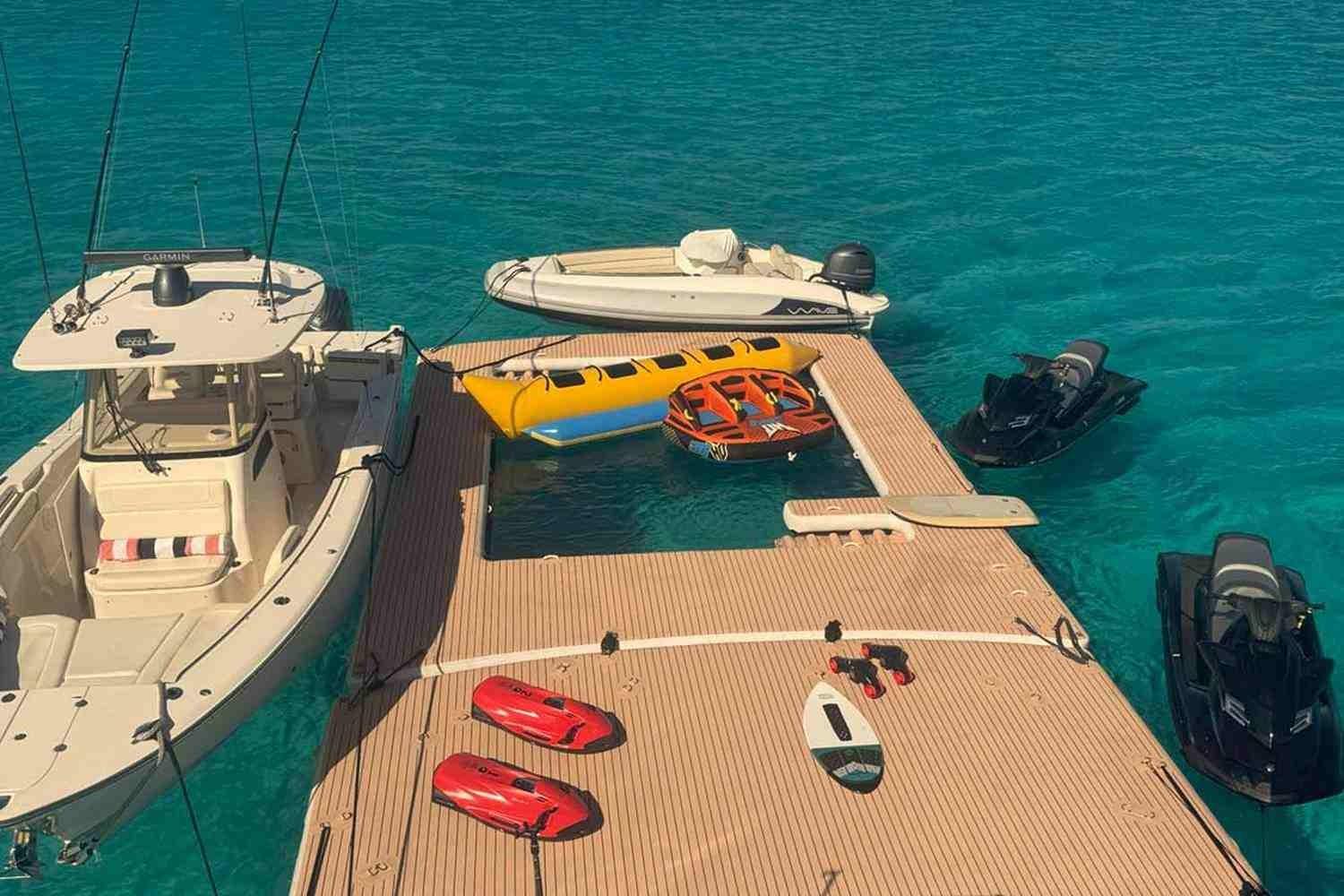

● Beachclub: FunAir floating beach club and pool

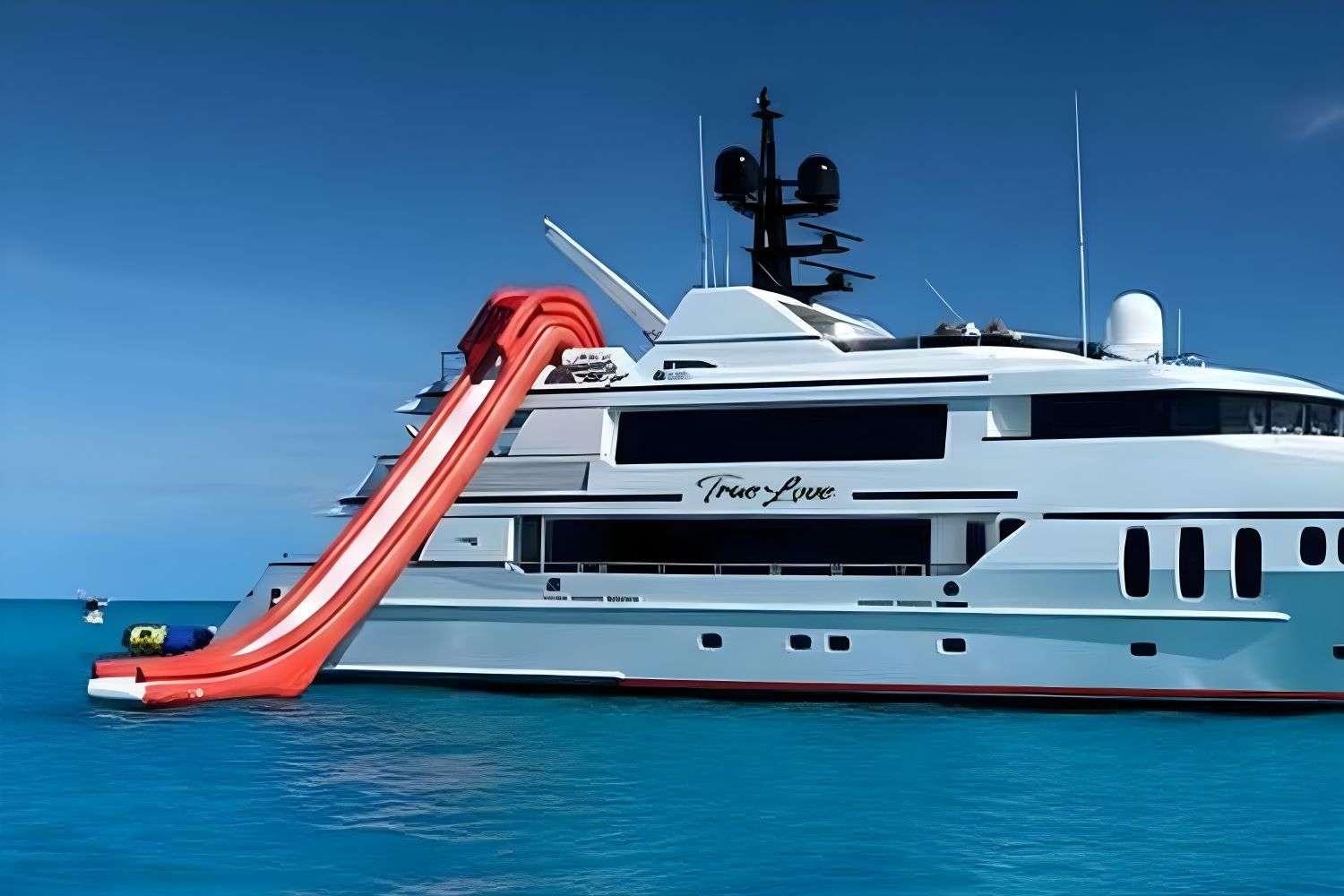

● Water Slide: 42’ custom waterslide from the sun deck (2019)
● Trampoline: Floating trampoline (2019)
● Towables: (2) Single-person Donut towable inflatable, Kneeboards, wakeboards, couch
WELLNESS EQUIPMENT
● Massaging 1: Migun Automatic Full Body Massage Bed with infrared rollers (built into Skylounge sofa)
●Massaging 2: (2) Relax the Back reclining and massaging chairs (Main Salon)
Deck Equipment

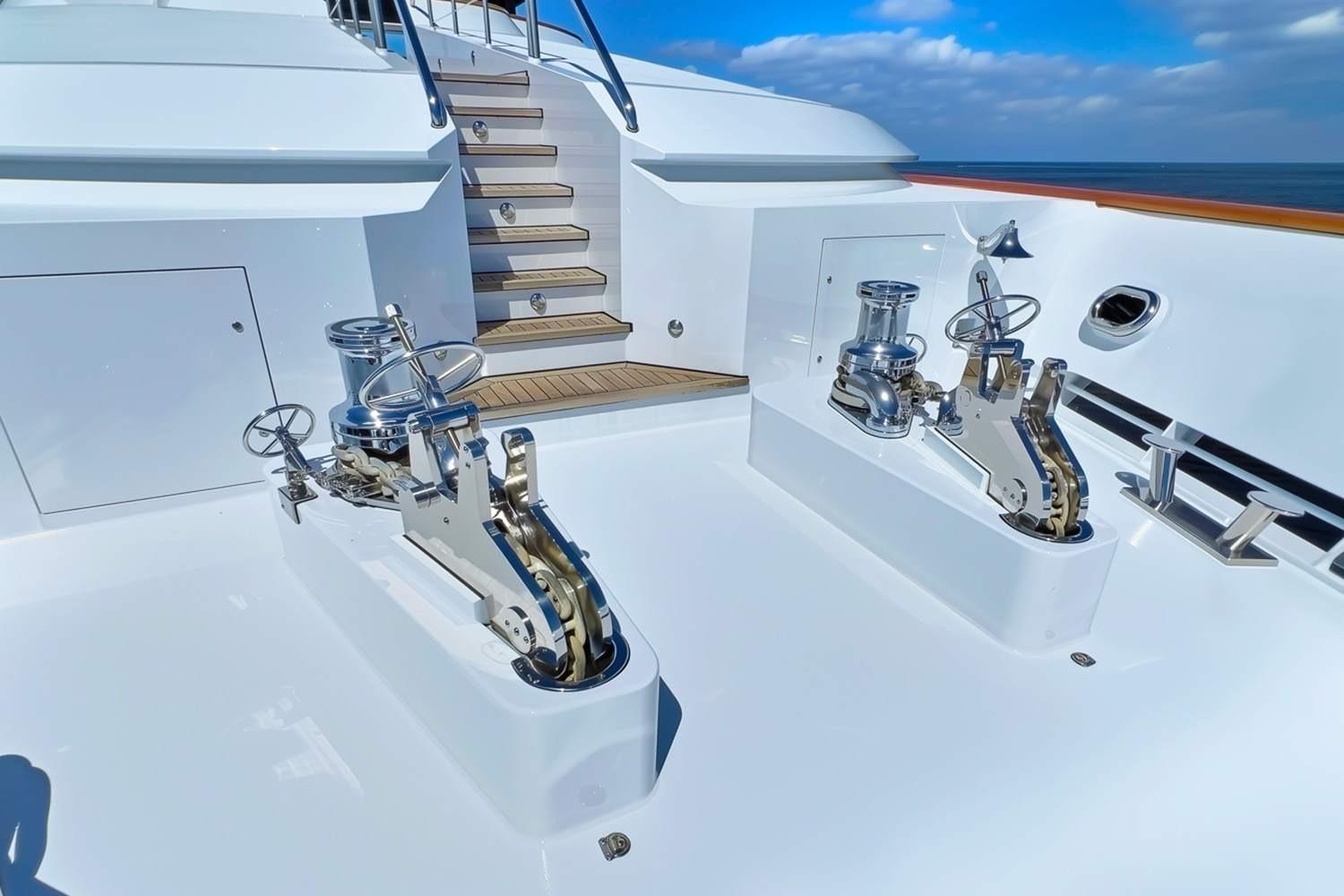

ANCHORING & WARPING
● Anchor Windlass System: Maxwell

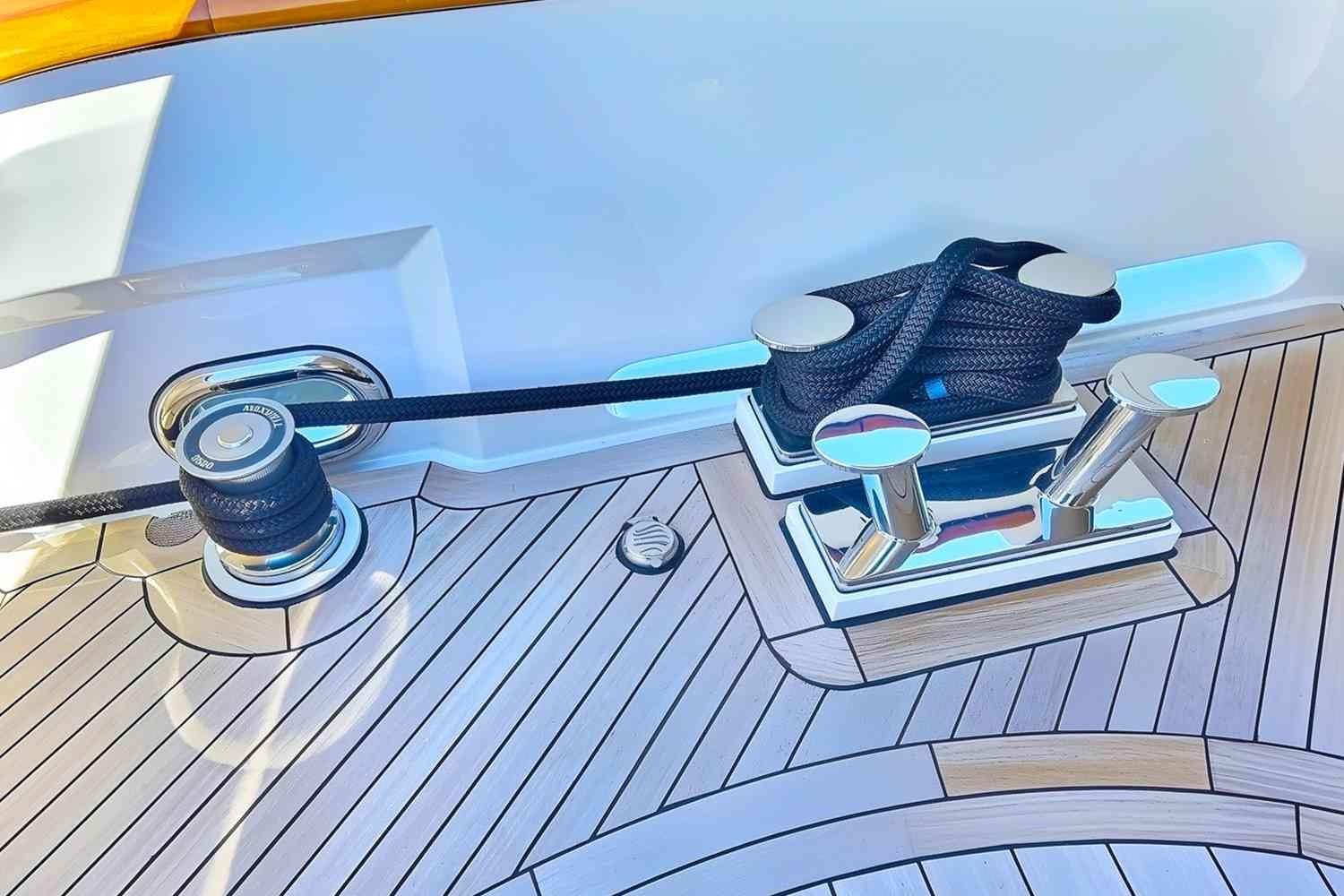

● Aft Warping Capstans: Maxwell
● Anchors: (2)
● Anchor Chain:(2) 3/4" 450'
OTHER
● Boat Crane:
● Passerelle:
● Swimming Platform:
Security, Fire & Safety Equipment
SECURITY EQUIPMENT
● CCTV System: Control4 digital cameras (2020)
● Cameras: (9) Engine room, both side decks, mast, aft deck
● Monitors: (2) Wheelhouse, crew lounge
FIRE FIGHTING EQUIPMENT
● Fire Control System: Kidde-Fenwal
● Fire Extinguishers: (35) CO2
● Alarms: Sentrol 1500
SAFETY EQUIPMENT
● Life Rafts: (2)
● Life Rings: (4)
● EPIRBS: (2)
● Flares: (20)
● Medical Equipment: Yes – Vital link to Med Link

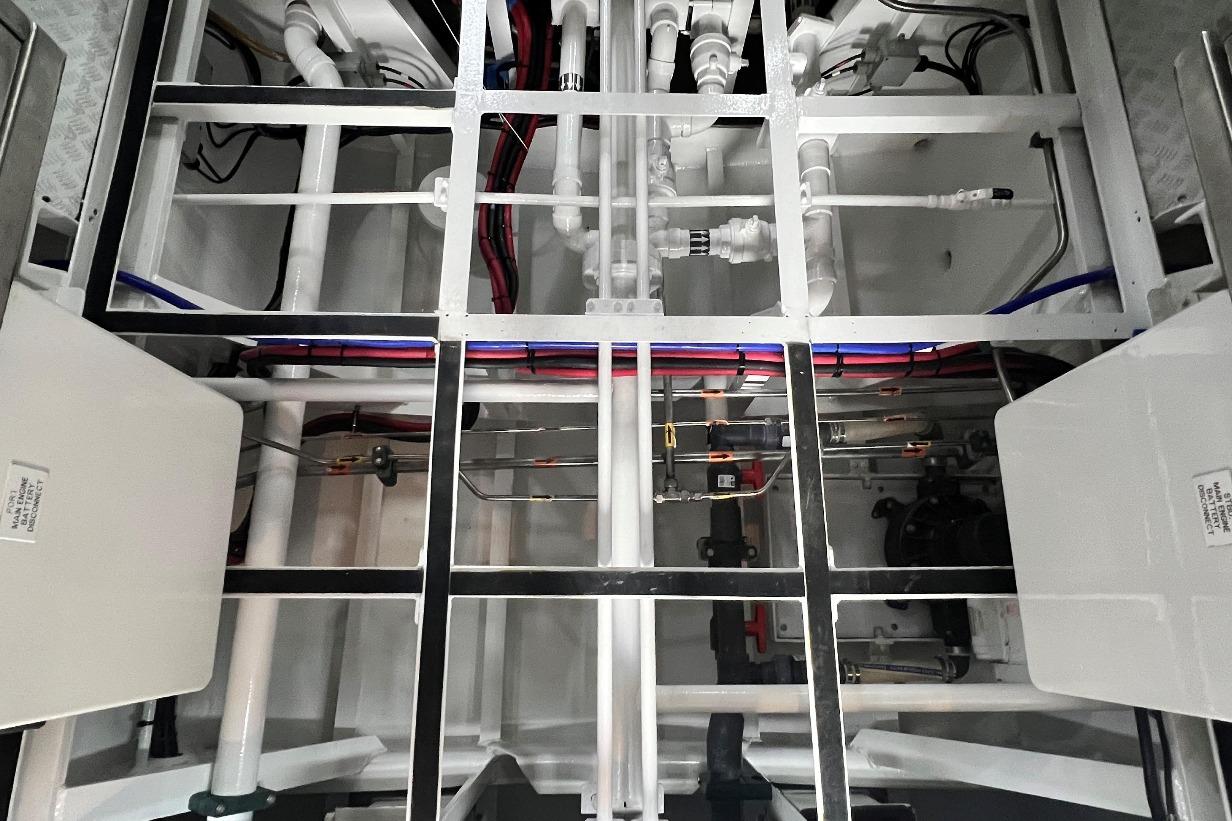

Compartments (immaculate)
THRUSTER COMPARTMENT
● Welded aluminum bow thruster tube with hydraulic motor
● Dunnage storage shelves
● Various piping
● Central hydraulic system forward electrical junction box
● Drop-in welded aluminum black water tank
● Shelving for storage
CREW MACHINERY SPACE
● Sea Recovery potable water UV light system
● (2) Headhunter Sub Compact model #SQ5000 potable water pump control
● Various potable water plumbing
● Fantech 110-volt AC exhaust blower
● 230-volt AC electric fire pump
● Headhunter fiberglass potable water expansion tank
● Oberdorfer black water macerator pump
● Hiblow black water aeration pump
● Derbyshire eductor
● Shelco potable water filter housing
● Fire pump start and stop control panel
● 110-volt AC outlets
FORWARD GUEST COMPARTMENT
● Fuel tank pneumatic valves
● Hiblow aerator pump for black water
● Headhunter Tidal Wave system
AFT GUEST COMPARTMENTS
● Pneumatic valves
● Quantum dual ram stabilizer fin heads
LAZARETTE/CONTROL ROOM COMPARTMENT
● Various plumbing
● Drop-in gray water tank
● Ship’s stores
● Aft sewage tank and aft gray water tank
● (2) Headhunter Tank Sentry model #SMY23QS tank level sensors
● MP Pumps AC electric gray water transfer pump
Crew/Common Areas
GALLEY
● Smeg 5-burner glass top induction range
● (2) Smeg undercounter electric ovens
● Custom-made stainless steel range hood with both supply and extraction fan and a Wet Agent fixed fire suppression system
● Dual stainless steel sink with garbage disposal unit
● Sub-Zero dual drawer freezer
● Custom-made Delfield dual-compartment refrigerator
● Custom-made Delfield single-compartment refrigerator
BUTLER STATION
● True undercounter bin-type ice machine
● KitchenAid undercounter dishwasher
● Sub-Zero drink refrigerator
CREW LOUNGE
● Panasonic microwave
● Summit stainless steel refrigerator
● Bosch undercounter dishwasher
LAUNDRY ROOM
● Two Miele Professional dryers
● Two Miele Professional washers
Audio & Visual Equipment
MASTER STATEROOM
Samsung LED HD television
Kaleidescape movie and music server
DirecTV satellite
Blu-ray DVD player
Video iPod
XM satellite radio
CD player
AM/FM radio
LOWER GUEST CABINS
Samsung LED HD television
Kaleidescape movie and music server
DirecTV satellite
Blu-ray DVD player
Video iPod
XM satellite radio
CD player
AM/FM radio

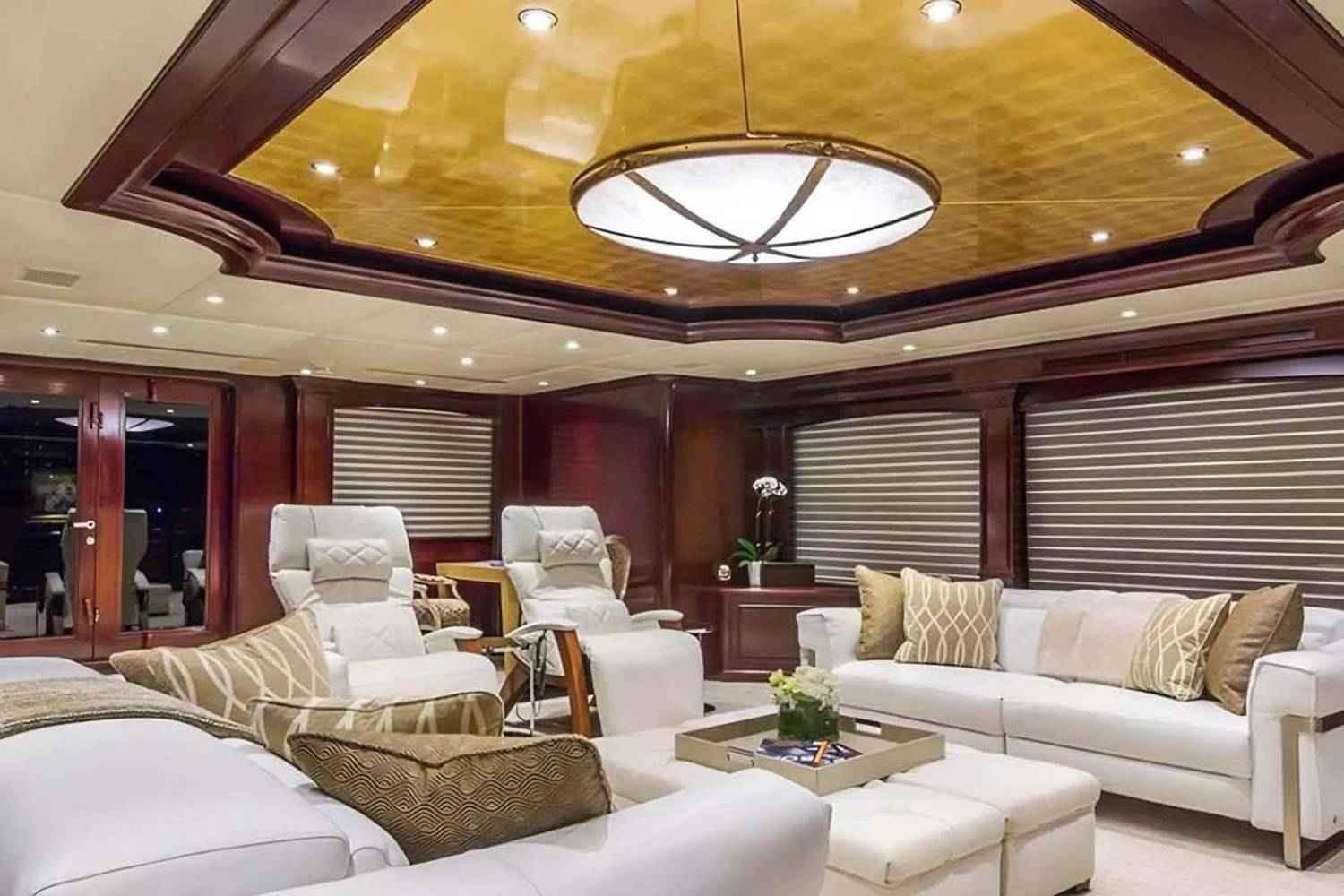

MAIN SALON
Samsung LED HD television
Kaleidescape movie and music server
DirecTV satellite
Blu-ray DVD player
video iPod
VCR
XM satellite radio
CD player
DINING SALON
DirecTV satellite music
Kaleidescape music
CD player
iPod
XM satellite radio
SKY LOUNGE
Samsung LED HD television
Kaleidescape movie and music server
DirecTV satellite
Blu-ray DVD player
Video iPod
XM satellite radio
CD player
AM/FM radio
Captains Cabin
Samsung LED HD television
Kaleidescape movie and music server
DirecTV satellite
Blu-ray DVD player
Video iPod
VCR
PS4 game station
CD player
AM/FM stereo
Crew Lounge
Samsung LED HD television
Kaleidescape movie and music server
DirecTV satellite
Blu-ray DVD player
Video iPod
VCR
PS4 game station
CD player
AM/FM stereo
Starboard Aft Crew Cabin
Samsung LED TV
Roku internet TV
Port and Starboard Forward Crew Cabins
Samsung LED TV
Roku internet TV
Engineers Cabin
Samsung LED TV
Roku internet TV
Hull Construction
Constructed of all marine-grade aluminum alloys, including 5086-H116 plate, 6061-T-6 plate, and 5086-H1114 extrusions. All of her stainless steel is ANSI-316, or 316L.
Scantlings
● Hull plating – 5/16" minimum
● 1” inserts around stabilizers, rudderposts, and shaft log penetration
● Bottom of the engine room forward bulkhead to transom – 1/2" plate
● Keel – 1" X 8" plate
● Topsides – 5/16"
● Transom – 5/16"
● Bulkheads – 1/2" and 5/16" plate
● Superstructure – 1/4", 1/8", or 3/16" plate
● Decks – 1/4" or 3/16" plate
● Bulwarks – 5/16" exterior and 1/8" interior
SPECIFICATION
Other Listings From LIME Yacht Brokerage
