Dimensions
Length Overall: 12.62m /
Hull Length: 11.96m /
Beam: 3.99m /
Max Draft: 1.16m /
Air Draft: 4.8m /
Displacement: 9563 kg
HIN: FR-BEYE5072G708
Certification: B10/12
Engines
2 x Volvo Penta D6-370 hp with EVC

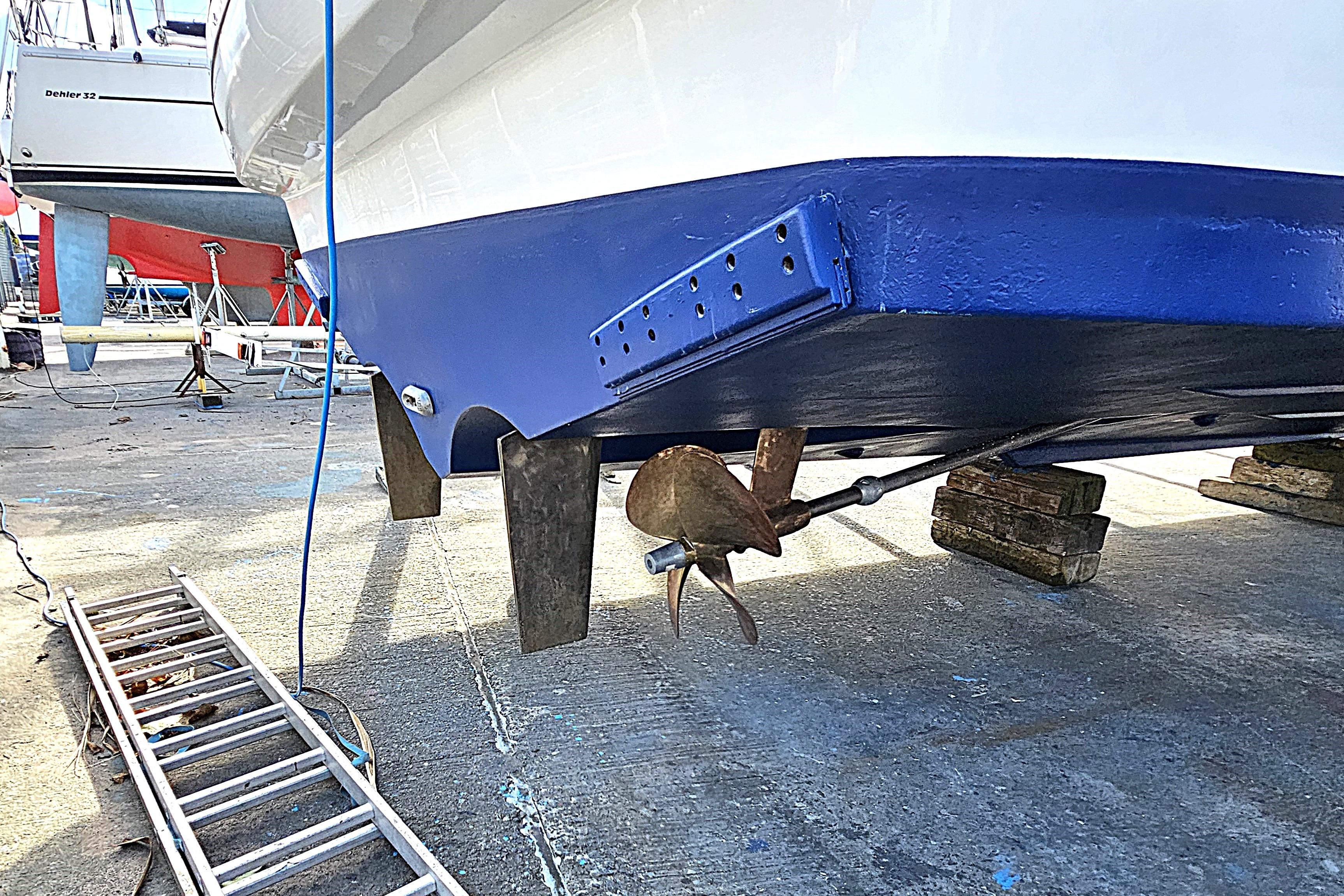

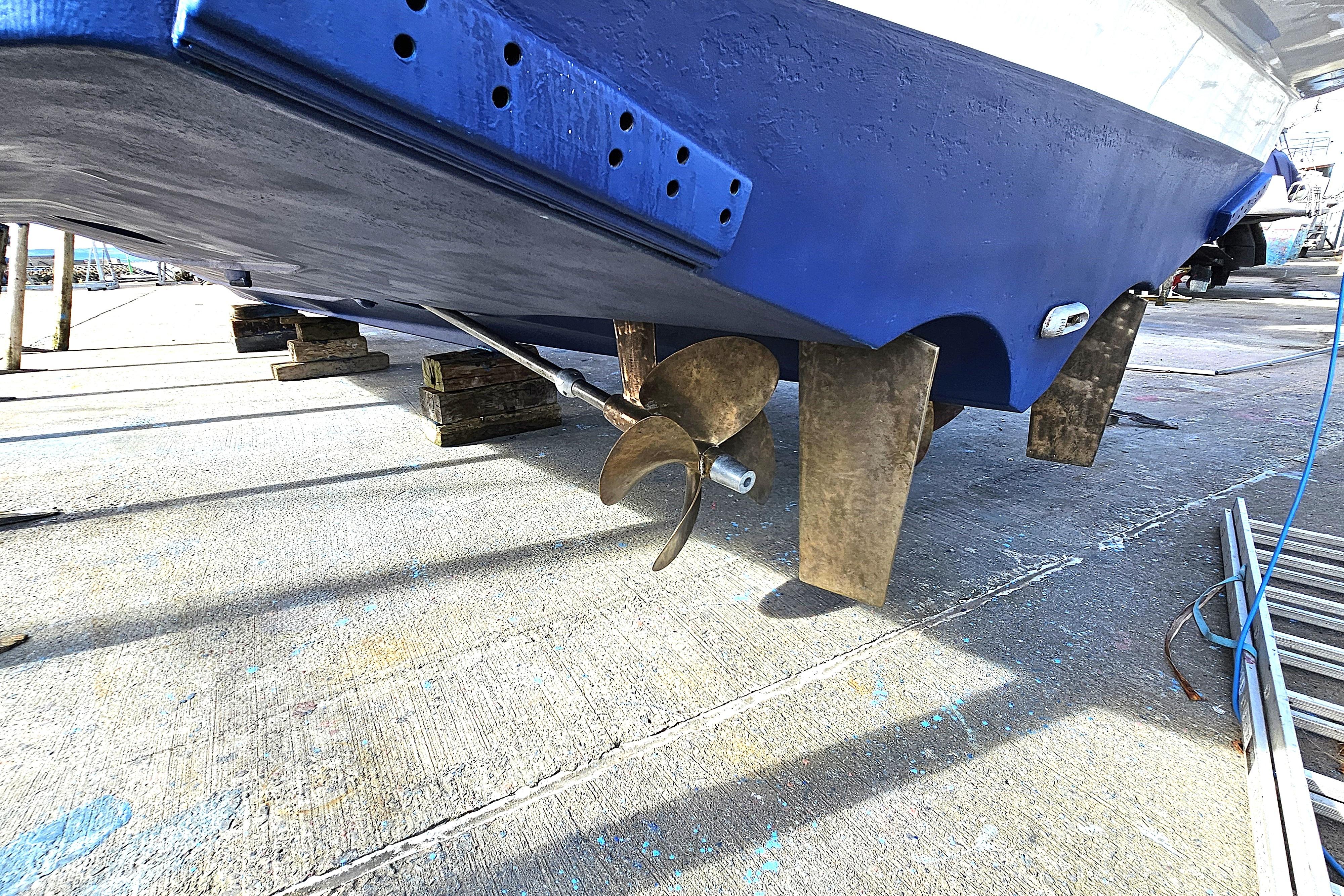

Shaft drive to 4 bladed bronze props; 2 bronze underhung rudders -
Hydraulic steering & Bow thruster.
Electric Volvo flaps with controls in wheelhouse and on fly bridge.
Fuel filter with decanter - Sea water filter - Air intakes on hull sides for engine compartment
cooling - Hot air expulsion (electric fans).
Engine room soundproofed with high density foam -
Fire extinguishing system with activation from wheelhouse -
Steering system: Hydraulic
Engine hours: 500 each
Gen set by Fischer Panda
Tankage
Fuel: 1200 l (2 x 600)
Water: 320 l
Holding: yes 80 l
Construction
Hull and deck composition: Sandwich (Polyester resin - Glass fibre / Balsa
core) - White gel-coat - Counter moulding of integral structure
hull in monolithic laminate (Polyester resin - Glass fibre) -
Profile: Semi-floating lower hull with bell V bow -
On deck: Diamond tip type non-slip covering
Accommodation
INTERIOR LAYOUT

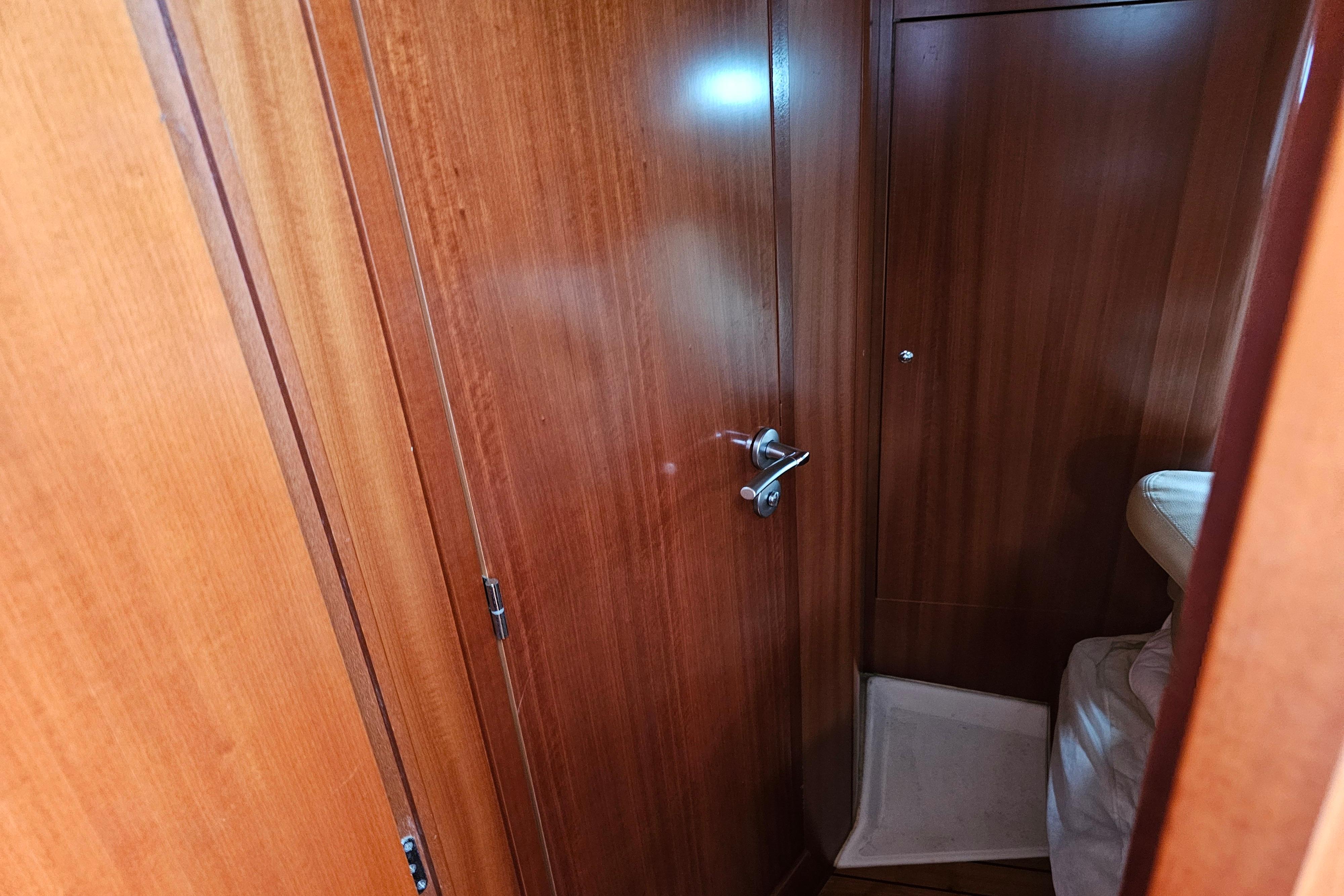

Alpi woodworking in fruit tree colour

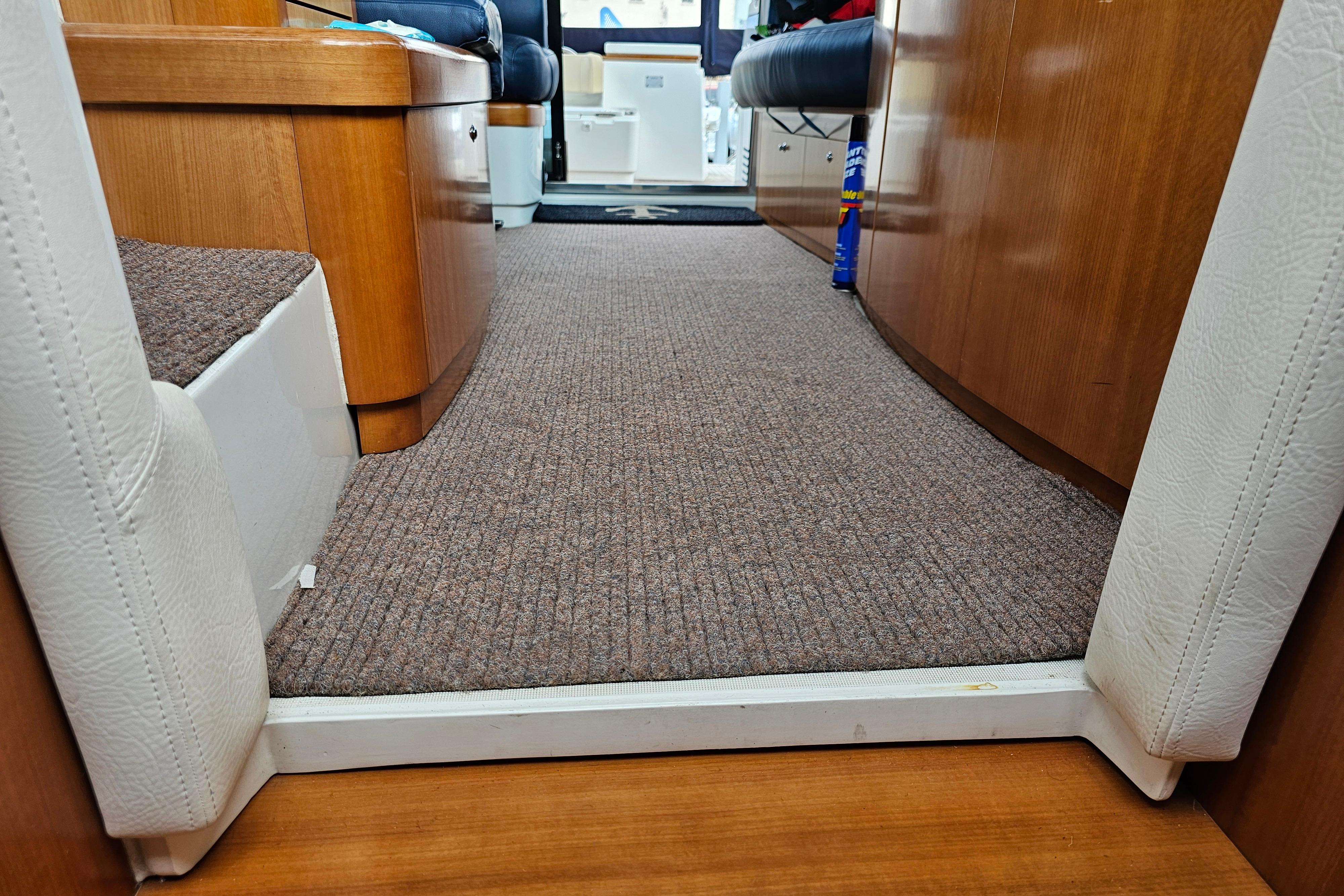

Polyester floors and Cushions in "Paradise Sand"

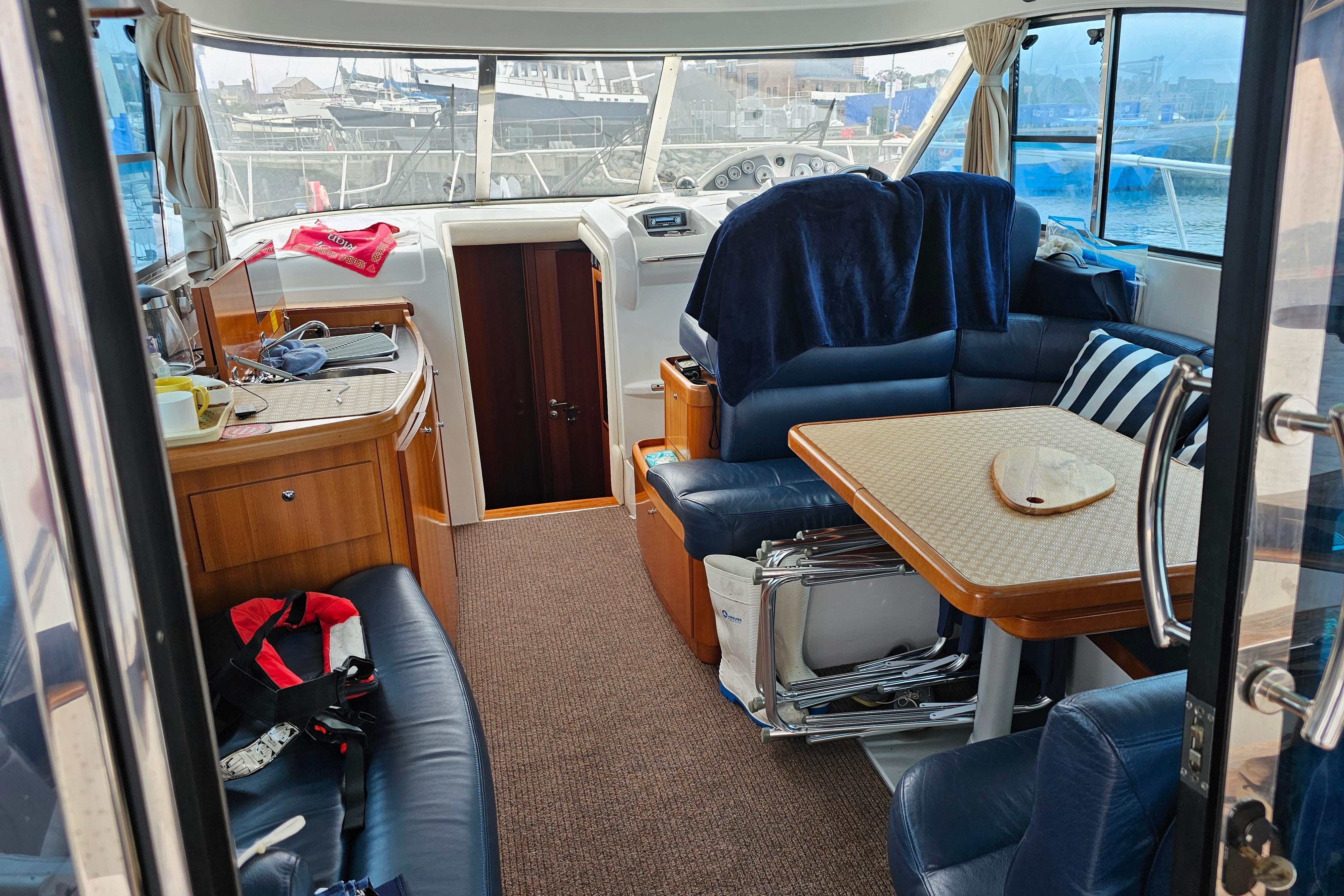

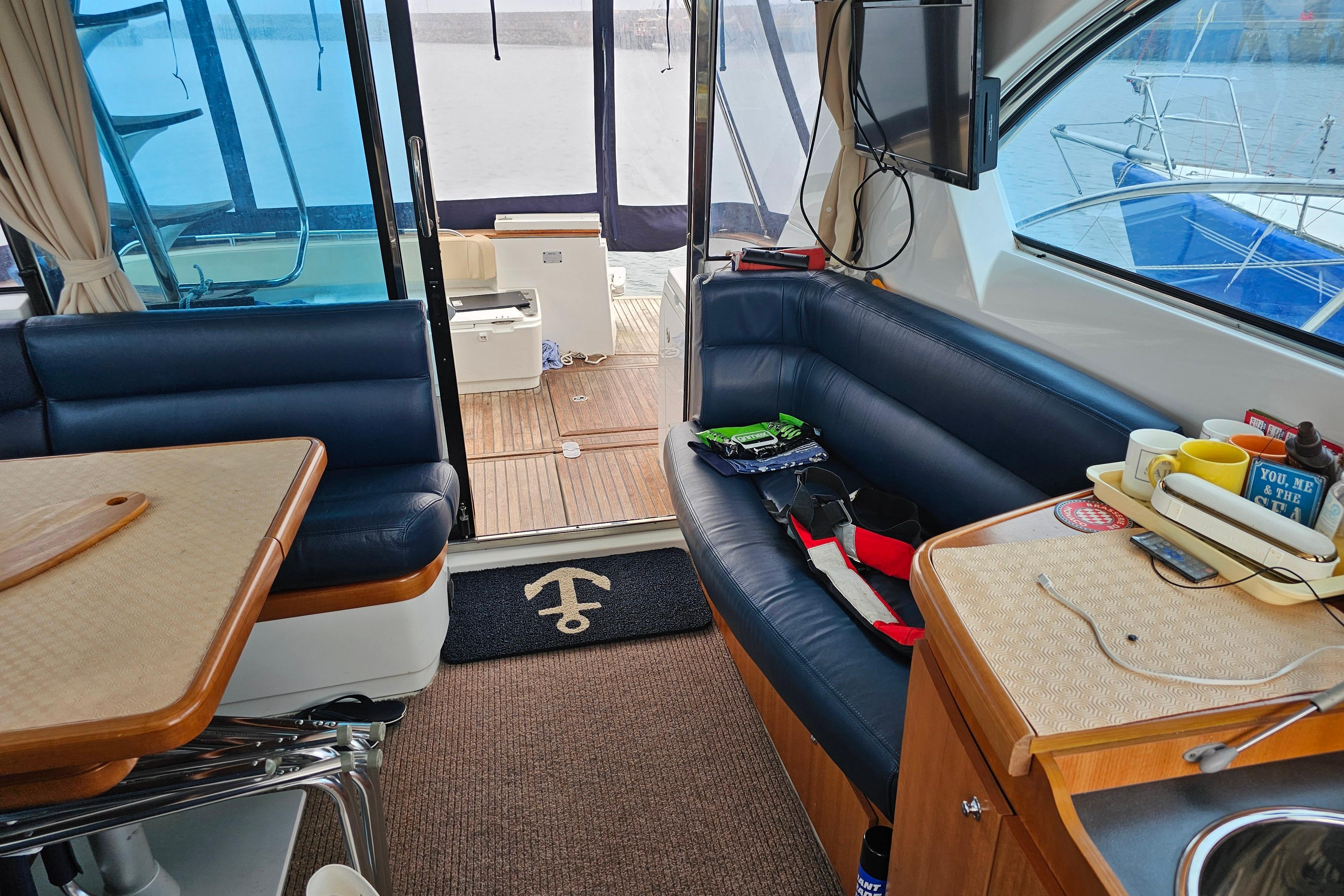

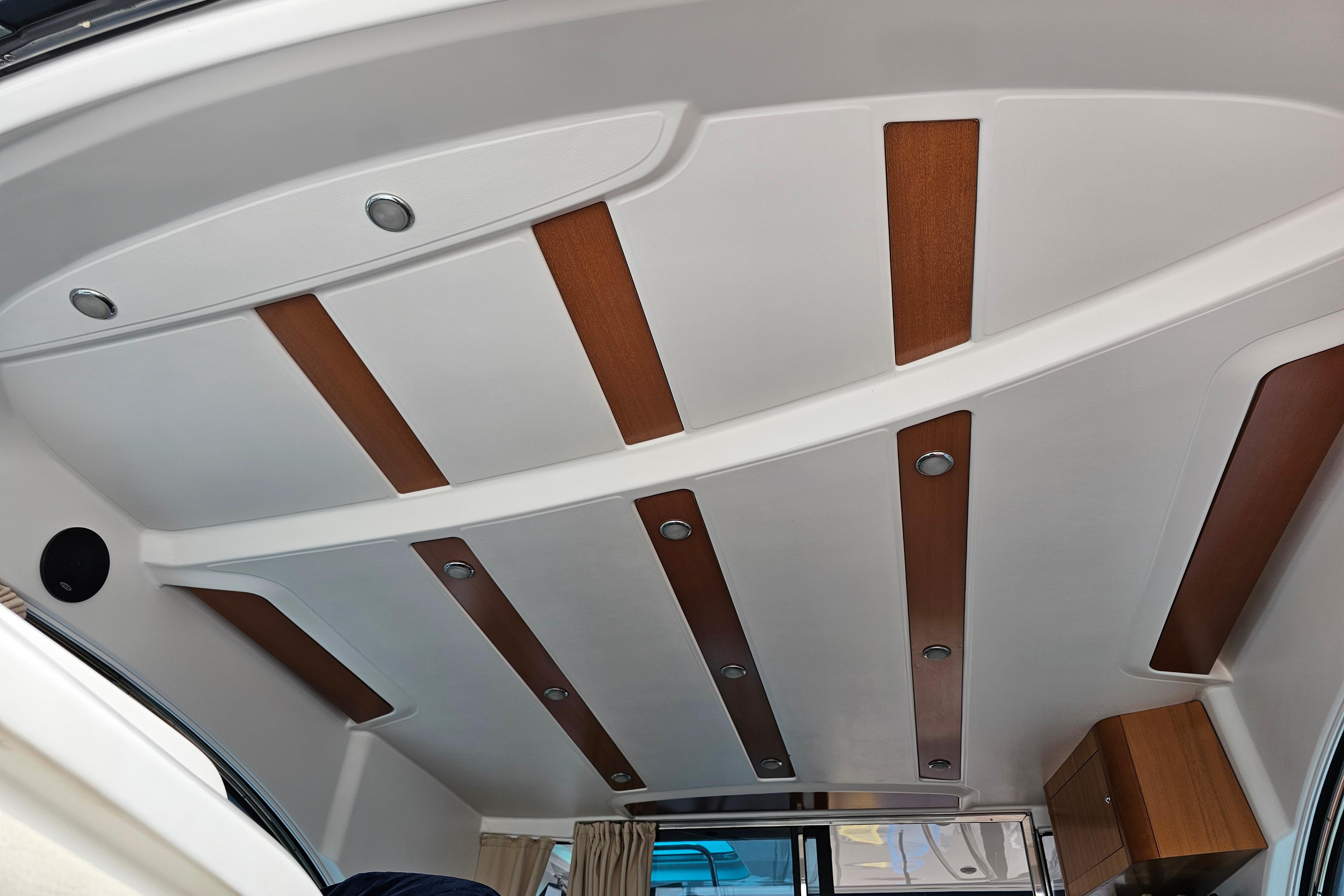

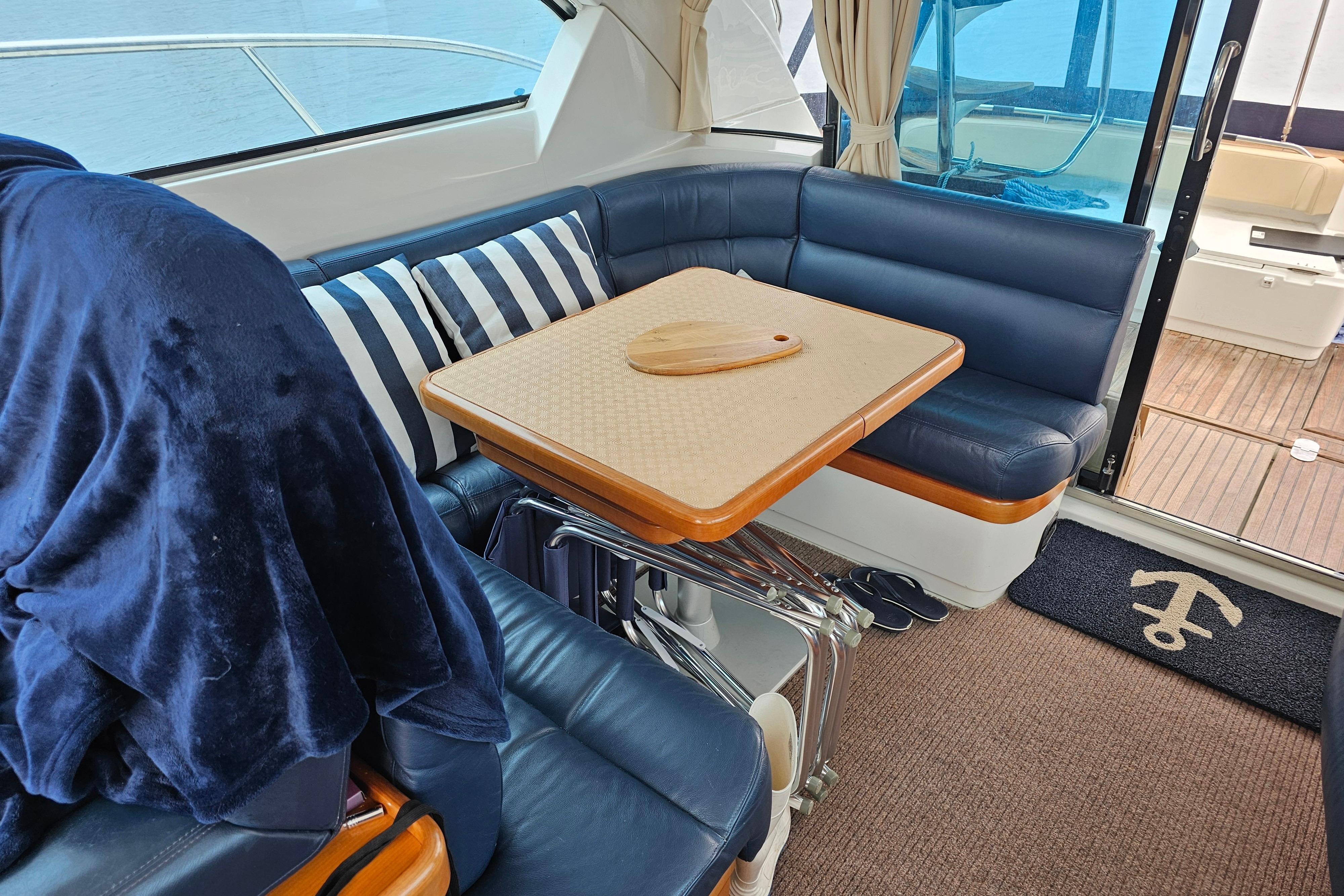

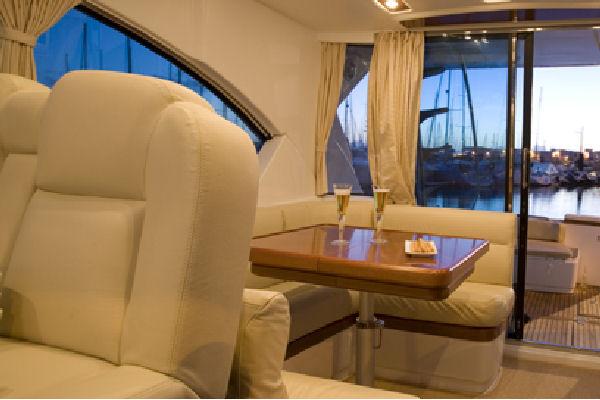

SALOON - Height to deck beam: 1.96 m.
U-shaped bench seat with fitted storage lockers to starboard -
Expandable and height adjustable saloon table - Cockpit table
position - Extended dining table position - 2 seater bench to port
- 2 pane aft sliding window door with stainless steel frame -
Side and aft curtains for window doors -

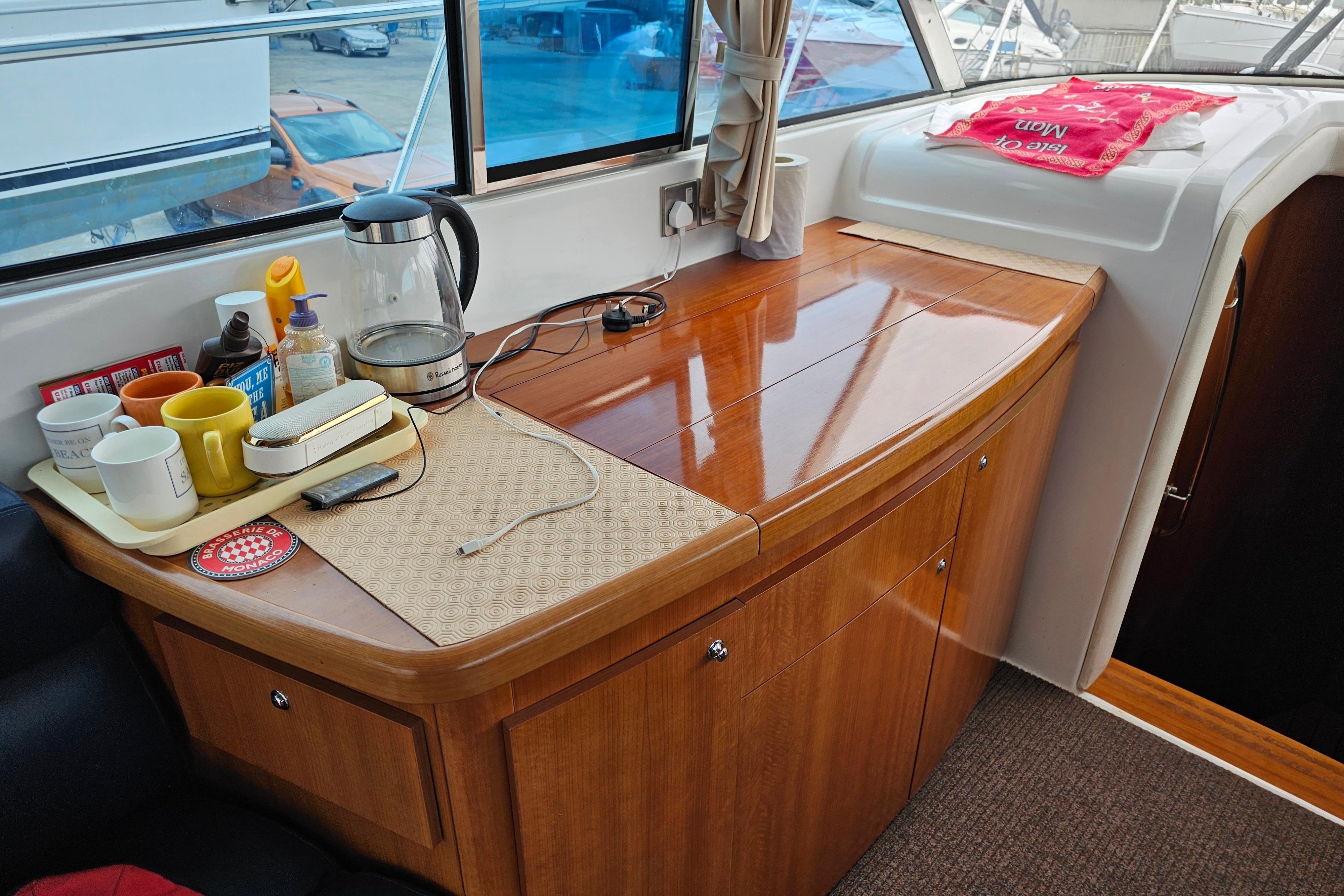

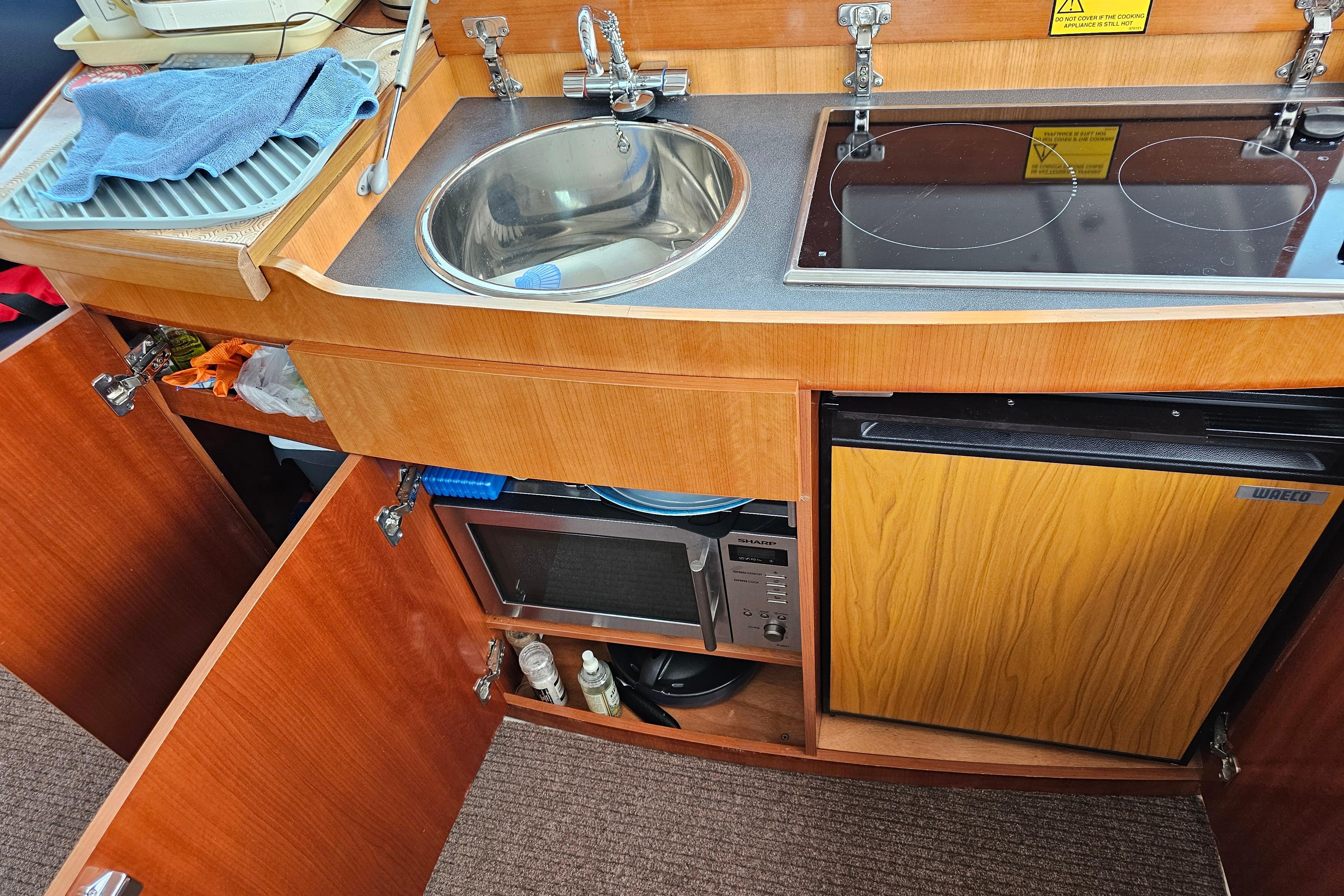

GALLEY - Kitchen fitted in port cabinet, Includes: Single bowl stainless

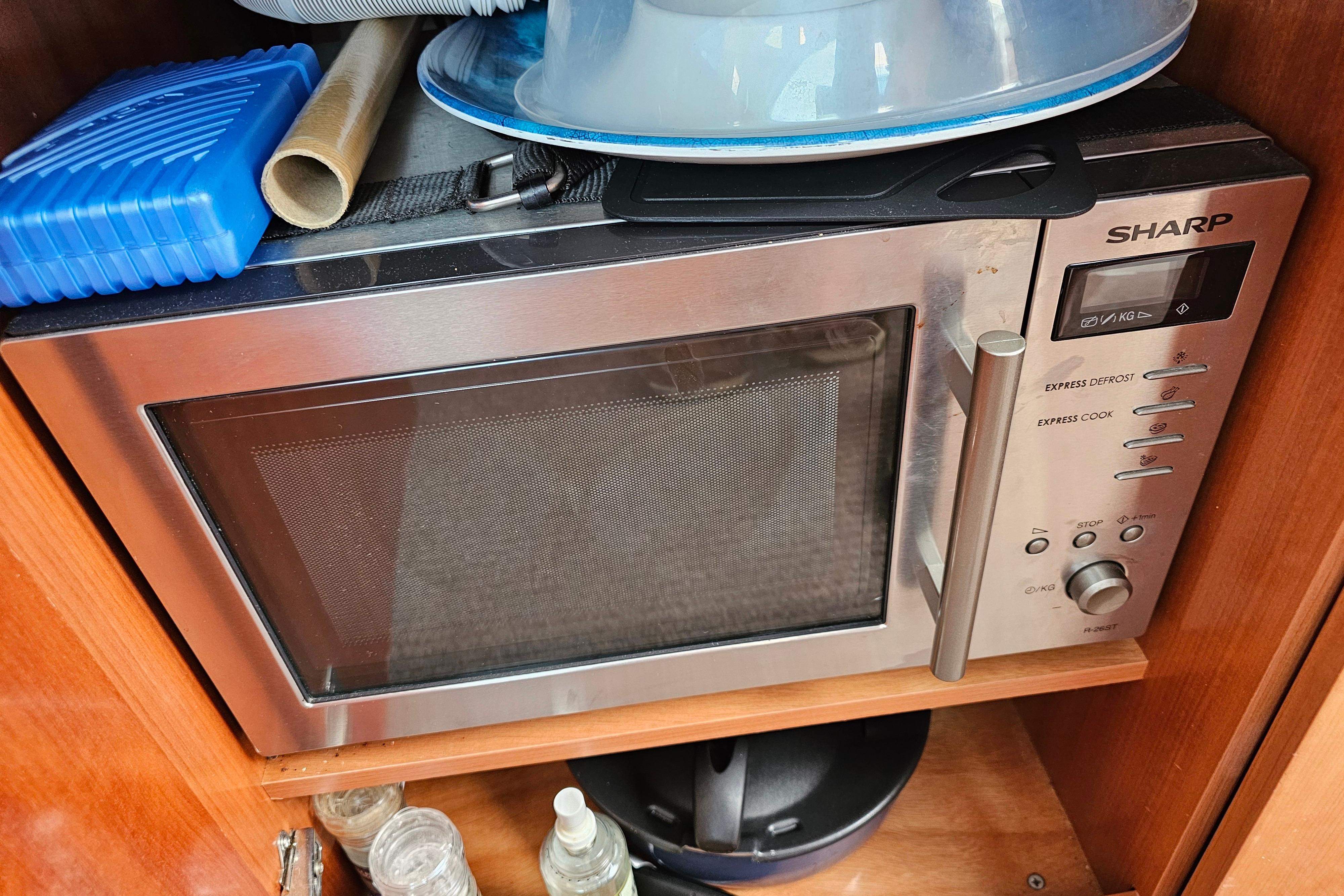

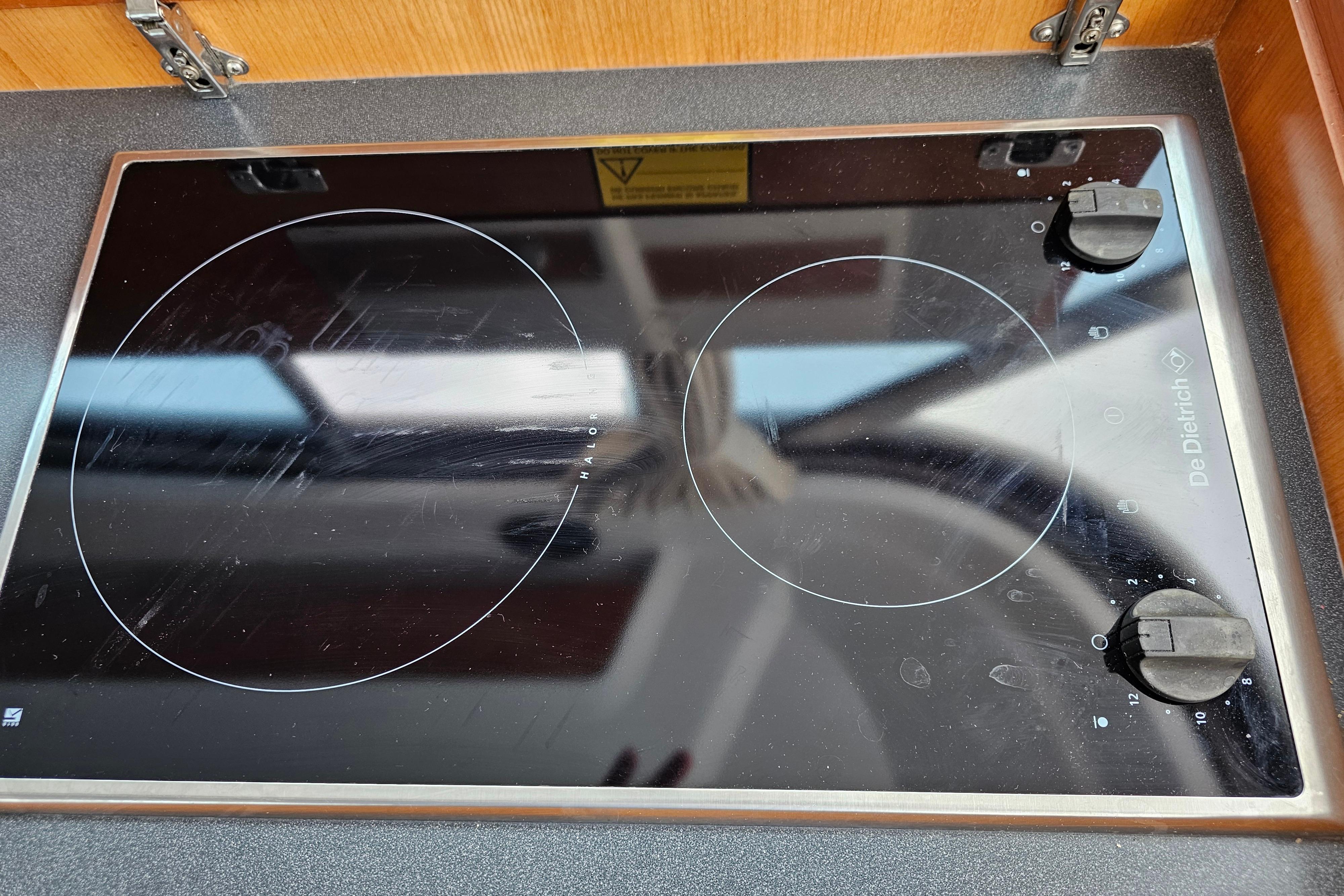

steel sink - 2 ceramic glass 220 V plates - Microwave oven 20 l -
Electric refrigerator 80 L - Cutlery drawer - Sliding rubbish bin -

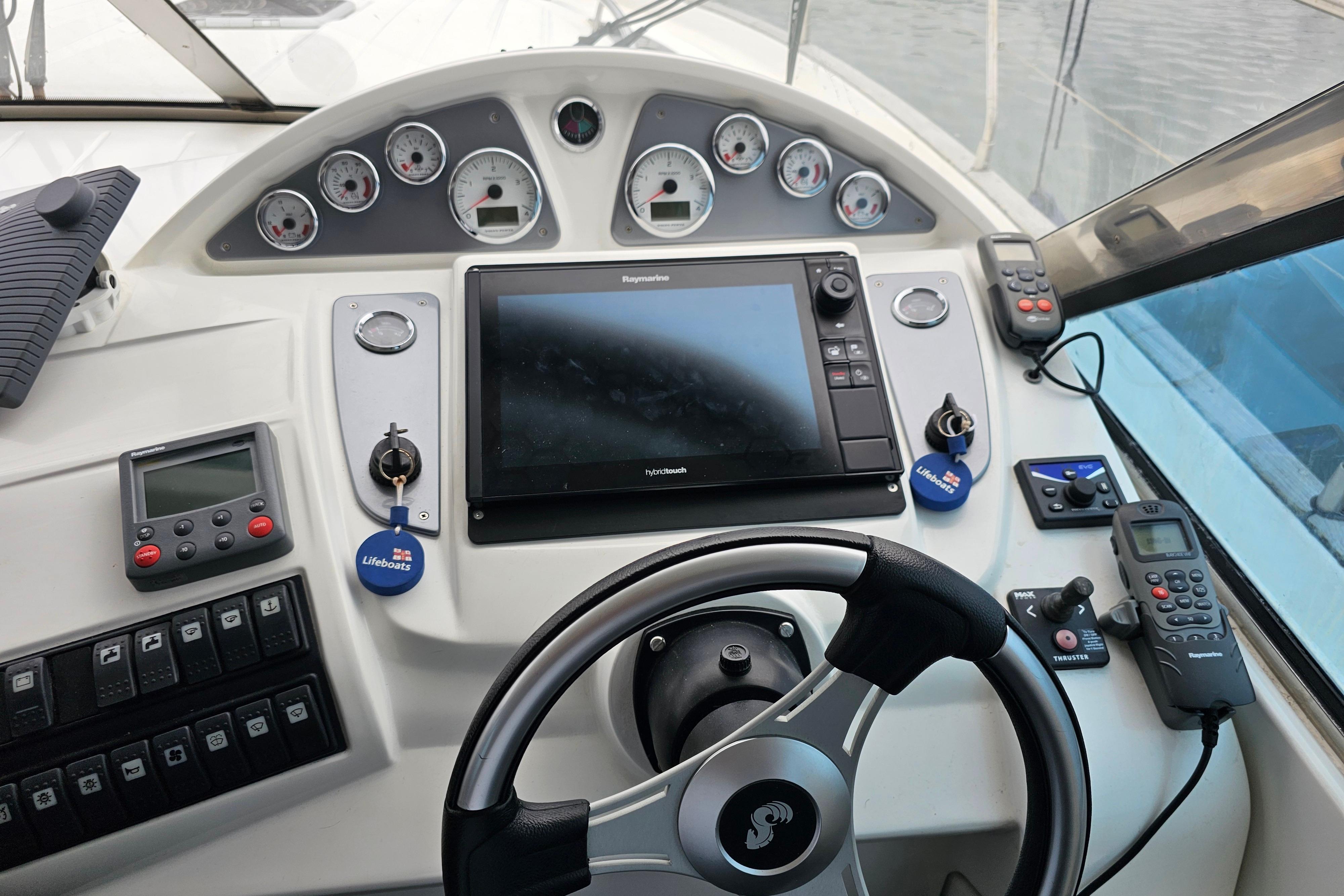

HELM STATION - Clear glass windscreen with stainless steel frames - Electric
windscreen wipers - Windscreen washer - Demister - Greytinted
PMMA sliding side windows with stainless steel frames -

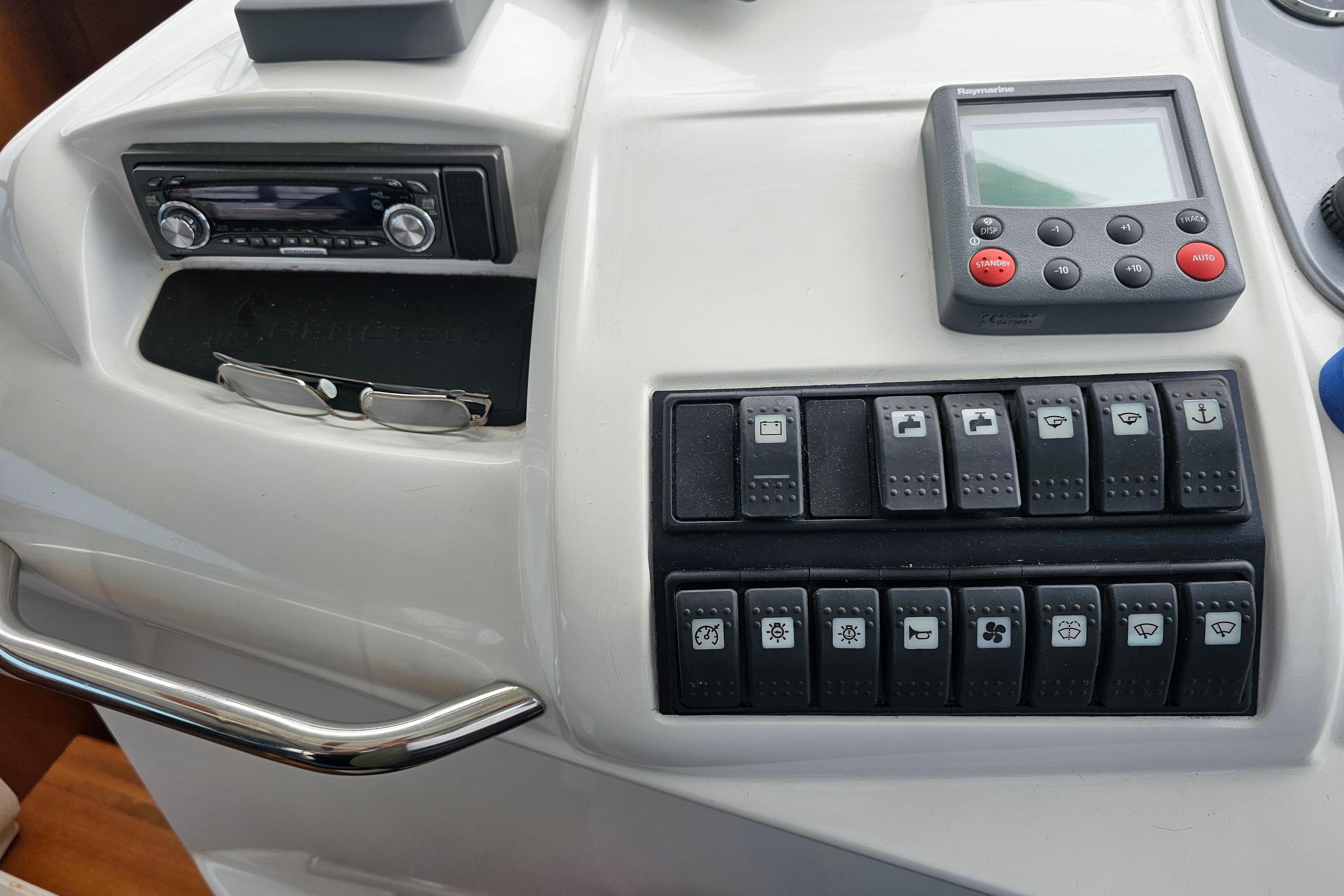

Ergonomic control panel with navigation electronics -
Engine dials: Revolution counter - Engine temperature gauge - Indicator for fuel gauge and tiller angle,
Electric windlass control, bow thruster, navigation lights, electric

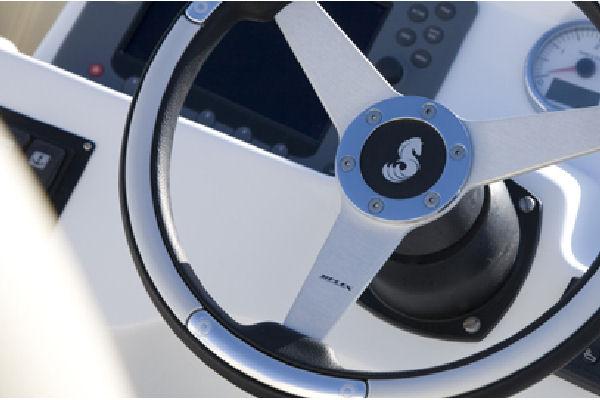

windscreen wipers and foghorn - Electric dual engine controls with EVC - Sports steering wheel - Steering compass - CD/
MP3 player with 6 speakers - Glove box - Two seater pilot bench - Footrests.

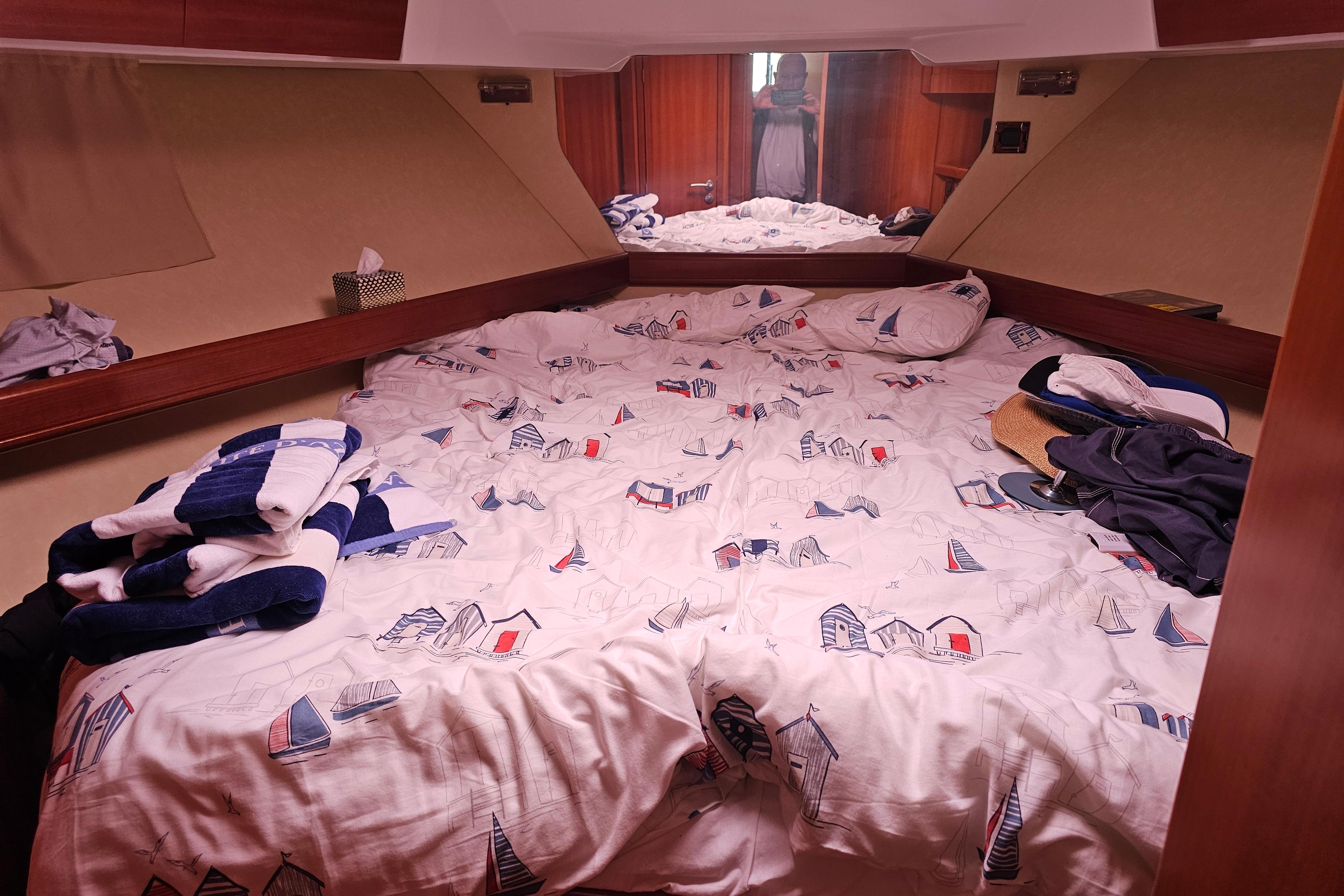

OWNERS CABIN (FORWARD)
Height to deck beam: 1.90 m.
Double berth (2.00 m x 1.40 m) - Marine mattress - Hanging locker
- Storage - Opening deck hatch with fitted mosquito net -
2 Opening hull portholes -

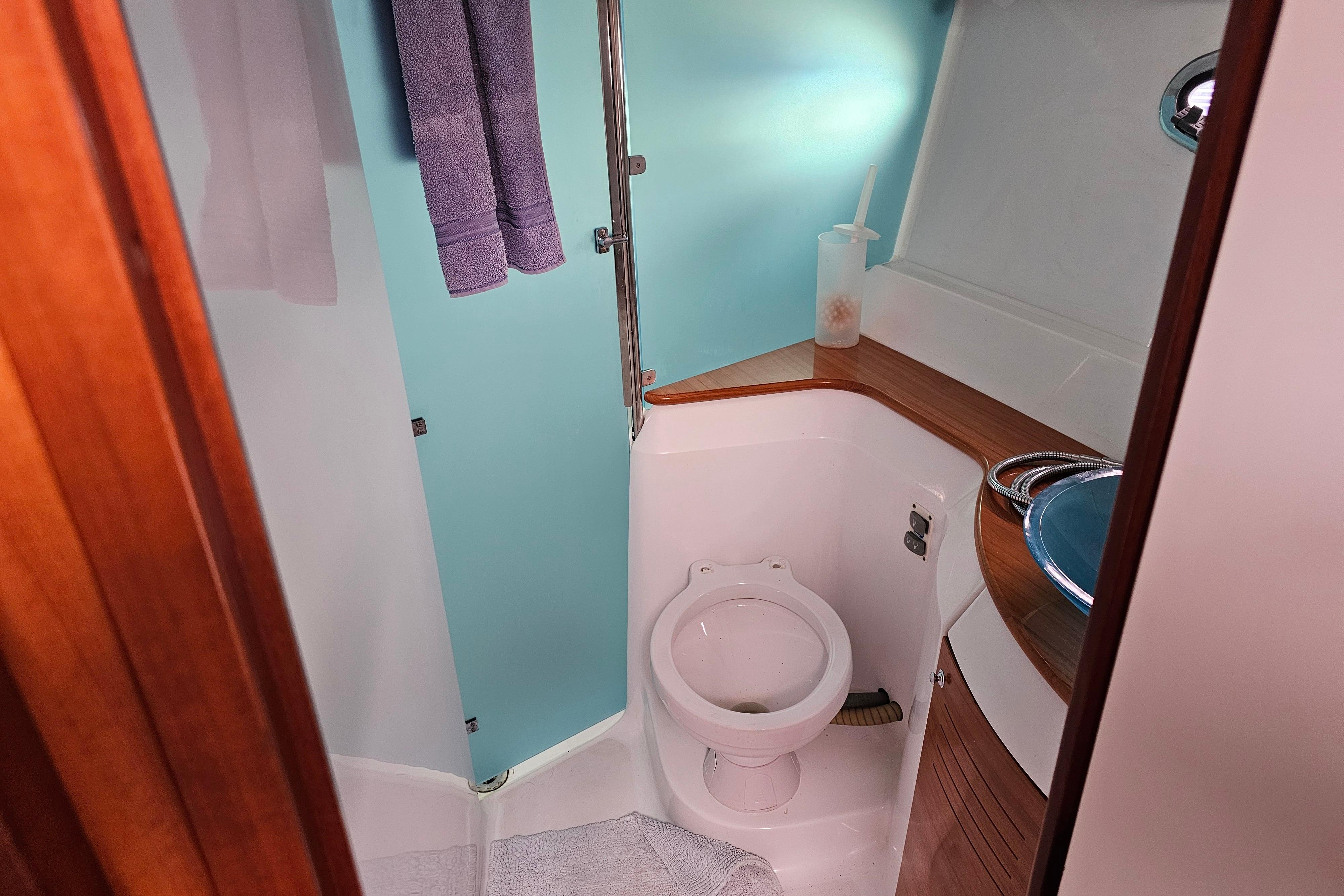

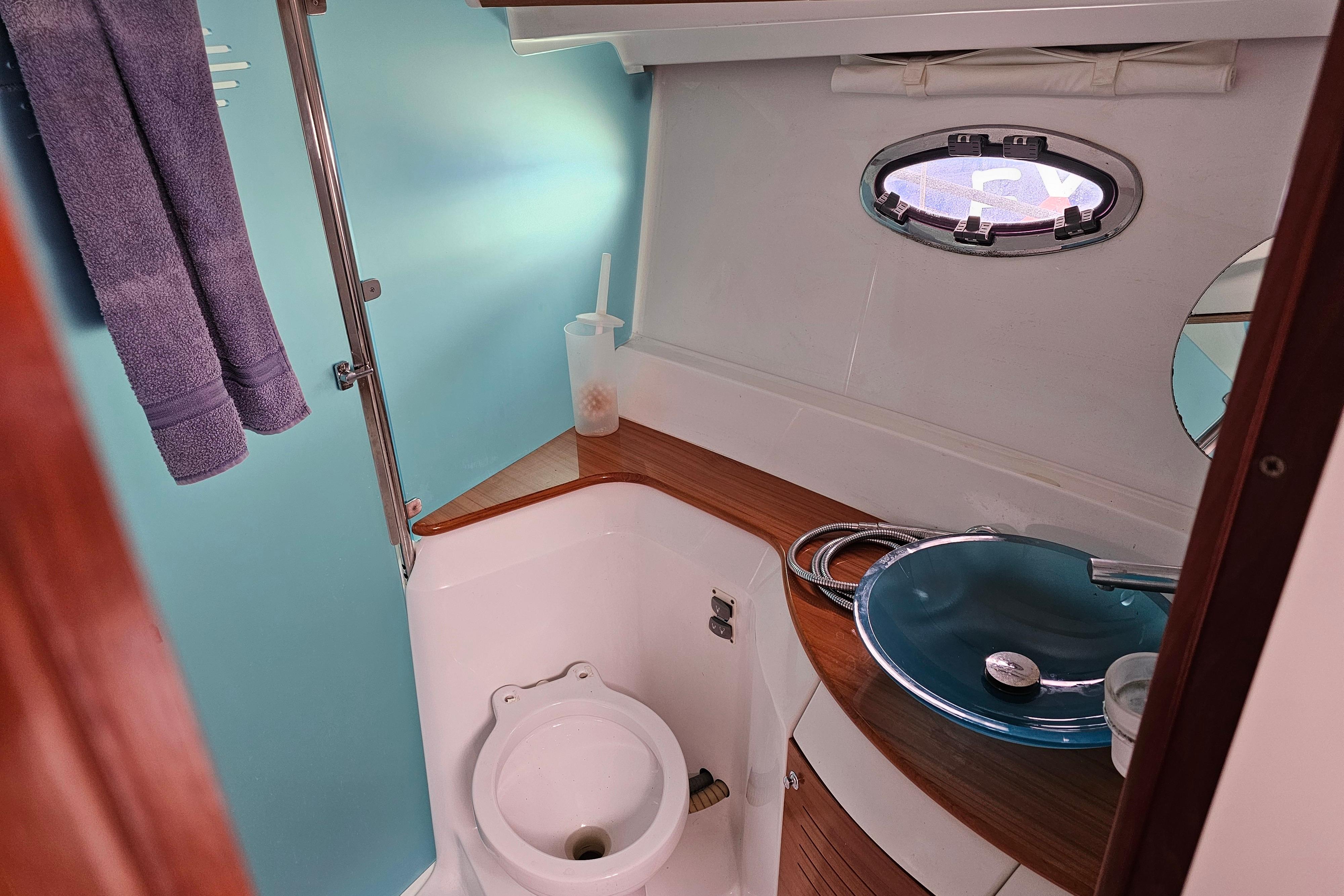

OWNERS WASHROOM (TO PORT)
Height to deck beam: 1.85 m.
Washroom completely counter moulded - Translucent skydome
2 opening portholes - Marine toilet - Glass bowl - Solid wood
board plain - De luxe stainless steel taps - Pressured hot/cold
water mixer tap - Storage - Mirror - Separate shower - Solid
wood grating plain - Electric pump for shower draining - Rigid
holding tank (80 l) -

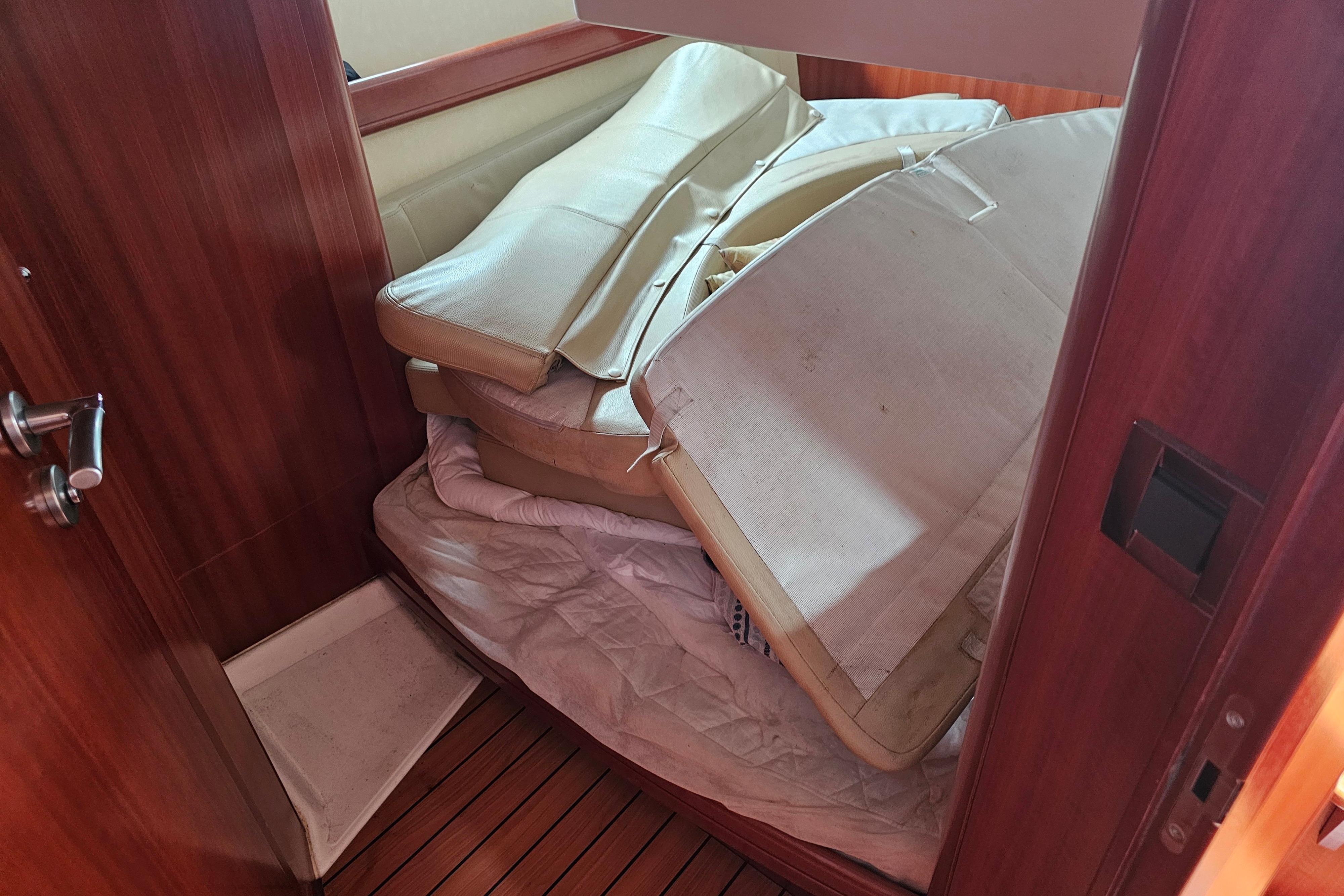

GUEST CABIN (TO PORT)
Height to deck beam: 1.90 m.
Double berth (1.90 m x 1.40 m) - Marine mattress - Hanging locker
- Storage - 2 opening portholes (1x hull porthole - 1x deck
house porthole)
GUESTS WASHROOM (TO STARBOARD)
Height to deck beam: 1.85 m.
Washroom completely counter moulded - 2 opening portholes -
Marine toilet - Glass bowl - Solid wood board plain - De luxe
stainless steel taps - Pressured hot/cold water mixer tap - Storage
- Mirror - Shower - Electric pump for shower draining -
On Deck:

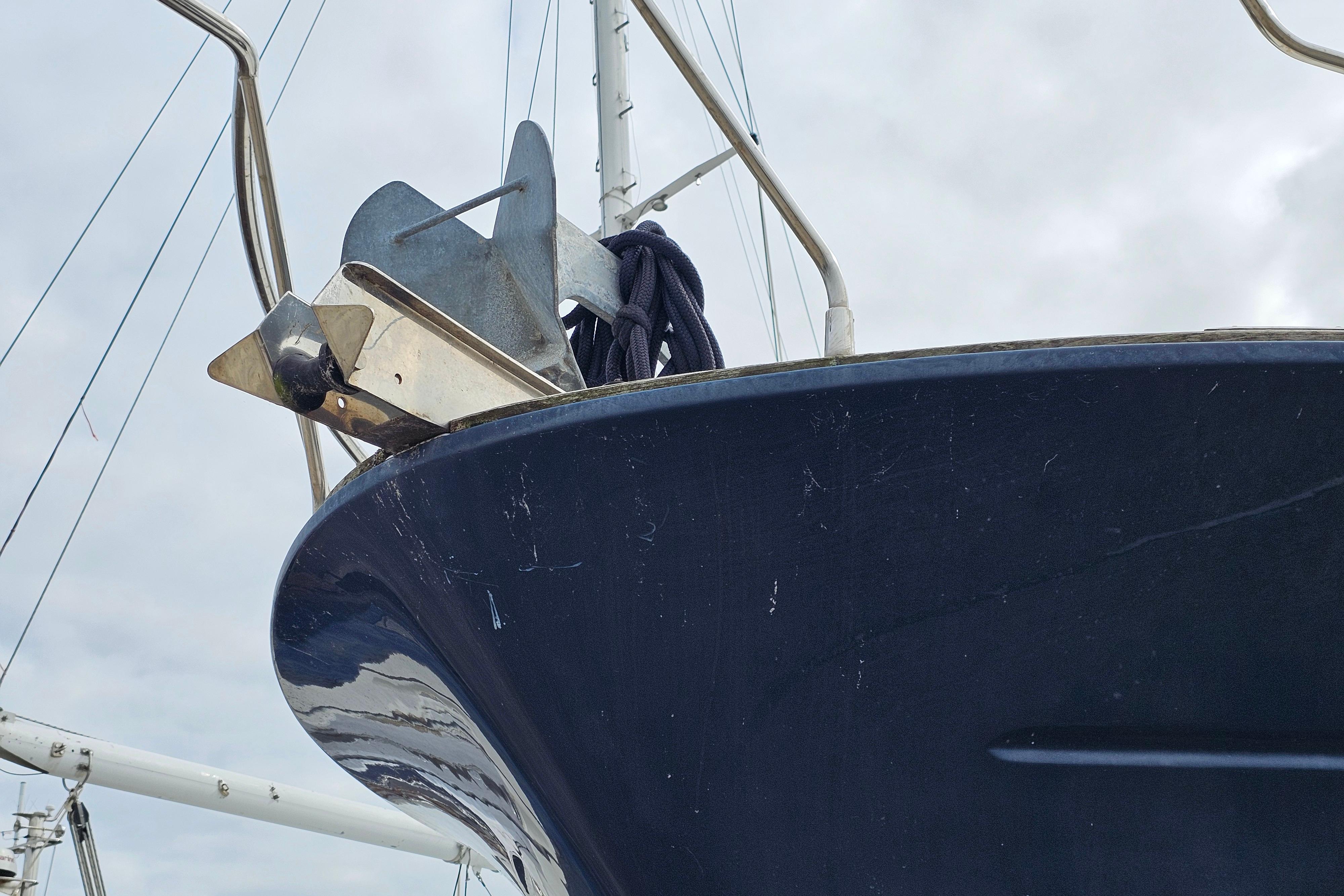

Stainless steel bow fitting - 6 Stainless steel mooring cleats (L 300mm)
Stainless steel gunwale guards - Vertical electric
windlass 1000 W upward / Companionway - Self-bailer chain
locker and fender storage locker covered by hatches
Stainless steel half open pulpit surrounding the cockpit up to the
cockpit steps - Plain solid wood bulwark - 2 stainless steel handrails
on deck house - 2 Stainless steel guard rails on the peak.
AFT COCKPIT is Self-draining - Plain solid wood bulwark - 3 Lockable gas
piston assisted chests (1 Engine access locker - 2 Storage lockers)
-2 Stainless steel guard rails on access to catwalk steps -
Stainless steel swimming ladder fitted into aft swim deck -
Access to life raft through trap door in
transom - Access door to aft swim deck
aft deck seating, electric grill on aft deck

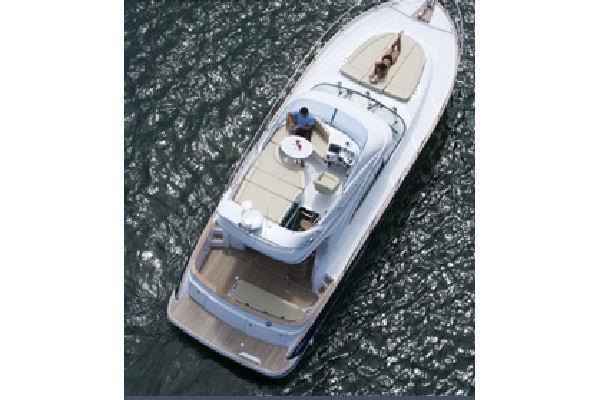

FLYBRIDGE Accommodation designed for cruising comfort with large space
for the saloon and sun deck -
Access ladder with stainless steel uprights and solid wood steps
plain - Grey tinted seperating door in PMMA -
Grey tinted windscreen in PMMA with stainless steel profiles -
Fly bridge surrounded by stainless steel pulpit - Polyester hoop
bar mounted with navigation lights and other navigation instruments
- Pilot console to starboard - Control panel including: Electrical engine controls, Sports steering
wheel - Hydraulic steering, Windlass control and horn -
Height adjustable pilot seat(s) - with fly bridge saloon to port consisting of a U-shaped bench seat
and table - Large sun deck extendable (2x2.14 M) by swinging
over saloon bench backrest - Ice box position under the sun deck.
TV Satellite Dome on arch.
Electrical

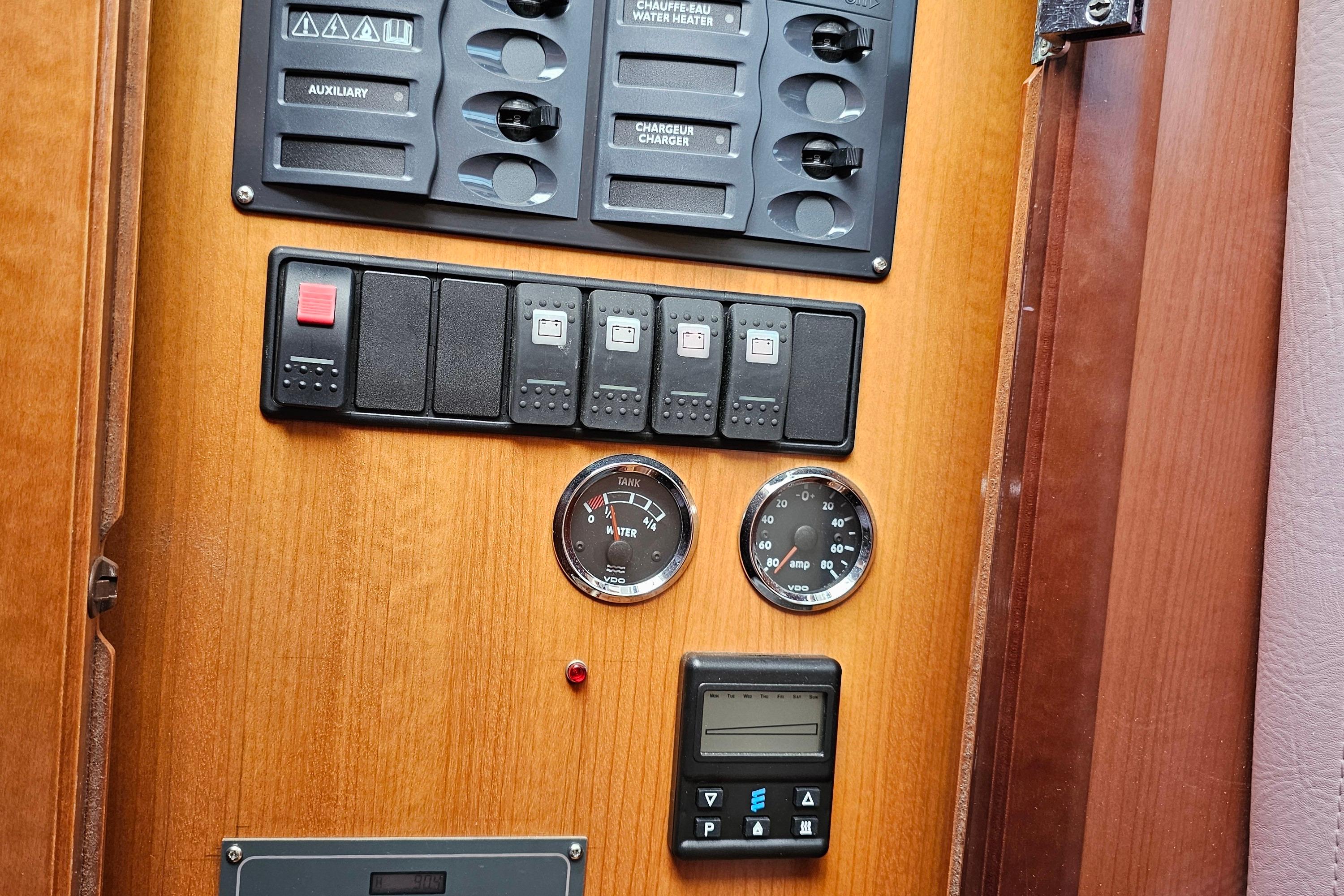

13-function electrical panel 12V/220V - 220V shore power - 1x

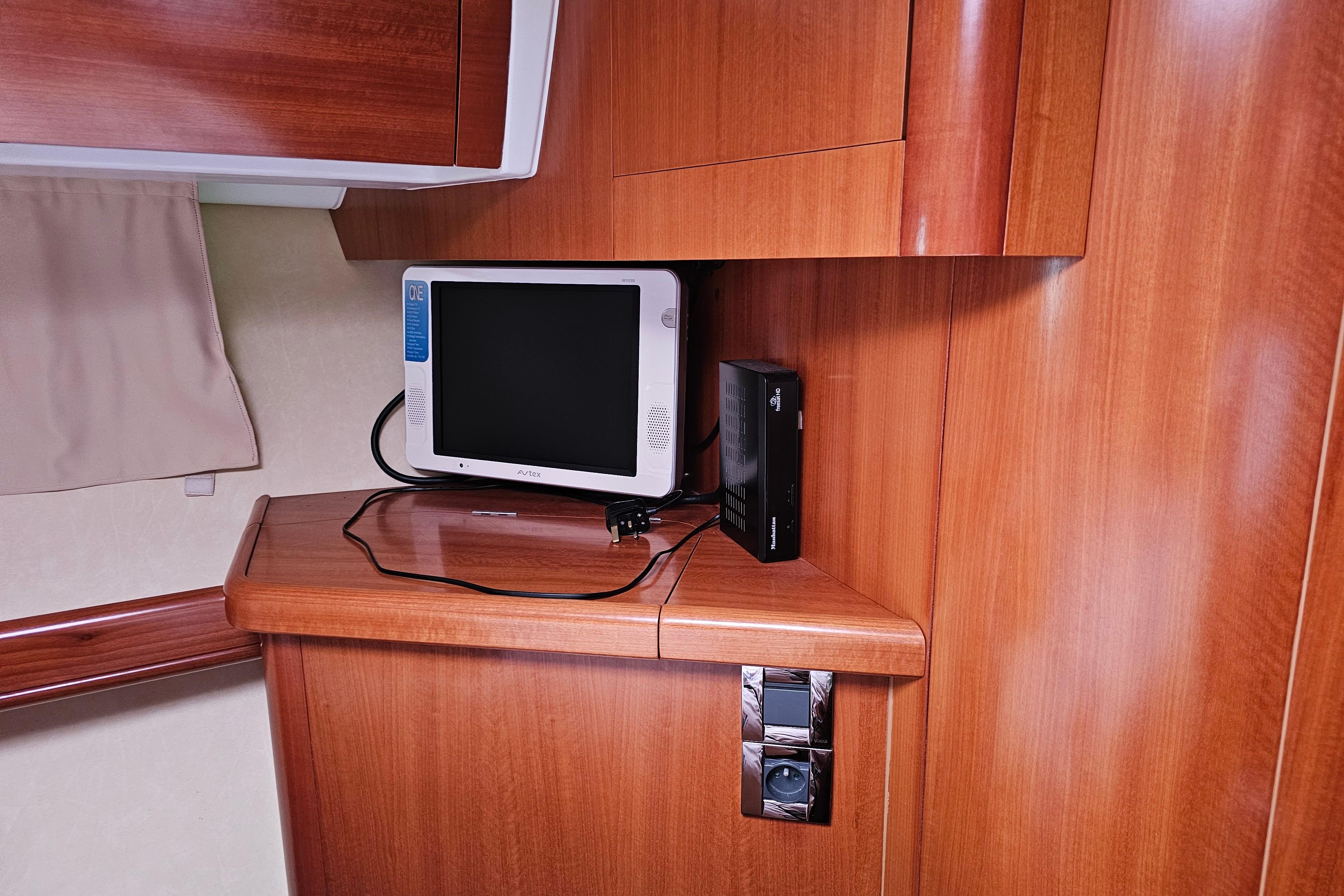

220V socket per area (2 cabins - Saloon - Galley) - TV socket in
cabins - 2 Batteries 12V140 Ah for engine starting - 4 Service
12V 50 Ah batteries - Battery charger 40 Ah/h - Interior lighting
(Reading and spotlights) - Outside lighting (Navigation lights)
Electric windlass 1000 W
Electric trim tabs
Eberpacher warm-air heating
Fischer Panda Gen set
Navigation Kit
Raymarine Hybrid touch plotter

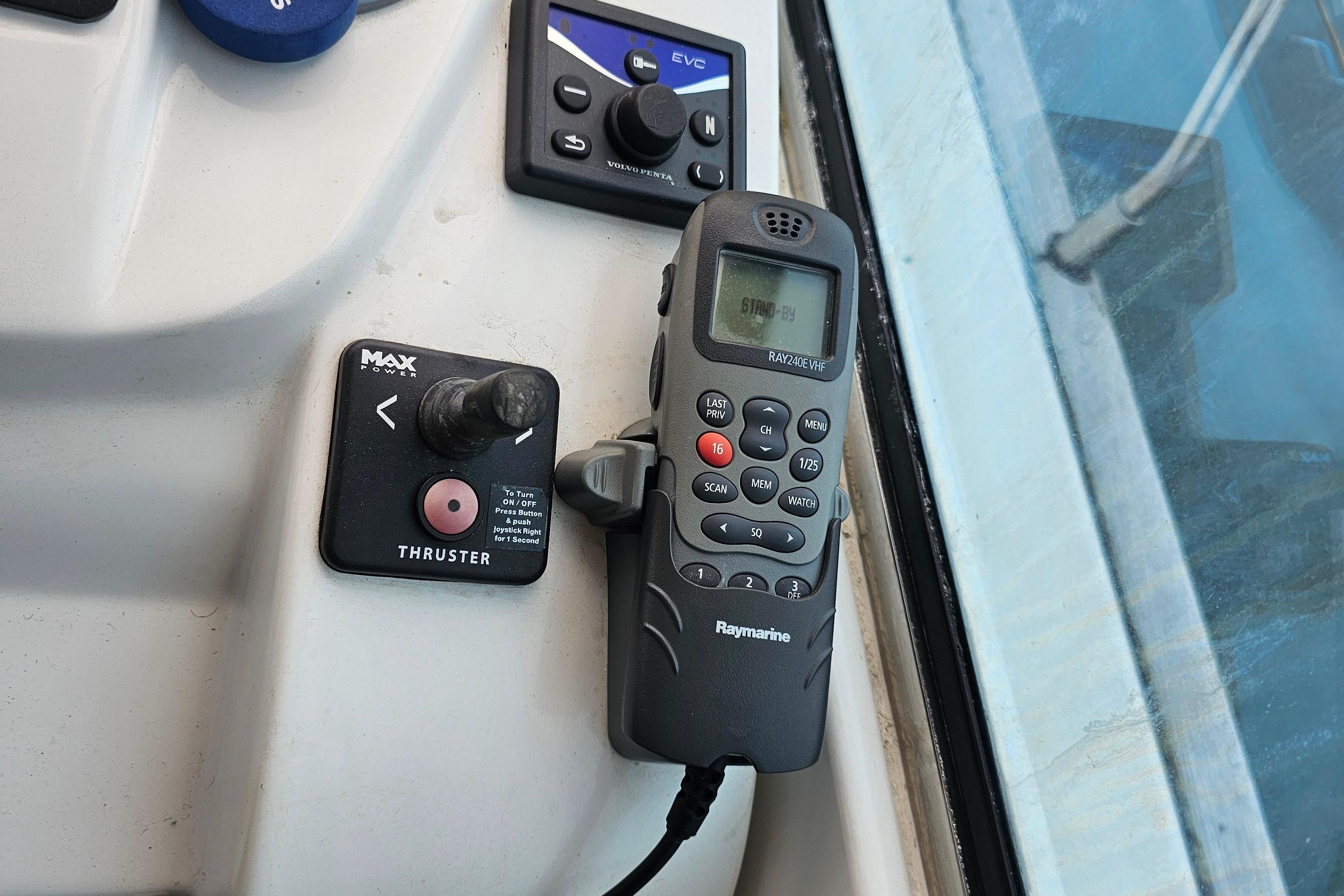

Raymarine VHF

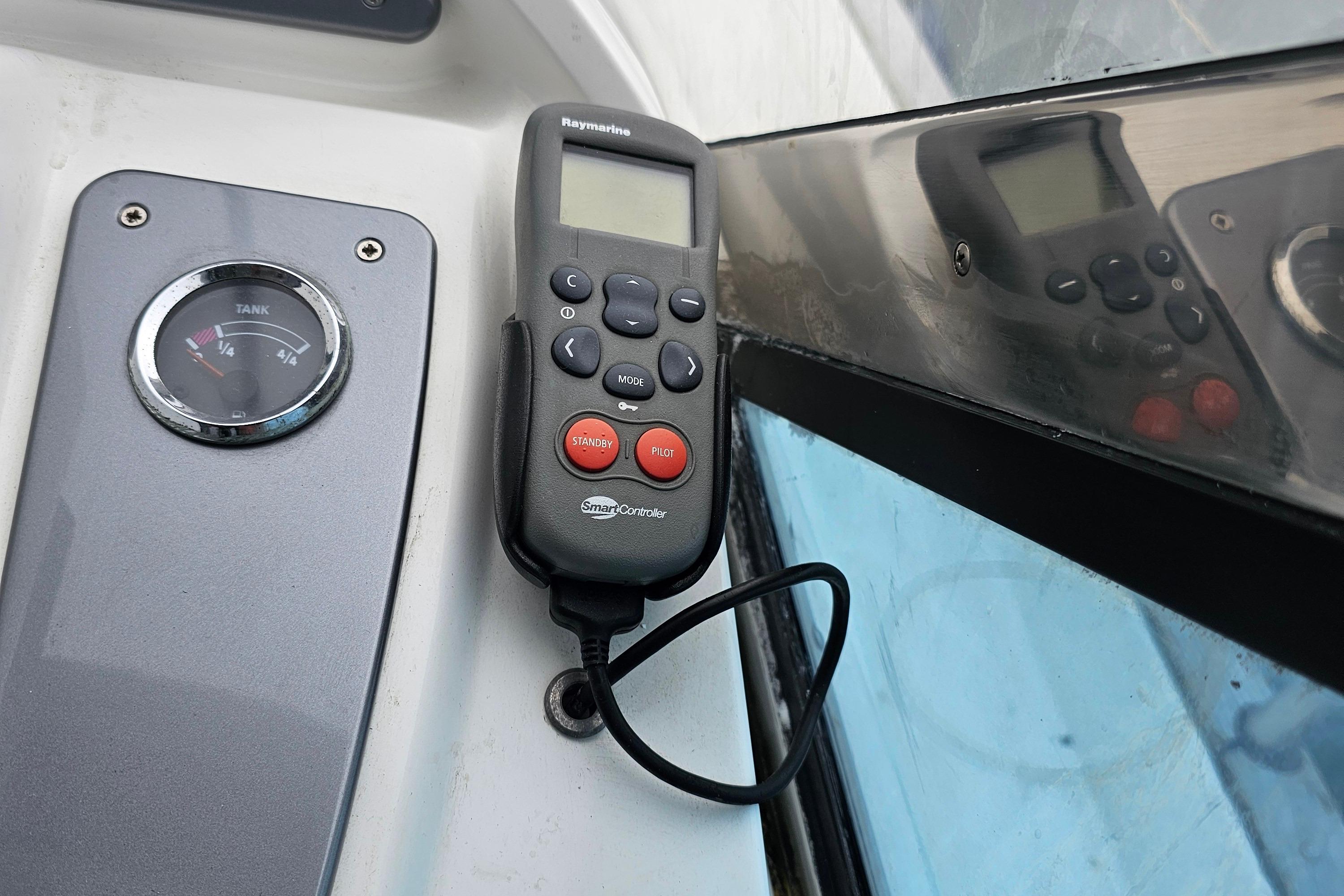

Raymarine autopilot
Compass x 2
Inventory
Warps and fenders
Anchor and chain
Full aft cockpit enclosure
