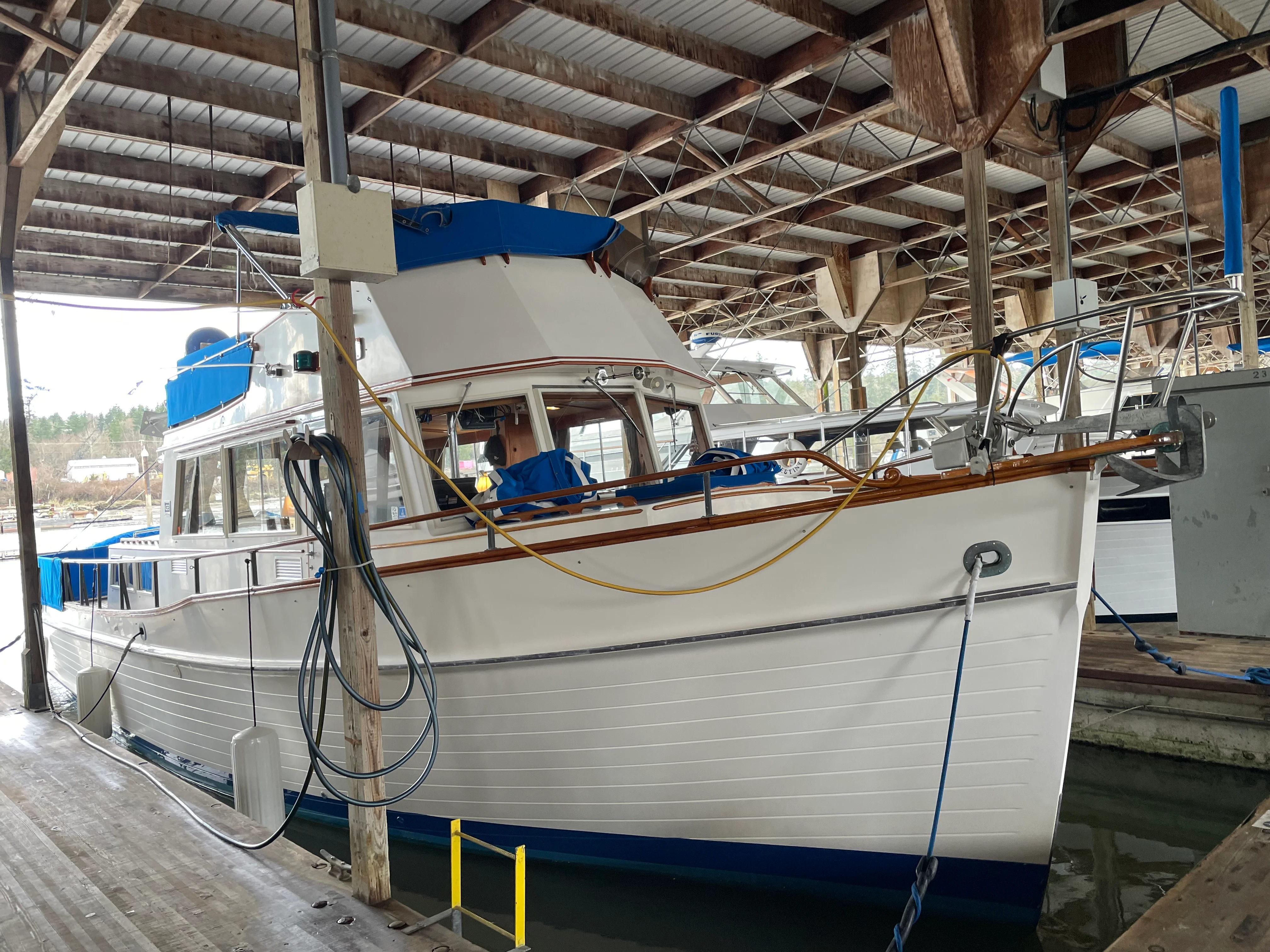

SPEECIFICATIONS:
· LOA – 46’
· LOD – 42”
· LWL – 41’
· Beam – 13’ 6”
· Draft 4’ 2”
· Displacement – 37,400lbs.
· Hull – Fiberglass Semi-Displacement
· Deck – Fiberglass Sub-Deck with Teak Deck Cover
· Keel – Fiberglass Molded Box
· Rudder – Spade – Fiberglass Shell on Stainless Steel Frame
· Rudder Angle Indicator
Weight – 32,000lbs.
· Vintage 197
· Designer – Ken Smith
· Builder – American Marine Limited
· Built in Singapore
TANKAGE:
· FUEL – 600 Gallons in 2 Steel Tanks – Line of Sight Tubes
· WATER – 200Gallons in 2 Stainless Steel Tanks – Line of Sight Tubes & Dipstick

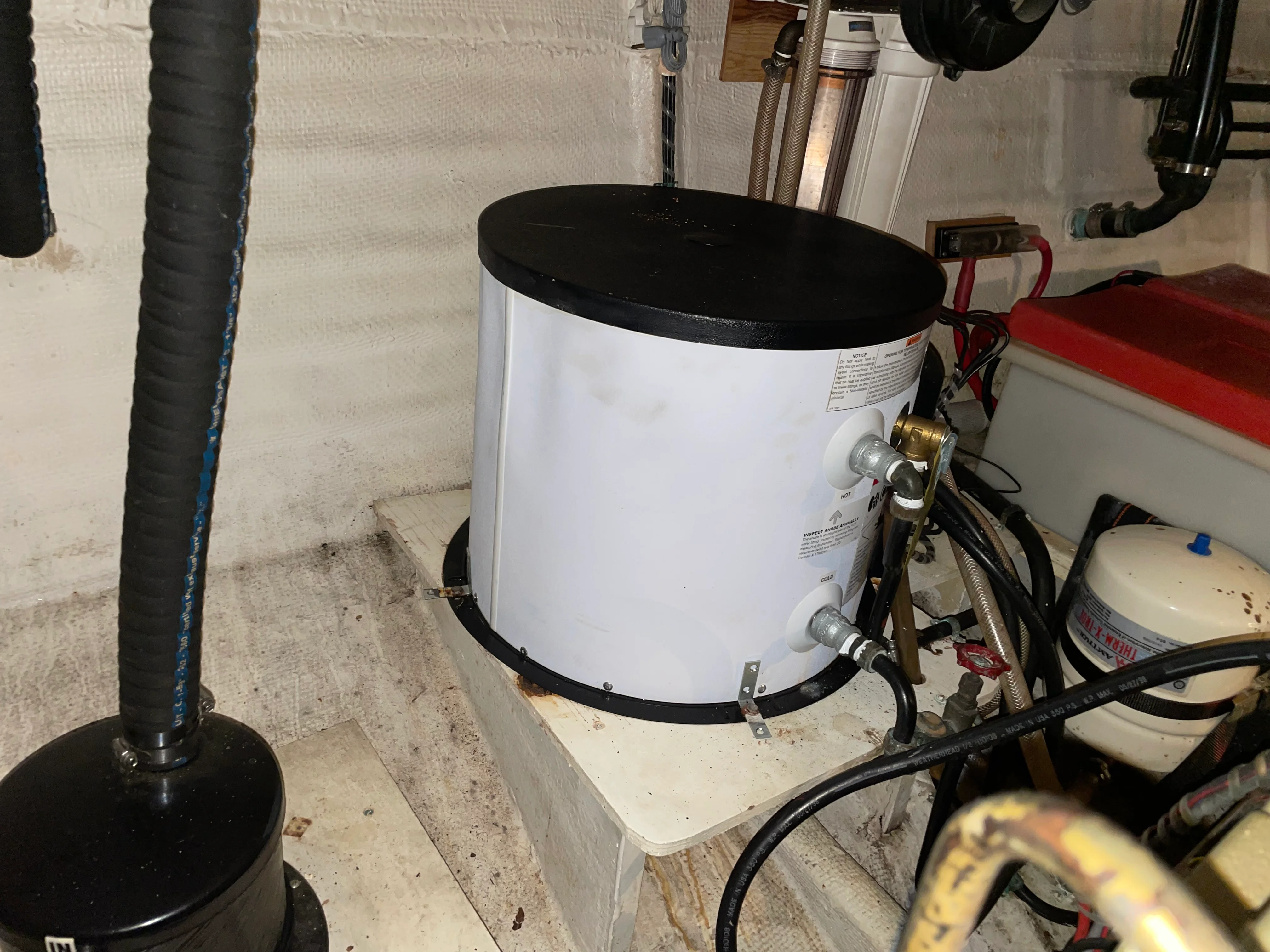

· HOT WATER TANK – 12 Gallons – Raritan Heated by Engine or 120V AC – NEW 2022
· WASTE – 50 Gallons in 1 FRP Tank w/ Gauge – Y-Valve Deck Pump-Out or Overboard
· PROPANE – (2) 10# LPG Tanks in Deck Locker under Flybridge Setting
INTERIOR:

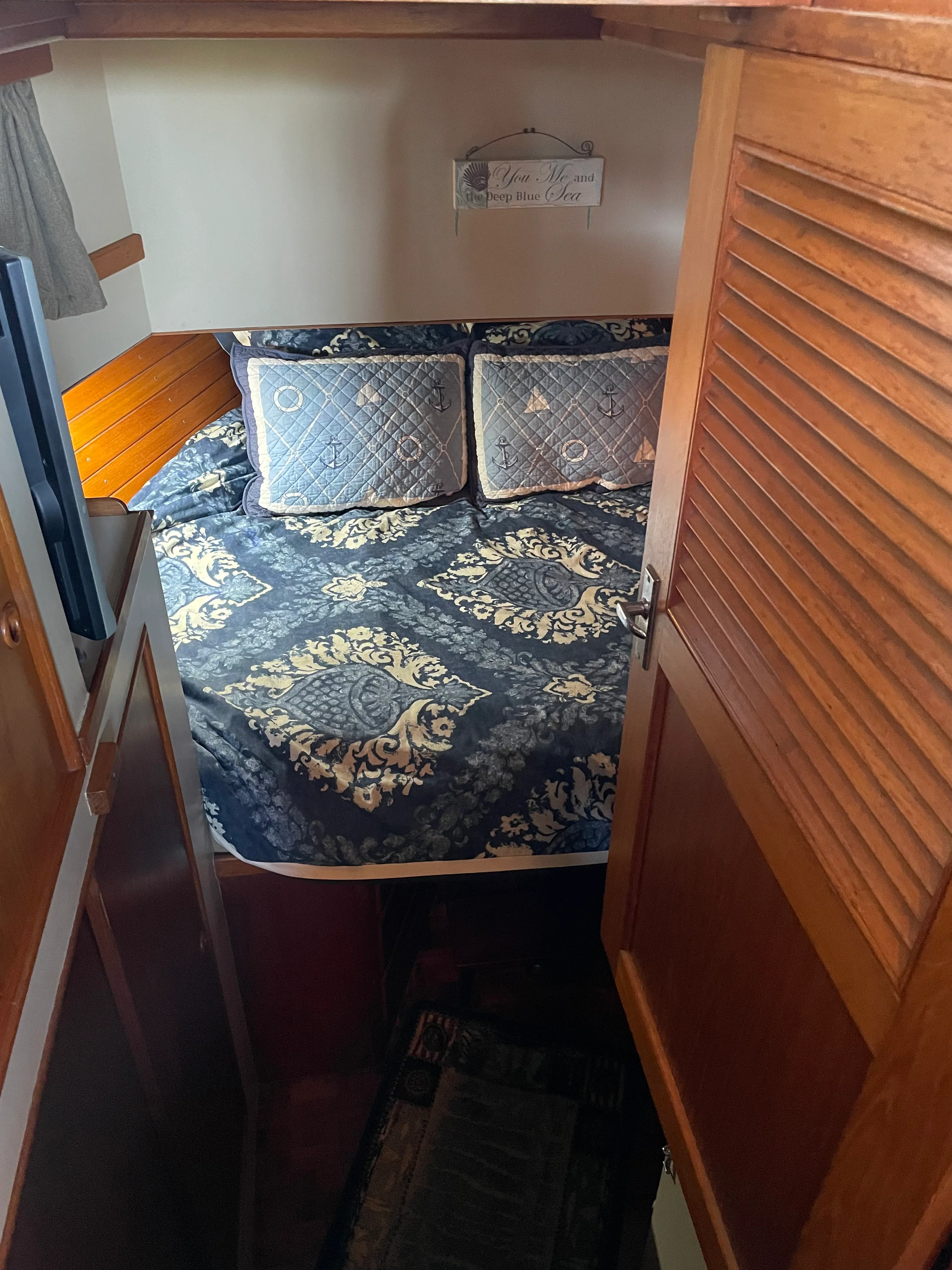

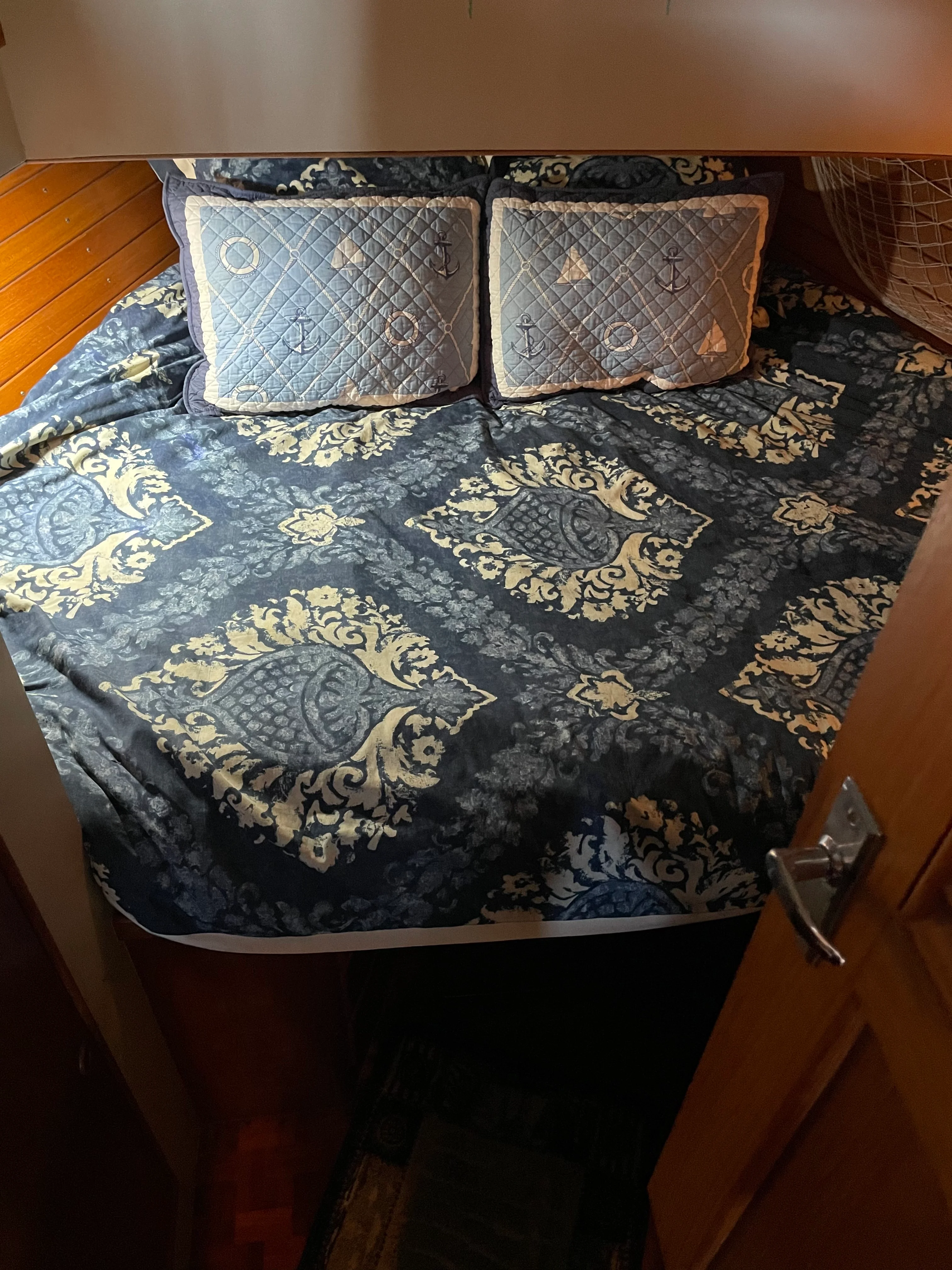

· Sleeps – (6) – 2 in Forward Cabin V-Berth

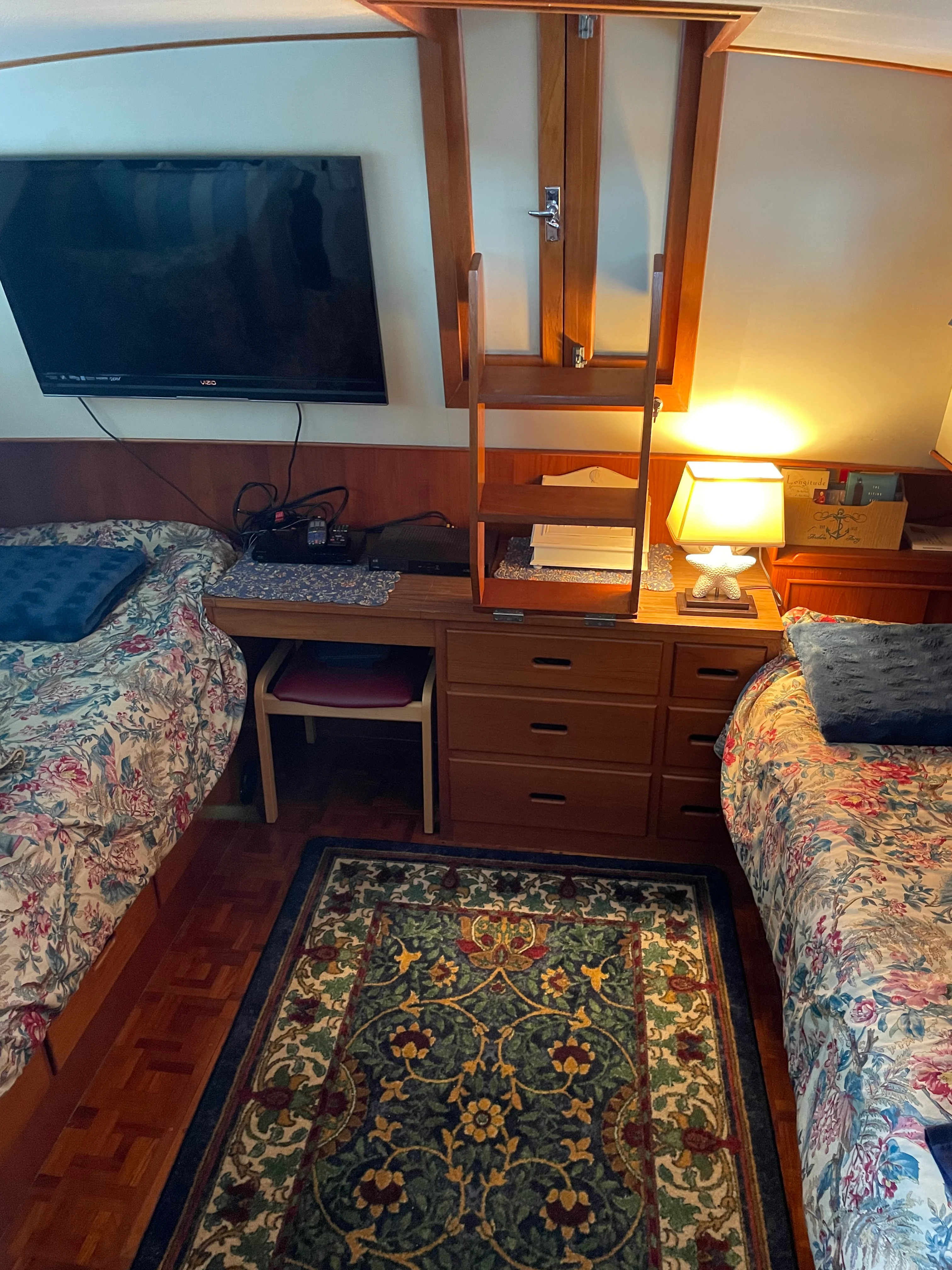

· 2 in Aft Cabin Double Berth

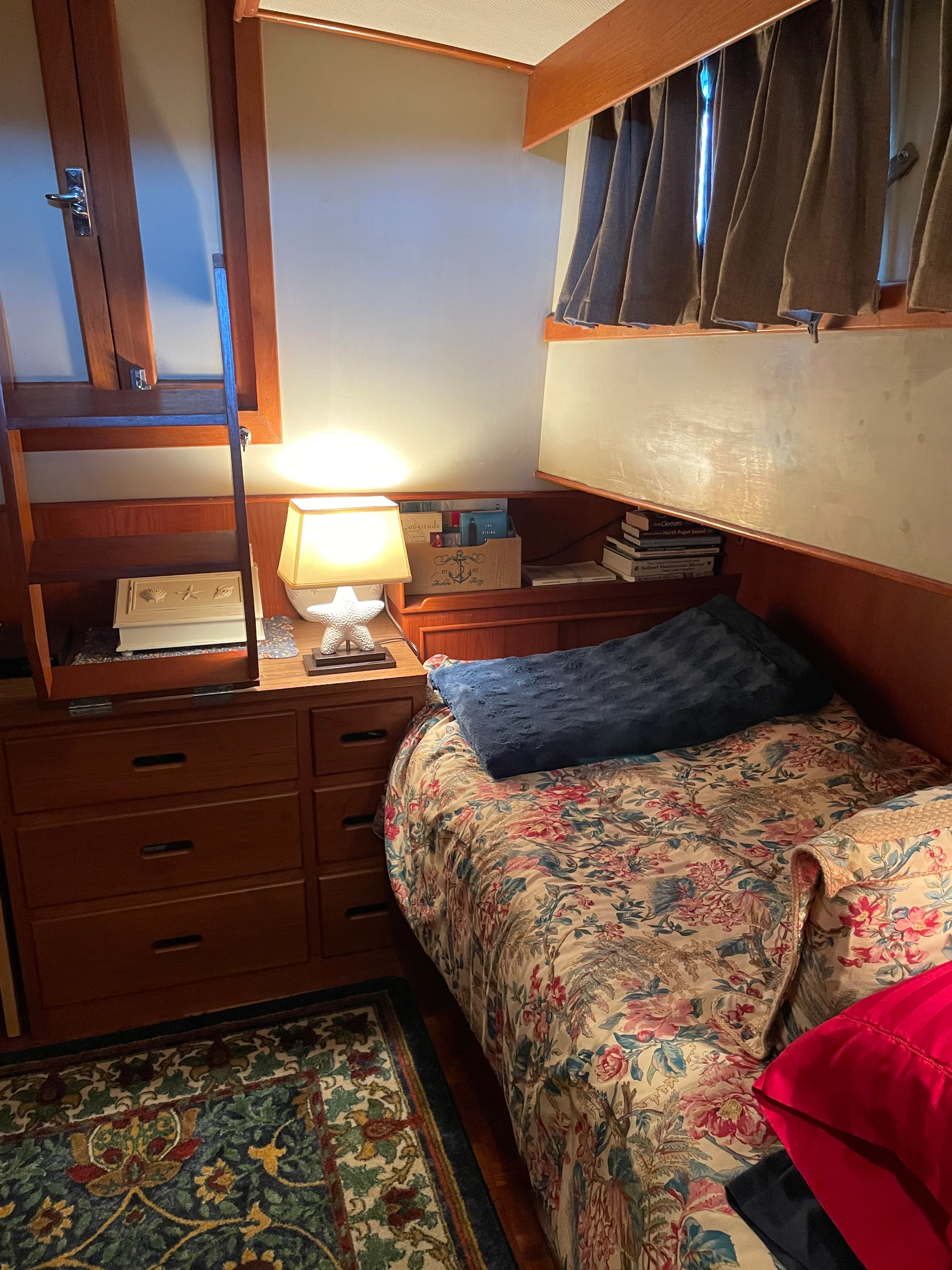

· 1 in Aft Cabin Single Berth

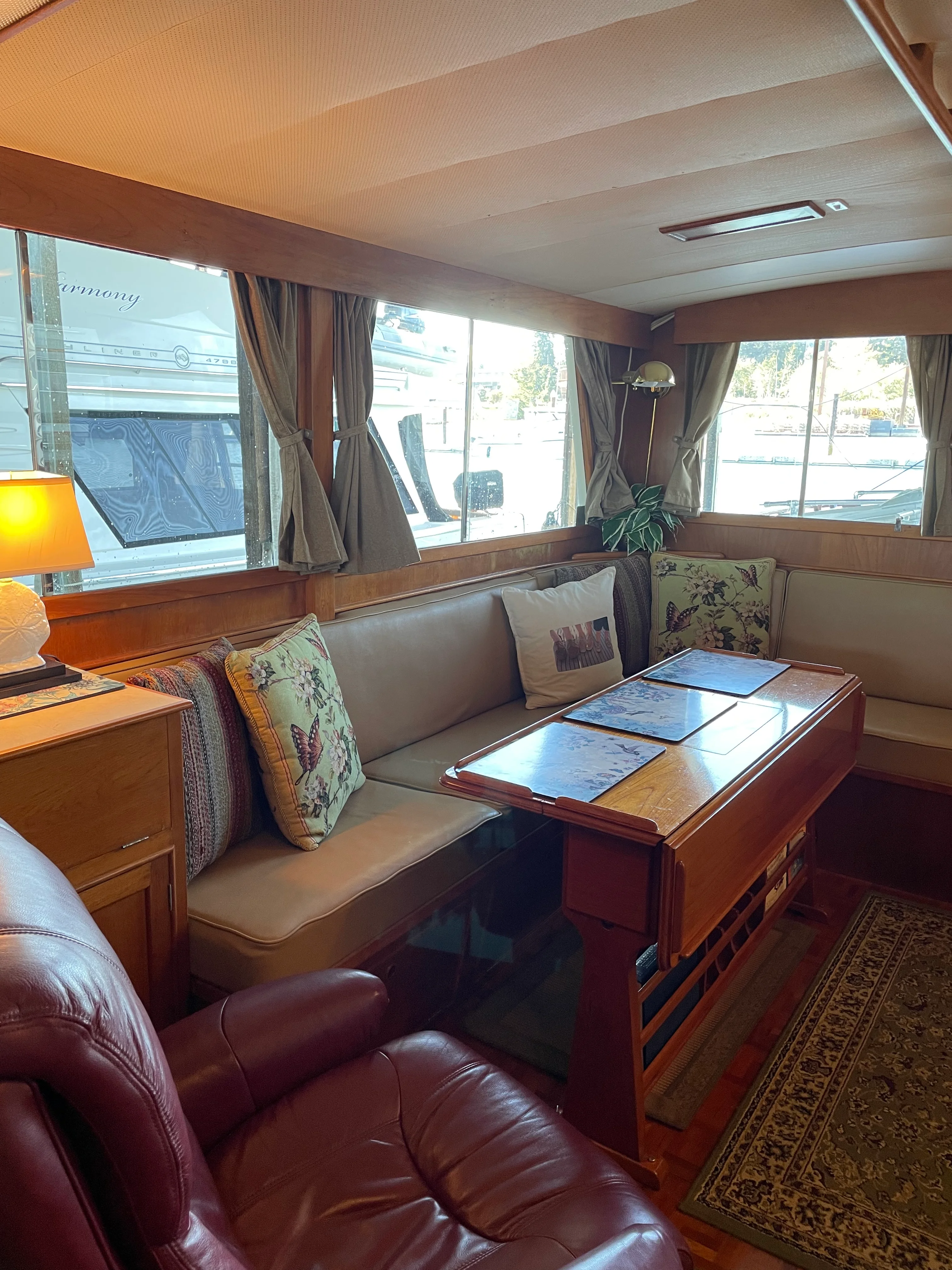

· 1 on Salon Settee

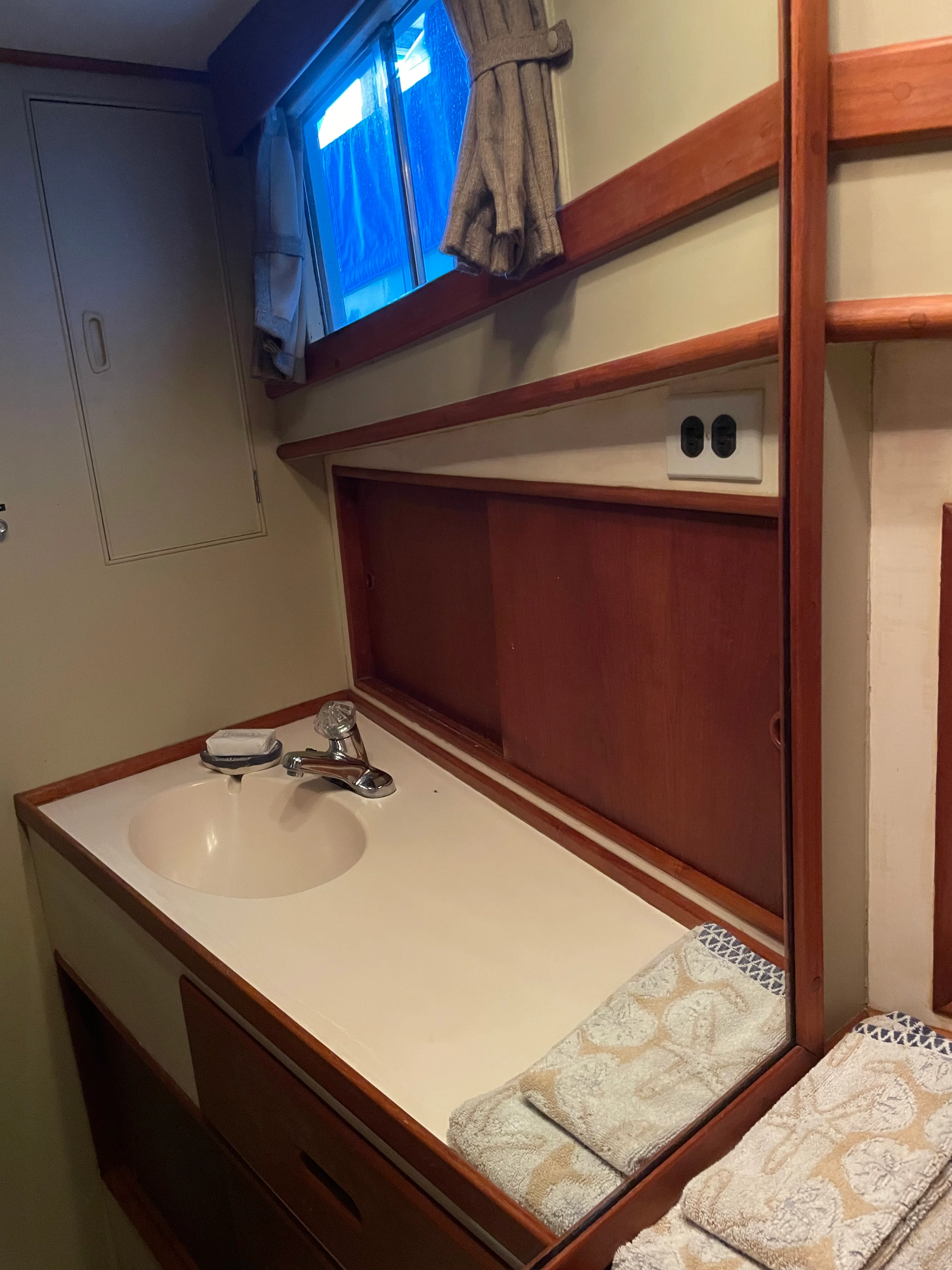

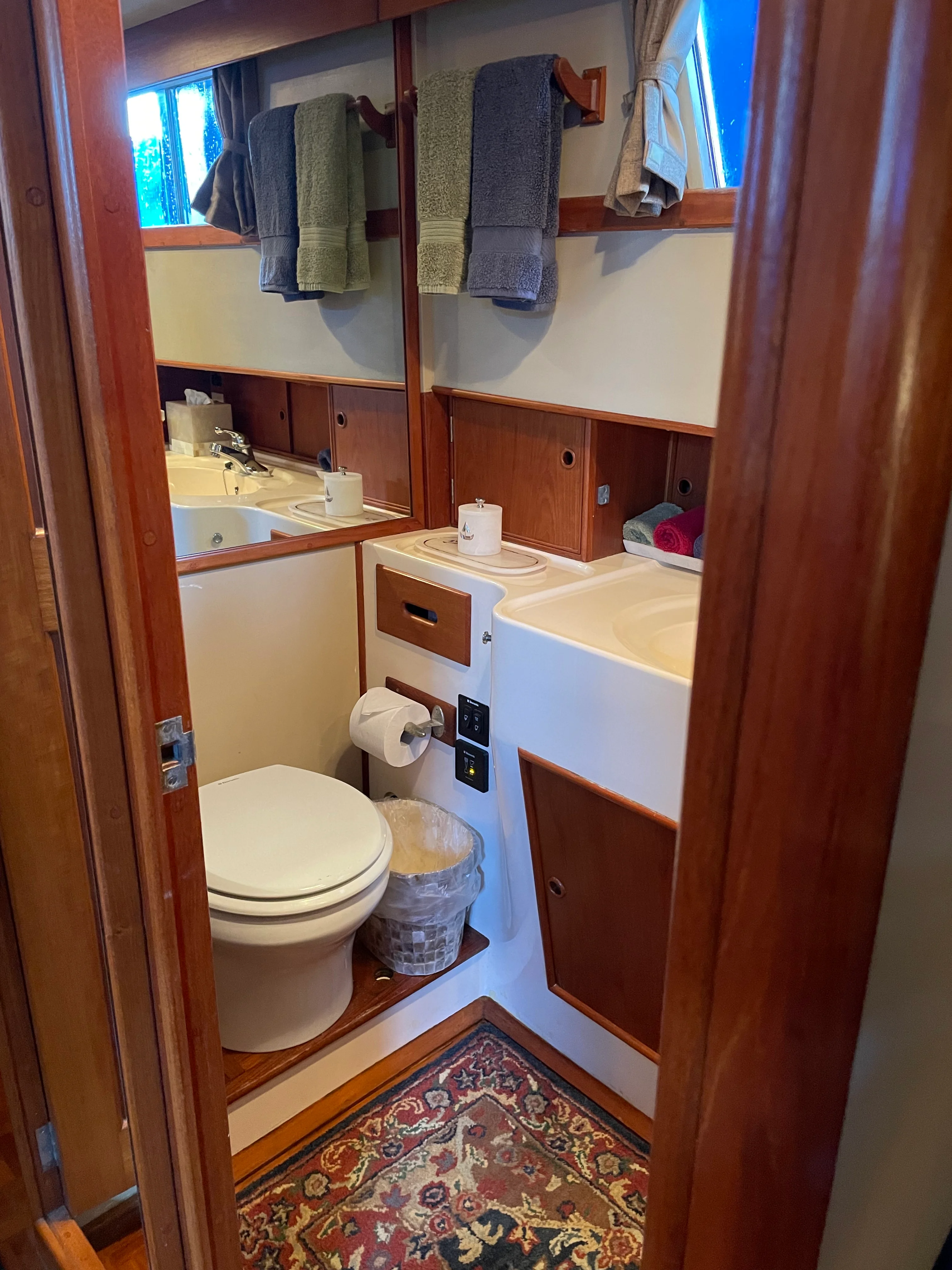

· Private Enclosed Heads (2) – Aft Head with Electric Toilet & Stall Shower

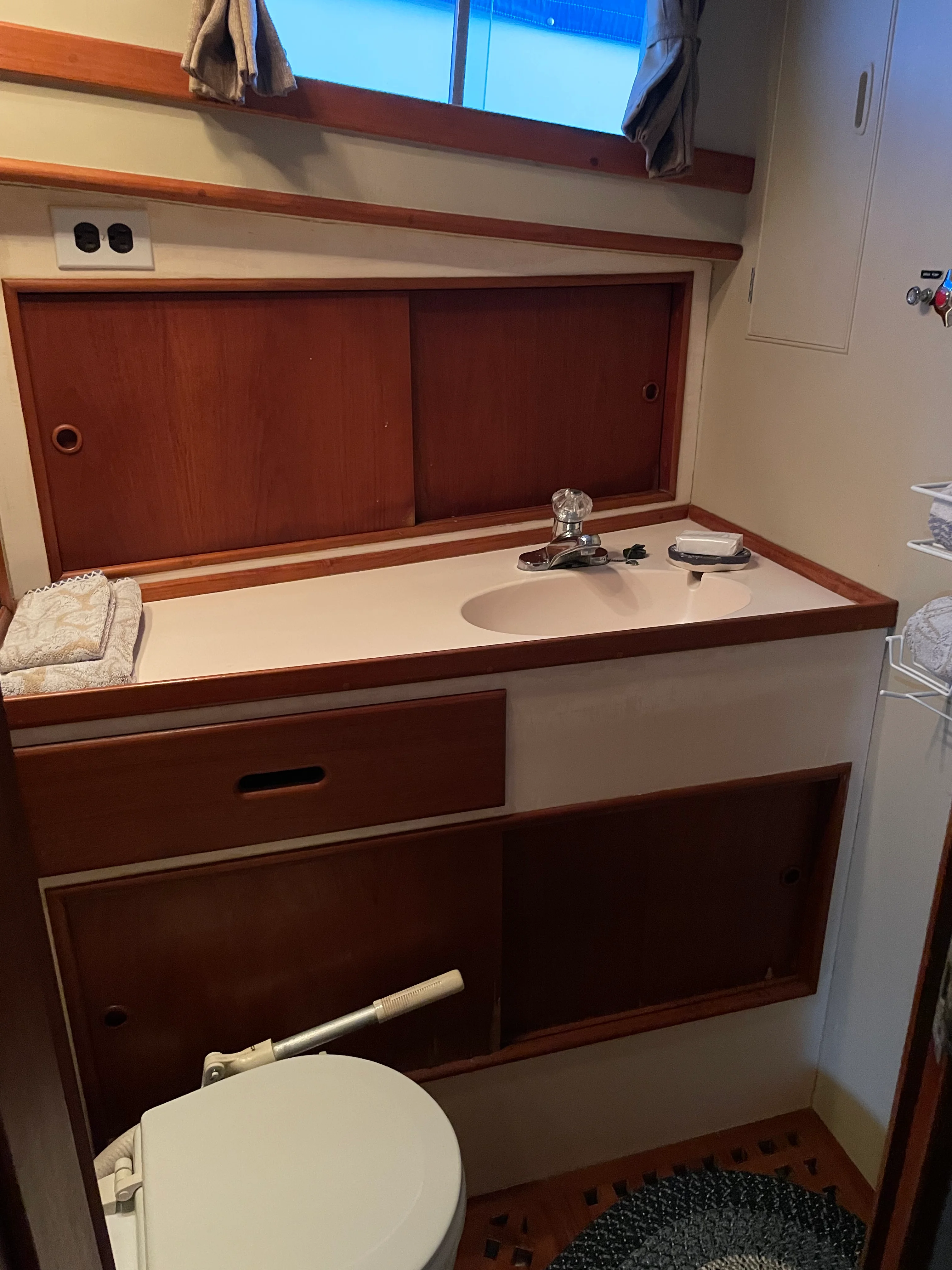

· Forward with Manual Toilet & Handheld Shower
· Shower Sump Pump – (1) 12Volt DC 300gph
· Hot & Cold Pressure Water System – w/ Pressure Accumulator Tank including Filter

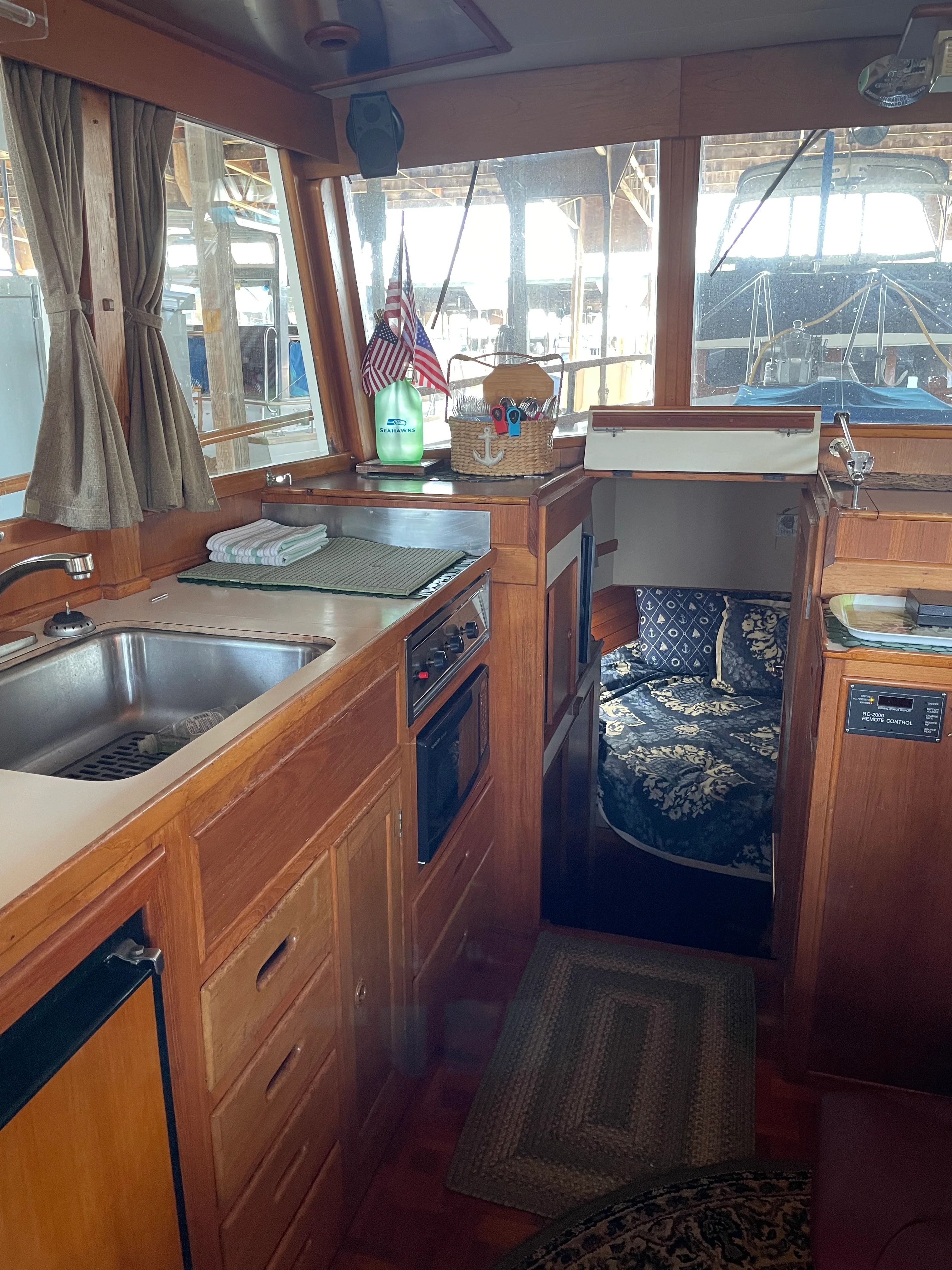

· Galley Sink – Big Single Stainless Steel
· Galley Refrigeration System – NovaKool 4cu.ft. Refrigerator w/Small Freezer - Updated
· Galley Freezer System – NovaKool 4cu.ft. Freezer
· Galley Stove – Princess Stainless-Steel 3-Burner Propane Cooktop
· Galley Microwave Oven – Sharp One

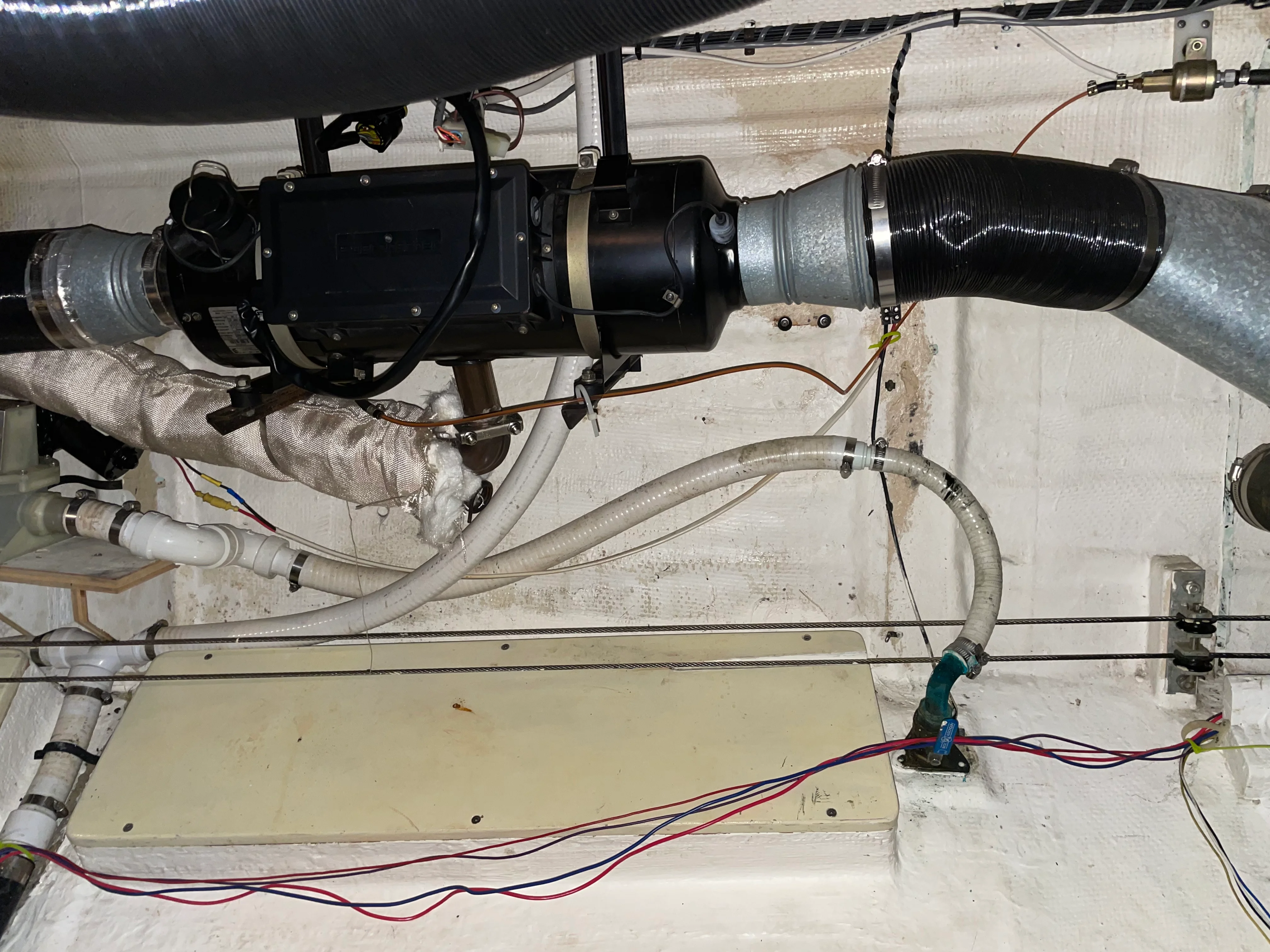

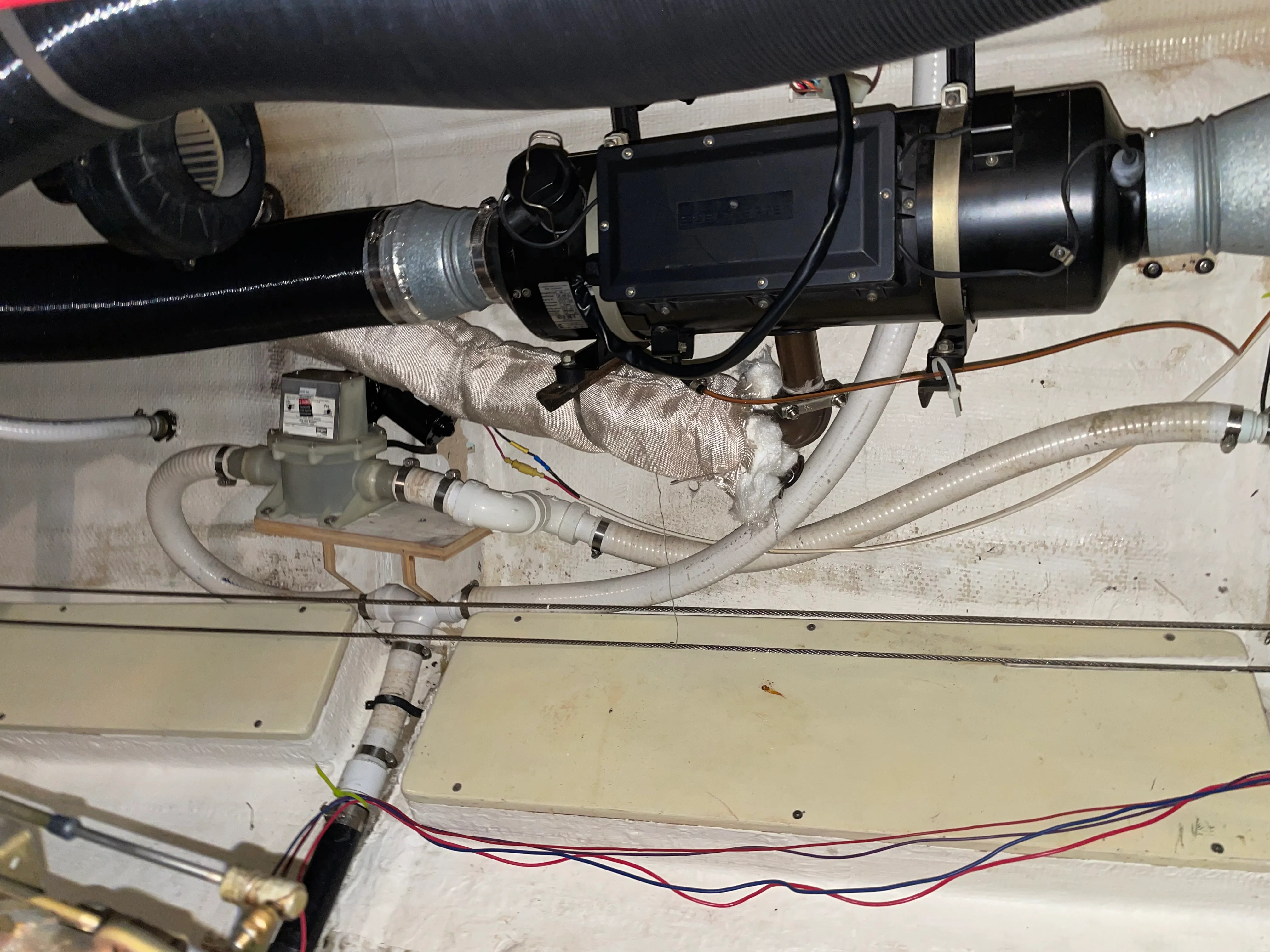

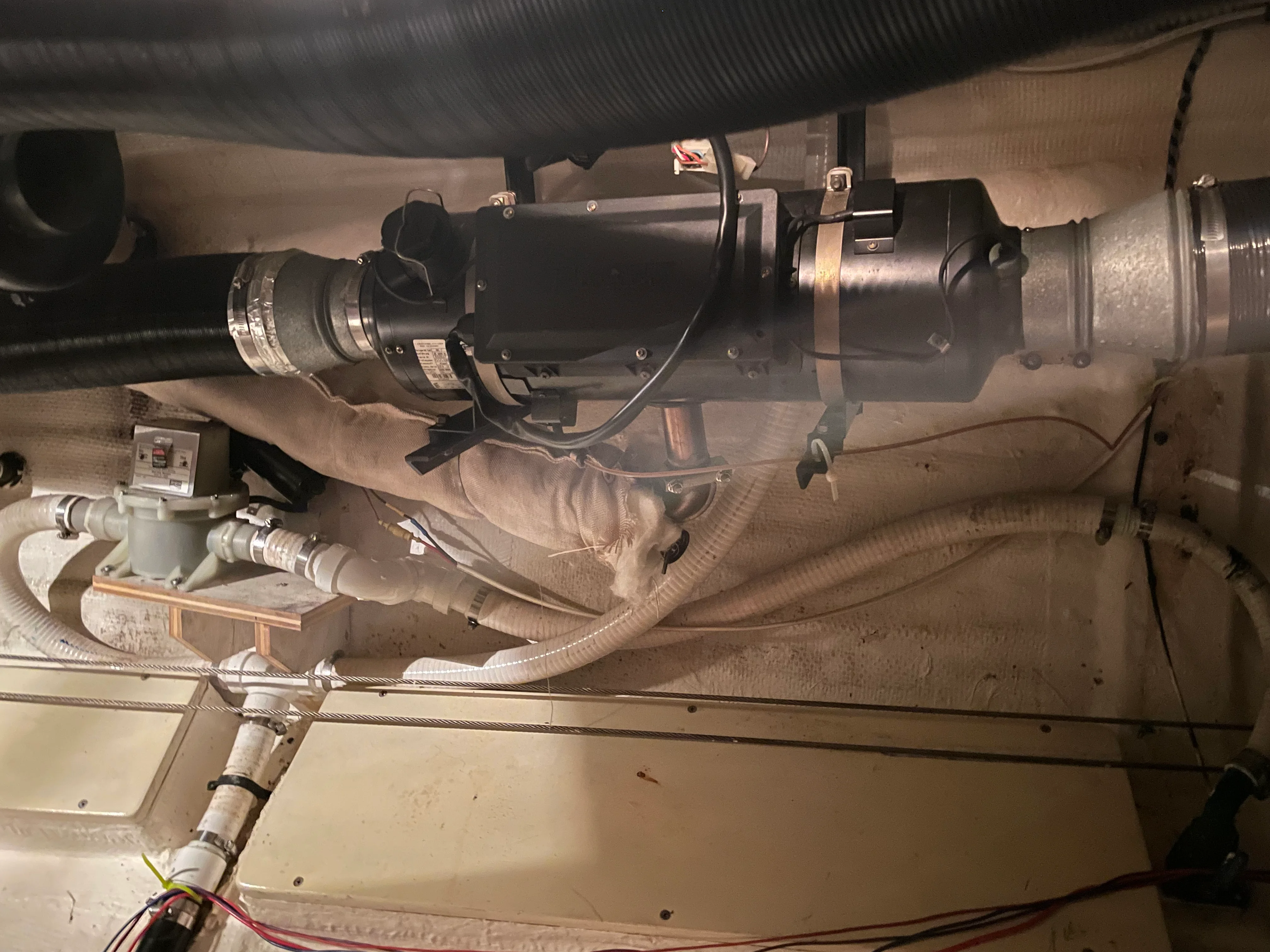

· Cabin Heat – Espar D8LHydronic Diesel Furnace
· Interior Finish – Flooring - Teak Parquet
· Trim - Teak
· Counter Tops - Laminate
· Headliner - Vinyl
· Curtains - Cloth
· Cushions – Leather & Vinyl

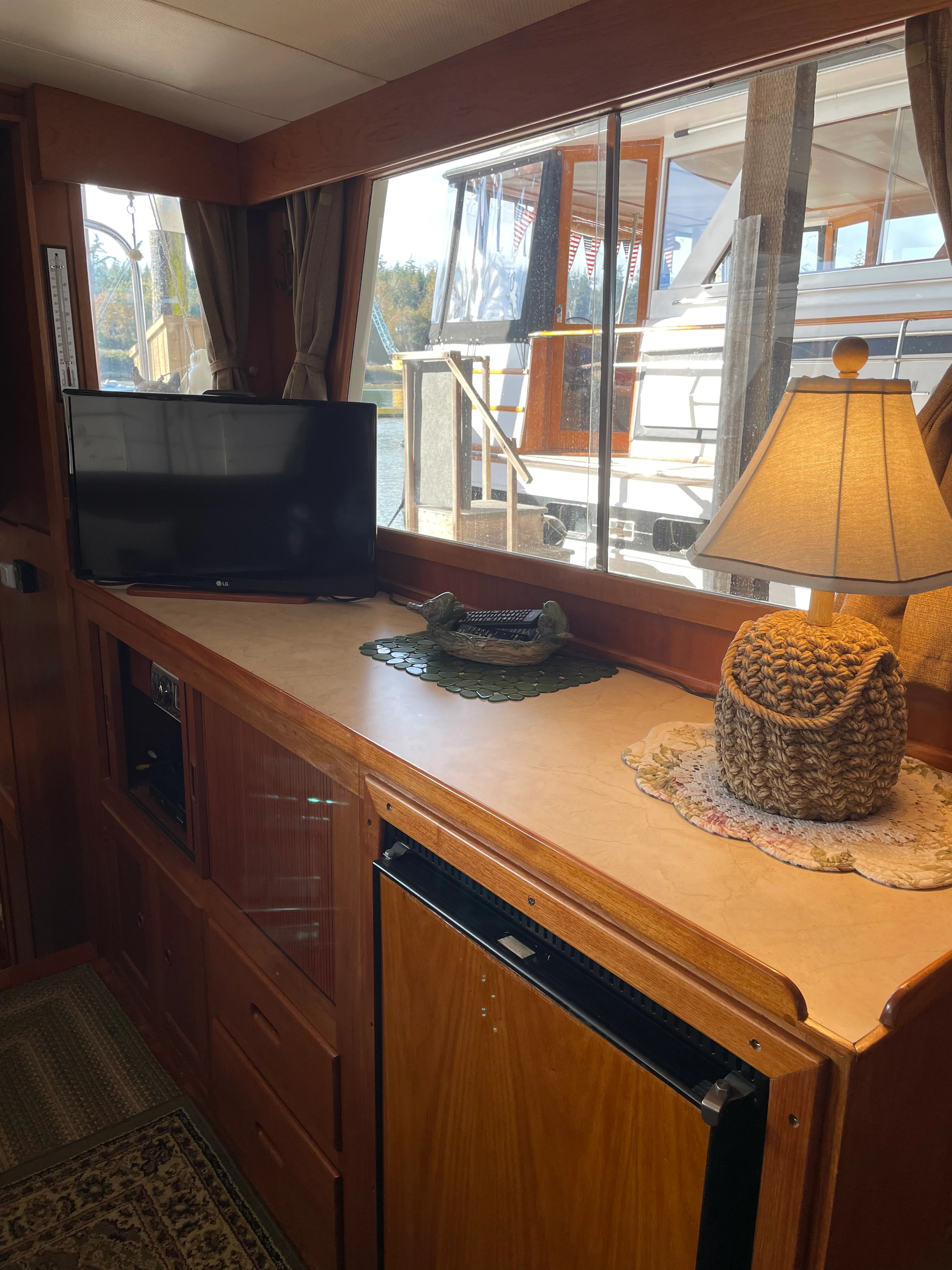

· TV – Vizio 22” in Salon

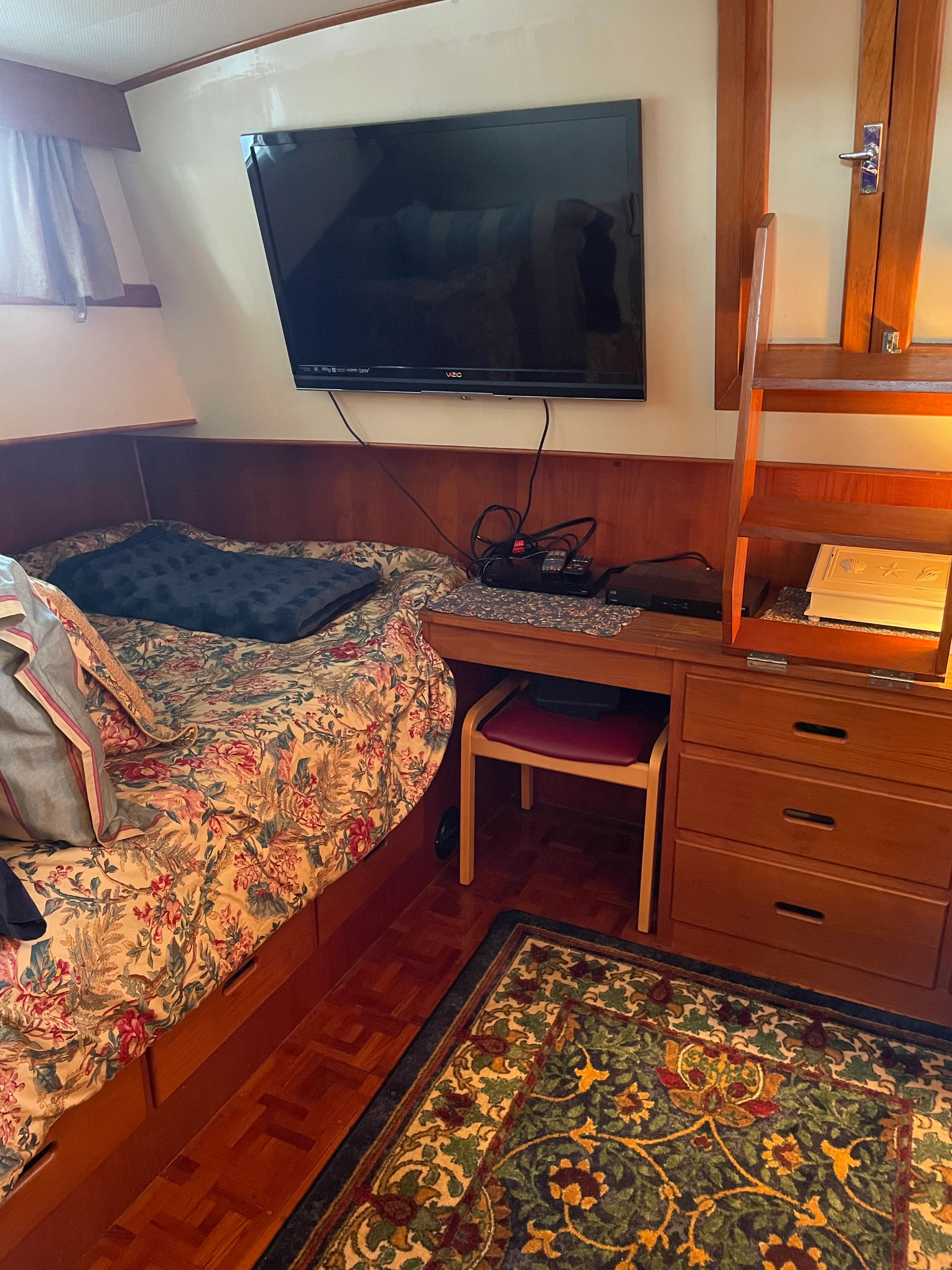

· Emerson 20” in Forward Stateroom
· Clock – Gerdau 10” Brass Bell Clock
· Barometer – Weems & Plath 7”
MECHANICAL:

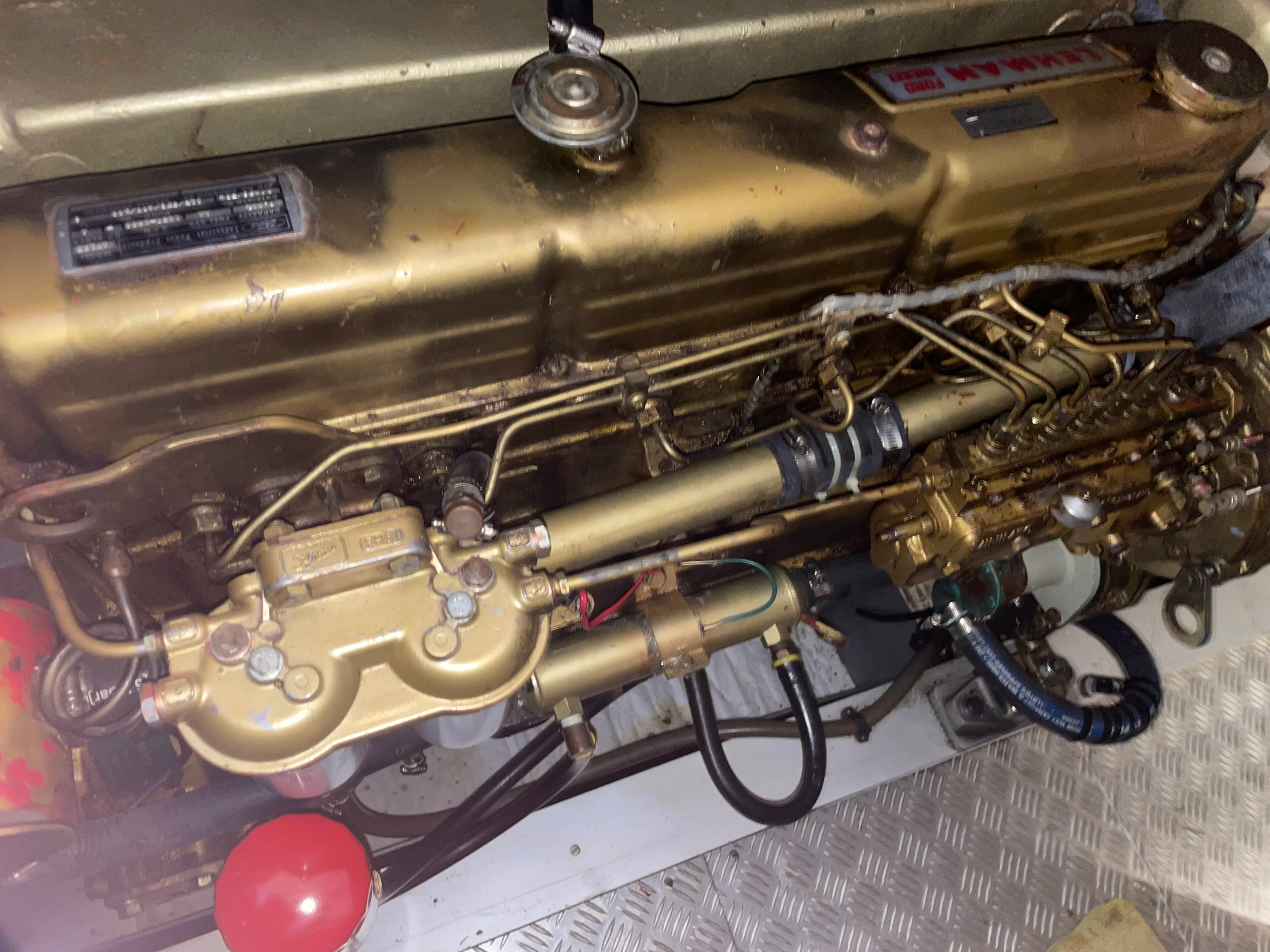

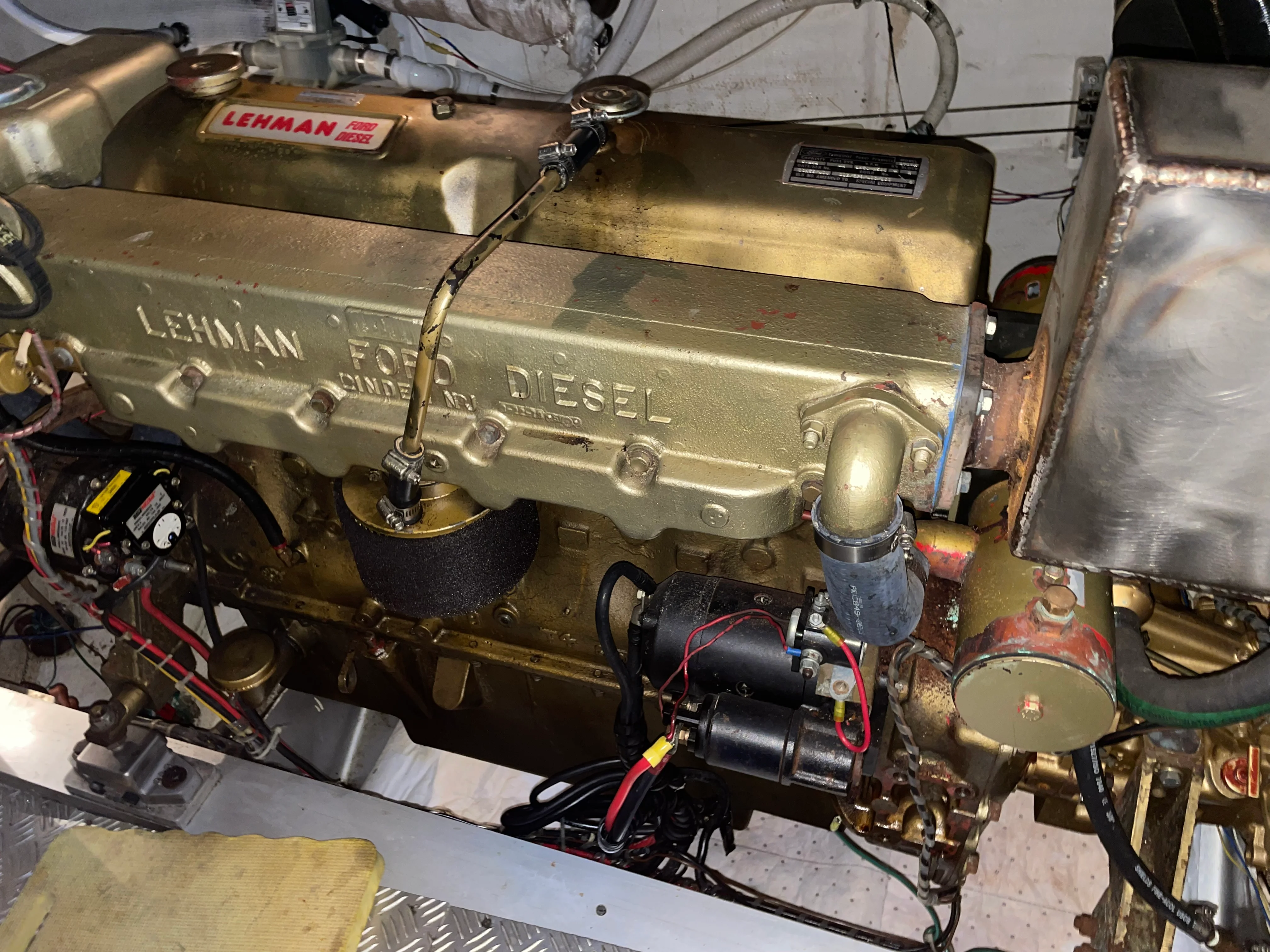

· Twin Ford Lehman 2715E, 120hp@, 6-Cylinder Freshwater Cooled, Naturally Aspirated,
· Direct-Drive, Inboard, Diesels
· Hours – Port – 3,300
· Starboard – 3,300
· Engine – Serviced 10/2025
· Engine Alternators – Leece-Naville 90amp – Upgraded
· Engine Exhaust System – Wet Injected

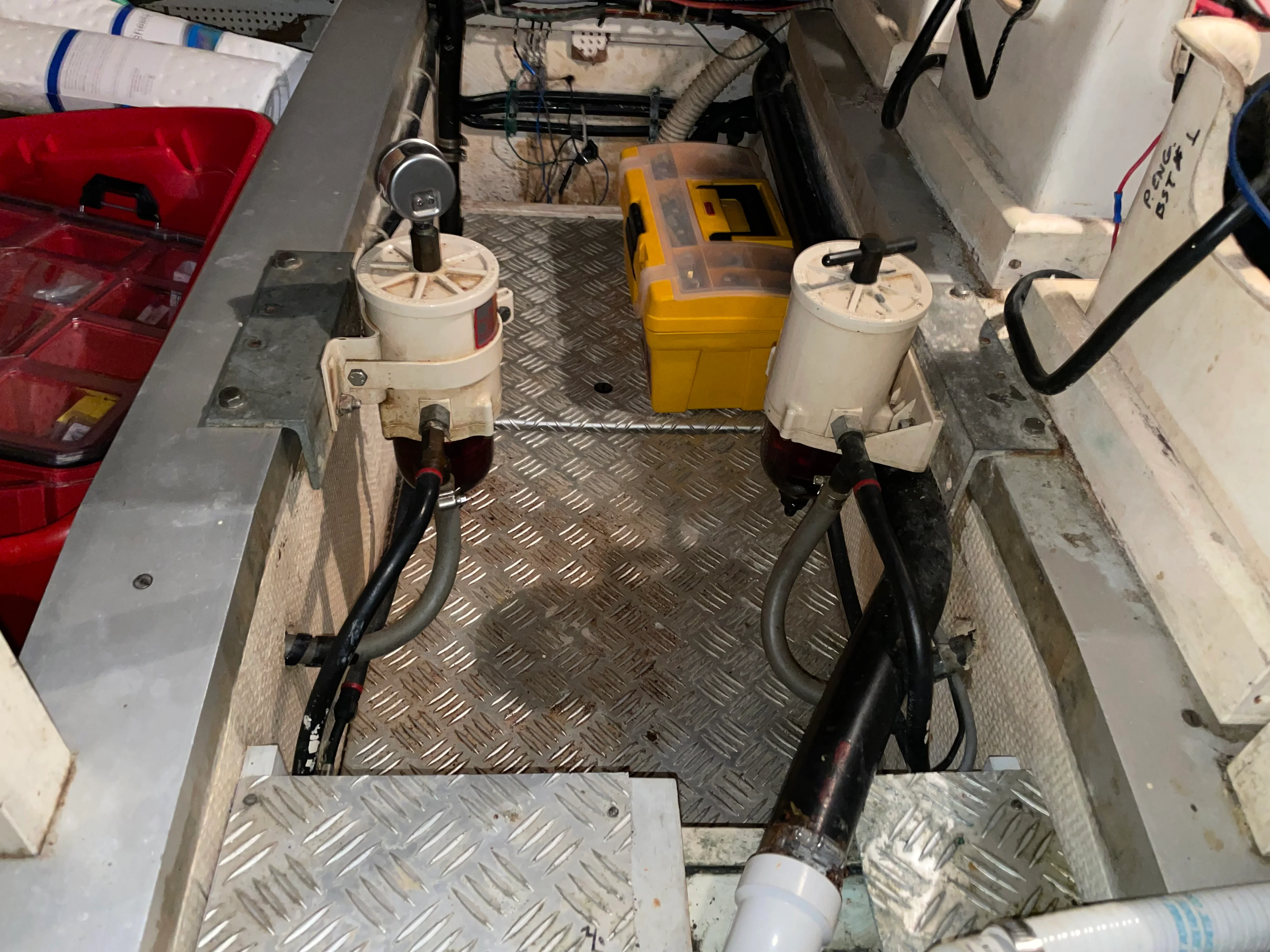

· Engine Fuel Filters – One Primary – Racor Filter serves each Engine
· Secondary Filter - on each Engine
· Engine Control System – (2) Helm Stations with Morse Cable Throttle/Shift Controls
· Engine Control Instrument Panel at Helms w/ Gauges, Indicator Lights &Audible Alarms
· Engine Steering System – (2) Helms Wheel Steering to Chain & Cable System to Tiller

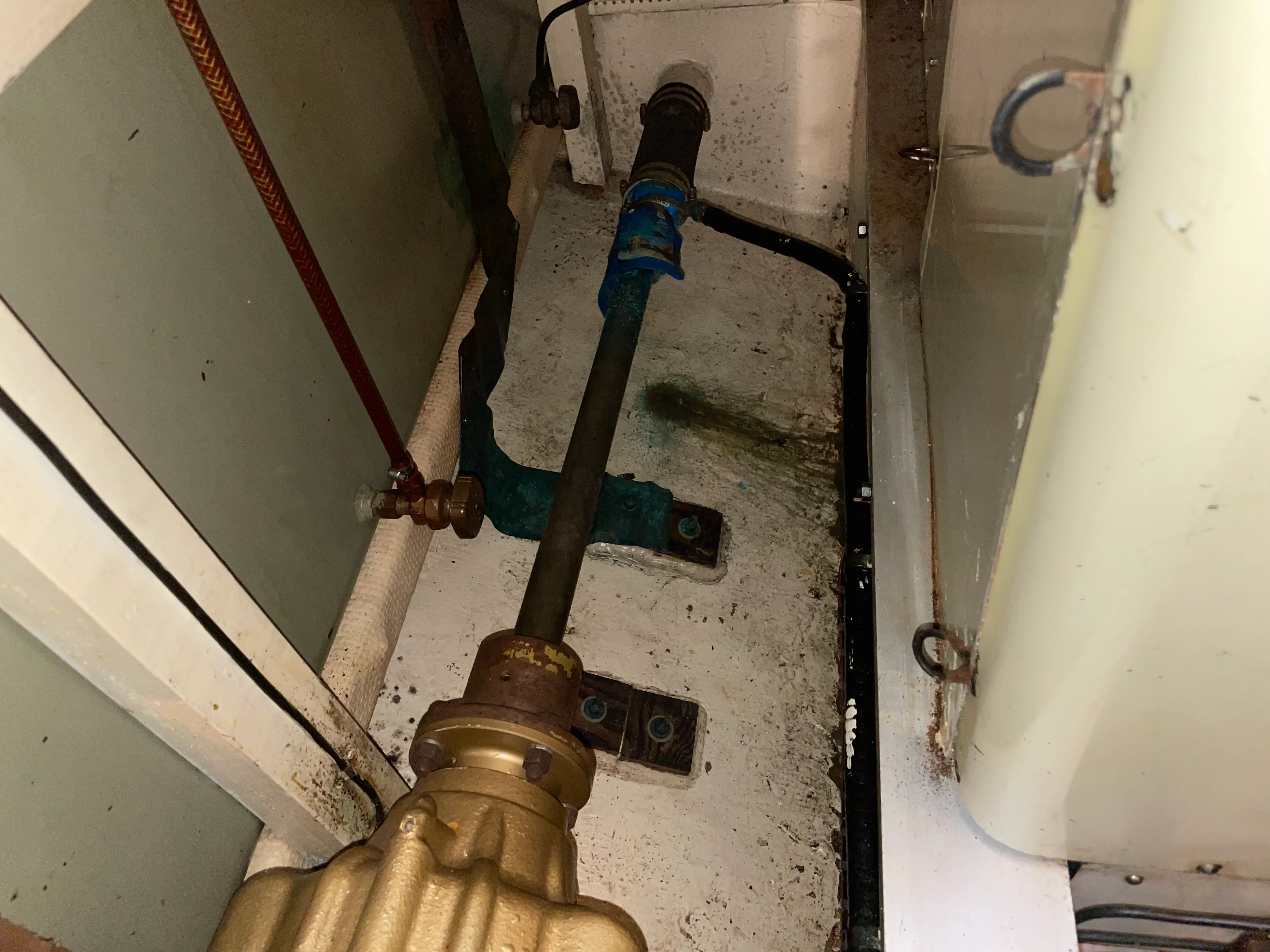

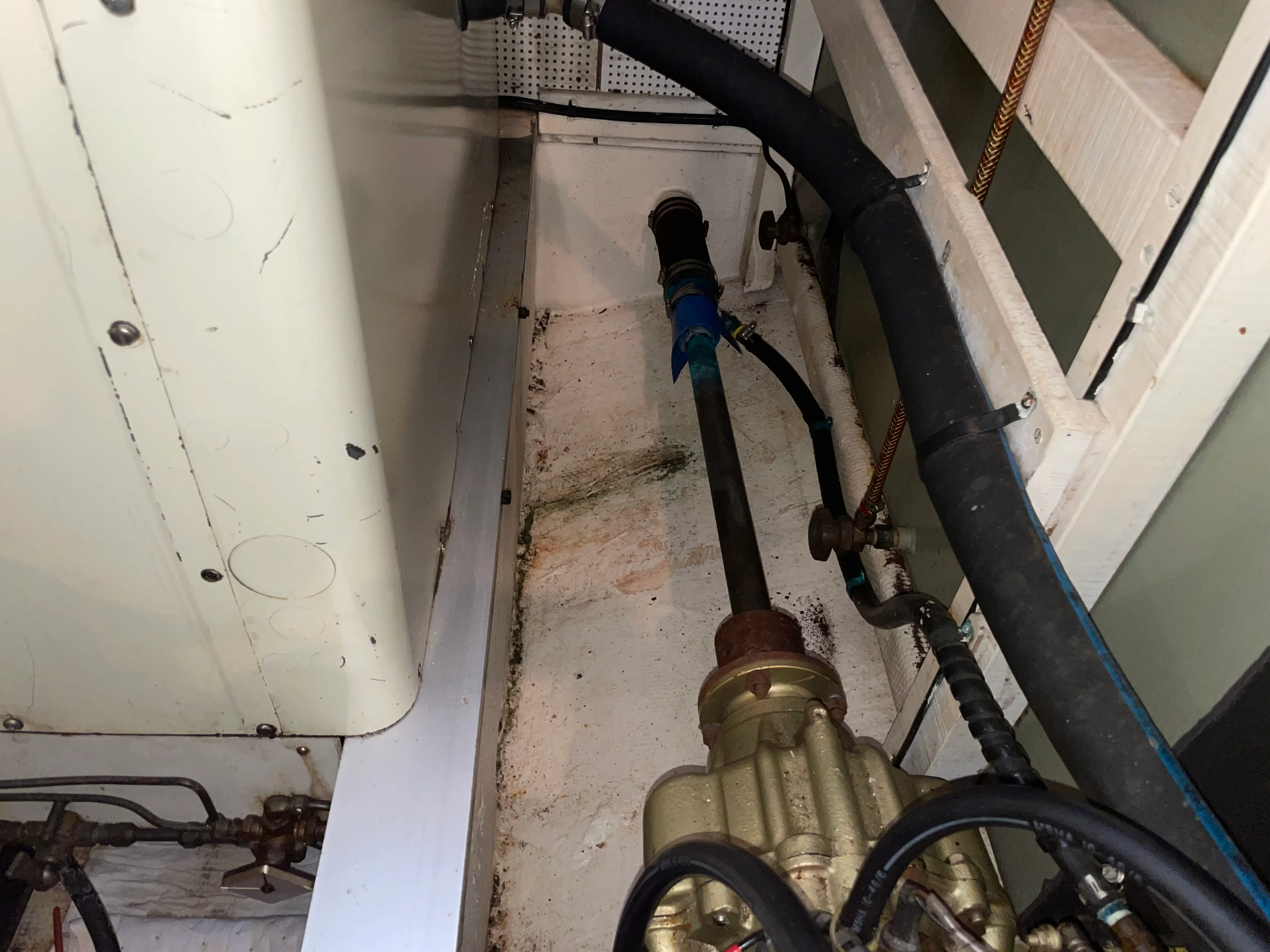

· Engine Shaft – One Piece Bronze 1 ½”
· Engine Strut – One I Strut & One V Strut Support Each Propeller Shaft
· Engine Propellers – (2) Michigan, 4-Blade Bronze, 24 Diameter x 17 Pitch
· (1) Right-Hand Rotation & (1) Left-Hand Rotation
· Cruise Speed – 8 Knots
· 11 Knots WOT
· Marine Gear – Borg Warner Velvet Drives Transmissions
· Reduction Gear 2.0 to 1
· Thru-Hull Fittings Below Waterline – All Are Bronze
· Raw Water Heat Exchangers – (1) for Cooling each Engine
· (1) for Each Transmission Oil
· (1) for Each Engine Oil
· Bilge Pumps – (1) Rule 1500 Submersible in Forward Engine Room Bilge
· (1) Rule 3700 Submersible in Forward Engine Room Bilge
· (1) Manual Pump
· Total Pumping Capacity about 5200gph
ELECTRICAL:
· Systems - 12Volt DC & 120Volt AC

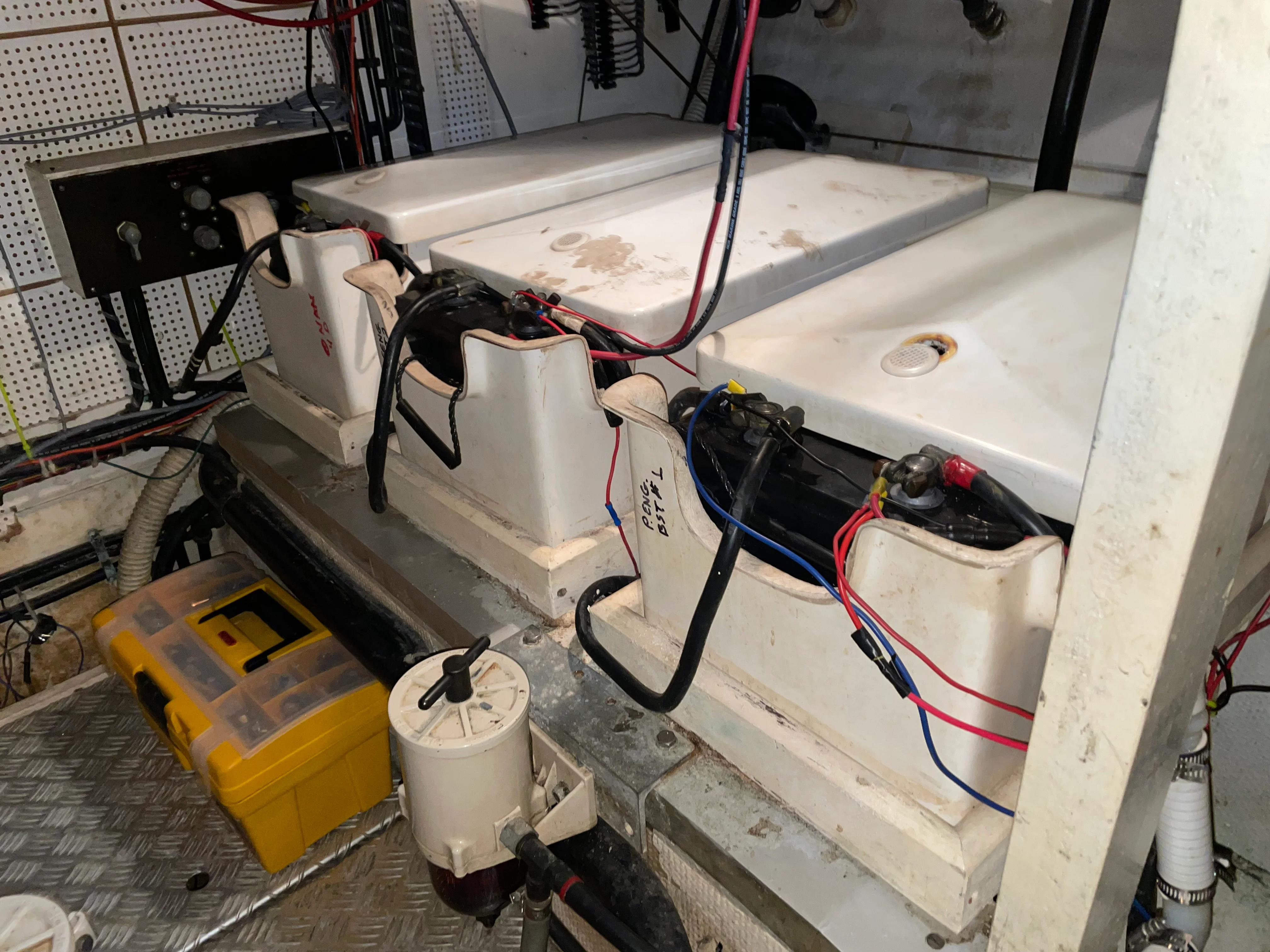

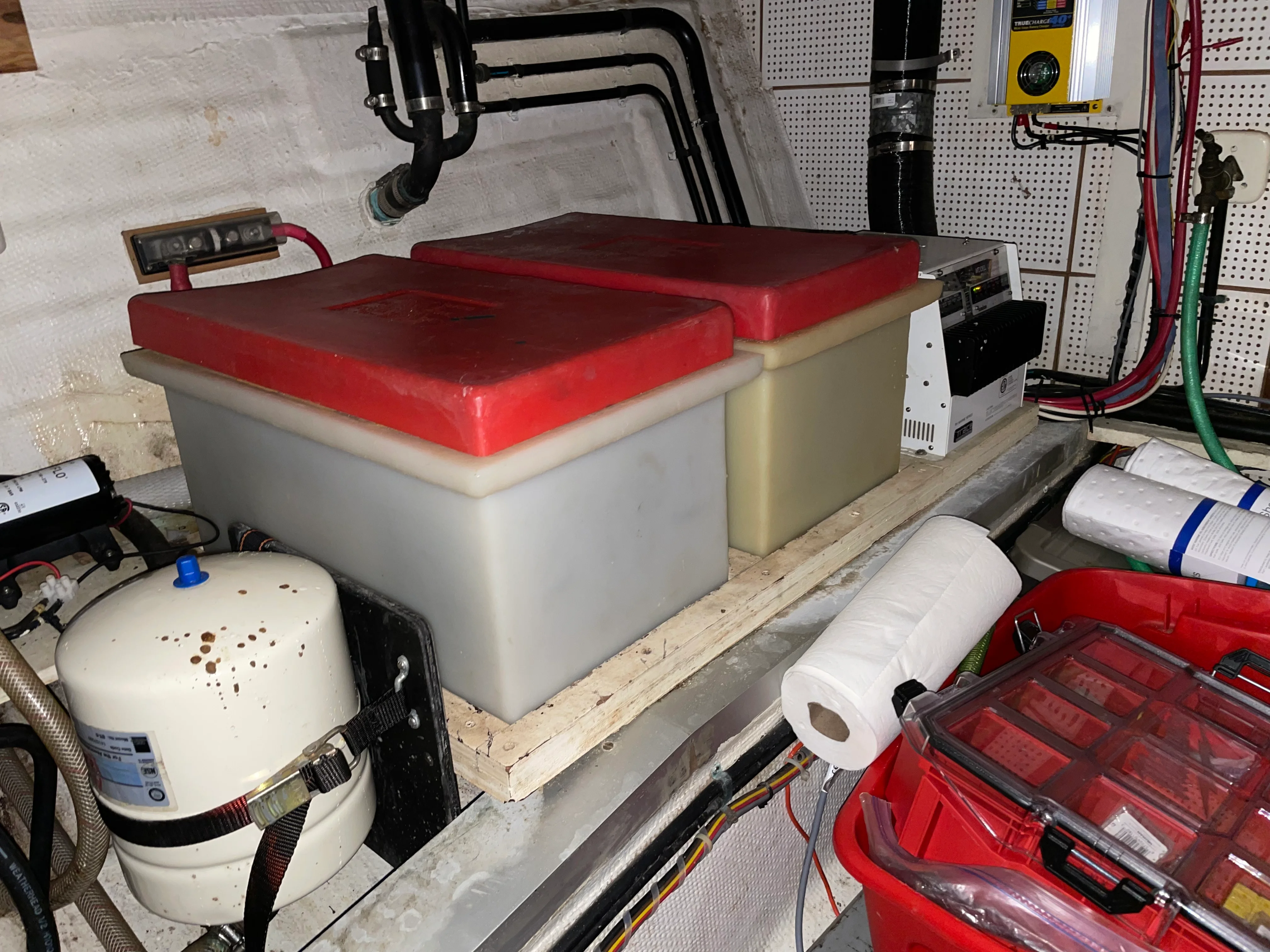

· Systems Supply – Batteries (2 Banks), Shore Power, Inverter, Generator
· Master Battery Switch (1)
· Polarity Indicator
· Shore Power – 30amp
· 50’ Shore Power Cord
· Inverter / Charger – Trace Engineering 2500watt
· RC-2000 Inverter Controller & Charge Monitor

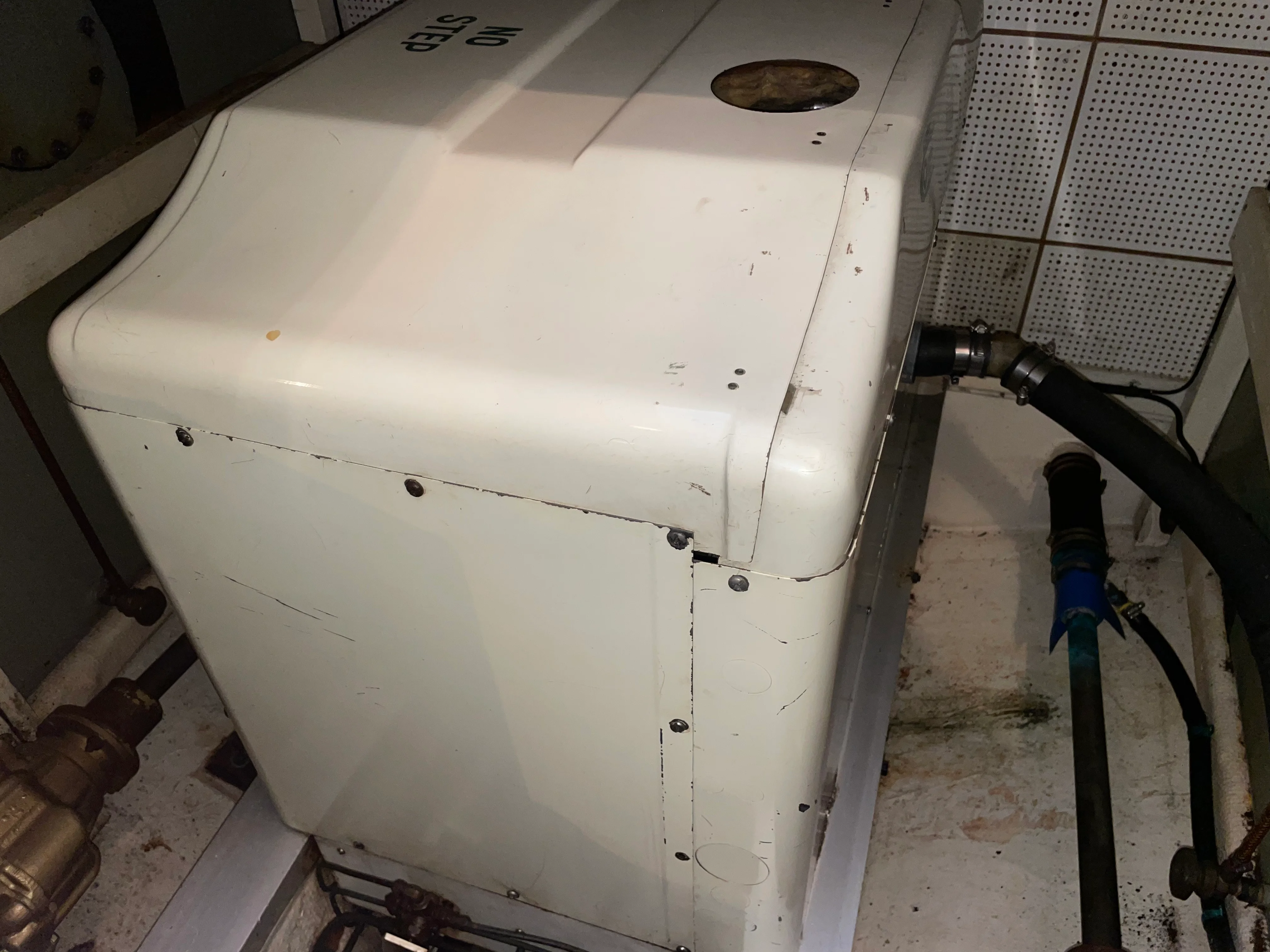

· Generator – Onan 7.5kw with Sound Shield
· Hours - 2000
NAVIGATION & COMMUNICATION:
· LOWER HELM – Compass 5” Danforth
· Radar – Furuno NavNet MFD 12 – LCD 30 Miles Display
· GPS – Furuno NavNet MFD 12 GPS
· GP7000 GPS
· Autopilot – Simrad
· Fathometer – Furuno NavNet MFD 12 Depth
· Lowrance X70 - Depth
· VHF – Icom IC-M45 VHF
· Load Hailer/Horn – Horizon L45
· Intercom System - Airphone
· UPPER HELM – Compass – 5” Danforth
· GPS – Garmin 192 GPS/MAP
· Auto Pilot – Simrad
· Fathometer – Furuno Depth
· VHF – Standard Horizon Quest VHF
· Intercom System - Airphone
GROUND TACKLE:
· Windlass – Lofrans Tigres
· Anchor – Primary - Bruce 20kg
· Chain – 300’ 5/16th inch High Test Rode
· Anchor – Secondary – Fortress FX23
· Anchor Stopper – Deck Cleats & Anchor Windlass
· Anchor Deck – Wash-Down System
SAFETY:
· Navigation Lights
· Windshield Wipers - (3) 12Volt DC
· Bell
· Horn - 12Volt DC
· Emergency Steering Tiller
· Emergency Ladder – Stainless Steel fixed to Swim Platform
· Teak Handrails
· Bow Railing – Stainless Steel Tube
· Stern Railing – Stern Transom with Railing Gate
· Bulwarks – 20” to 10” above Deck Bow to Stern
· Lifelines – Bronze Stanchions with Teak Cap
MISCELLANNEOUS:
· Zincs – NEW 9/24/25
· Bottom Paint – Scrubbed Bottom 9/24/25 – Diver said ”it still looks good”
· Tender – 9’ Caribe C9 RIB Inflatable
· Out Board – 8hp Evinrude
· Davit System – Weaver Tender Brackets & Sea Wise Manual Hoist on Swim Platform
· Transom Pass-Thru Door
· Mast/Boom – Hinged Aluminum Mast with Lifting Boom & Power Hoist
· Radar Mount Mast – Stainless Steel Bracket on Aluminum Hinged Mast
· Canvas Covers – Flybridge Bimini
· Upper Deck Seating Railing Dodgers
· Deck Gear Covers
· Teak Railing Cap & Teak Bulwarks Cap Covers – All Around Boat
· Cockpit Table
