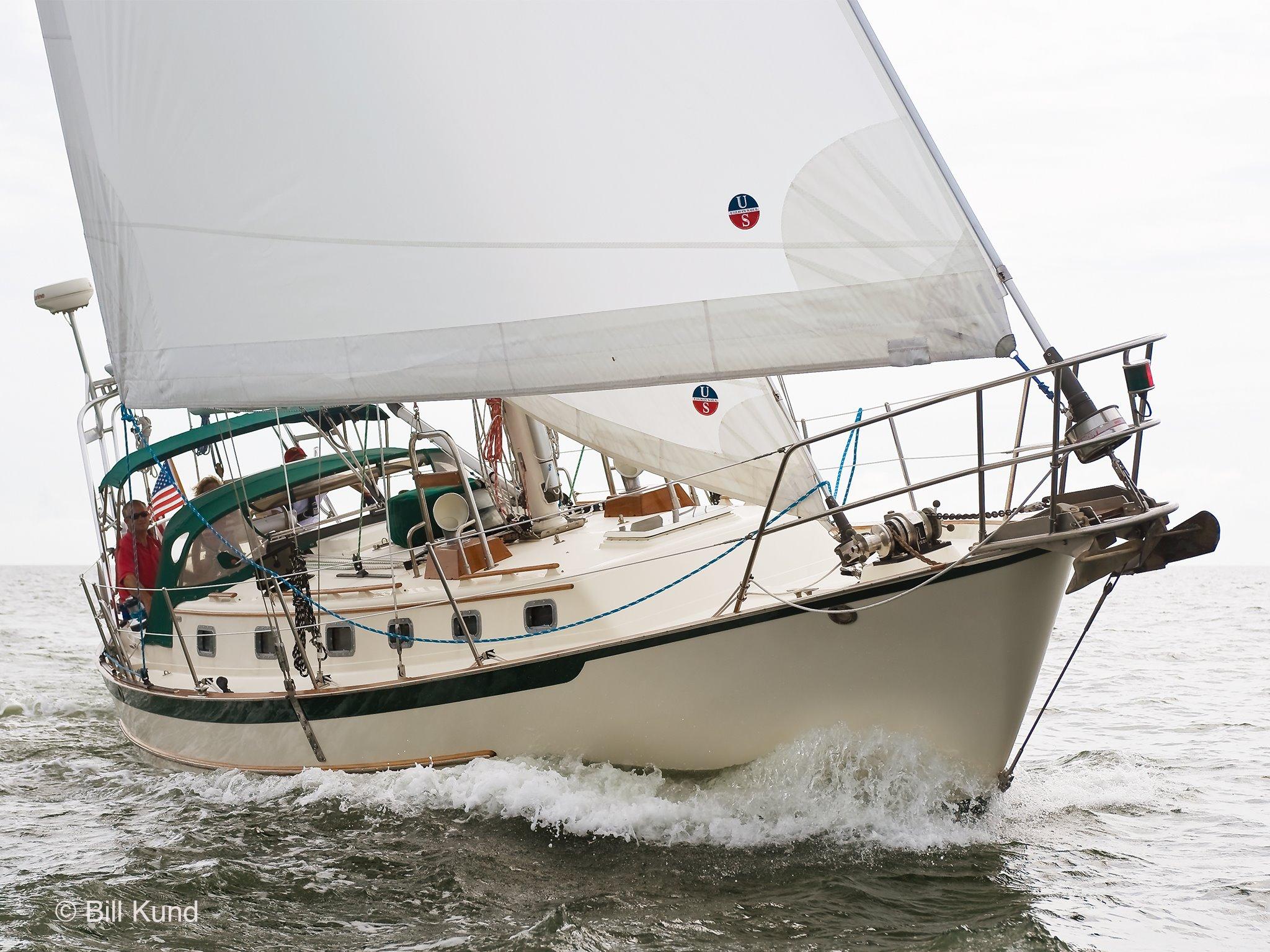

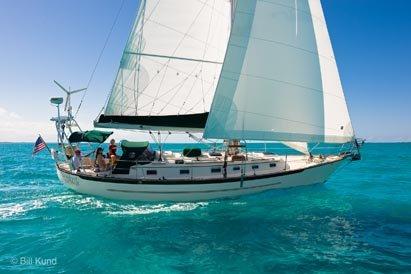

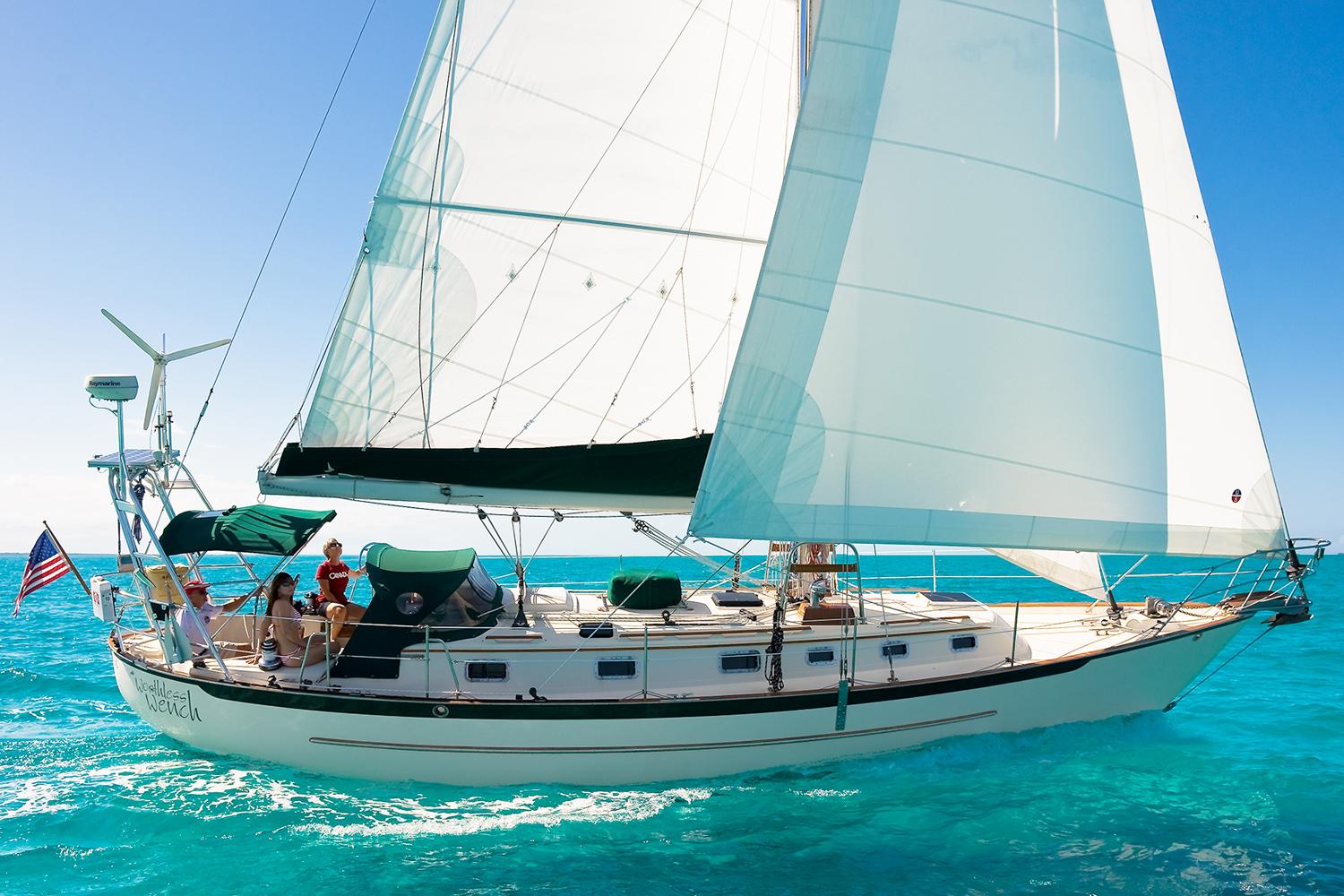

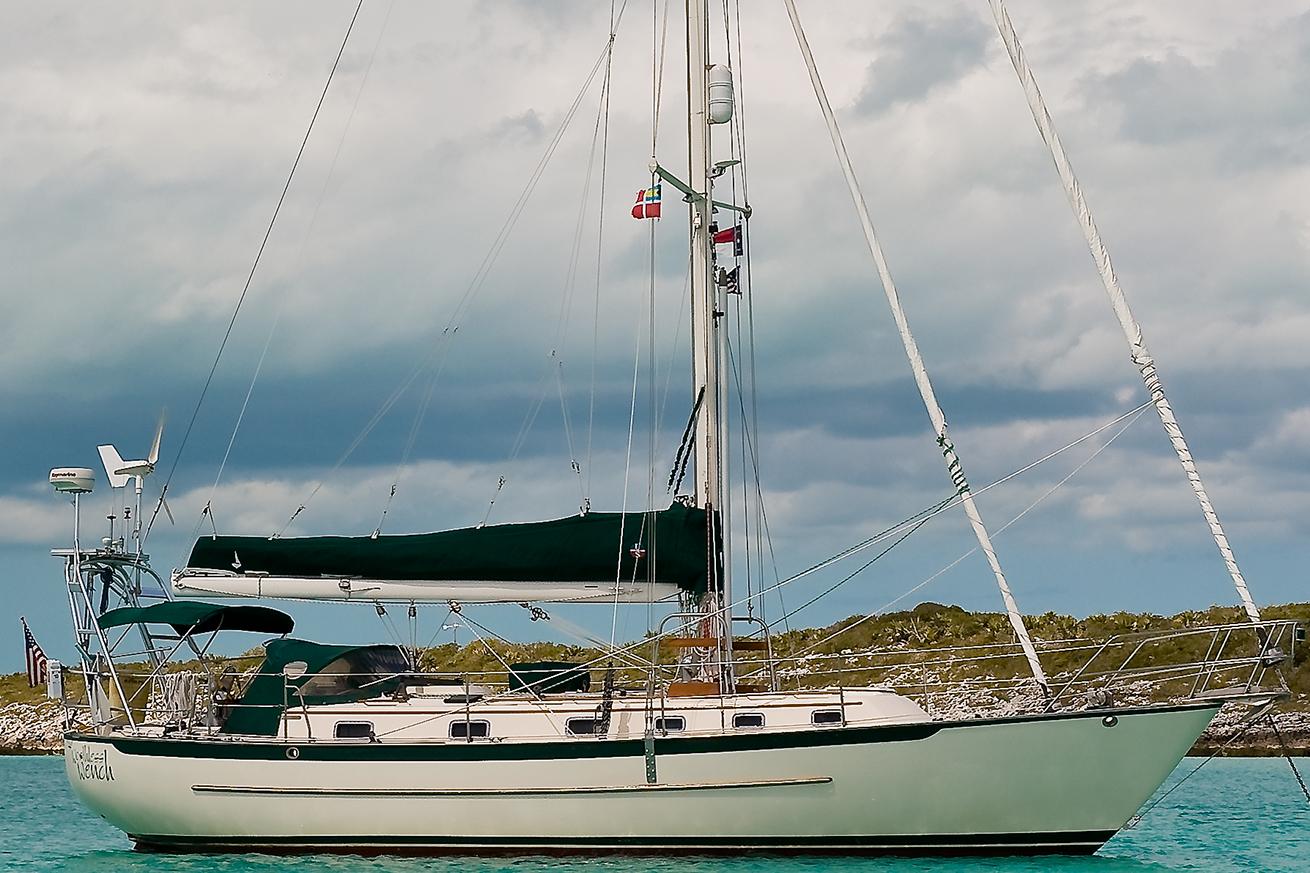

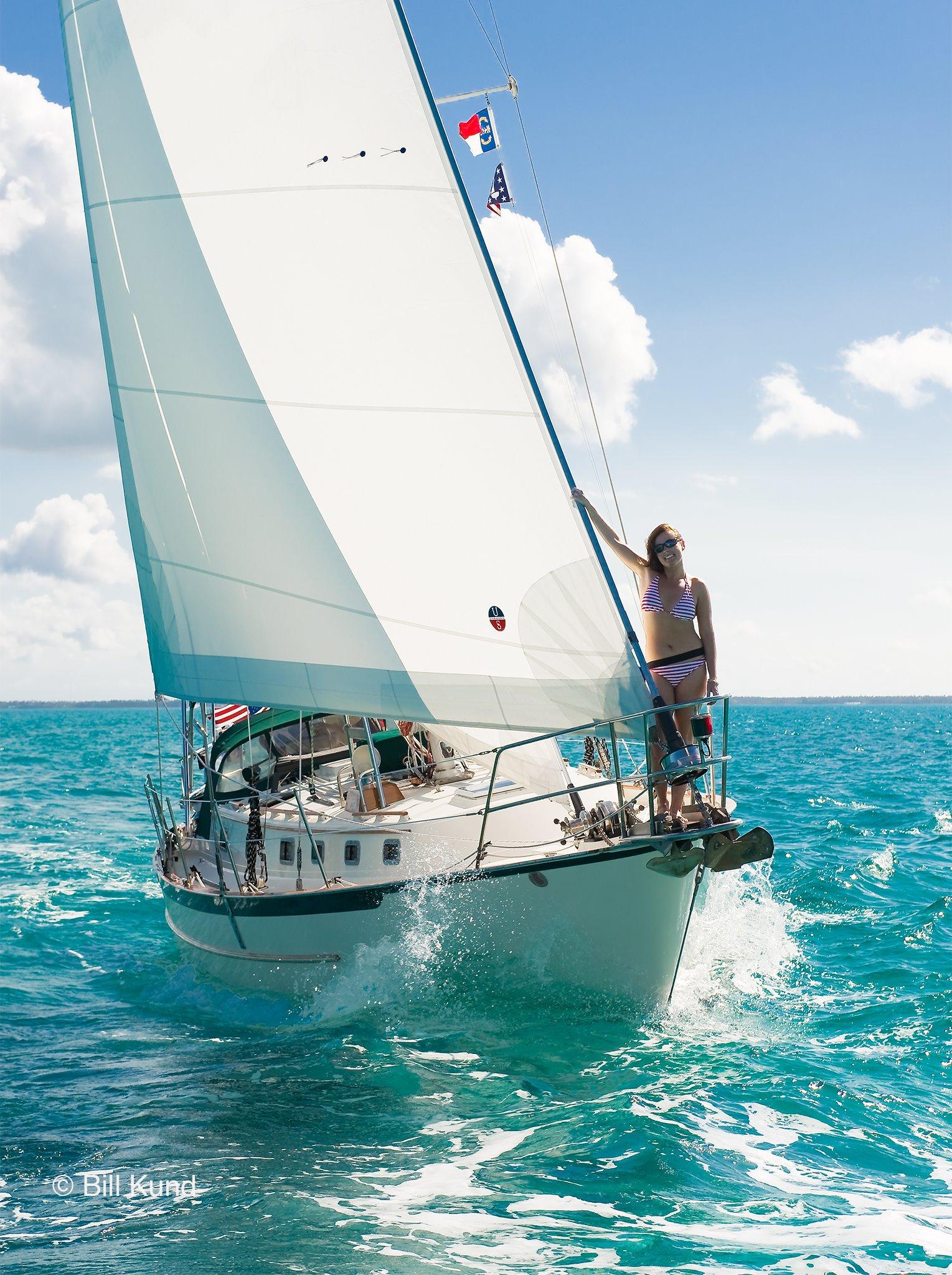

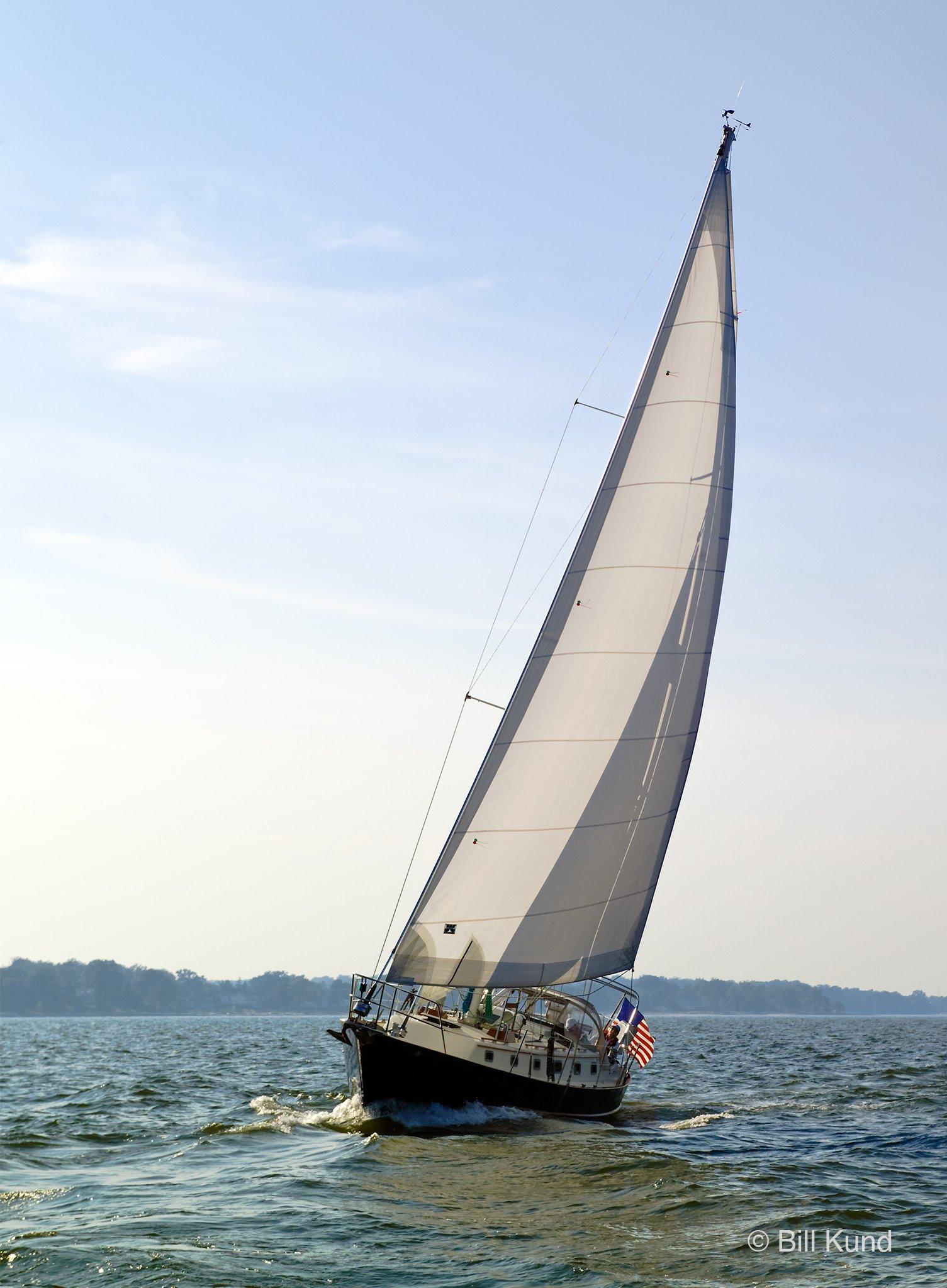

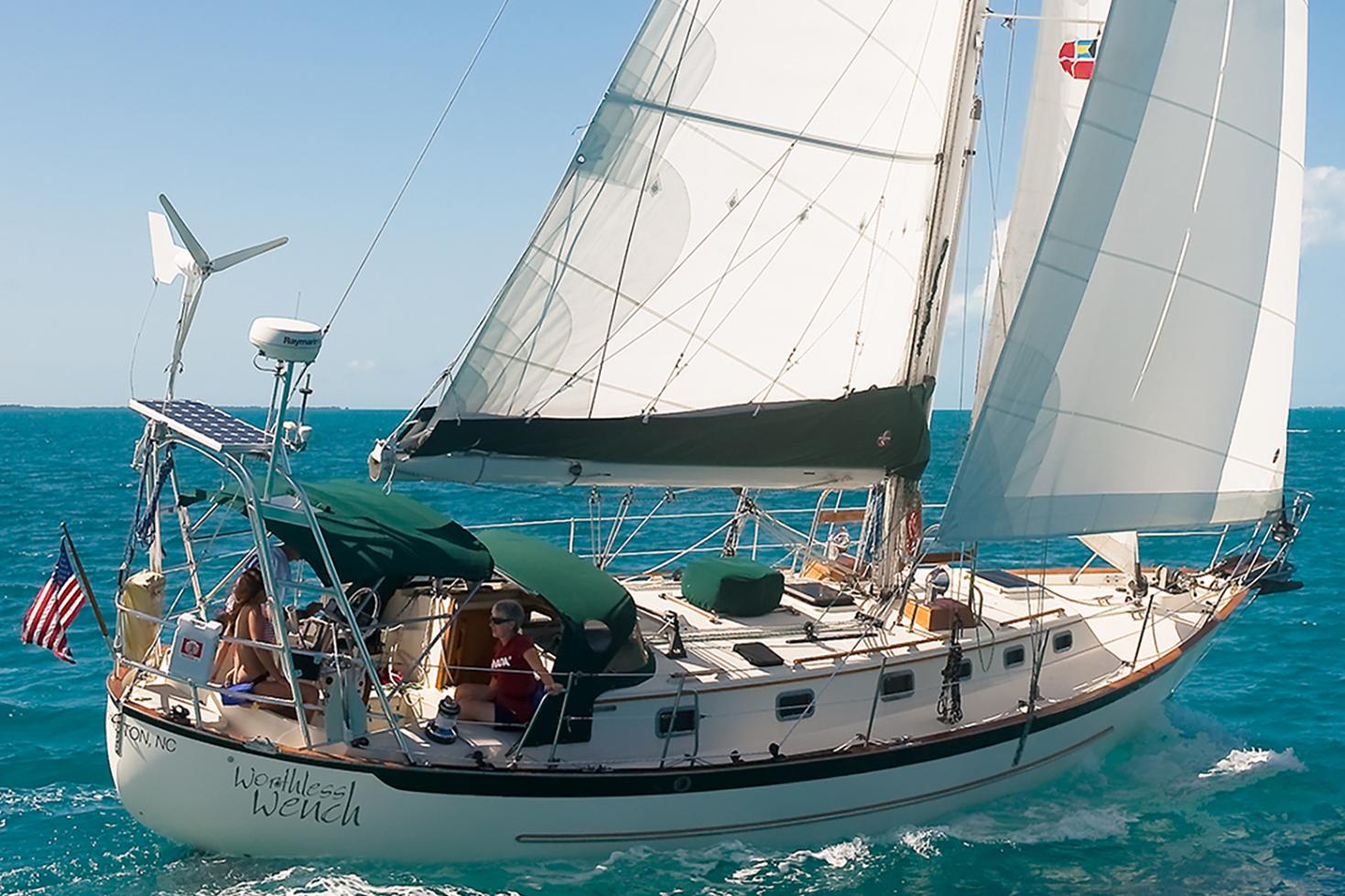

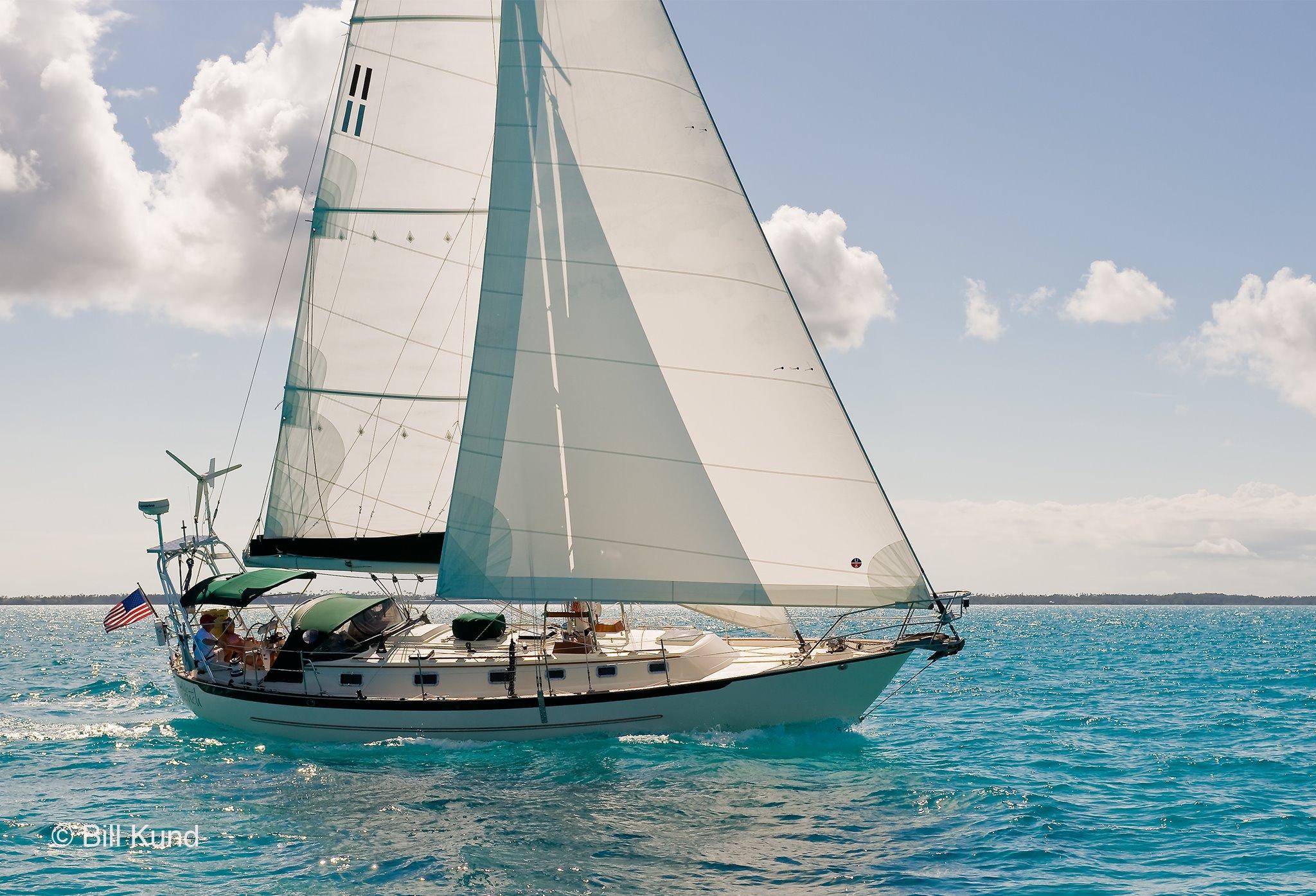

Outwardly, the Pacific Seacraft 40 closely resembles its larger and smaller sisters, but in fact each model in the line incorporates modification to the shape and refinements aimed mostly at improved performance and safety.
The 40 retains the general form of split underbody with ventral fin between keel and large skeg. As before the primary aim throughout is ease of control by a small crew in bad conditions. My own belief is that one should not travel only to arrive: the passage itself should be relaxing and fun. We formed the underbody for this purpose, and we have had numerous reports from other boats in the line of surfing down waves in heavy weather at speed/length ratios of over 2 with easy control.
I also believe that speed on passage is quite different from speed round the buoys, and that a small crew should be able to sail an offshore cruiser to its full potential without exhaustion.

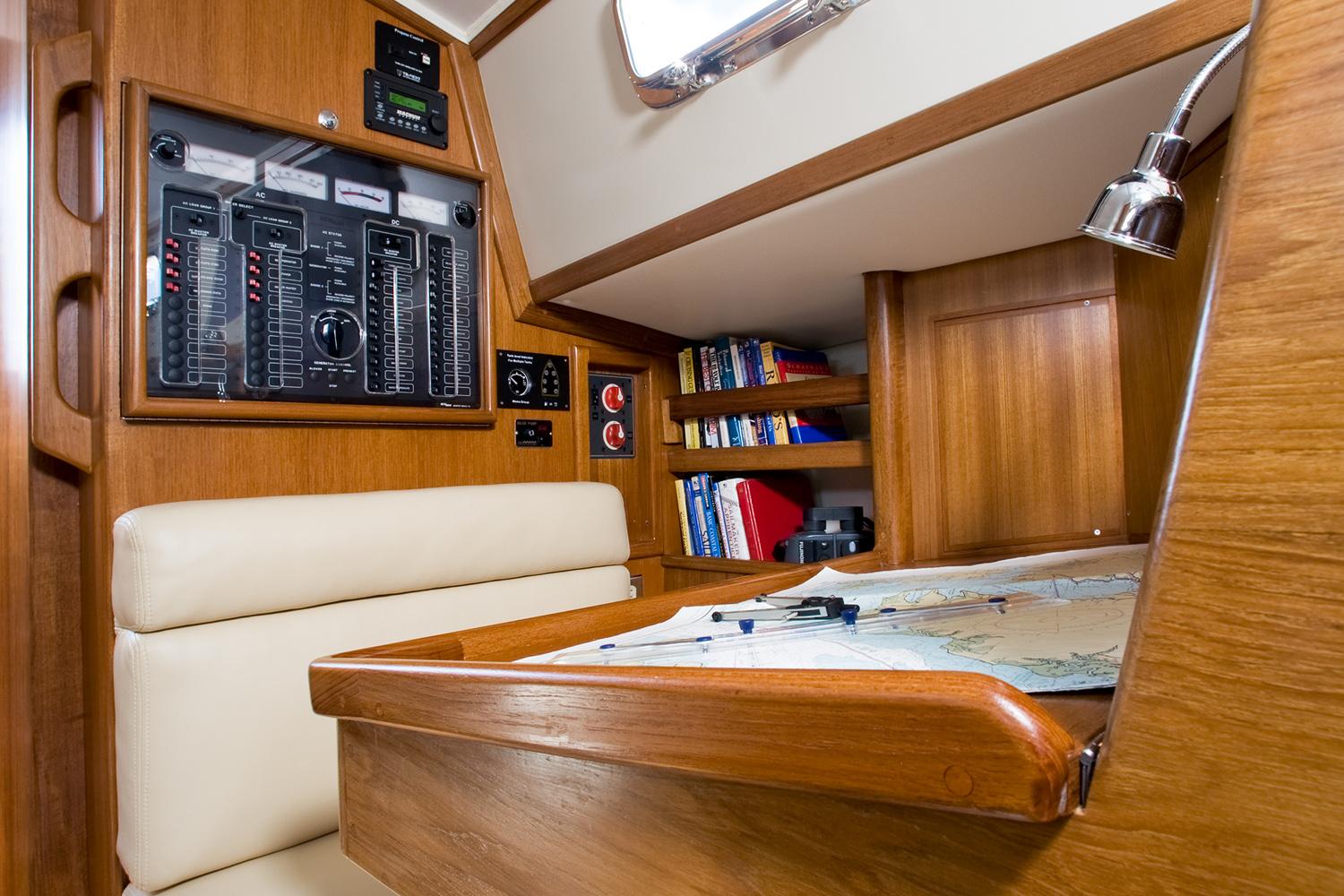

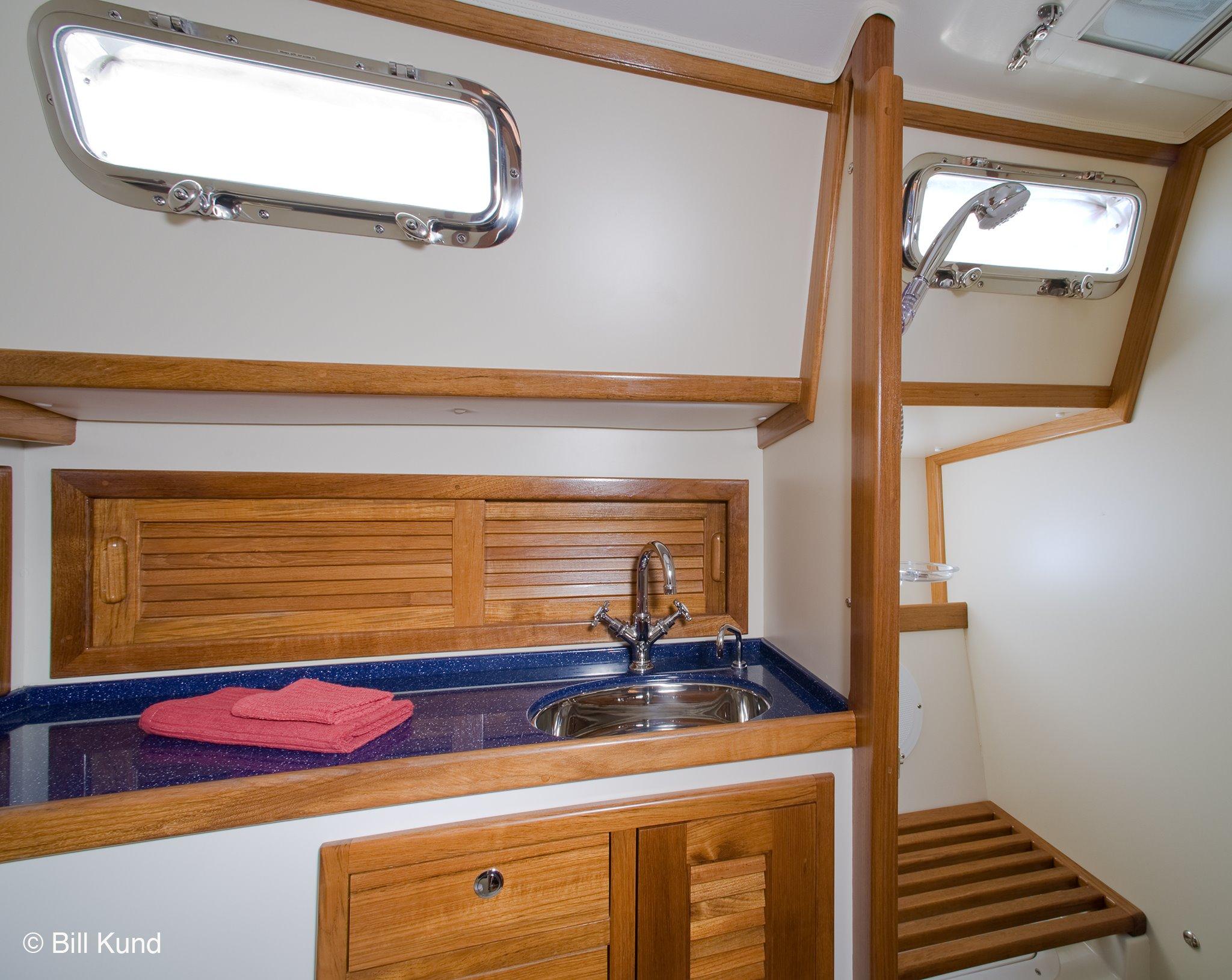

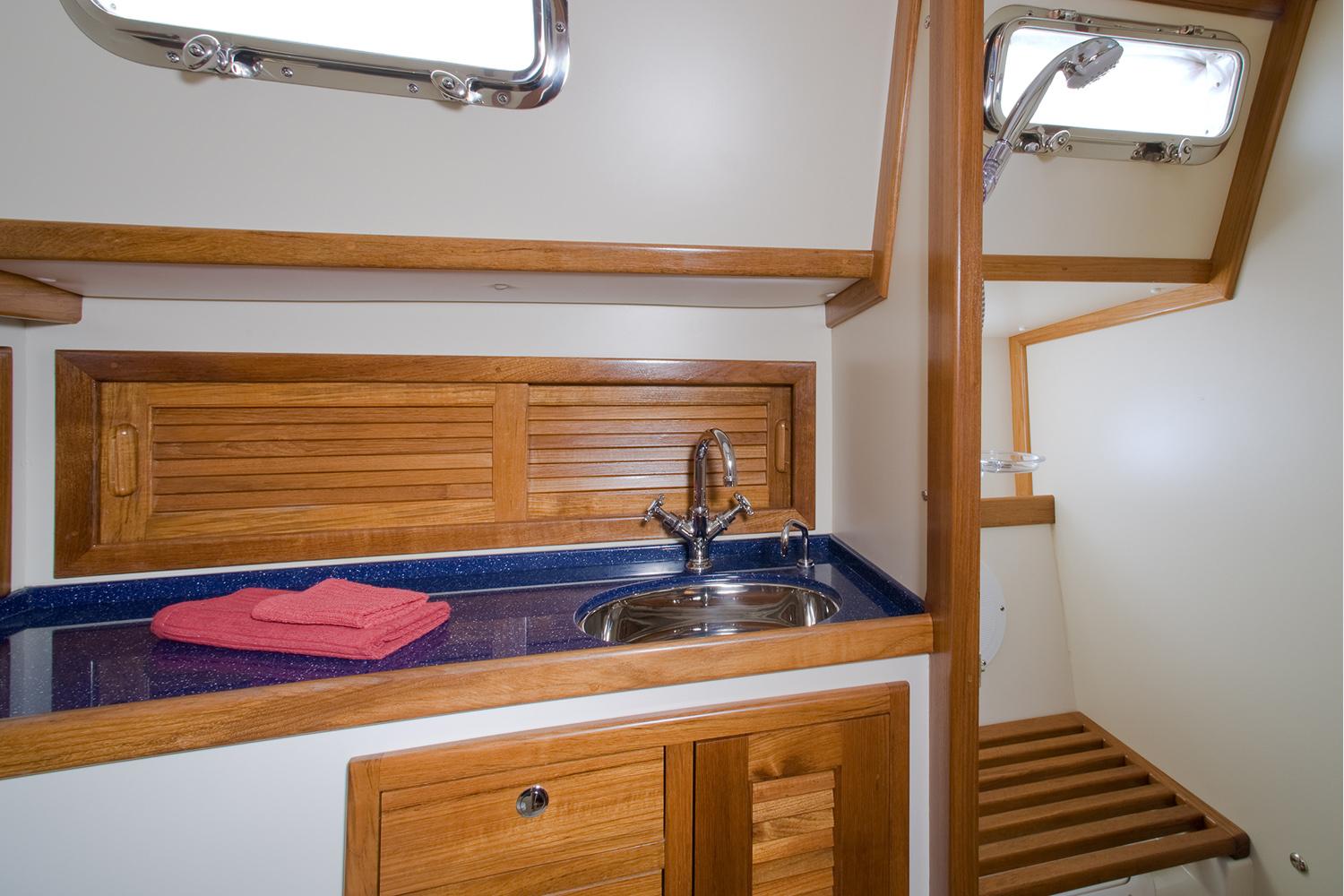

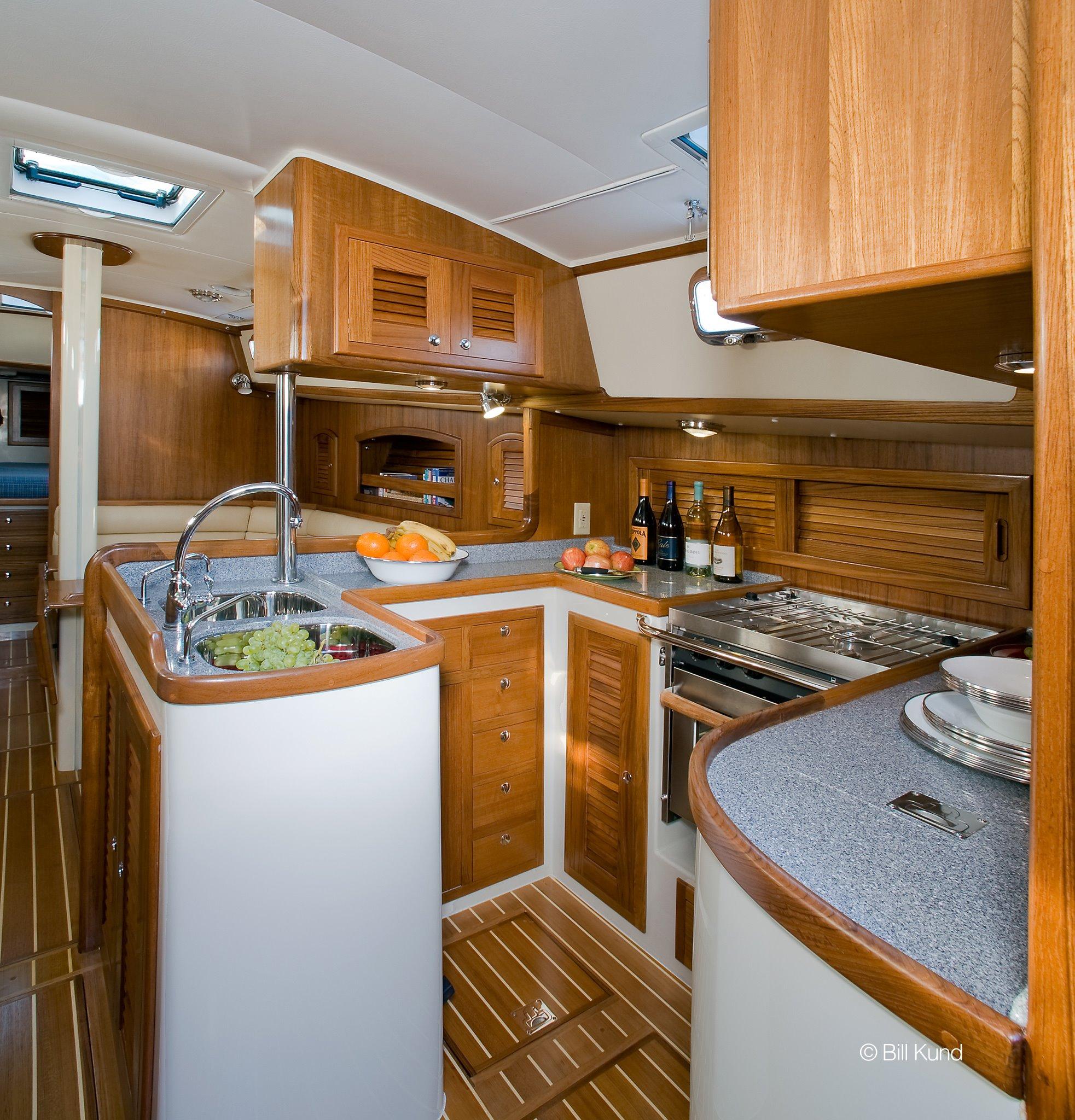

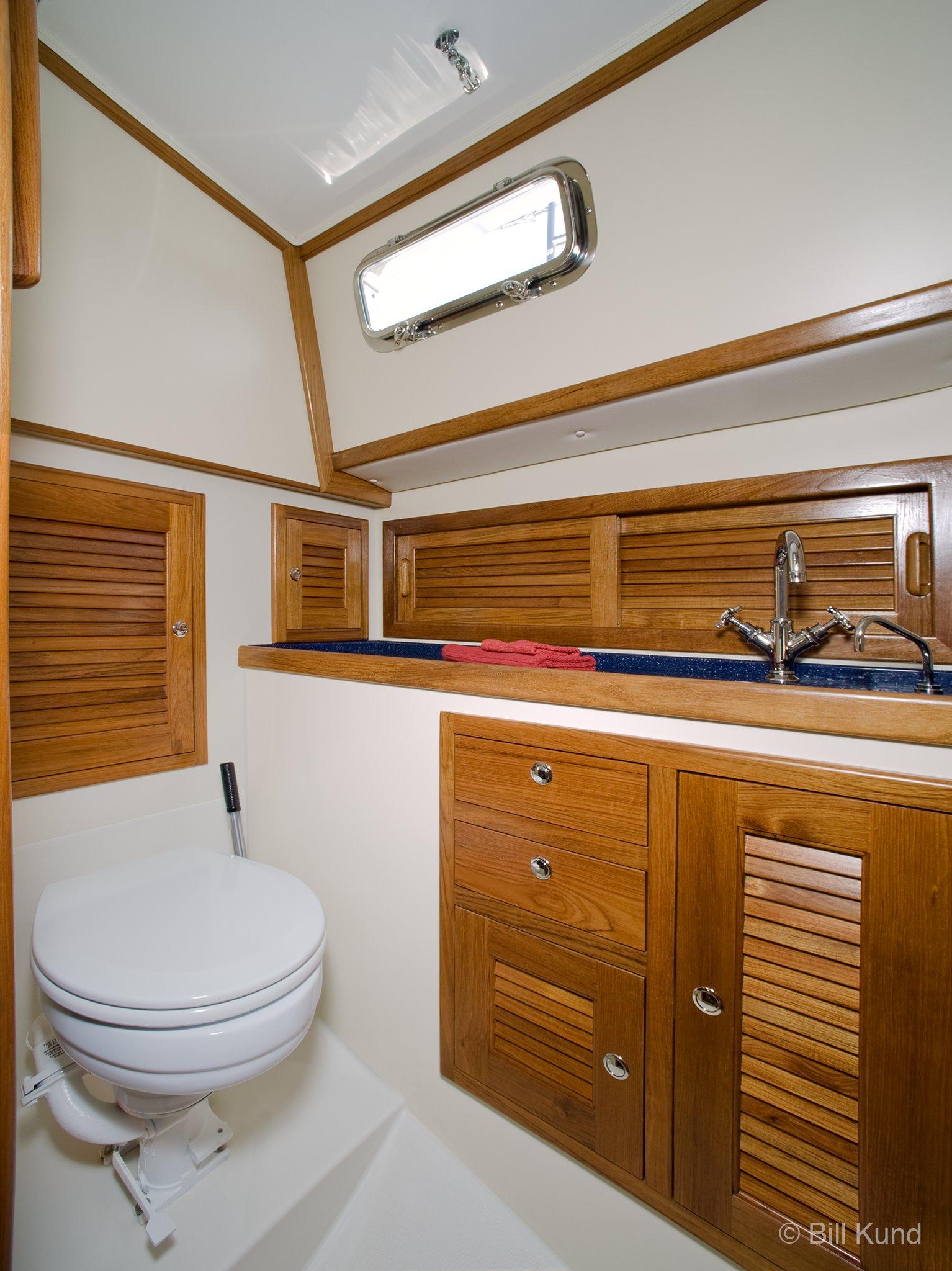

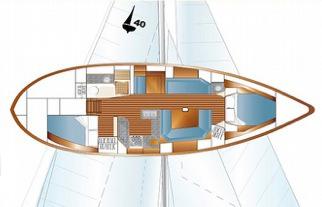

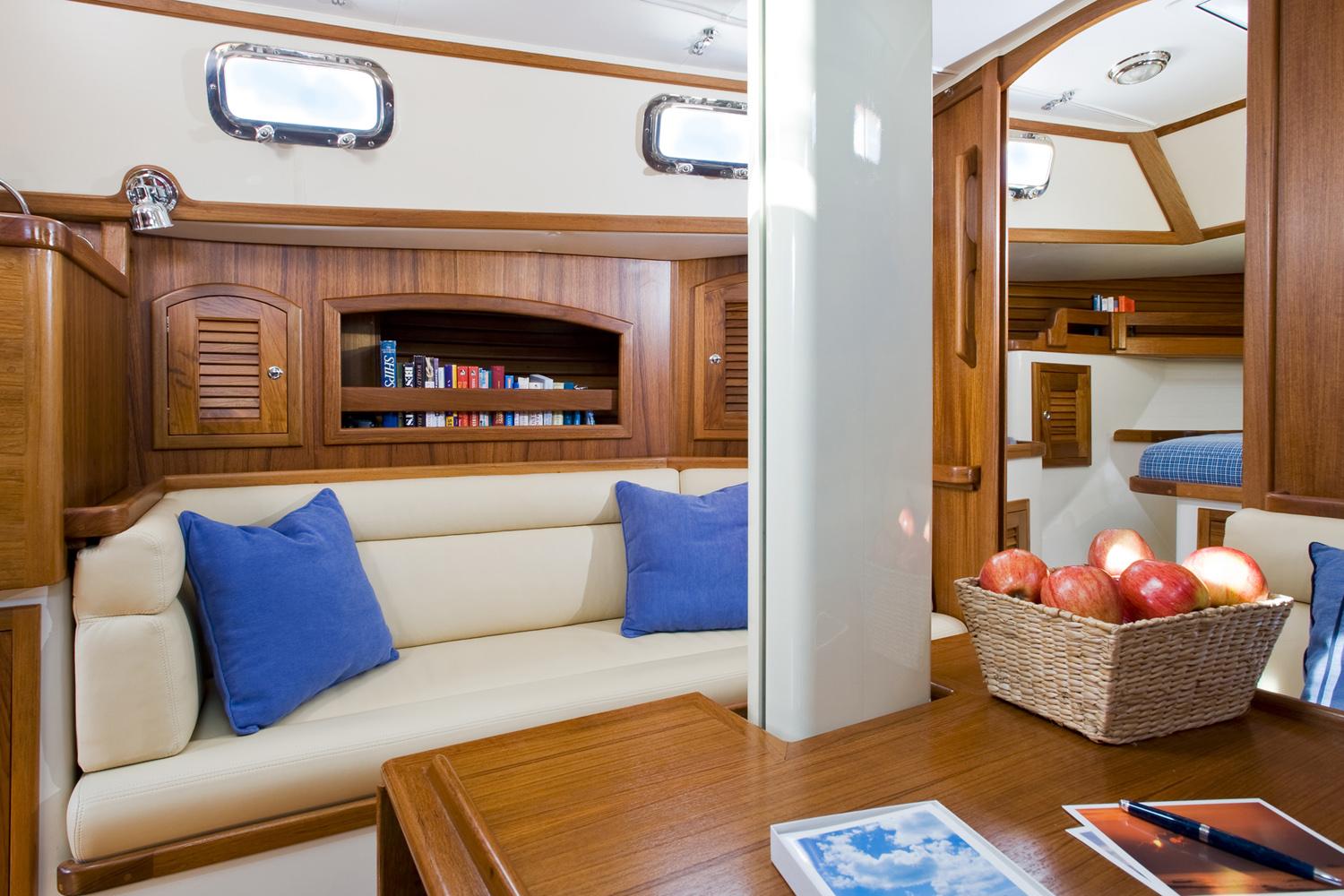

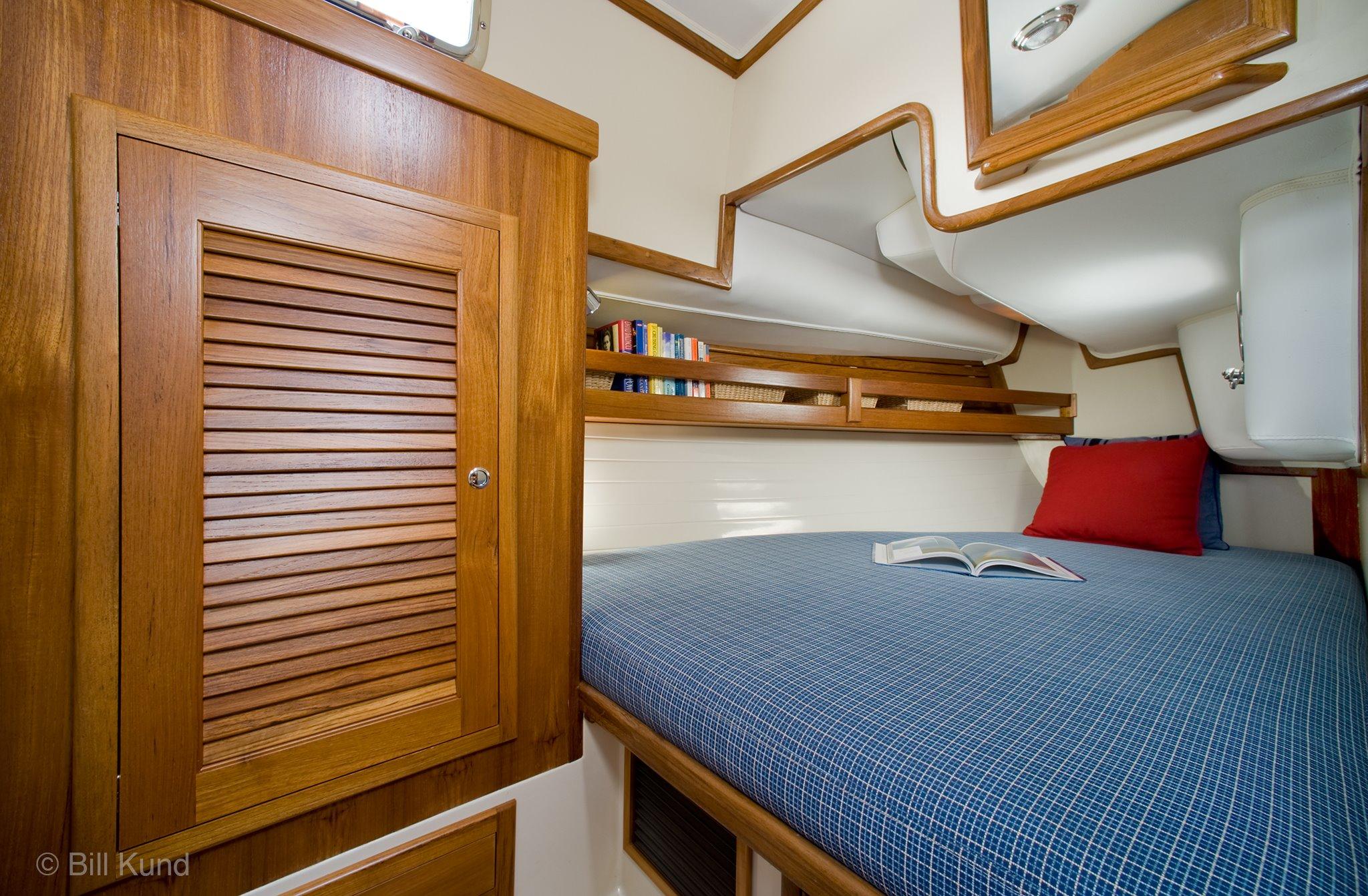

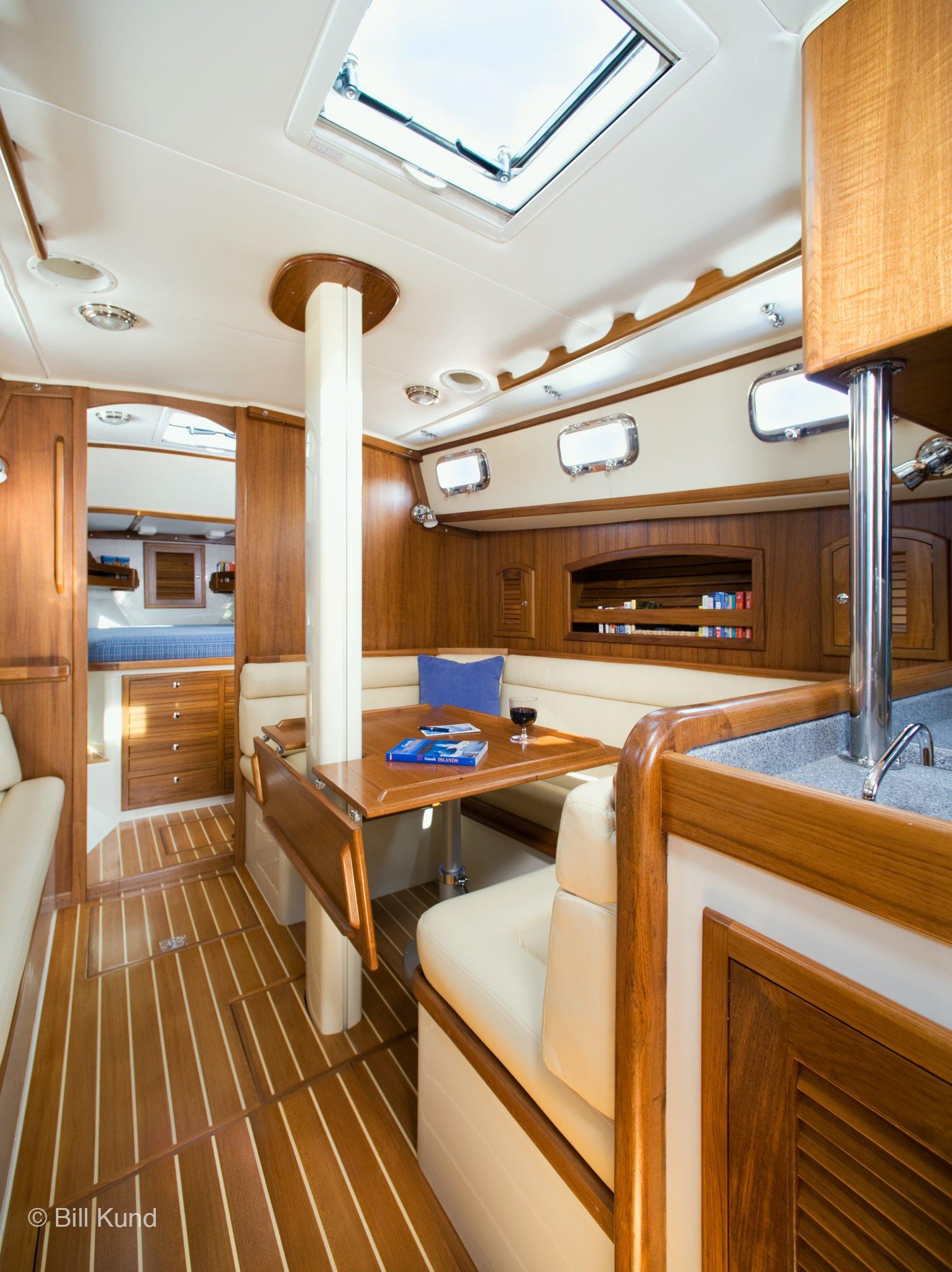

The beautifully handcrafted interior approaches ergonomic perfection. The G-shaped galley supports the cook without having to rely on straps and provides sufficient space to stand clear of any overturning pots. The salon, while feeling open, provides overhead rails and handholds, all within easy reach of each other, to provide security while moving about in a seaway. In fact, every space, from the chart table to the head and separate shower is designed to provide ample space while keeping crew safely contained.

Key Features of This Yacht
Vessel Description
Additional Information
-
Hand laminated with vinylester resins in hull for superior blister resistance (10 year osmosis warranty)
-
Hull reinforced with structural E-glass for added stiffness and impact resistance
-
Standard hull molded in Premium ISO-NPG gel coats, standard color is Oyster White.
-
Contrasting boot & sheer stripes; teak rubbing strake.
-
Hull & deck connection flanges bedded in polyurethane adhesive & fastened with stainless thru-bolts
-
Deck has molded in contrasting non-skid pattern; molded in bulwarks for added safety
-
Stainless steel chain plates & backing plates are double caulked & thru-bolted to hull sides
-
Rudder supported by high strength manganese bronze gudgeon. Steel reinforced skeg
-
Ballast – External one-piece lead casting with 1 inch stainless steel keel bolts.
-
Keel to hull joint bedded in epoxy
-
Interior – structural interior module bonded into hull with structural biaxial E-glass; primary bulkheads bonded into hull and deck with biaxial tabbing.
Yacht Specification
Length
42 ft
Beam
12.5 ft
Manufacturer
Pacific Seacraft
Model
40
Year Of Vessel
2025
Boat Type
sail-cruiser
Fresh Water Tank
122 gal
Fuel Type
Diesel
No. of Fuel Tanks
1
Fuel Capacity
67 gal
Main Engine Model
4JH57
Main Engine Make
Yanmar
Main Engine Horsepower
1 X 57
Other Yachts From Broker
View AllAbout 2025 Pacific Seacraft 40
This 2025 Pacific Seacraft 40 is a premium sail category boat currently located in Bristol, RI, United States. This vessel is designed for efficient sailing. With a beam of 12.5 ft and a fuel capacity of 67 gal gallons, it's an ideal choice for buyers seeking Diesel powered boats with efficient layouts.
