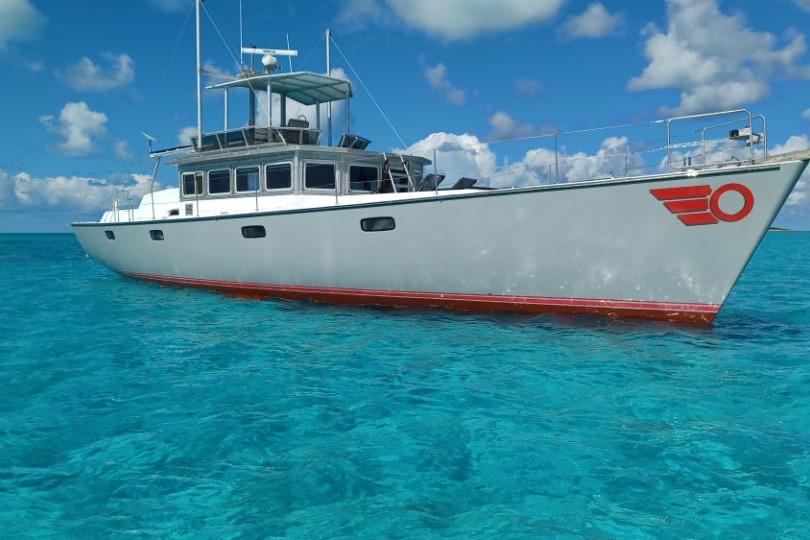

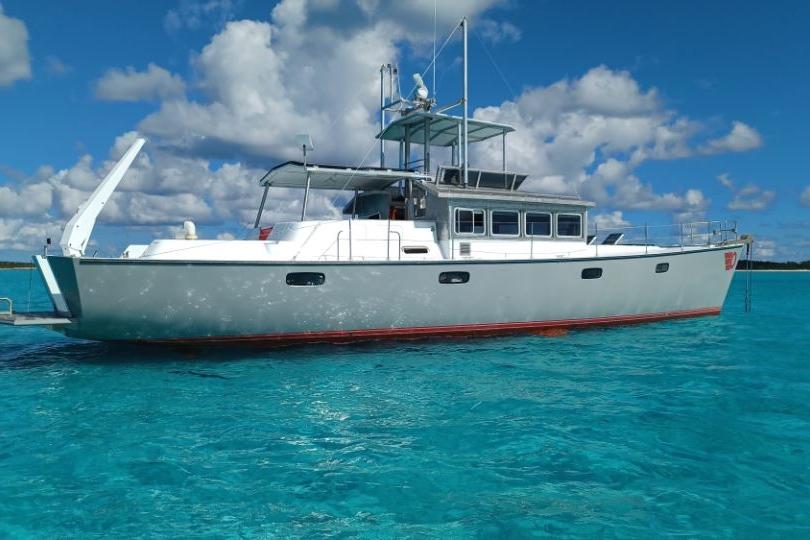

2021 Ocean Voyager 70 | 70ft

Hull, Deck & Superstructure Construction:

• Hull and deck; vinylester resin Divinycell foam core… 1 14” deck… 1 7/8” hull.
• Carbon stringers 6” X 2”.
• Resin infused (scrimp system) hull and deck.
• PPG epoxy and linear polyurethane paint system.

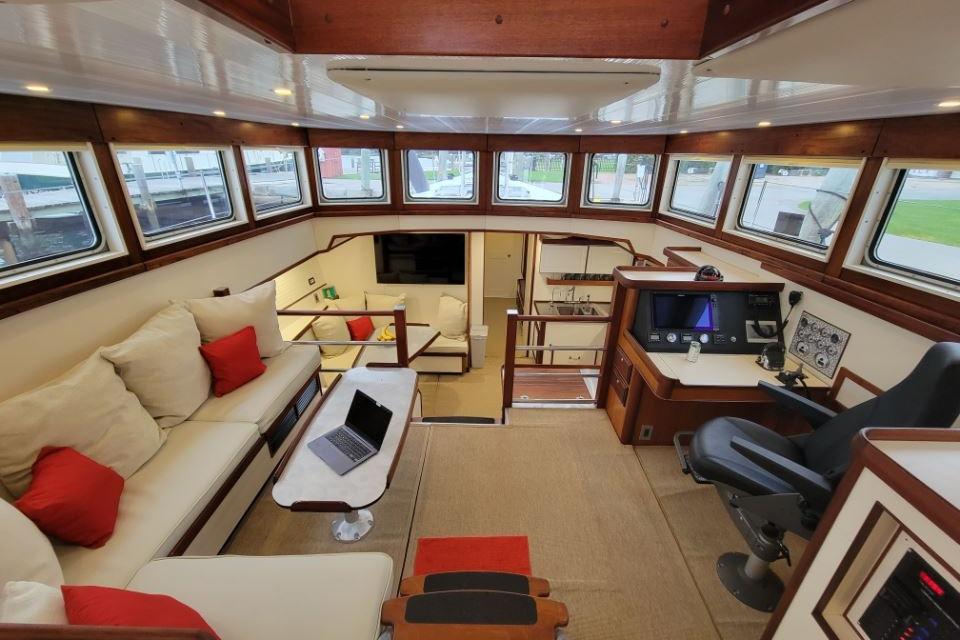

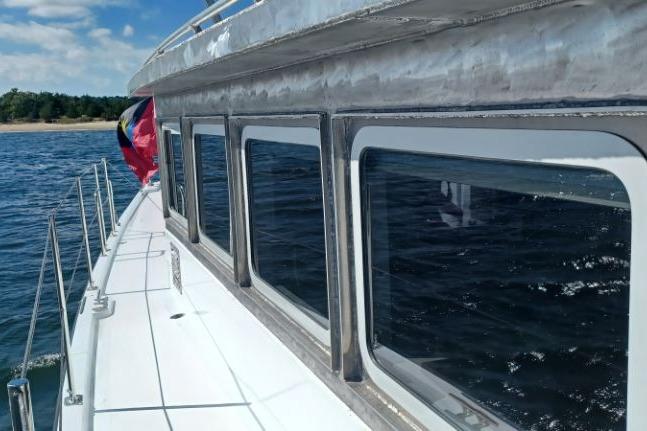

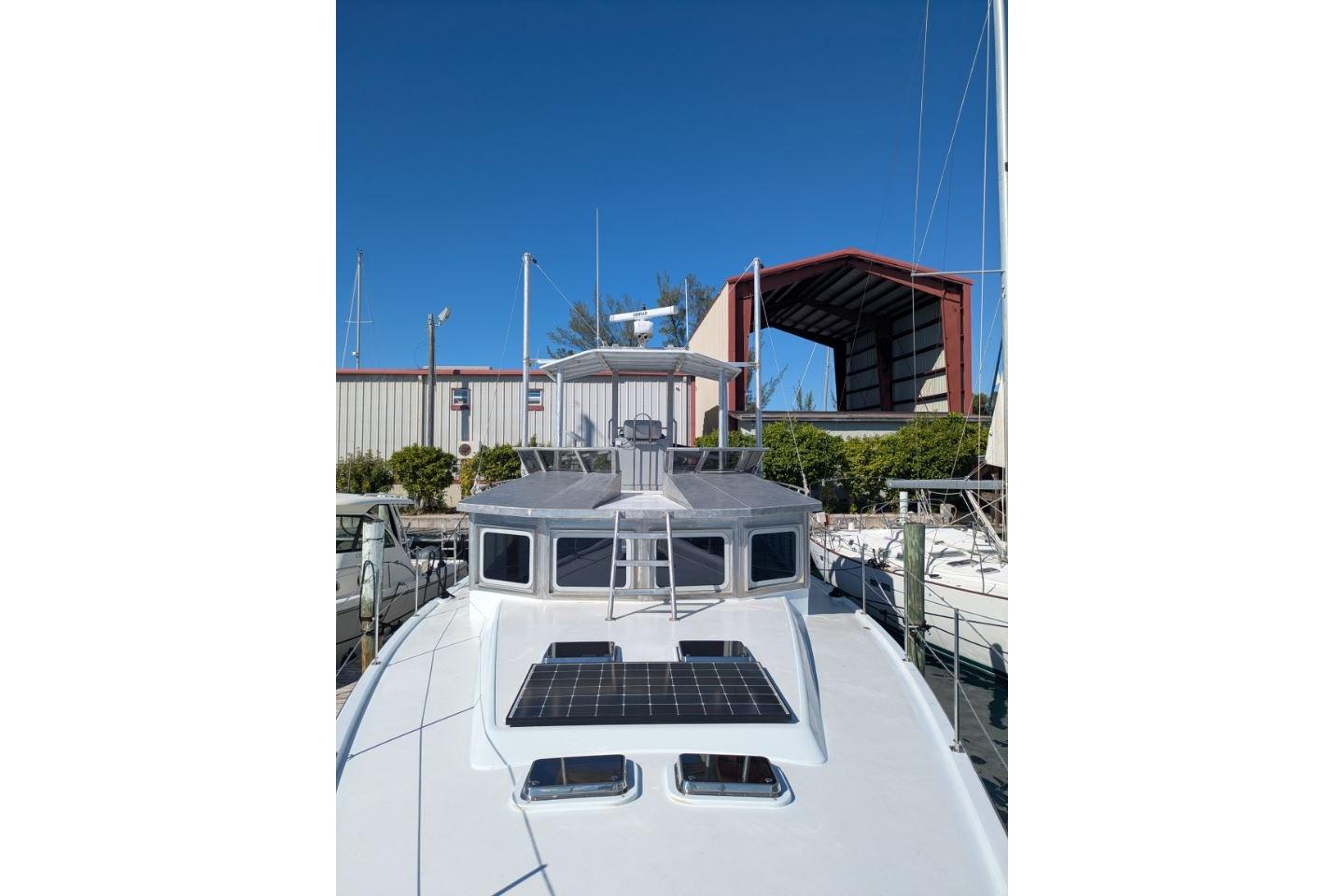

• Aluminium pilothouse, 1/4” plating and framing, spray foam polyurethane insulation.
• Vessel was heavily constructed and insulated for Northern latitude cruising.

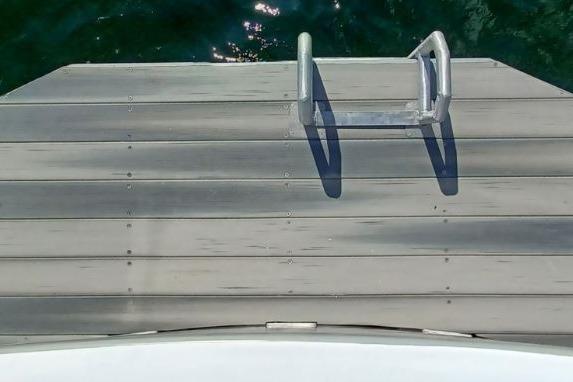

• Aluminium swim-platform with composite deck, swim ladder, and dinghy dock.
• Hard poly rub rail w/ stainless half round.

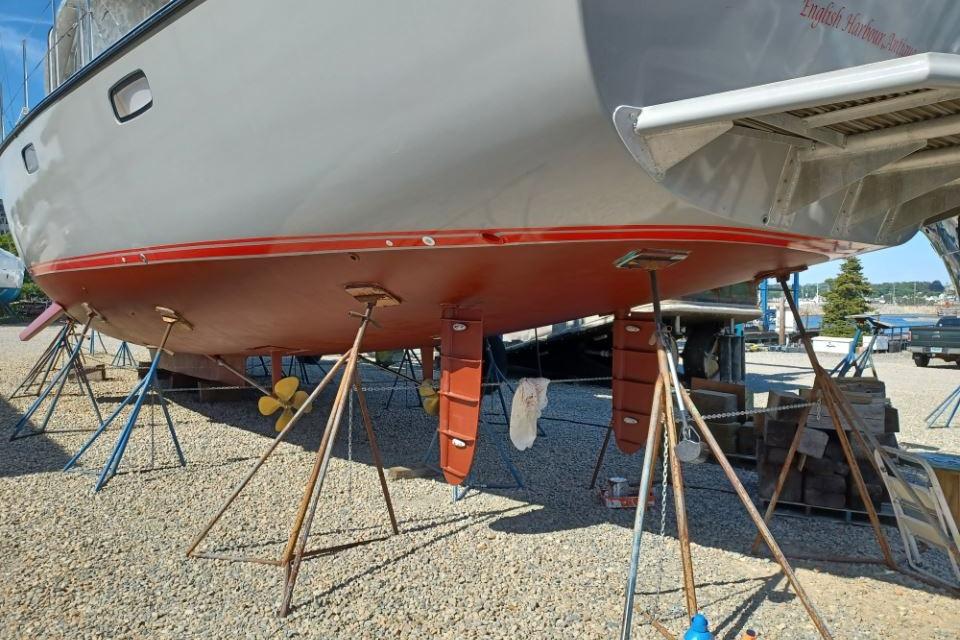

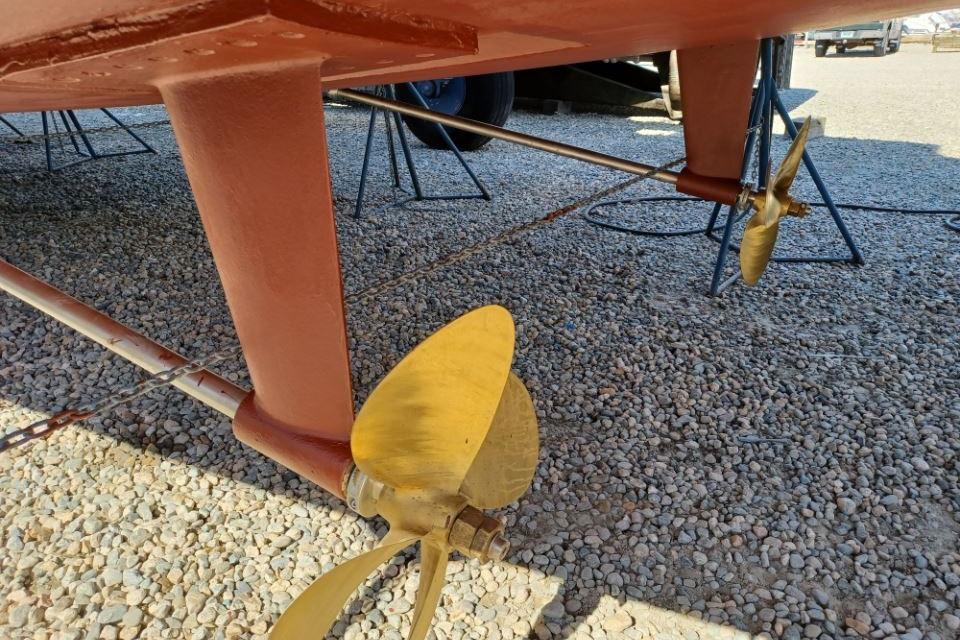

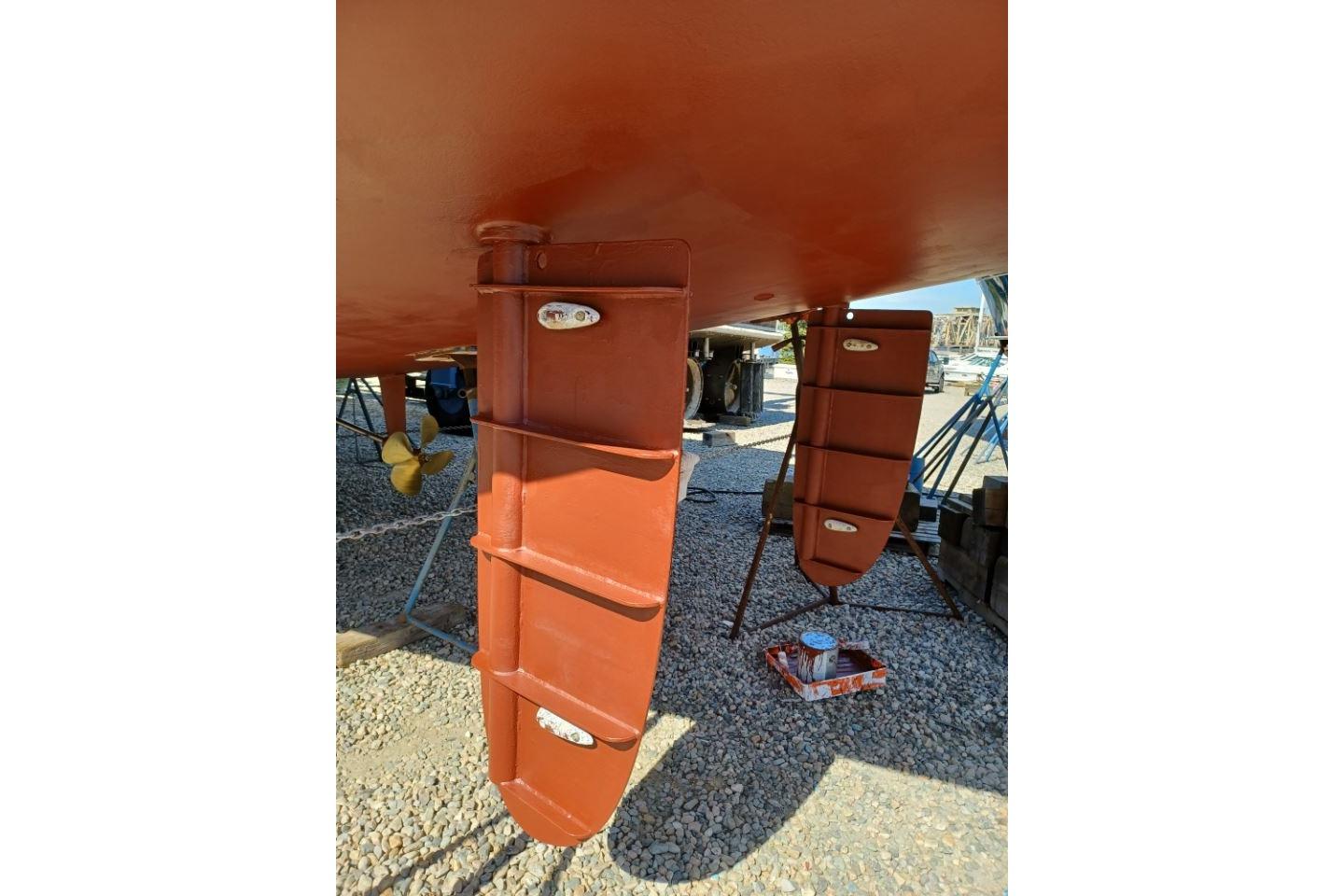

Keel & Rudder:

• 3” solid rudder shafts with Kobelt tiller arms and steering ram and tie-bar (shafting above rudder bearing machined to 2”) double lip shaft seals and heavy upper thrust roller bearing.
• Heavy welded steel plate rudders.
