2022 Squalt Marine CK 70 | 73ft

Hull, Deck & Superstructure Construction:

• The entire construction (planking + frames) of the hulls and superstructures is in aluminium alloy 5083 H111.
• The lined sheet is welded inside and outside (MIG processes) and checked by penetrant testing.
• The stringers, ribs and floors are welded alternately.
• Watertight bulkheads are continuously welded on both sides.
• Integrated diesel and water tanks.
• For non-visible and non-coated surfaces, the welds are not ground. This makes it possible to increase safety in terms of the resistance of the welds under the nacelle subjected to slamming.
• Thermal and sound insulation above the waterline by projected polyurethane foam.
• Reinforced insulation of the engine compartments and the generator compartment: Rock wool plus machine and sound insulation foam plus perforated aluminium protective sheet.
• Mixed International / awl grip process.
• Underwater parts receive the following treatment with epoxy primer + anti-fouling paint: Sanding – degreasing – pickling – 3 to 4 coats of epoxy primer totaling 200 μ – 1 coat of epoxy vinyl of 50 μ – 2 coats of antifouling.
• The topsides receive the following epoxy primer treatment: Sanding – degreasing – pickling – 1 coat of 50 μ epoxy primer – application of epoxy filler – sanding – 1 polyurethane undercoat – 3 polyester urethane finishing coats.
• The deck, on its exposed parts, and in the traffic areas, receives the epoxy paint treatment with the addition of anti-slip.

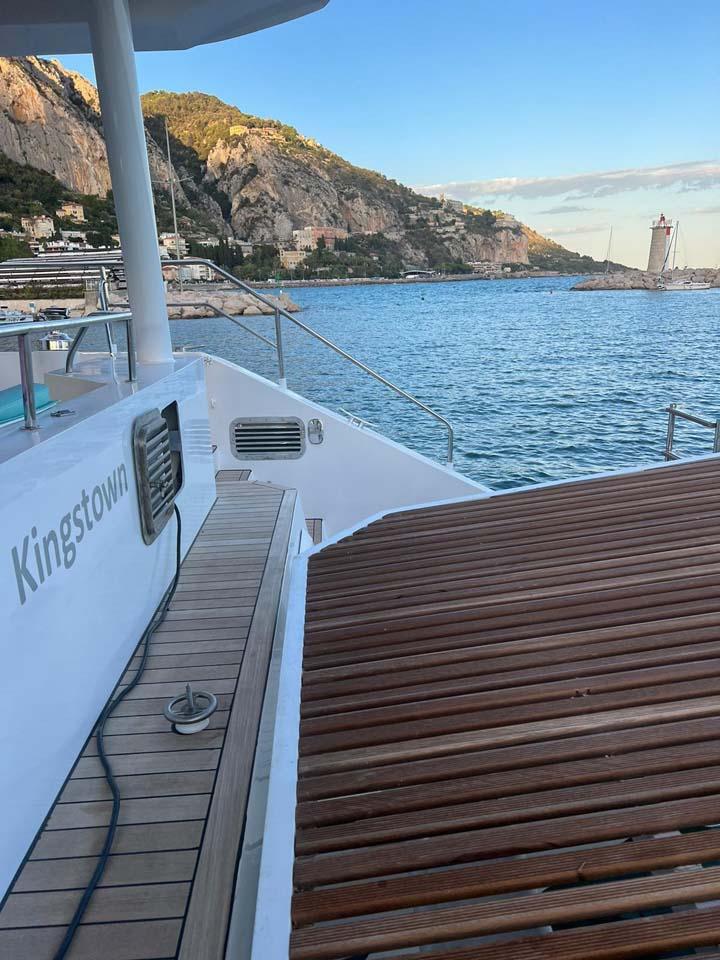

• Rear cockpit, flybridge, skirts and 8mm thick teak steps.

Keel & Rudder:

• Profiled aluminium rudders.
• Aluminium rudder stocks.
• Bar system: Hydraulic transmission Marsili double cylinders.
• Aluminium quillons.
• 2 x Rudders on center plate.
• Rudder tube.
